Rigol MSO5354 350MHz, 4CH Digital Oscilloscope

£2161.00 (£2593.20 inc VAT)

Available on back-order, delivery normally 1 week

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Rigol Availability

Description

Free Software Options Bundle (£540.00 Value)
Purchase any MSO5000 Series Oscilloscope and receive a Software Options Bundle (MSO5000-BND)
Offer Valid Until 30/9/2021

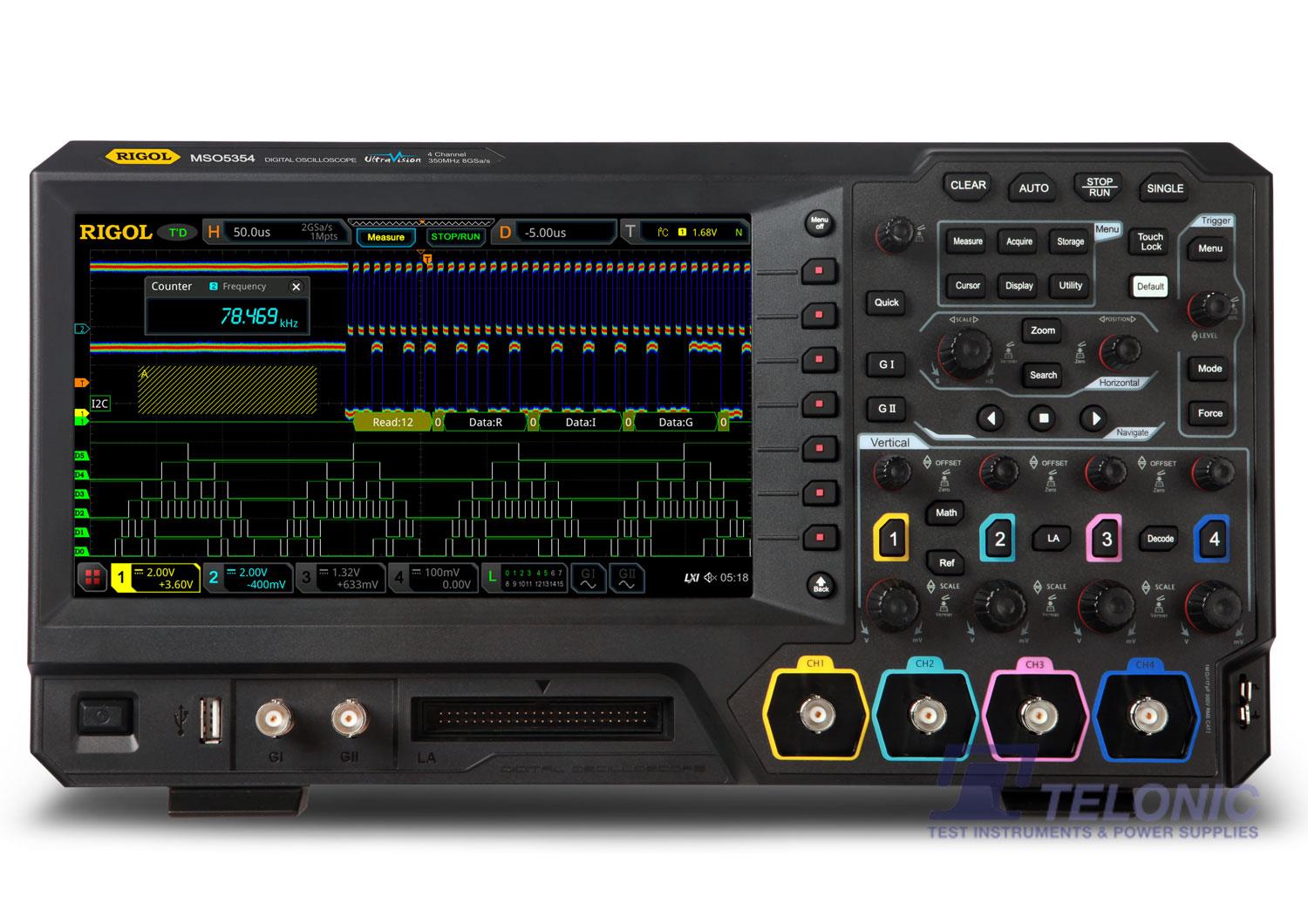

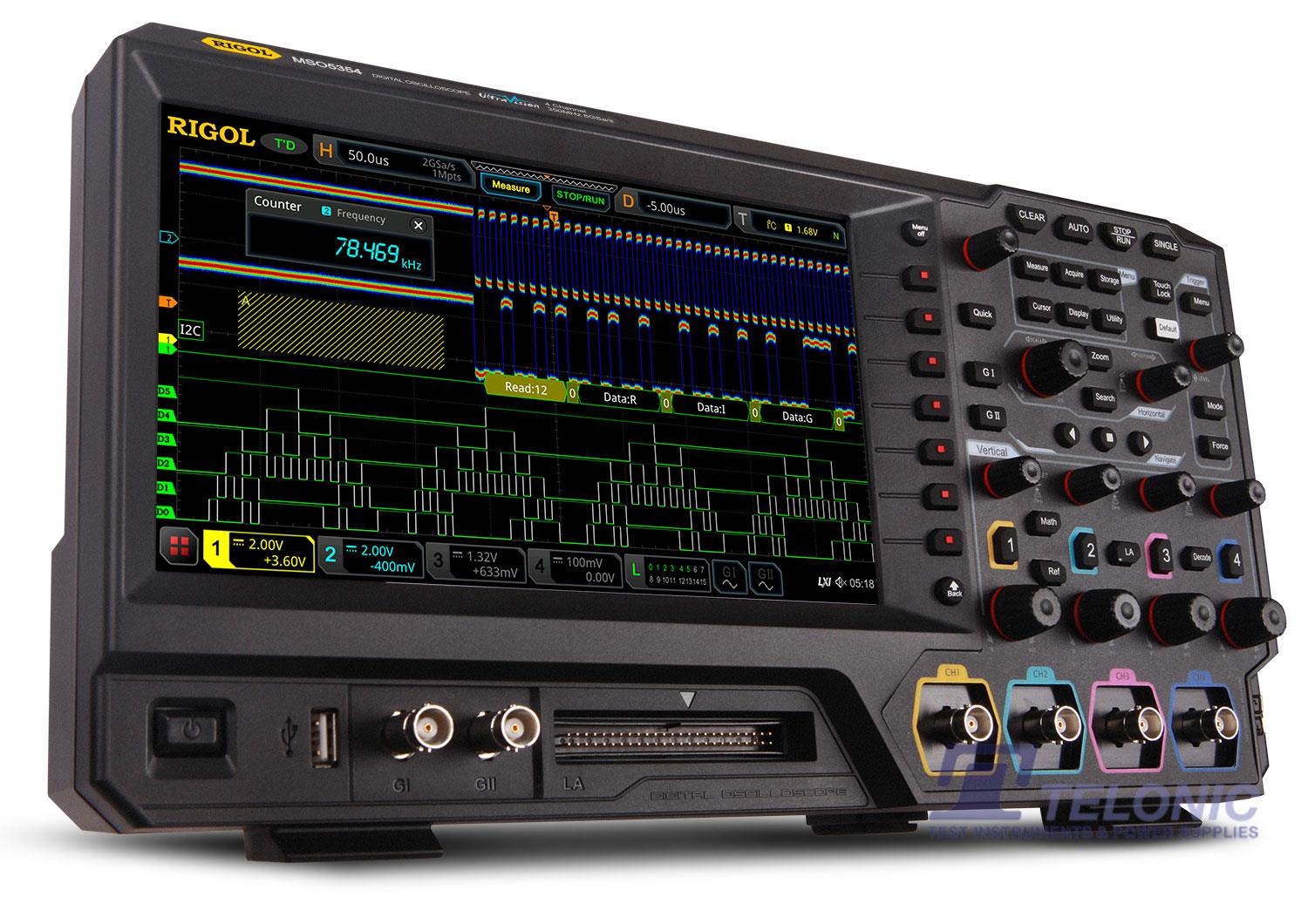

Rigol MSO5354 Digital Oscilloscope

The MSO5354 is a 350MHz, 4CH high-performance Digital Oscilloscope model design based on RIGOL UltraVision II technology. The MSO5000 series integrates 7 independent instruments into one. The MSO5000 series offers a high sample rate / bandwidth ratio, high memory depth, clear 9 inch touch-screen display, excellent waveform capture rate and powerful data analysis functions. Many of its specifications are industry leading. These instruments are expected to be popular for R&D, universities, production , quality control, communications engineering, automotive engineering, aerospace engineering, industrial and power markets.

Features:

  • Analogue bandwidth: 350 MHz; bandwidth upgrade option supported

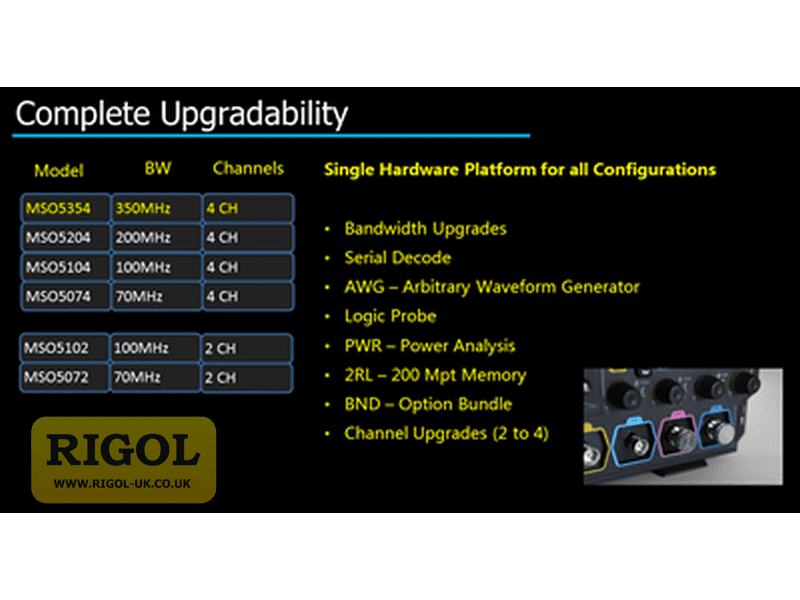

  • 2 or 4 analogue channels (upgradeable), standard 16 digital channels(LA probe required)
  • Up to 8 GSa/s real-time sample rate

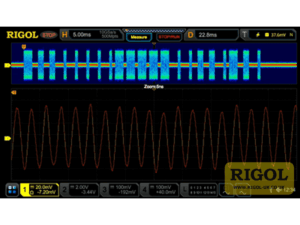

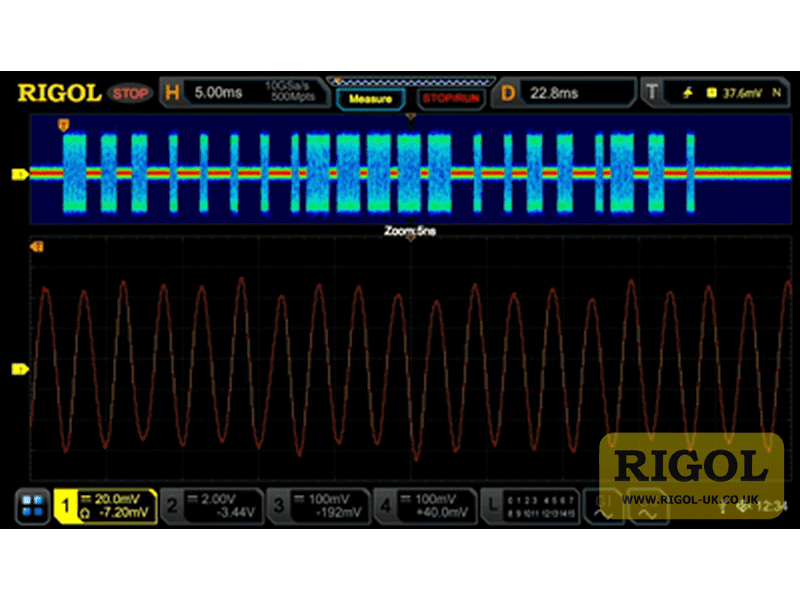

  • Up to 200 Mpts memory depth (option)
  • High waveform capture rate (over 500,000 wfms/s)
  • Auto measurement of 41 waveform parameters; full-memory hardware measurement function

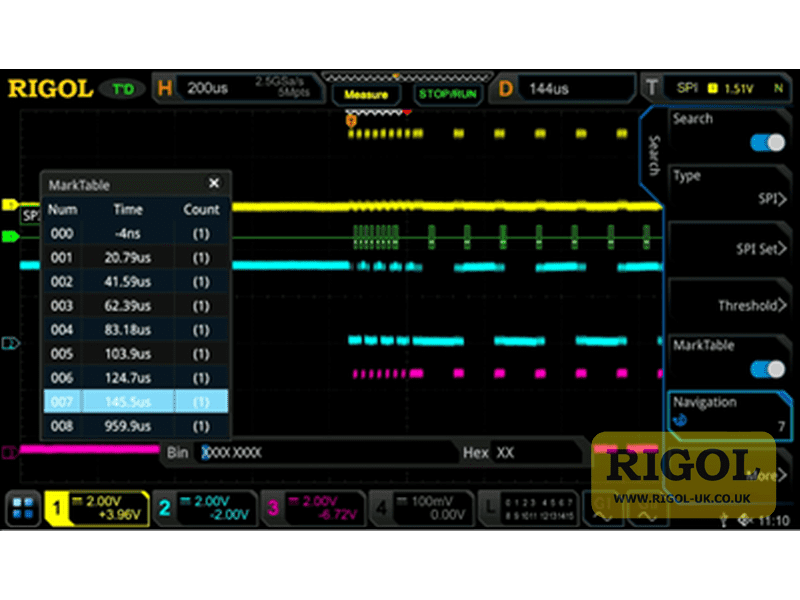

  • A variety of serial protocol triggers and decodes
  • NEW Bode Plot Analysis – Automate advanced device characterisation with new phase and gain analysis capabilities
  • Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
  • Independent search, navigation keys, and event table

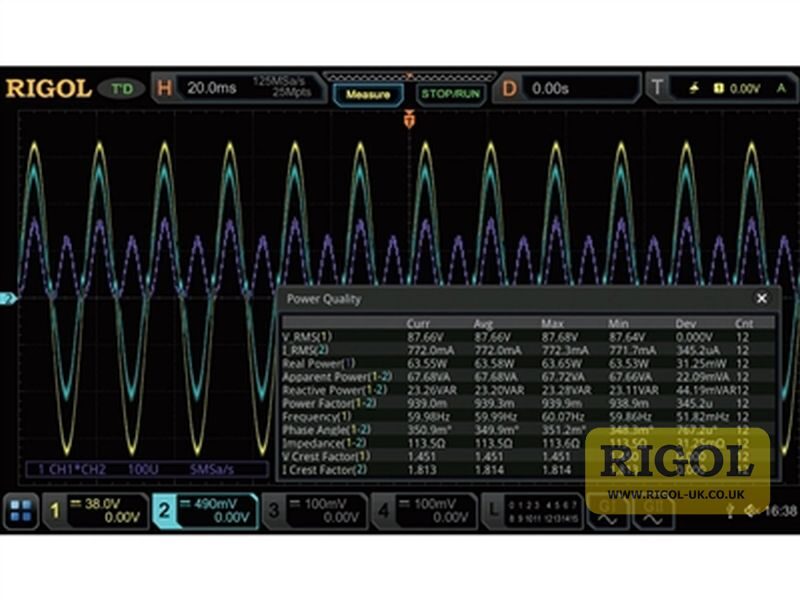

  • Built-in advanced power analysis software (option)
  • Integrates 7 independent instruments into 1, including a digital oscilloscope, a logic analyser, a spectrum analyser, an arbitrary waveform generator, a digital voltmeter, a frequency counter and totaliser, and a protocol analyser
  • 9-inch capacitive multi-touch screen, 256-level intensity grading display, with colour persistence

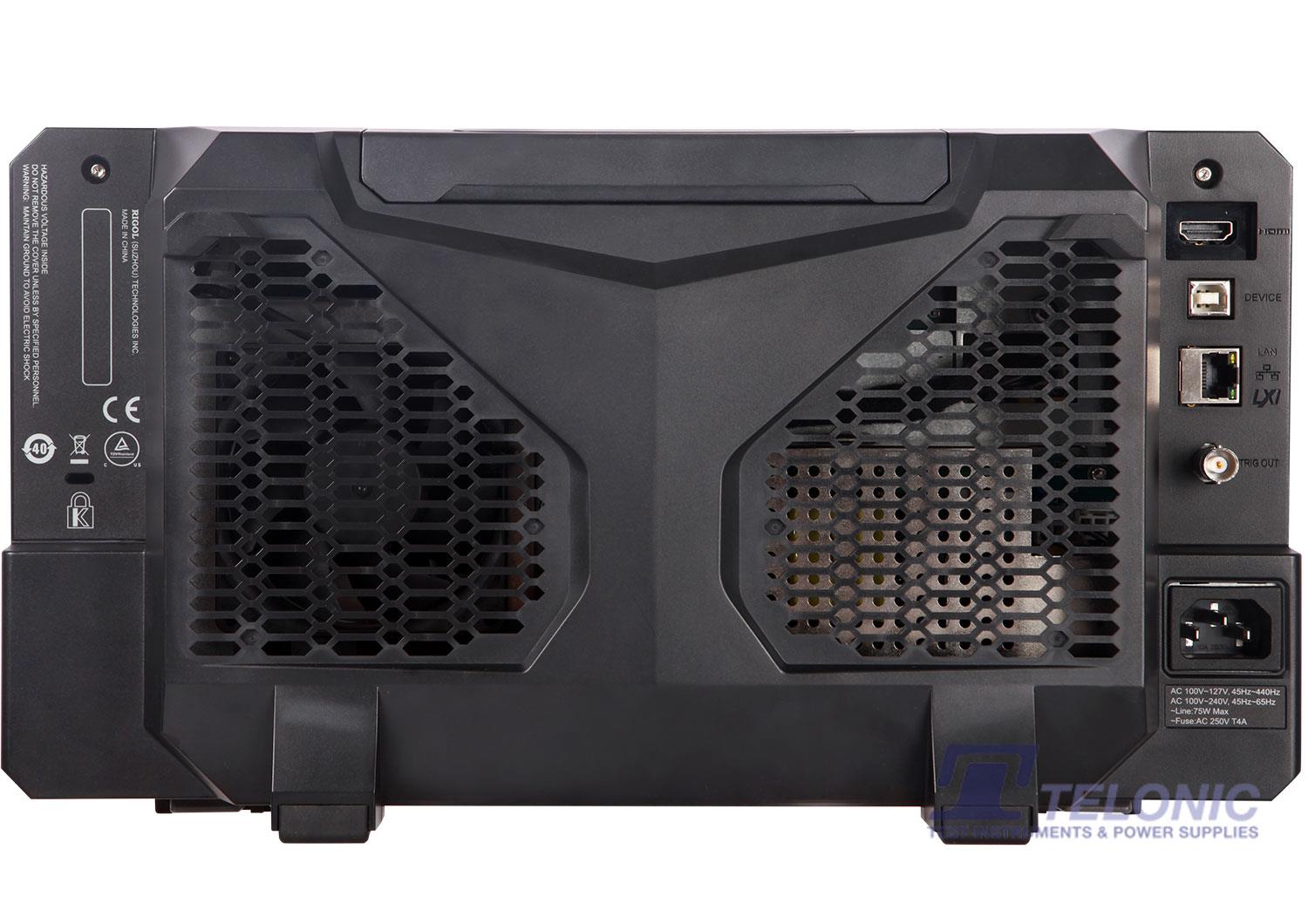

  • Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
  • Web Control remote command
  • Unique online version upgrade
  • Novel and delicate industrial design, easy to operate
  • Supplied with… 4-off passive probes (500MHz), USB cable, UK & European mains leads, quick guide

Product Videos

RIGOL's MSO5000 Series Digital Oscilloscope
Intro of the MSO5000 Logic Analyser
Performing Protocol Analysis with the MSO5000

Documentation

Datasheets

Digital Oscilloscope MSO5000 Series
