The MSO4022 is a versatile, high performance digital oscilloscope with built-in logic analyser. It offers a variety of trigger functions and auto measurements, record / playback / analysis functions, selectable 50Ã¢â€žÂ¦ input impedance and VGA output all as standard. Other standard features include a waveform capture rate up to 110,000wfms/s and a large 9″ WVGA display with 256 intensity level grading. The MSO4022 is a flexible and powerful instrument at a very competitive price.
For further information, please refer to the ‘SPECIFICATION’ and ‘DOCUMENTS, SOFTWARE & VIDEOS’ tabs, above.
An overview of all Rigol mixed signal oscilloscopes can be found HERE.

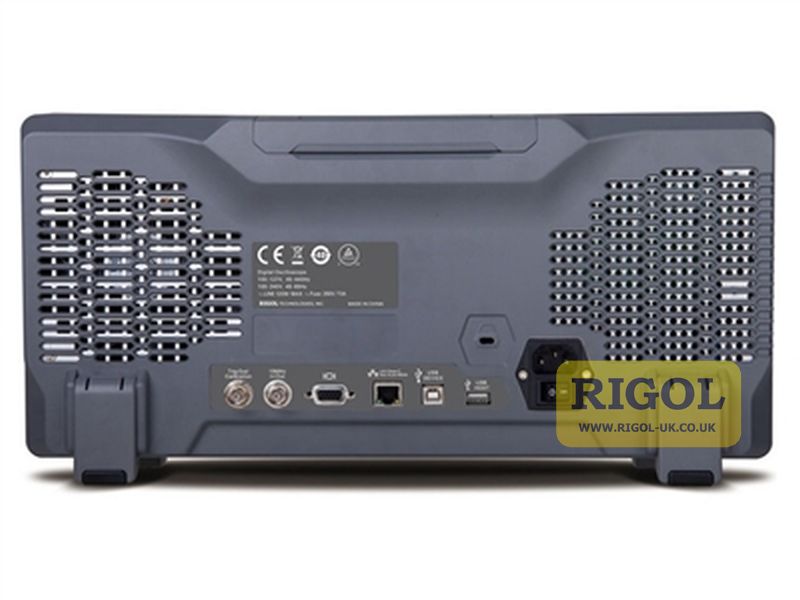

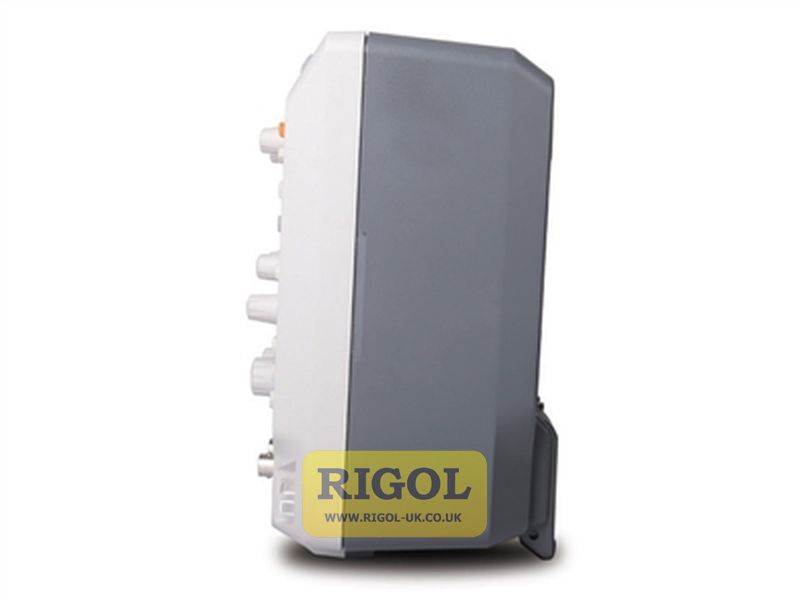

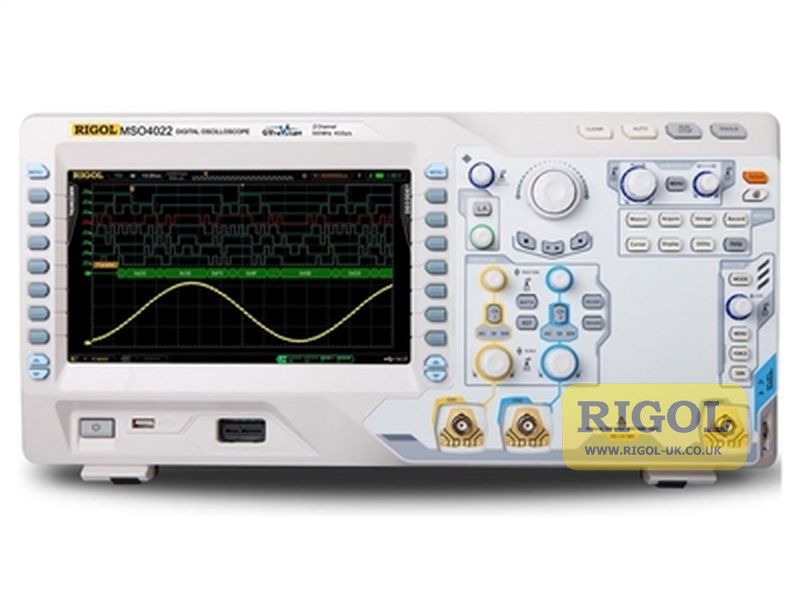

Click image to enlarge
