Sale!

Rigol MSO2302A 300MHz Mixed Signal Oscilloscope

£794.00 (£952.80 inc VAT)

FREE Software Options Bundle

Available on back-order, delivery normally 1 week

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Rigol Availability

Description


Free Software Options Bundle (£215.00 Value)
Purchase any DS/MSO2000A Series Oscilloscope and receive a Software Options Bundle!

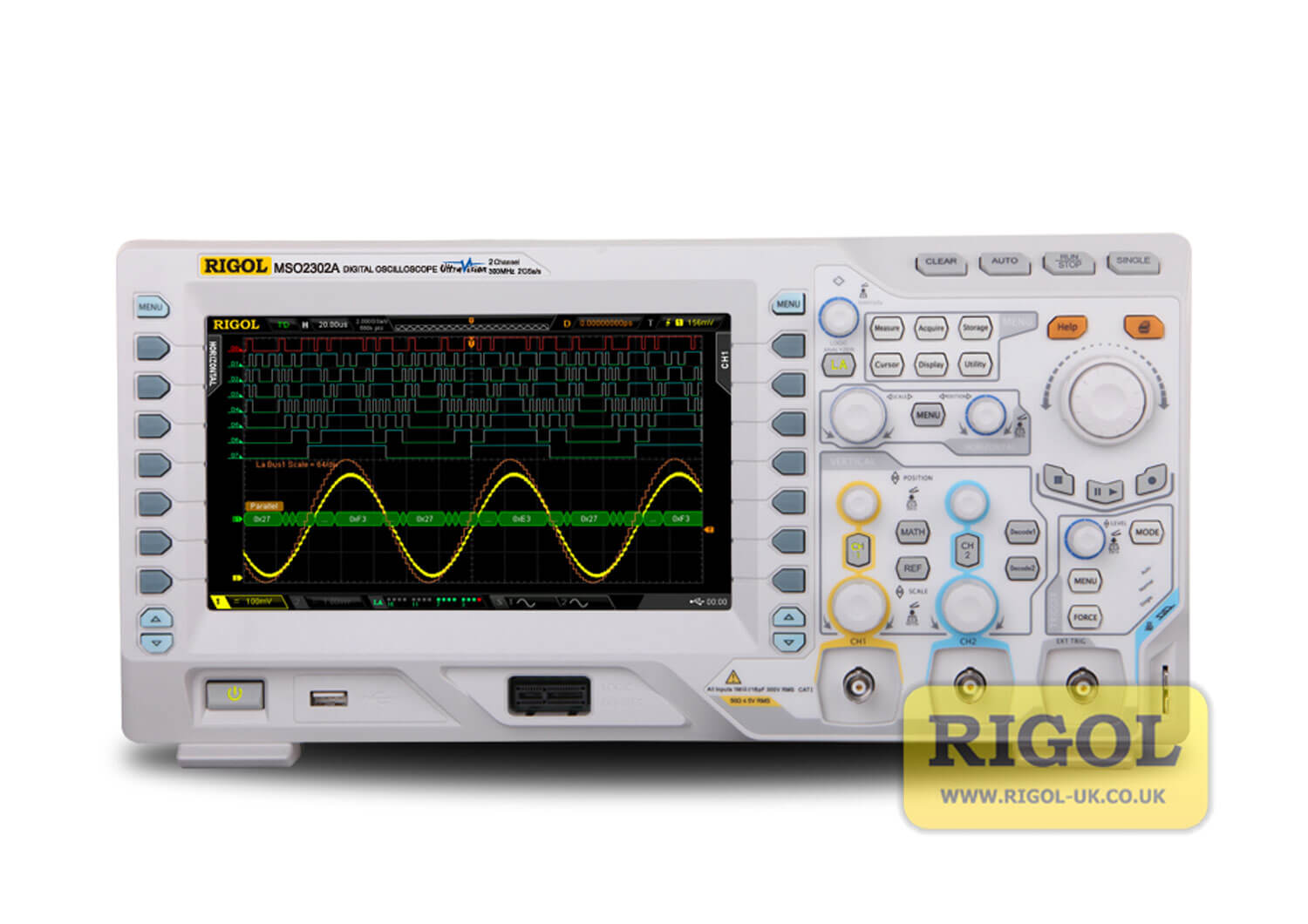

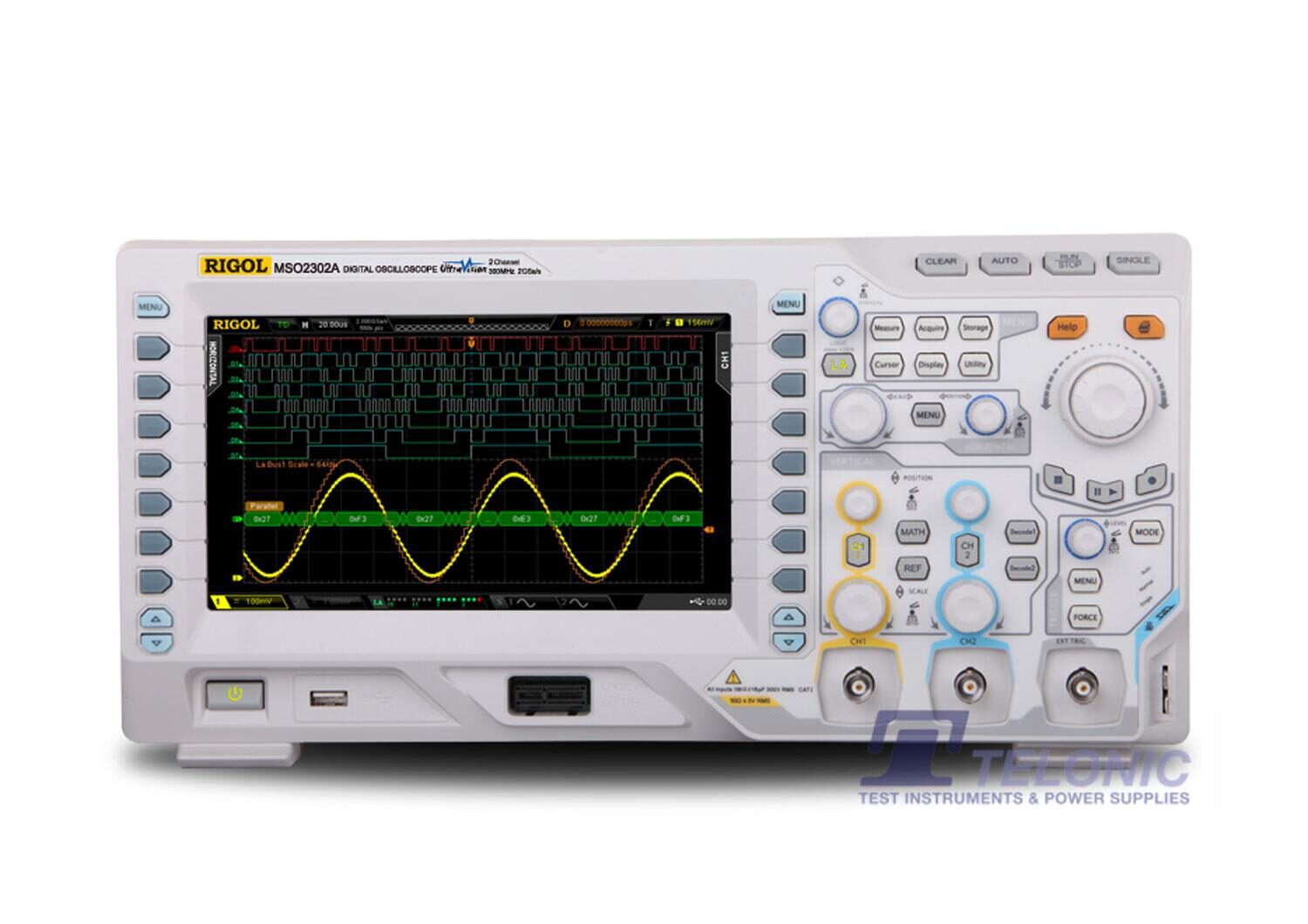

Rigol MSO2302A Digital Oscilloscope

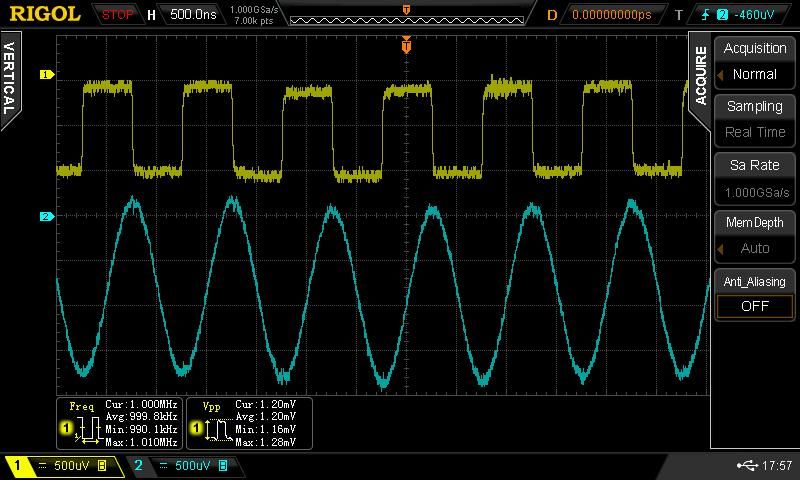

The Rigol MSO2302A is a 300MHz, 2GSa/s, 2CH digital oscilloscope with built-in logic analyser offers a lower noise floor (vertical scale down to 500μV/div), selectable 50Ω input impedance and record/playback/analysis all as standard. Other standard features include a waveform capture rate up to 50,000wfms/s and a 8″ WVGA display with 256 intensity level grading. The MSO2302A enables engineers to capture lengthy signal streams whilst retaining outstanding t-axis resolution.

Features:

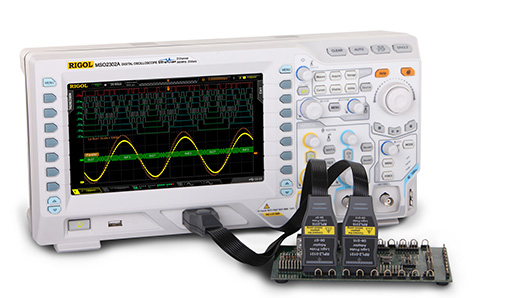

  • 300MHz bandwidth, 2 channel digital oscilloscope with built-in logic analyser
  • Maximum sample rate 2GSa/s
  • Vertical scale 500μV/div to 10V/div
  • Selectable 50Ω input impedance
  • Memory depth up to 56Mpts
  • Innovative “UltraVision” technology
  • Up to 50,000wfms/s waveform capture rate
  • Up to 65,000 frames real-time waveform record, replay & analysis functions
  • 8″ WVGA (800×480) TFT LCD display, 256 intensity grading levels
  • Up to 17-off trigger functions, including various protocol triggers
  • Auto measurement of 29 waveform parameters, with statistics
  • Built-in FFT with a choice of window functions
  • Pass/fail test function
  • Various waveform math functions
  • Supports internal and external storage of instrument settings, waveforms, screen images and parameters
  • PictBridge printer support
  • Built-in help facility
  • Connectivity: USB Host & Device, LAN(LXI), AUX Output, (USB-GPIB, optional)
  • Supplied with… 2-off passive probes (350MHz), 1-off logic analyser probe set, USB cable, UK & European mains leads, quick guide

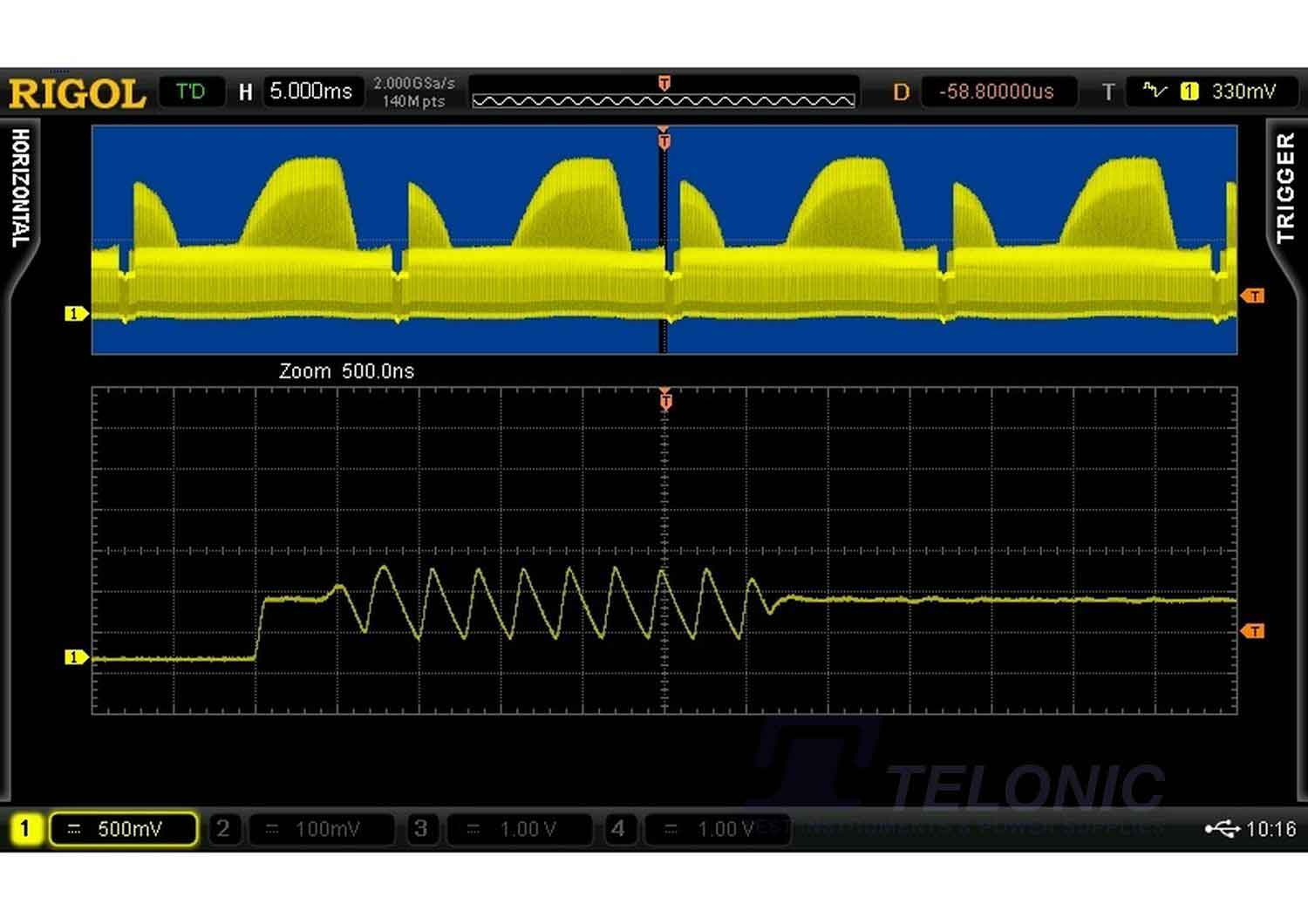

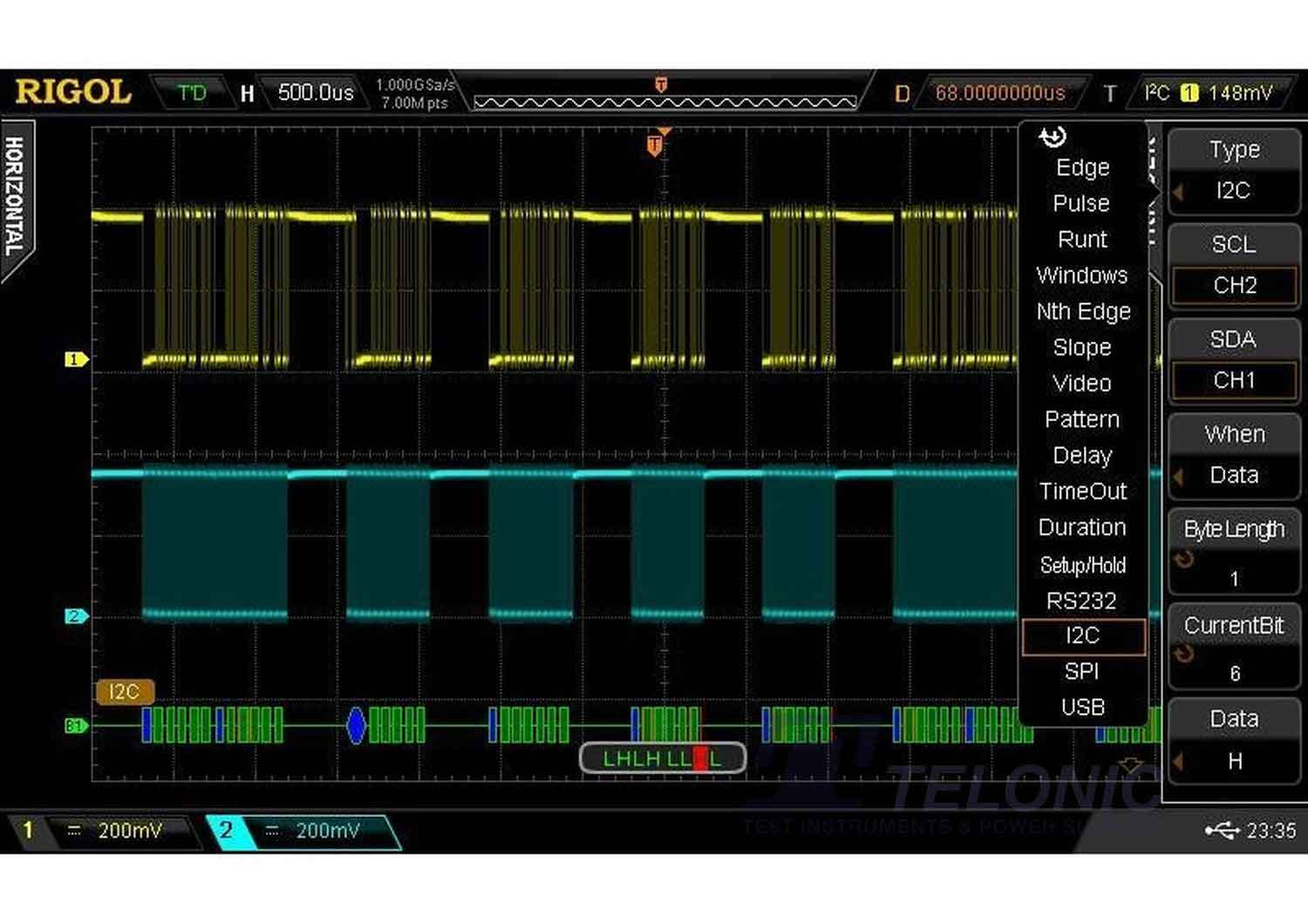

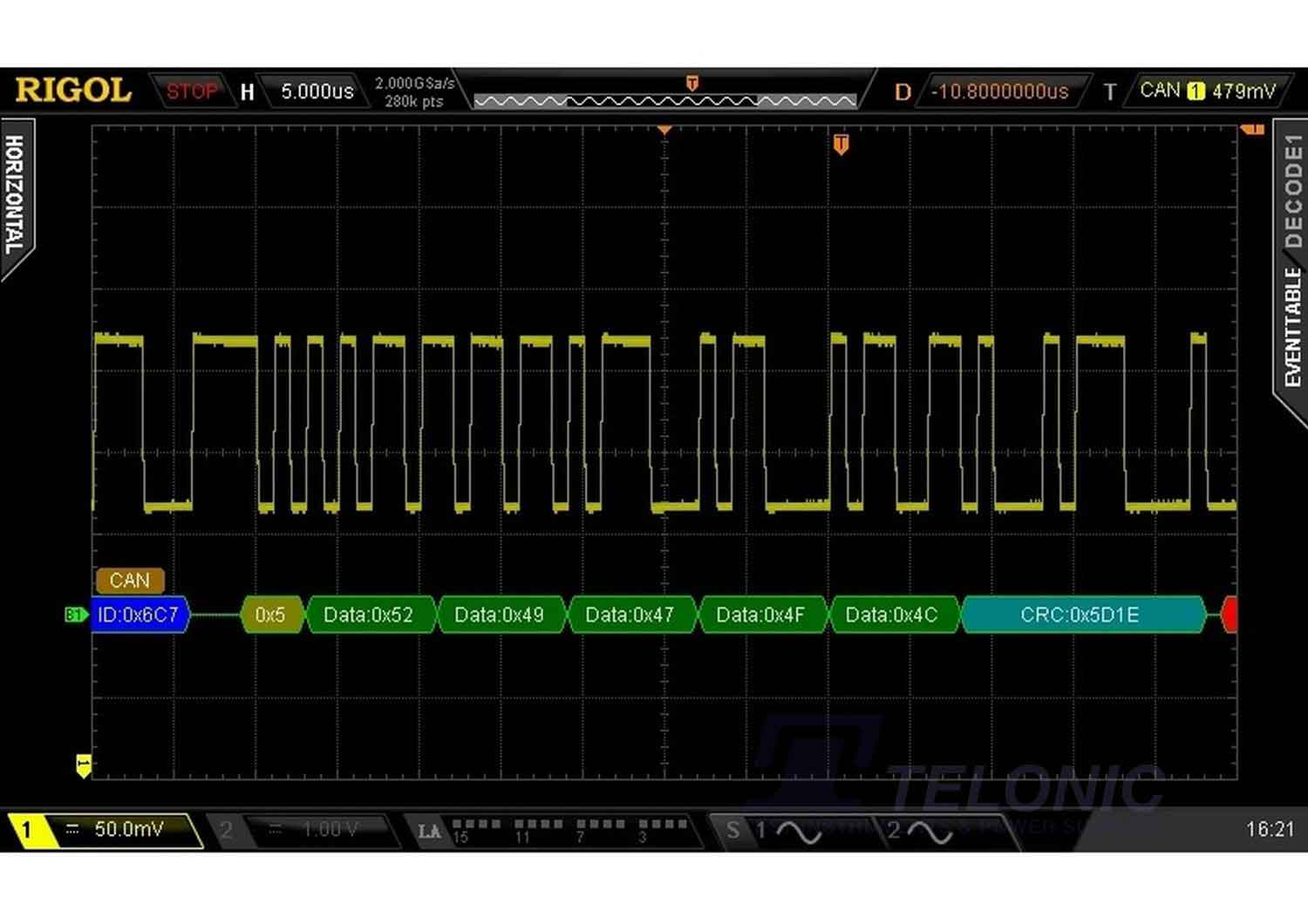

  • Options include… Deeper memory, advanced trigger functions, RS232/I2C/SPI decoding, CAN-bus analysis, software options bundle, high-voltage probes, high-voltage differential probes, current probes, rack mount kit, soft carry bag, Telonic Standard Calibration (traceable to UK national standards) and RCL 17025 Calibration.

Documentation

Datasheets

Digital Oscilloscope MSO/DS2000A Series
