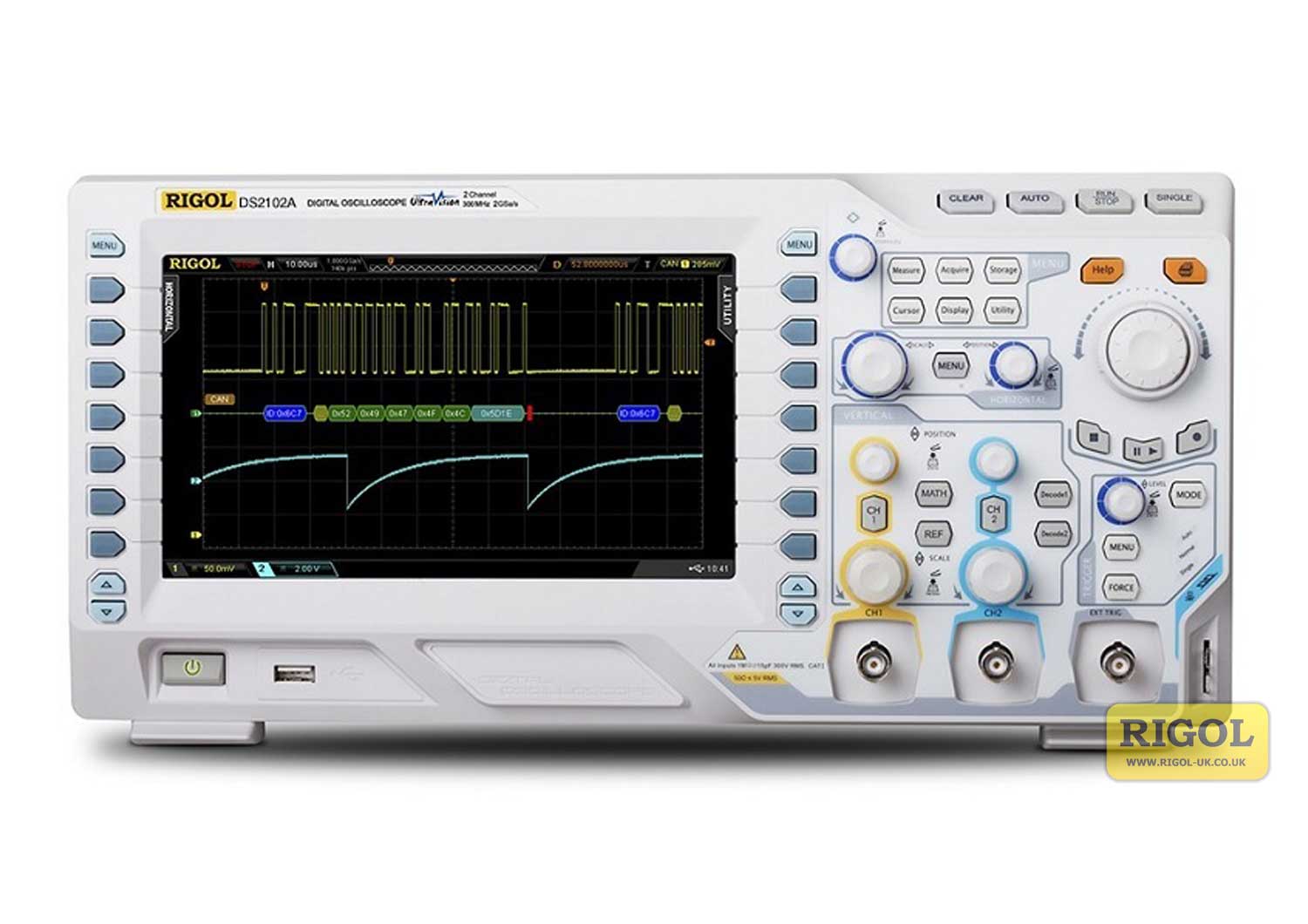

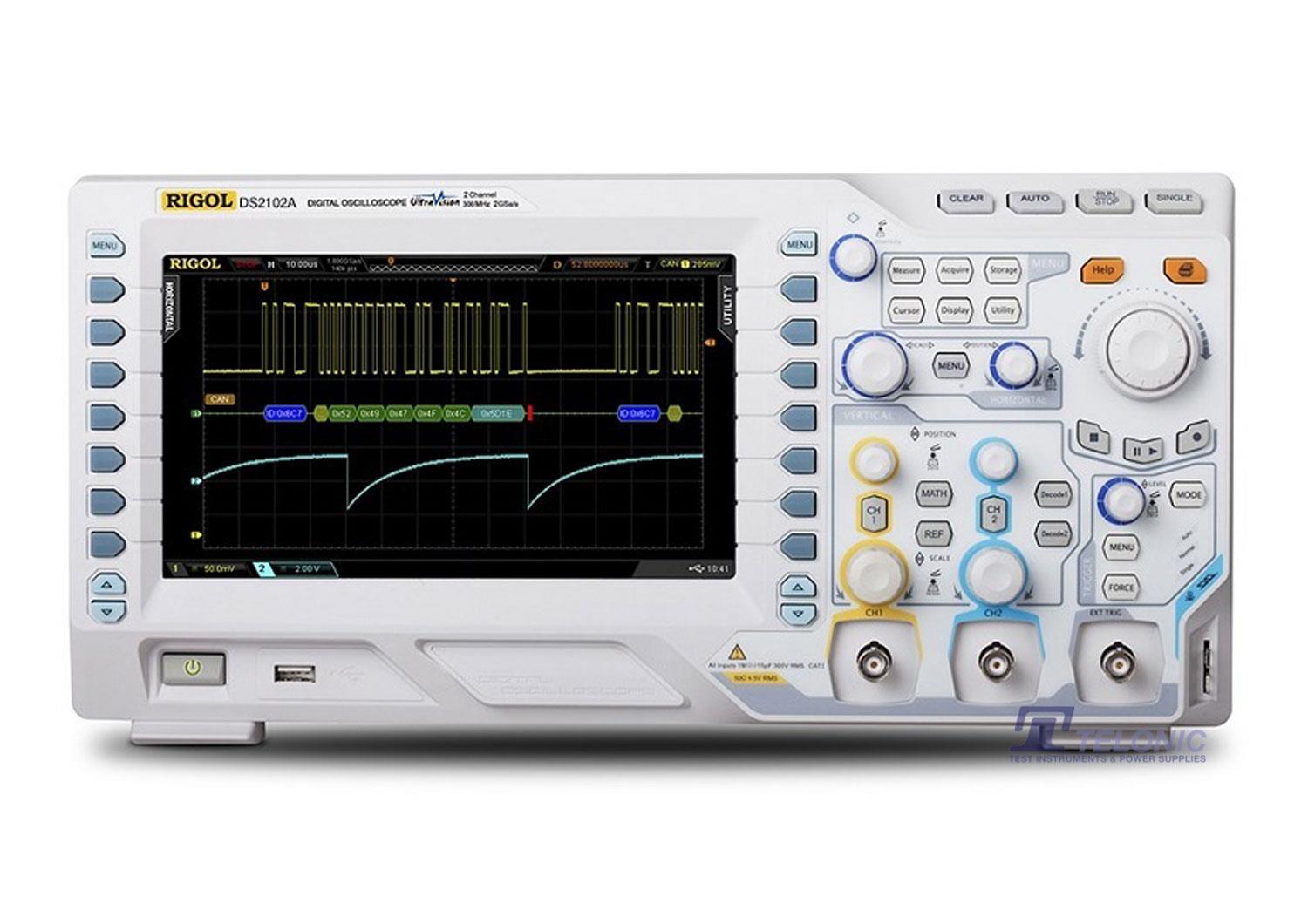

Rigol DS2102A 100MHz Digital Oscilloscope

(2 customer reviews)

Original price was: £494.00.Current price is: £421.00. (£505.20 inc VAT)

2 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Free Shipping Price Match Guarantee


Free Software Options Bundle (£215.00 Value)
Purchase any DS/MSO2000A Series Oscilloscope and receive a Software Options Bundle!

Rigol DS2102A Digital Oscilloscope

The Rigol DS2102A is a 100MHz, 2CH, 2GSa/s multi-functional high performance digital oscilloscope. Standard features include – Sensitivity down to 500μV/div, record, replay & analysis functions, selectable 50Ω input impedance and 8″ WVGA display with 256 grading levels. Furthermore, it possesses a variety of trigger functions, decoding functions, connectivity options, mathematical operations including FFT, automatic waveform measurement parameters with statistics, a pass / fail test and a built-in help system. A two channel 25MHz function / arbitrary waveform generator is included on ‘-S’ models. The Rigol DS2102A is a versatile instrument that offers useful performance and features at a very competitive price.


  • 100MHz bandwidth, 2 channels
  • Maximum sample rate 2GSa/s
  • Vertical scale 500μV/div to 10V/div
  • Selectable 50Ω input impedance
  • Memory depth up to 56Mpts
  • Innovative “UltraVision” technology
  • Up to 50,000wfms/s waveform capture rate
  • Up to 65,000 frames real-time waveform record, replay & analysis functions
  • 8″ WVGA (800×480) TFT LCD display, 256 intensity grading levels
  • Up to 17-off trigger functions, including various protocol triggers
  • Auto measurement of 29 waveform parameters, with statistics
  • Built-in FFT with a choice of window functions
  • Pass/fail test function
  • Various waveform math functions
  • Supports internal and external storage of instrument settings, waveforms, screen images and parameters
  • PictBridge printer support
  • Built-in help facility

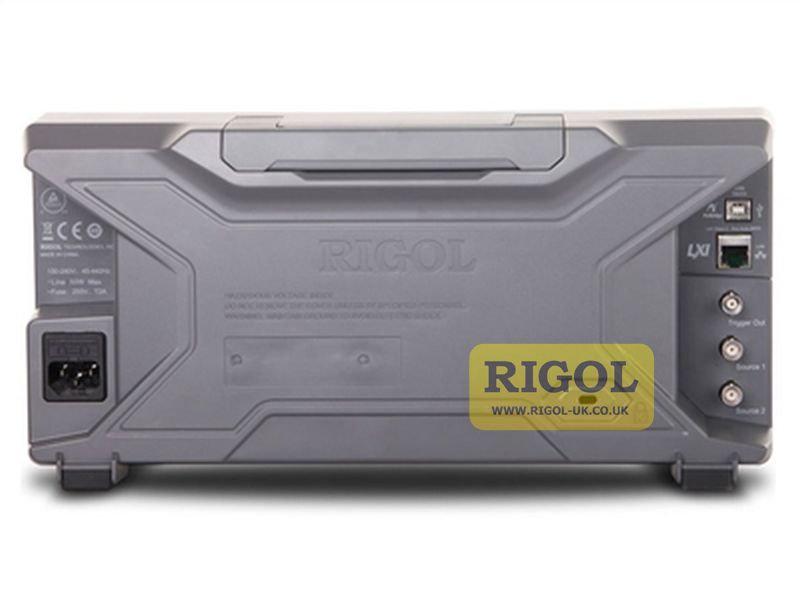

  • Connectivity: USB Host & Device, LAN(LXI), AUX Output, (USB-GPIB, optional)
  • Supplied with… 2-off passive probes (350MHz), USB cable, UK & European mains leads, quick guide
  • Options include… Deeper memory, advanced trigger functions, RS232/I2C/SPI decoding, CAN-bus analysis, software options bundle, high-voltage probes, high-voltage differential probes, current probes, rack mount kit, soft carry bag, Telonic Standard Calibration (traceable to UK national standards) and RCL 17025 Calibration.

Product Videos


Sample Mode Real-Time Sample
Real-time Sample
Analogue channel: 2 GSa/s (single-channel), 1 Gsa/s (dual-channel)
Digital channel: 1 GSa/s (8-channel), 500 MSa/s (16-channel)
Peak Detect Analogue channel: 500 ps (single-channel), 1 ns (dual-channel)
Digital channel: 1 ns (8-channel), 2 ns (16-channel)
Averaging After all the channels finish N samples at the same time, N can be 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024, 2048,
4096 or 8192.
High Resolution 12 bits of resolution when ≥5 μs/div @ 1 GSa/s (or ≥10 μs/div @ 500 MSa/s).
Minimum Detectable
Pulse Width
Digital channel: 5 ns
Memory Depth Analogue channel:
Single-channel: Auto, 14 kpts, 140 kpts, 1.4 Mpts, 14 Mpts and 56 Mpts (optional) are available
Dual-channel: Auto, 7 kpts, 70 kpts, 700 kpts, 7 Mpts and 28 Mpts (optional) are available
Digital channel:
14 Mpts (8-channel), 7 Mpts (16-channel) standard; 28 Mpts (8-channel), 14 Mpts (16-channel) optional
Number of Channels MSO2XX2A/2XX2A-S: 2 analogue channels+16 digital channels
DS2XX2A: 2 analogue channels
Input Coupling DC, AC or GND
Input Impedance Analogue channel: (1 MΩ±1%) || (16 pF±3 pF) or 50 Ω±1.5%
Digital channel: (101 kΩ±1%) || (9 pF±1 pF)
Probe Attenuation
Analogue channel: 0.01X to 1000X, in 1-2-5 step
Maximum Input
Voltage (1 MΩ)
Analogue channel: CAT I 300 Vrms, CAT II 100 Vrms, transient overvoltage 1000 Vpk
Digital channel: CAT I 40 Vrms, transient overvoltage 800 Vpk
Time Base Scale MSO2302A/2302A-S/DS2302A: 1.000 ns/div to 1.000 ks/div
MSO2202A/2202A-S/DS2202A: 2.000 ns/div to 1.000 ks/div
MSO2102A/2102A-S /DS2102A: 5.000 ns/div to 1.000 ks/div
Channel to Channel
Skew 1 ns (typical), 2 ns (maximum)
Maximum Record
14 Mpts (standard), 56 Mpts (optional)
Time Base Accuracy ≤±25 ppm
Time Base Drift ≤±5 ppm/year
Maximum Delay
Memory Depth/Sample Rate
Time Base Mode Y-T, X-Y, Roll
Number of X-Ys 1 path
Waveform Capture
52,000 wfms/s (dots display)
Bandwidth (-3 dB)
(50 Ω)
MSO2302A/2302A-S/DS2302A: DC to 300 MHz
MSO2202A/2202A-S/DS2202A: DC to 200 MHz
MSO2102A/2102A-S/DS2102A: DC to 100 MHz
Single Bandwidth
(50 Ω)
MSO2302A/2302A-S/DS2302A: DC to 300 MHz
MSO2202A/2202A-S/DS2202A: DC to 200 MHz
MSO2102A/2102A-S/DS2102A: DC to 100 MHz
Vertical Resolution Analogue channel: 8 bit
Digital channel: 1 bit
Vertical Scale When the input impedance is 50 Ω: 500 μV/div to 1 V/div
When the input impedance is 1 MΩ: 500 μV/div to 10 V/div
Offset Range When the input impedance is 50 Ω:
500 μV/div to 50 mV/div: ±2 V
51 mV/div to 200 mV/div: ±10 V
205 mV/div to 1 V/div: ±12 V
When the input impedance is 1 MΩ:
500 μV /div to 50 mV/div: ±2 V
51 mV/div to 200 mV/div: ±10 V
205 mV/div to 2 V/div: ±50 V
2.05 V/div to 10 V/div: ±100 V
Bandwidth Limit MSO2302A/2302A-S/2202A/2202A-S/DS2302A/2202A: 20 MHz/100 MHz
MSO2102A/2102A-S/DS2102A: 20 MHz
Low Frequency
Response (AC
Coupling, -3 dB)
≤5 Hz (on BNC)
Calculated Rise Time MSO2302A/2302A-S/DS2302A: 1.2 ns
MSO2202A/2202A-S/DS2202A: 1.8 ns
MSO2102A/2102A-S/DS2102A: 3.5 ns
DC Gain Accuracy ±2% full scale
DC Offset Accuracy ±0.1 div ± 2 mV ± 1% offset value
Channel to Channel
DC to maximum bandwidth: >40 dB
Trigger Level Range Internal: ±5 div from center of the screen
EXT: ±4 V
Trigger Mode Auto, Normal, Single
Holdoff Range 100 ns to 10 s
High Frequency
75 kHz
Low Frequency
75 kHz
Trigger Sensitivity 1 div (below 10 mV or noise rejection is enabled)
0.3 div (above 10 mV and noise rejection is disabled)
Edge Trigger
Edge Type Rising, Falling, Rising/Falling
Pulse Trigger
Pulse Condition Positive Pulse Width (greater than, lower than, within specific interval)
Negative Pulse Width (greater than, lower than, within specific interval)
Pulse Width Range 2 ns to 4 s
Runt Trigger
Pulse Condition None, >, <, <>
Pulse Polarity Positive, Negative
Pulse Range 2 ns to 4 s
Windows Trigger (Optional)
Windows Type Rising, Falling, Rising/Falling
Trigger Position Enter, Exit, Time
Windows Time 16 ns to 4 s
Nth Edge Trigger (Optional)
Edge Type Rising, Falling
Idle Time 16 ns to 4 s
Number of Edges 1 to 65535
Slope Trigger
Slope Condition Positive Slope (greater than, lower than, within specific interval)
Negative Slope (greater than, lower than, within specific interval)
Time Setting 10 ns to 1 s
Video Trigger (Optional)
Signal Standard NTSC, PAL/SECAM, 480P, 576P (standard)
720P, 1080P and 1080I (optional)
Pattern Trigger
Pattern Setting H, L, X, Rising Edge, Falling Edge
Delay Trigger (Optional)
Edge Type Rising, Falling
Delay Type >, <, <>, ><
Delay Time 2 ns to 4 s
TimeOut Trigger (Optional)
Edge Type Rising, Falling, Rising/Falling
Timeout Time 16 ns to 4 s
Duration Trigger (Optional)
Pattern Setting H, L, X
Trigger Condition >, <, <>
Duration Time 2 ns to 4 s
Setup/Hold Trigger
Edge Type Rising, Falling
Data Type H, L
Setup Time 2 ns to 1 s
Hold Time 2 ns to 1 s
RS232/UART Trigger
Polarity Normal, Invert
Trigger Condition Start, Error, Check Error, Data
Baud 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps, 230400 bps, 460800 bps, 921600
bps, 1 Mbps, User
Data Bits 5 bit, 6 bit, 7 bit, 8 bit
I2C Trigger
Trigger Condition Start, Restart, Stop, Missing ACK, Address, Data, A&D
Address Bits 7 bit, 8 bit, 10 bit
Address Range 0 to 127, 0 to 255, 0 to 1023
Byte Length 1 to 5
SPI Trigger
Trigger Condition Timeout
Timeout Value 100 ns to 1 s
Data Bits 4 bit to 32 bit
Data Setting H, L, X
CAN Trigger (Optional)
Signal Type Rx, Tx, CAN_H, CAN_L, Differential
Trigger Condition SOF, EOF, Frame Type, Frame Error
Baud 10 kbps, 20 kbps, 33.3 kbps, 50 kbps, 62.5 kbps, 83.3 kbps, 100 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps, 1
Mbps, User
Sample Point 5% to 95%
Frame Type Data, Remote, Error, Over Load
Error Type Bit Fill, Answer Error, Check Error, Format Error, Random Error
USB Trigger (Optional)
Signal Speed Low Speed, Full Speed
Trigger Condition SOP, EOP, RC, Suspend, Exit Suspend
General Specification
Output Voltage About 3 V, peak-peak
Power Voltage 100 V to 240 V, 45 Hz to 440 Hz
Power Maximum 50 W
Fuse 2 A, T degree, 250 V
Frequency 1kHz
Temperature Range Operating: 0℃ to +50℃
Non-operating: -40℃ to +70℃
Cooling Method Fan cooling
Humidity Range 0℃ to +30℃ : ≤95% relative humidity
+30℃ to +40℃ : ≤ 75% relative humidity
+40℃ to +50℃ : ≤45% relative humidity
Altitude Operating: under 3,000 meters
Non-operating: under 15,000 meters
Size Width×Height×Depth = 361.6 mm×179.6 mm×130.8 mm
Weight Package Excluded 3.9 kg±0.5 kg
Package Included 4.5 kg±0.5 kg


Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
