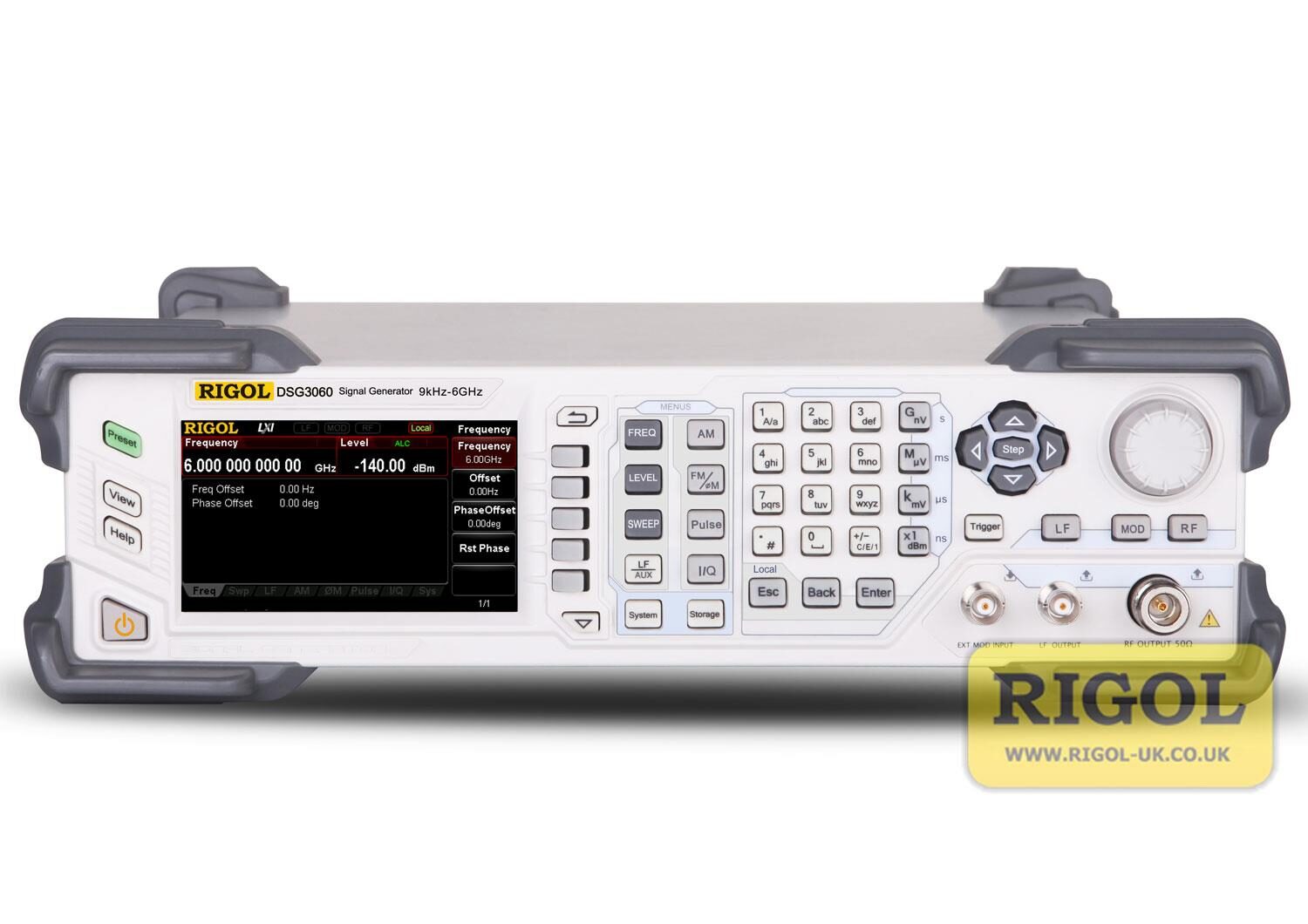

Rigol DSG3136B-IQ RF Signal Generator

The DSG3136B-IQ RF Signal Generator has a Frequency Range of 9kHz to 13.6GHz. The DSG3000B series is a high-performance RF signal generator. It provides comprehensive modulation solutions: AM/FM/ΦM analogue modulation; pulse modulation with user-defined pulse train; and I/Q modulation. All the modulations support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG3000B series has undergone a strict verification through the experiments in its design and production stages to ensure its high stability and reliability. The DSG3000B series also features a clear user interface, compact size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool in various fields such as communication, computers, instrumentation, R&D, education, production and maintenance.

Features:

  • Highest frequency: 13.6GHz
  • Amplitude accuracy: <0.5 dB (typical)
  • Output amplitude range: -130 dBm to +27 dBm (setting range)
  • High signal purity, phase noise: <-116 dBc/Hz@20 kHz (typical)
  • Standard 1 ppm internal clock; optional 5 ppb high stable clock
  • Standard AM/FM/ΦM analogue modulation
  • Support pulse modulation; on/off ratio up to 70 dB; user-defined pulse train generator
  • I/Q modulation and I/Q baseband output
  • All modulations support internal and external modulation modes
  • Standard 2U height design to save rack space; rack mount kit is available
  • Support USB/LAN/GPIB remote control; SCPI command set
  • Wear-free electronic attenuator design

Documentation

DSG3000B Specifications
ModelDSG3065BDSG3065B-IQDSG3136BDSG3136B-IQ
Frequency Range9 kHz to 6.5 GHz9 kHz to 6.5 GHz (IQ: 50 MHz to 6.5 GHz)9 kHz to 13.6 GHz9 kHz to 13.6 GHz (IQ: 50 MHz to 6.5 GHz)
Frequency Resolution0.01 Hz0.01 Hz0.01 Hz0.01 Hz
Setting time< 10 ms (typ.)< 10 ms (typ.)< 10 ms (typ.)< 10 ms (typ.)
Frequency Band
BandFrequency range | NFrequency range | NFrequency range | NFrequency range | N
1f < 227.5 MHz | 0.25f < 227.5 MHz | 0.25f < 227.5 MHz | 0.25f < 227.5 MHz | 0.25
2227.5 MHz ≤ f < 455 MHz | 0.125227.5 MHz ≤ f < 455 MHz | 0.125227.5 MHz ≤ f < 455 MHz | 0.125227.5 MHz ≤ f < 455 MHz | 0.125
3455 MHz ≤ f < 910 MHz | 0.25455 MHz ≤ f < 910 MHz | 0.25455 MHz ≤ f < 910 MHz | 0.25455 MHz ≤ f < 910 MHz | 0.25
4910 MHz ≤ f < 1820 MHz | 0.5910 MHz ≤ f < 1820 MHz | 0.5910 MHz ≤ f < 1820 MHz | 0.5910 MHz ≤ f < 1820 MHz | 0.5
51820 MHz ≤ f ≤ 3600 MHz | 11820 MHz ≤ f ≤ 3600 MHz | 11820 MHz ≤ f ≤ 3600 MHz | 11820 MHz ≤ f ≤ 3600 MHz | 1
63600 MHz < f ≤ 6500 MHz | 23600 MHz < f ≤ 6500 MHz | 23600 MHz < f ≤ 6500 MHz | 23600 MHz < f ≤ 6500 MHz | 2
76500 MHz < f ≤ 13600 MHz | 46500 MHz < f ≤ 13600 MHz | 46500 MHz < f ≤ 13600 MHz | 46500 MHz < f ≤ 13600 MHz | 4
Internal Reference Frequency
Reference frequency10 MHz10 MHz10 MHz10 MHz
Initial calibration
accuracy		≤ 0.1 ppm≤ 0.1 ppm≤ 0.1 ppm≤ 0.1 ppm
With option OCXO-B08≤ 10 ppb≤ 10 ppb≤ 10 ppb≤ 10 ppb
Temperature stability
Temperature range: 0℃ to 50℃ , reference to 25℃< 1 ppm< 1 ppm< 1 ppm< 1 ppm
With option OCXO-B08< 5 ppb< 5 ppb< 5 ppb< 5 ppb
Aging rate< 1 ppm/year< 1 ppm/year< 1 ppm/year< 1 ppm/year
With option OCXO-B08< 30 ppb/year< 30 ppb/year< 30 ppb/year< 30 ppb/year
Internal reference
frequency output
Frequency10 MHz10 MHz10 MHz10 MHz
Level+5 dBm to +10 dBm+5 dBm to +10 dBm+5 dBm to +10 dBm+5 dBm to +10 dBm
External reference
frequency input
Frequency10 MHz10 MHz10 MHz10 MHz
Level0 dBm to +10 dBm0 dBm to +10 dBm0 dBm to +10 dBm0 dBm to +10 dBm
Maximum deviation±5 ppm±5 ppm±5 ppm±5 ppm
General Specifications
Display
TypeTFT LCDTFT LCDTFT LCDTFT LCD
Resolution480 × 272480 × 272480 × 272480 × 272
Size4.3-inch4.3-inch4.3-inch4.3-inch
Mass Storage
Mass storageNon-volatile Flash memory (internal); USB storage device (not supplied)Non-volatile Flash memory (internal); USB storage device (not supplied)Non-volatile Flash memory (internal); USB storage device (not supplied)Non-volatile Flash memory (internal); USB storage device (not supplied)
Data storage spaceNon-volatile Flash memory (internal) 96 MB (nom.)Non-volatile Flash memory (internal) 96 MB (nom.)Non-volatile Flash memory (internal) 96 MB (nom.)Non-volatile Flash memory (internal) 96 MB (nom.)
Power Supply
Input voltage range, AC100 V to 120 V;
100 V to 240 V		100 V to 120 V;
100 V to 240 V		100 V to 120 V;
100 V to 240 V		100 V to 120 V;
100 V to 240 V
AC frequency range100 V to 120 V: 45 Hz to 440 Hz
100 V to 240 V: 45 Hz to 65 Hz		100 V to 120 V: 45 Hz to 440 Hz
100 V to 240 V: 45 Hz to 65 Hz		100 V to 120 V: 45 Hz to 440 Hz
100 V to 240 V: 45 Hz to 65 Hz		100 V to 120 V: 45 Hz to 440 Hz
100 V to 240 V: 45 Hz to 65 Hz
Power consumptionWith all the options 70 W (typ.), max. 100 WWith all the options 70 W (typ.), max. 100 WWith all the options 70 W (typ.), max. 100 WWith all the options 70 W (typ.), max. 100 W
Dimensions364 mm × 112 mm × 420 mm
(14.33 inch × 4.41 inch × 16.54 inch)		364 mm × 112 mm × 420 mm
(14.33 inch × 4.41 inch × 16.54 inch)		364 mm × 112 mm × 420 mm
(14.33 inch × 4.41 inch × 16.54 inch)		364 mm × 112 mm × 420 mm
(14.33 inch × 4.41 inch × 16.54 inch)
Weight7.61 kg (16.8 lb) / 8.03 kg (17.7 lb)7.61 kg (16.8 lb) / 8.03 kg (17.7 lb)7.61 kg (16.8 lb) / 8.03 kg (17.7 lb)7.61 kg (16.8 lb) / 8.03 kg (17.7 lb)

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
