Rigol DS7054 500MHz, 4CH Digital Oscilloscope

£4774.00 (£5728.80 inc VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Free Shipping Price Match Guarantee

Description

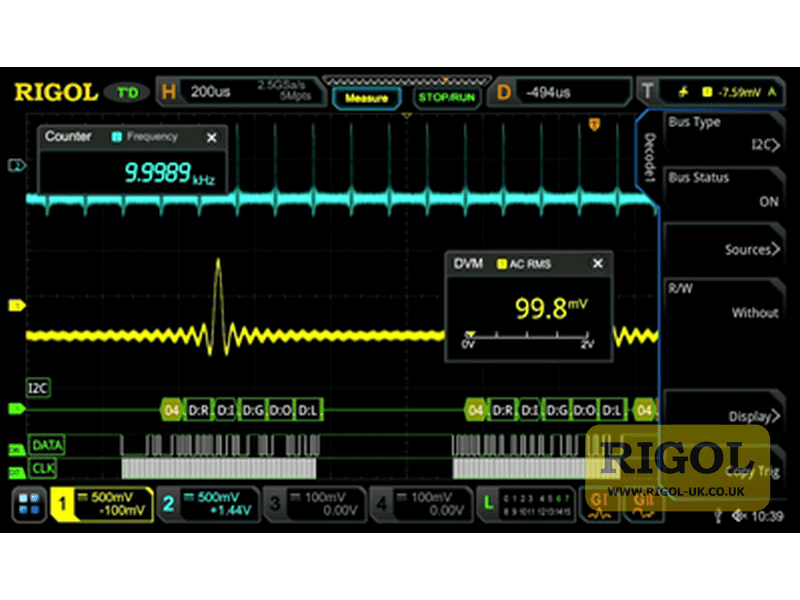

Free Software Options Bundle (£1,441.00 Value)
Purchase any DS7000 Series Oscilloscope and receive a Software Options Bundle! (DS7000-BND)
Offer Valid Until 30/9/2021

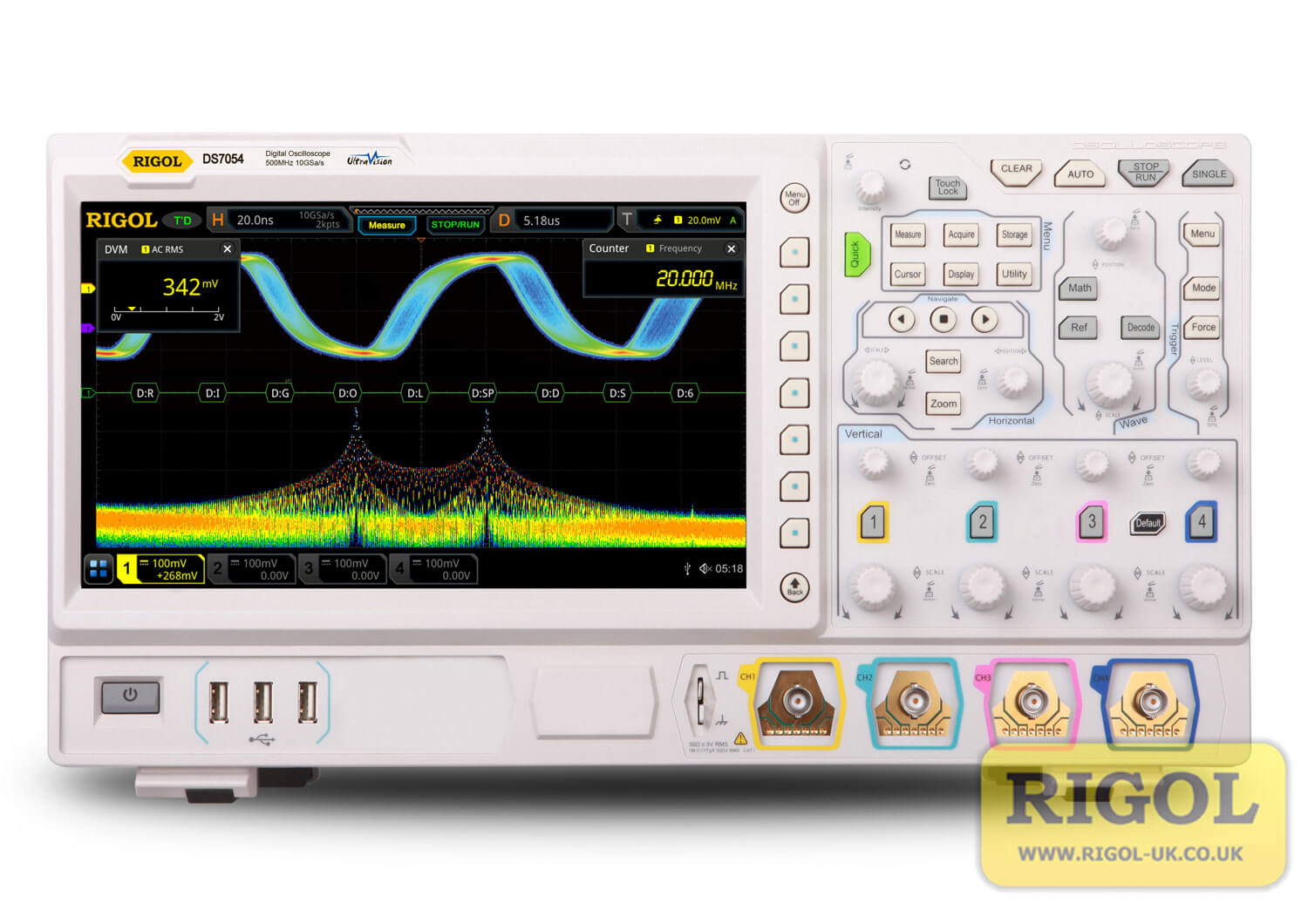

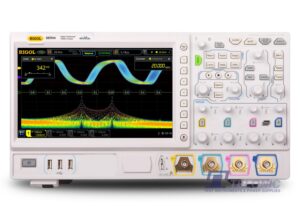

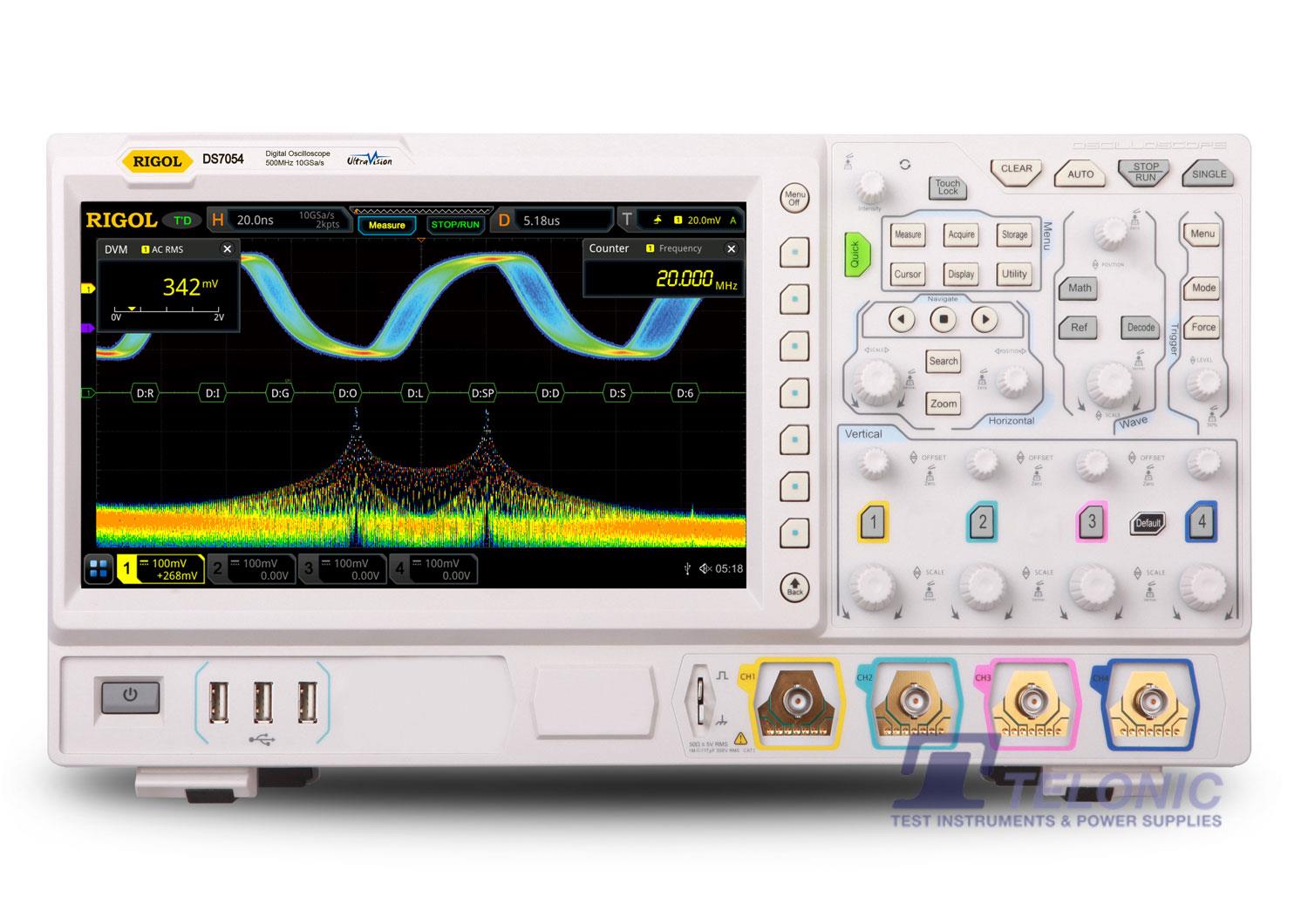

Rigol DS7054 Digital Oscilloscope

The DS7054 is a 500MHz, 4CH multifunctional, high-performance, Digital Oscilloscope based upon Rigol’s new UltraVision II technology. Integrating up to 6-off independent instruments into one, the MSO/DS7000 series offers a high sample rate / bandwidth ratio, high memory depth, clear touch-screen display, excellent waveform capture rate and powerful data analysis functions. Many of its specifications are industry leading. These instruments are expected to be popular for R&D, universities, production, quality control, communications engineering, automotive engineering, aerospace engineering, industrial and power markets.

Features:

  • 500MHz bandwidth (bandwidth upgrade options available)
  • 4 analogue channels & 1 EXT channel
  • Up to 10GSa/s real-time sample rate

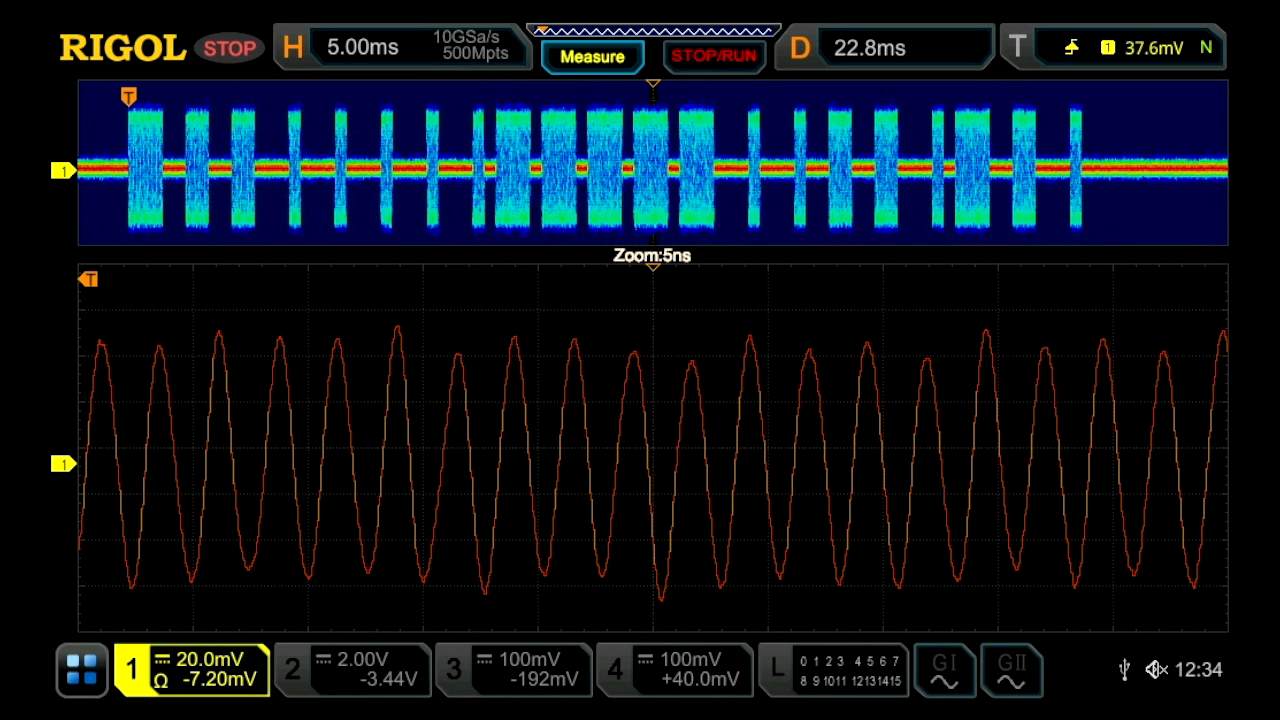

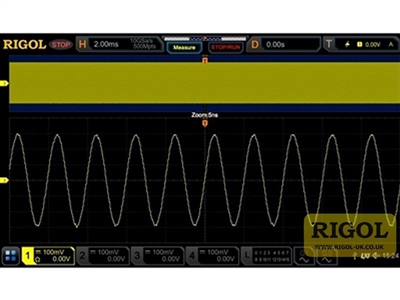

  • Up to 500Mpts memory depth (optional)
  • High waveform capture rate (over 600,000 waveforms per second)
  • Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions

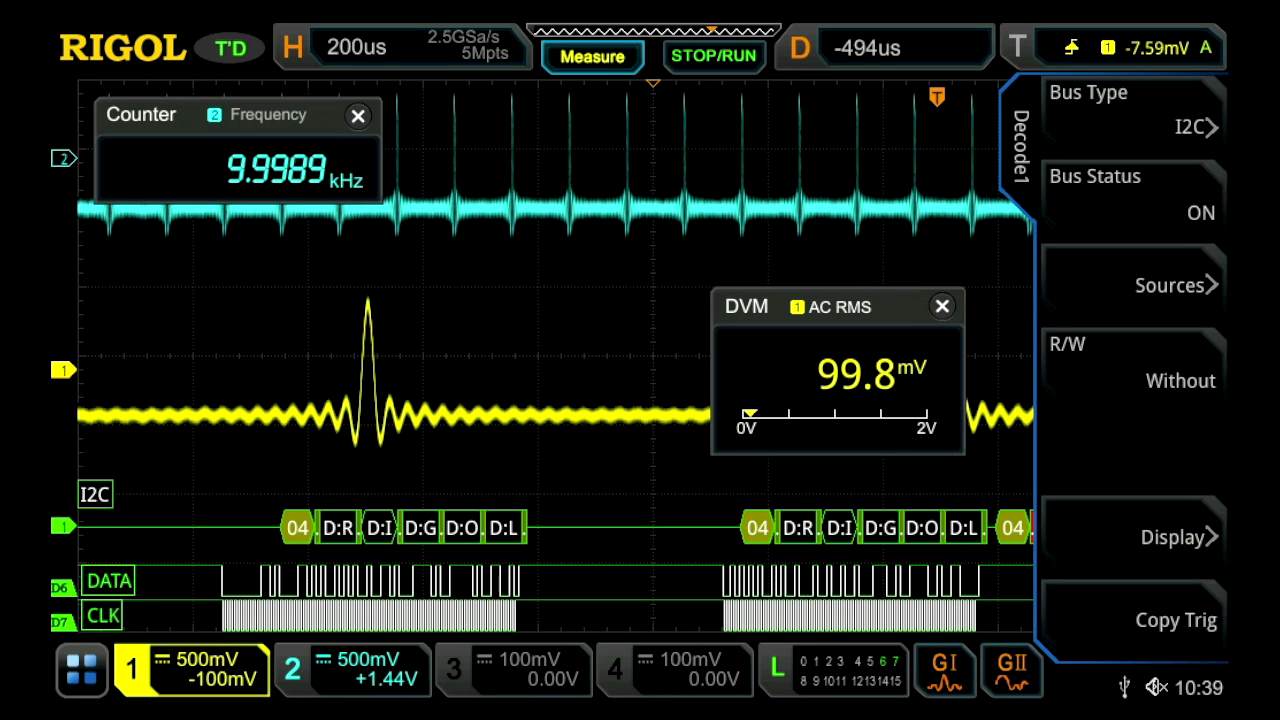

  • Integrates up to 6 independent instruments into 1: Digital oscilloscope, 16-channel logic analyser (‘MSO’ models only), arbitrary waveform generator (optional on ‘MSO’ models only), digital voltmeter, 6-digit frequency counter & totalizer and protocol analyser

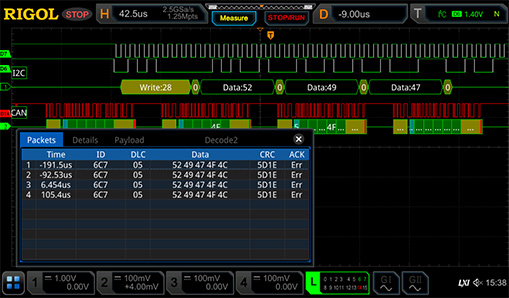

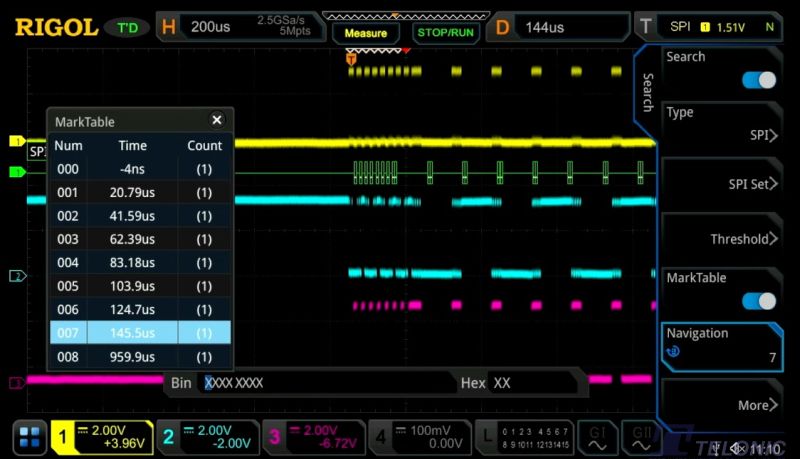

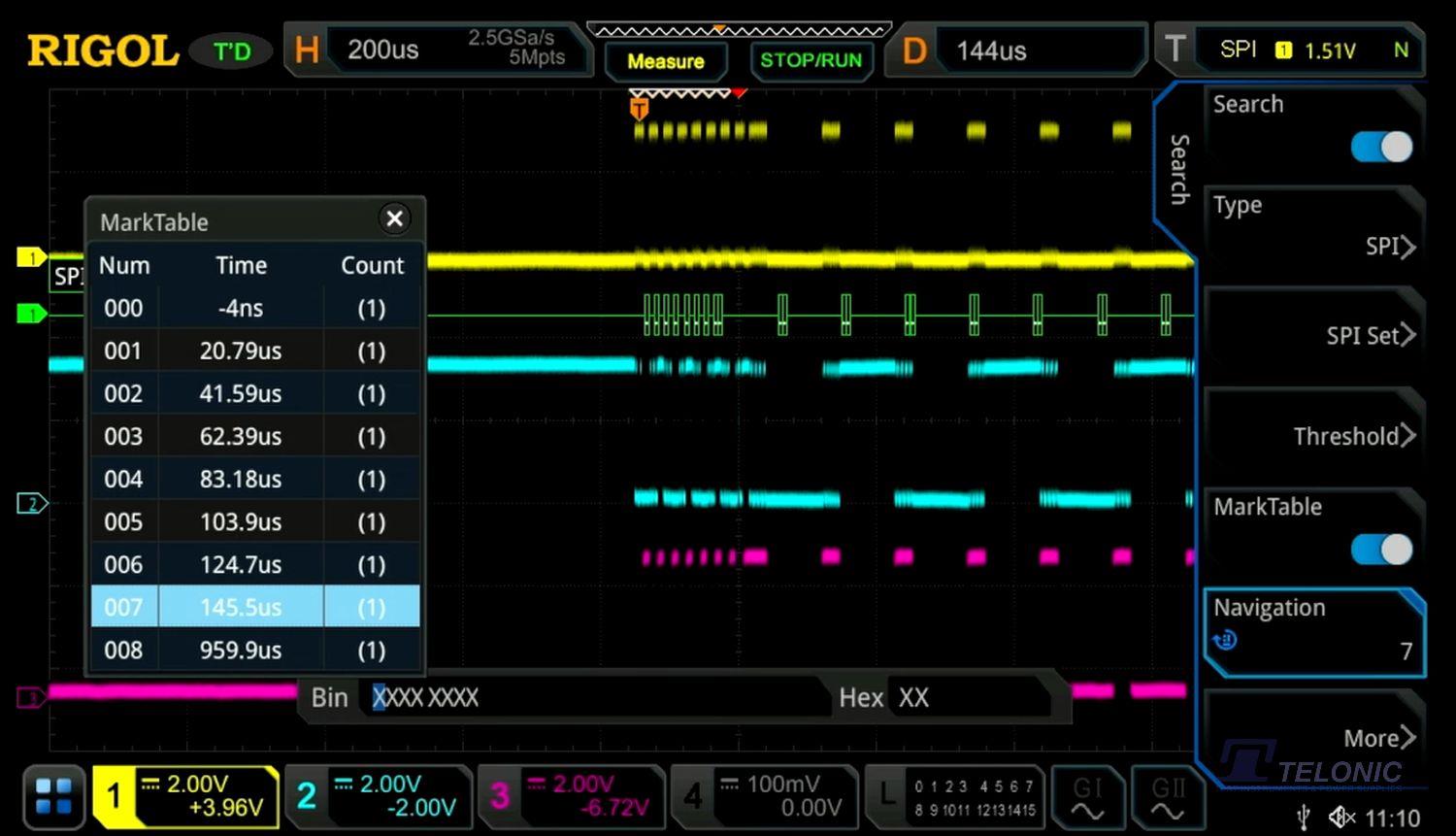

  • A variety of serial protocol triggers and decodes

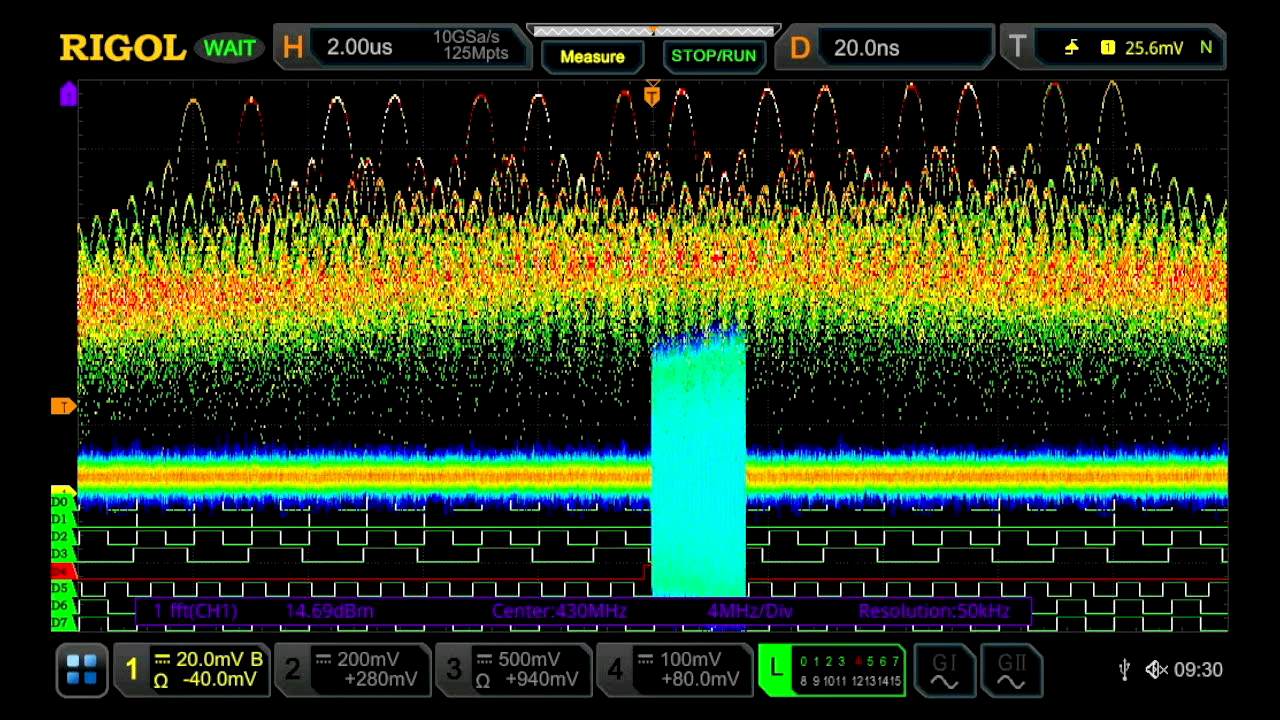

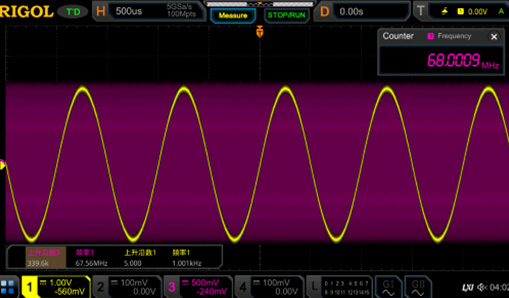

  • Auto measurement of 41 waveform parameters; full-memory hardware measurement function
  • A variety of math operations, built-in enhanced FFT analysis and peak search function
  • Waveform histogram analysis (standard)
  • Independent search, navigation keys and event table

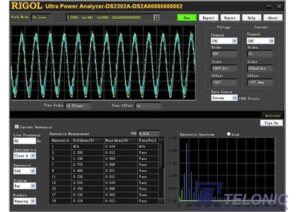

  • Built-in advanced power analysis software (option)
  • User-defined one-key quick operation
  • 10.1″ capacitive multi-touch screen, 256-level intensity grading display, with colour persistence

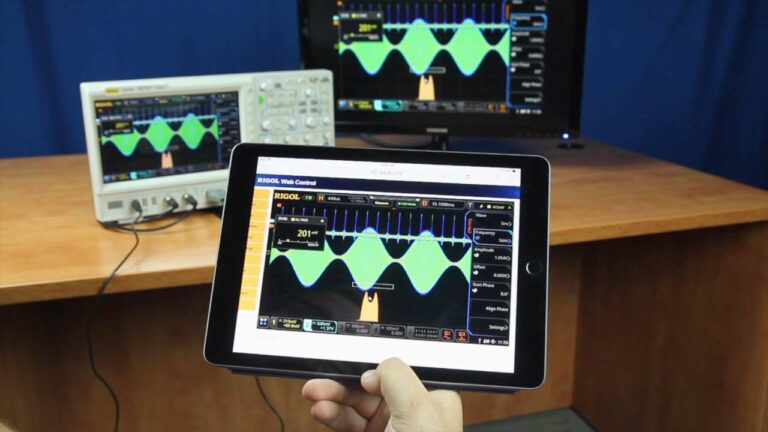

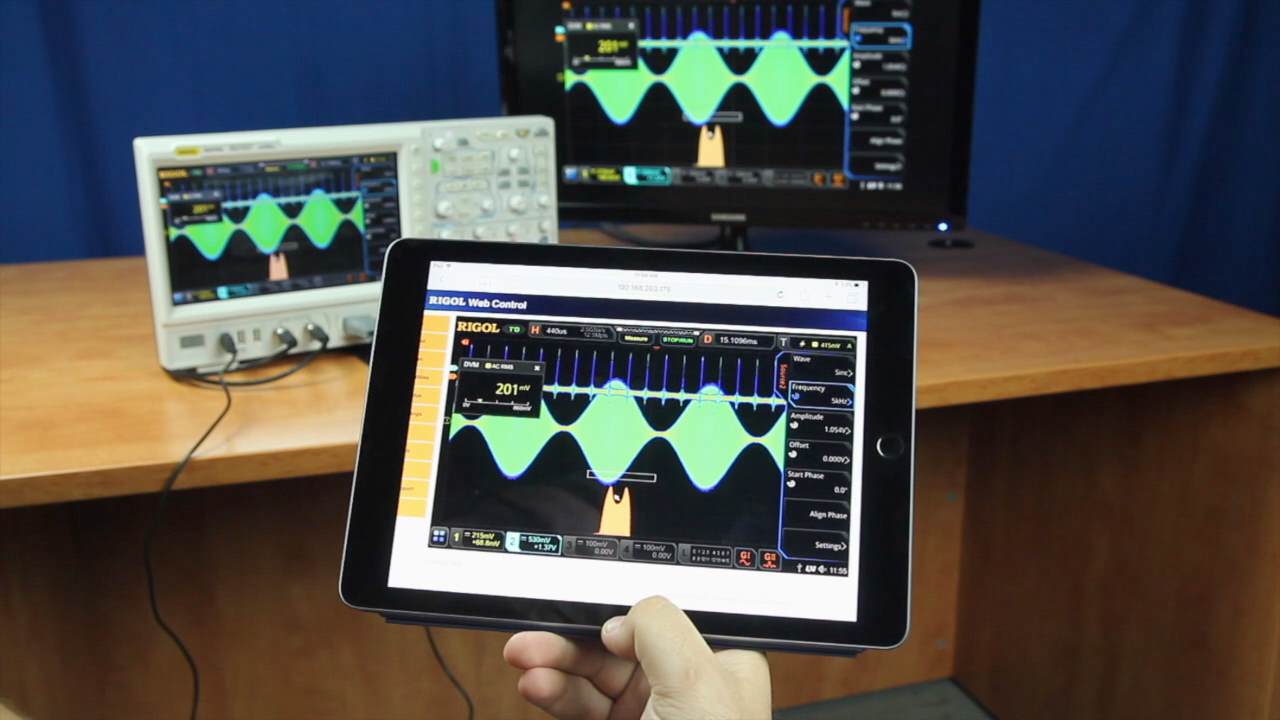

  • Web Control remote command
  • Unique online version upgrade
  • Novel and delicate industrial design, easy to operate
  • Connectivity: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT and USB-GPIB
  • Supplied with… 4-off passive probes (500MHz), 1-off logic analyser probe set, USB cable, UK & European mains leads, front panel cover, quick guide
  • Options include… Bandwidth upgrades, memory upgrades, 25MHz dual-channel arbitrary waveform generator, built-in power analysis, Telonic Standard Calibration (traceable to UK national standards) and RCL 17025 Calibration.

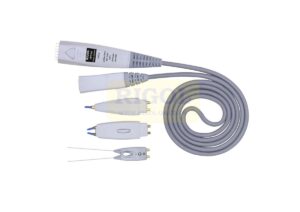

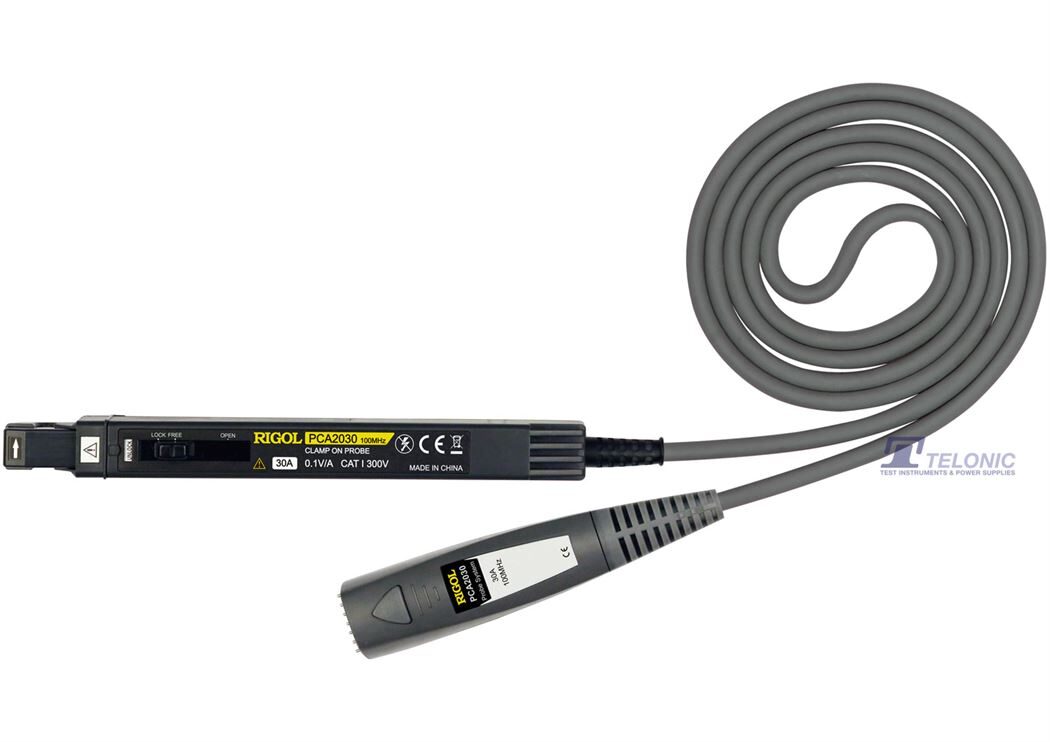

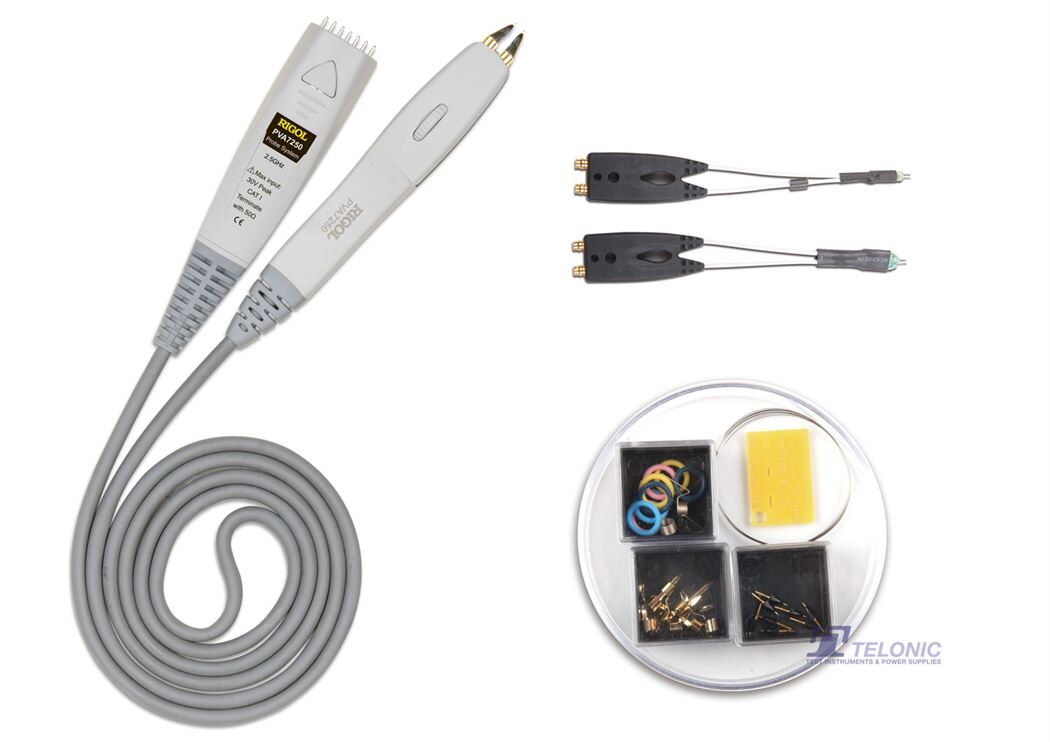

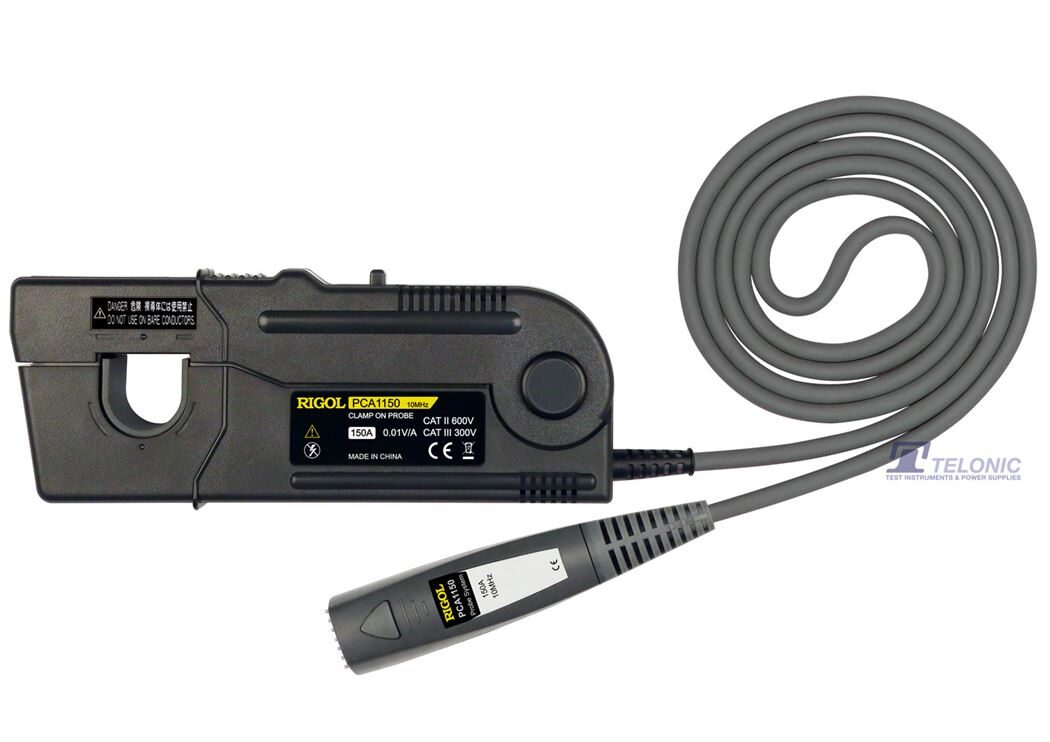

  • Optional accessories include… High-voltage probes, high-voltage differential probes, current probes, rack mount kit

Product Videos

Documentation

Vertical System Analogue Channel
Input Coupling DC or AC
Input Impedance 1 MΩ ± 1%, 50 Ω ± 1%
Input Capacitance 17 pF ± 3 pF
Probe Attenuation Coefficient 0.01X, 0.02X, 0.05X, 0.1X, 0.2X, 0.5X, 1X, 2X, 5X, 10X, 20X, 50X, 100X, 200X, 500X, 1000X, 2000X, 5000X, 10000X, 20000X, and 50000X
Maximum Input Voltage 1 MΩ CAT I 300 Vrms, 400 Vpk, Transient Overvoltage 1600 Vpk
50 Ω 5 Vrms
Vertical Resolution 8 bits
Vertical Sensitivity Range 1 MΩ 1 mV/div ~ 10 V/div , 50 Ω 1 mV/div ~ 1 V/div
Offset Range 1 MΩ: ± 1 V ( 1 mV/div ~ 50 mV/div ) ± 30 V ( 51 mV/div ~ 260 mV/div ) ± 100 V ( 265 mV/div ~ 10 V/div )
50 Ω: ±1 V ( 1 mV/div ~ 100 mV/div ) ±4 V ( 102 mV/div ~ 1 V/div )
Dynamic Range ±5 div (8 bits)
Bandwidth Limit (Typical) 20 MHz, 250 MHz; selectable for each channel
DC Gain Accuracy ± 2% of full scale
DC Offset Accuracy <200 mV/div (±0.1 div±2 mV±1.5% of offset value) >200 mV/div (±0.1 div±2 mV±1.0% of offset value)
Channel-to-Channel Isolation Channel-to-Channel Isolation 40dB, from DC to maximum rated bandwidth of each model
ESD Tolerance ±8 kV (on input BNCs)
Vertical System Digital Channel
Number of Channels 16 input channels (D0 ~ D15) (D0 ~ D7, D8 ~ D15)
Threshold Range ±20.0 V, in 10 mV step
Threshold Accuracy ±(100 mV + 3% of the threshold setting)
Threshold Selection TTL(1.4 V), CMOS5.0(2.5 V), CMOS3.3(1.65 V), CMOS2.5(1.25 V), CMOS1.8(0.9 V), ECL(-1.3 V), PECL(3.7 V), LVDS(1.2 V), and 0.0V
User (adjustable threshold for 8 channels in a group)
Max. Input Voltage ± 40 V peak CAT I; transient overvoltage 800 Vpk
Max. Input Dynamic Range ±10 V + threshold
Minimum Voltage Swing 500 mVpp
Input Impedance about 101 kΩ
Probe Load ≈8 pF
Vertical Resolution 1 bit
Horizontal System Analogue Channel
Time Base Resolution 10 ps
Time Base Accuracy ±2 ppm ± 2 ppm/year
Time Base Delay Range before triggering ≥1/2 screen width
after triggering 1 s to 100 div
Time Interval (△T)
Measurement
±(1 sample interval) ± (2 ppm×readout) ± 50 ps
Inter-channel Offset Correction Range ±100 ns
Horizontal Mode YT: Default
XY: X = Channel 1, Y = Channel 2
SCAN: Time base ≥200 ms/div, available to enter or exit the SCAN mode by rotating the Horizontal SCALE knob
ROLL: Time base ≥200 ms/div, available to enter or exit the SCAN mode by rotating the Horizontal SCALE knob
Horizontal System Digital Channel
Min. Detectable Pulse Width 3.2 ns
Maximum Input Frequency 500 MHz (accurately copied as the sine wave of the maximum frequency of the logic square wave; input amplitude is the minimum swing; the shortest the ground cable is required for the logic probe)
Inter-channel Time Delay 1 ns (typical), 2 ns (maximum)
Trigger System
Trigger Source Analogue channel (1 ~ 4), Digital channel (D0 ~ D15), EXT TRIG, and AC Line
Trigger Mode Auto, Normal, Single
Trigger Coupling DC: DC coupling trigger
AC: AC coupling trigger
High Frequency Rejection: High frequency rejection, cut-off frequency ~ 75 kHz (internal only)
Low Frequency Rejection: Low frequency rejection, cut-off frequency ~ 75 kHz (internal only)
Noise Rejection increase delay for the trigger circuit (internal only), On/Off
Holdoff Range 8 ns to 10 s
Trigger Bandwidth Internal: analogue bandwidth of the oscilloscope
External: 200 MHz
Trigger Sensitivity Internal: 1 div or 5 mVpp, whichever is larger, <10mV/div 0.5 div, ≥10mV/div
enable the noise rejection, with trigger sensitivity reducing halfExternal: 200 mVpp, DC ~ 100 MHz 500 mVpp, 100 MHz ~ 200 MHz
Trigger Level Range Internal: ± 5 div from the center of the screen
External: ± 8 V
AC Line: AC Line fixed 50%
General Specifications
Power Voltage 100 V-240 V, 45 Hz-440 Hz
Power Max. 200 W (connect to various interfaces, USB, and active probes)
Fuse 3.15 A, T degree, 250 V
Temperature Range Operating 0℃ ~ +50℃
Non-operating -30℃ ~ +70℃
Humidity Range Operating: below +30℃: ≤95% RH (without condensation)
+30℃ to +40℃, ≤75% RH (without condensation)
+40℃ to +50℃, ≤45% RH (without condensation)
Non-operating: below 65℃: ≤95% RH (without condensation)
Altitude Operating: below 3,000
Non-operating: below 15,000
LCD 10.1-inch capacitive multi-touch screen/gesture enabled operation
Resolution 1024×600 (Screen Region)
Graticule (10 vertical divisions) x (8 horizontal divisions)
Persistence Off, Infinite, variable persistence (100 ms to 10 s)
Brightness 256 intensity levels (LCD,HDMI)

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
