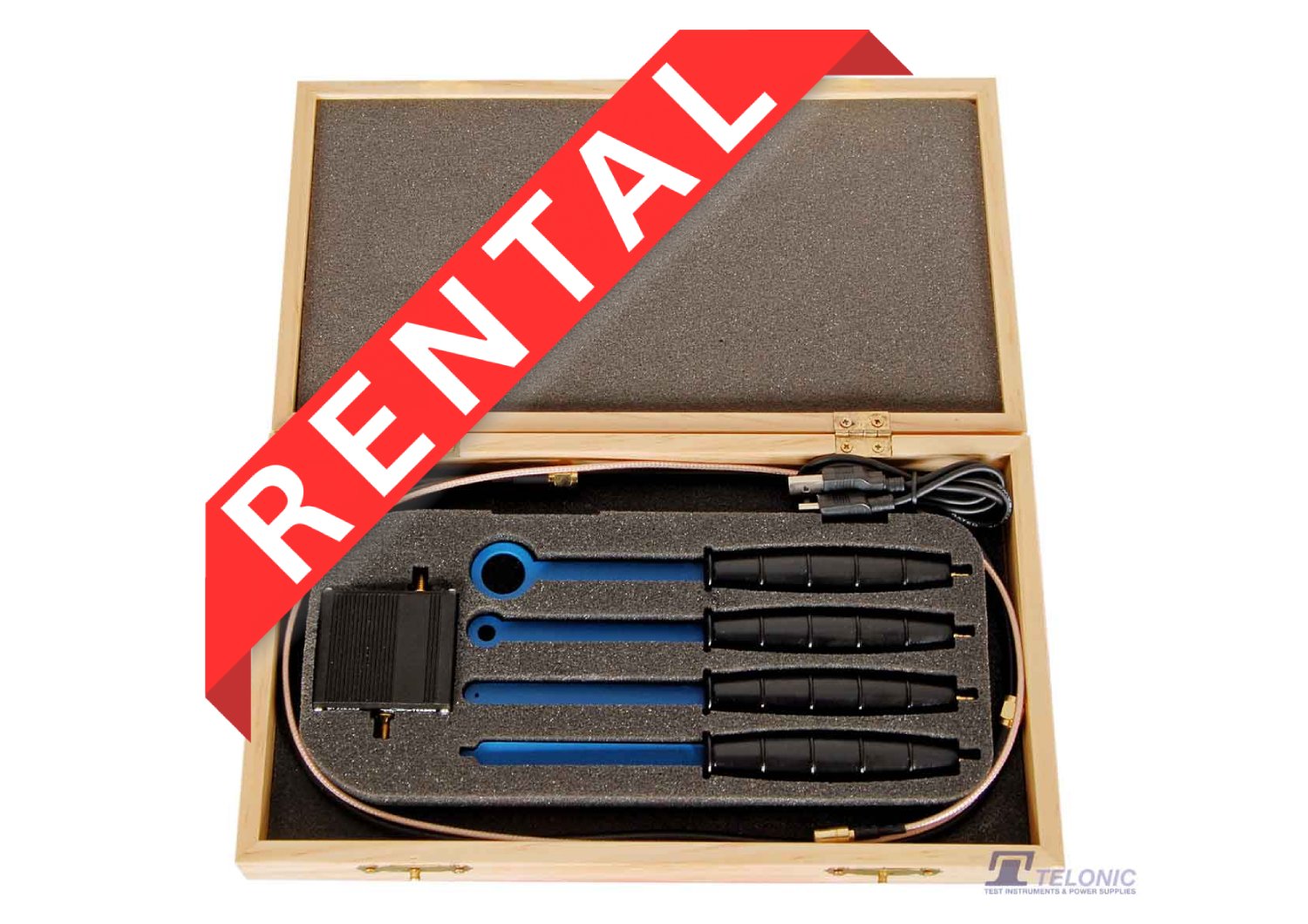

Rental TEKBOX TBPS01-TBWA2/20dB Near Field Probe Set

£51.00 (£61.20 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBPS01-TBWA2-20dB-Rental Category: Tags: , , Brand:

Documentation

User Manual

Tekbox TBPS1WA2/20 User Manual



Specifications
ProbeLengthLoopTip
H20 H-Field170mm20mmn.a.
H10 H-Field170mm10mmn.a.
H5 H-Field170mm5mmn.a.
E5 E-Field170mmn.a.5mm
TBWA2/20dB
Input50 Ohm, SMA
Output50 Ohm, SMA
Nominal supply Voltage4.5 – 5V, typ. 110mA, Mini-USB-B connector
Maximum supply voltage5.5V
Maximum input power+10dBm
1dB output compression point @ 2GHz+20dBm
3rd order output intercept point @ 2GHzPin = 0dBm/tone, Δf = 10MHz: +35dBm
Reverse isolation S120.1 …6GHz: 23dB
Noise Figure @ 2GHz4.5 … 5 dB
Gain
1MHz10MHz100MHz500MHz1GHz2GHz3GHz4.5GHz6GHz
14.8dB20.2dB20.2dB20dB19.8dB19dB17.6dB17.4dB15.4dB
TBWA2/40dB
Input50 Ohm, SMA
Output50 Ohm, SMA
Nominal supply Voltage4.5 – 5V, typ. 210mA, Mini-USB-B connector
Maximum supply voltage5.5V
Maximum input power-10dBm
1dB output compression point @ 2GHz+20dBm
Reverse isolation S120.1 …6GHz: 40dB
Noise Figure @ 2GHz5 dB
Gain
1MHz10MHz100MHz500MHz1GHz2GHz3GHz4.5GHz6GHz
30dB40.2dB40.2dB40dB39.5dB37.6dB36.4dB34.6dB34.7dB
