Spectrum Analysers
>
NEW! RSA3000 Series
>


Rigol RSA3030-TG 3.0GHz Real-Time Spectrum Analyser with Tracking Generator
Rigol RSA3030-TG 3.0GHz Real-Time Spectrum Analyser with Tracking Generator

Rigol RSA3030-TG





Alternative Views:


Rigol RSA3030-TG
3.0GHz Real-Time Spectrum Analyser
with Tracking Generator

Our Price: £4,541.00 (5,449.20 inc VAT)
Latest Firmware Fitted read more





Quantity in our UK Stock.:1

Availability: Stock models DELIVERED NEXT WORKING DAY (UK only) for orders placed before 15:00 (Mon. - Fri.).
Product Code: RSA3030-TG



The following items are included FREE OF CHARGE with this product:

Description Specification Documents, Software & Videos


FREE EMI MEASUREMENT APPLICATION LICENSE (RSA3000-EMI) worth £712
Buy a RSA3000 series Spectrum Analyser and receive the RSA3000-EMI Measurement application license for free, this also includes RSA3000-EMC. Complete Pre-Compliance software on the RSA3000. This product provides scans, peak test, limits and multiple simultaneous CISPR detectors.

Offer ends 30th September 2019 - All orders received before October 2019 will qualify for this promotion.

Rigol RSA3000 series real-time spectrum analysers combines the power of a high-performance conventional spectrum analyser with superior real-time performance. Available in 3.0GHz and 4.5GHz models, all RSA3000 series analysers provide a resolution bandwidth (RBW) down to 1Hz (optional), a noise floor as low as -161dBm/Hz (typ.) and phase noise of -102dBc/Hz @ 10kHz offset (typ., f = 1GHz). In addition, the analyser features up to 40MHz of real-time bandwidth (optional), a minimum probability of intercept (POI) of 7.45µs, 7-rich visualisation modes and powerful triggering capability. The Rigol RSA3000 series is a complete analysis package for engineers developing and integrating todays wireless technologies utilising complex and dynamic modulation schemes.

For further information, please refer to the 'SPECIFICATION' and 'DOCUMENTS, SOFTWARE & VIDEOS' tabs, above.

An overview of all Rigol spectrum analysers can be found HERE.



Click image to enlarge

Features
  • technology
  • Displayed average noise level (DANL): <-161dBm (typical)
  • Phase noise: <-102dBc/Hz @ 10kHz (typical, f = 1GHz)
  • Level measurement uncertainty: <1.0dB
  • Built-in tracking generator ('-TG' models only)
  • Minimum RBW: 1Hz (optional)
  • EMC filter and quasi-peak detector
  • Various measurement functions
  • Multiple measurement modes
  • Up to 40MHz real-time analysis bandwidth
  • Multiple trigger modes and trigger masks
  • Density, spectrogram, and other display modes
  • 10.1'' capacitive multi-touch screen, supporting touch gestures
  • USB, LAN, HDMI and other communication and display interfaces
  • Supplied with... Power cable & quick guide
  • Options include... Preamplifier, high-stability reference, 25MHz real-time / analysis bandwidth, 40MHz real-time / analysis bandwidth, advanced measurement kit.
  • Optional PC software... Ultra Spectrum, S1210 EMI Pre-Compliance Test
  • Accessories include... Rack mount kit

OPTIONS & Accessories
TEKBOX TBWA2/40dB 40dB Wideband Amplifier TEKBOX TBPS01 Near-Field Probe Set Rigol RSA3000-B25 25MHz Real-Time Analysis Bandwidth Licence Rigol VB1032 1MHz to 3.2GHz VSWR Bridge
Our Price: £231.00 (277.20 inc VAT)

Add
Our Price: £192.00 (230.40 inc VAT)

Add
Our Price: £695.00 (834.00 inc VAT)

Add
Our Price: £505.00 (606.00 inc VAT)

Add
Tekbox TBWA2/40dB Wideband RF Amplifier Tekbox TBPS01 Near-Field Probe Set Rigol RSA3000-B25 25MHz Real-Time Analysis Bandwidth Licence Rigol VB1032 VSWR Bridge
TEKBOX TBOH01 DC LISN Rigol OCXO-C08 High Stability Reference Oscillator Module Rigol S1210 EMI Pre-Compliance Test PC Software Licence Rigol Ultra Spectrum PC Software Licence
Our Price: £242.00 (290.40 inc VAT)

Add
Our Price: £632.00 (758.40 inc VAT)

Add
Our Price: £426.00 (511.20 inc VAT)

Add
Our Price: £177.00 (212.40 inc VAT)

Add
Tekbox TBOH01 DC LISN Rigol OCXO-C08 High Stability Reference Oscillator Module Rigol EMI Pre-Compliance Test PC Software Rigol Ultra Spectrum PC Software Licence
TEKBOX TBHDR1 High Dynamic Range Amplifier TEKBOX SMAM-SMAM/75/RG142 RF Cable TEKBOX TBPS1WA2/40 Near-Field Probe Set & 40dB Amplifier TEKBOX NM-SMAM/75/RG58 RF Cable
Our Price: £183.00 (219.60 inc VAT)

Add
Our Price: £77.00 (92.40 inc VAT)

Add
Our Price: £377.00 (452.40 inc VAT)

Add
Our Price: £8.00 (9.60 inc VAT)

Add
TEKBOX TBHDR1 High Dynamic Range Amplifier TEKBOX SMAM-SMAM/75/RG142 RF Cable Tekbox TBPS1WA2/40 Near-Field Probe Set with 40dB Wideband Amplifier TEKBOX NM-SMAM/75/RG58 RF Cable
Rigol RM6041 Rack Mount Kit TEKBOX TBWA2/20dB 20dB Wideband Amplifier TEKBOX TBST120/60/60/2 Shielded Tent Rigol RSA3000-BW1 1Hz to 10MHz RBW Licence
Our Price: £232.00 (278.40 inc VAT)

Add
Our Price: £184.00 (220.80 inc VAT)

Add
Our Price: £1,931.00 (2,317.20 inc VAT)

Add
Our Price: £314.00 (376.80 inc VAT)

Add
Rigol RM6041 Rack Mount Kit Tekbox TBWA2/20dB Wideband RF Amplifier TEKBOX TBST120/60/60/2 Shielded Tent Rigol RSA3000-BW1 1Hz to 10MHz RBW Licence
TEKBOX TBTC0 Open TEM Cell TEKBOX TBDA1/28 28dB Wideband Driver Amplifier Rigol NFP-3 Near-Field Probe Set TEKBOX TBAS3 RF Attenuator Set (10W)
Our Price: £436.00 (523.20 inc VAT)

Add
Our Price: £202.00 (242.40 inc VAT)

Add
Our Price: £426.00 (511.20 inc VAT)

Add
Our Price: £135.00 (162.00 inc VAT)

Add
Tekbox TBTC0 Open TEM Cell Tekbox TBDA1/28 Wideband RF Driver Amplifier Rigol NFP-3 Near-Field Probe Set TEKBOX TBAS3 RF Attenuator Set
TEKBOX NM-SMAM/75/RG223 RF Cable TEKBOX TBCAS1 Coaxial Adapter Set EMC for Printed Circuit Boards - Keith Armstrong TEKBOX TBAS2 Attenuation & Termination Set
Our Price: £11.00 (13.20 inc VAT)

Add
Our Price: £164.00 (196.80 inc VAT)

Add
Our Price: £47.00

Add
Our Price: £135.00 (162.00 inc VAT)

Add
TEKBOX NM-SMAM/75/RG223 RF Cable TEKBOX TBCAS1 Coaxial Adapter Set EMC for Printed Circuit Boards TEKBOX TBAS2 Attenuation & Termination Set
Rigol RSA3000-PA Preamplifier Licence Rigol ATT03301H High Power Attenuator TEKBOX SMBF-SMAM/75/RG316U RF Cable TEKBOX NM-NM/75/RG58 RF Cable
Our Price: £232.00 (278.40 inc VAT)

Add
Our Price: £190.00 (228.00 inc VAT)

Add
Our Price: £8.00 (9.60 inc VAT)

Add
Our Price: £9.00 (10.80 inc VAT)

Add
Rigol RSA3000-PA Preamplifier Licence Rigol ATT03301H High Power Attenuator TEKBOX SMBF-SMAM/75/RG316U RF Cable TEKBOX NM-NM/75/RG58 RF Cable
TEKBOX TBMDA3 Modulated Wideband Power Amplifier TEKBOX TBAS1 RF Attenuator Set (2W) TEKBOX TBMDA1 Modulated Wideband Driver Amplifier TEKBOX NM-SMAM/75/RG142 RF Cable
Our Price: £843.00 (1,011.60 inc VAT)

Add
Our Price: £84.00 (100.80 inc VAT)

Add
Our Price: £290.00 (348.00 inc VAT)

Add
Our Price: £77.00 (92.40 inc VAT)

Add
Tekbox TBMDA3 Modulated Wideband Power Amplifier TEKBOX TBAS1 RF Attenuator Set Tekbox TBMDA1 Modulated Wideband Driver Amplifier TEKBOX NM-SMAM/75/RG142 RF Cable
EMC Design Techniques for Electronic Engineers - Keith Armstrong Rigol RSA3000-B40 40MHz Real-Time Analysis Bandwidth Licence TEKBOX TBTC1 Open TEM Cell TEKBOX TBTC3 Open TEM Cell
Our Price: £55.00

Add
Our Price: £1,177.00 (1,412.40 inc VAT)

Add
Our Price: £582.00 (698.40 inc VAT)

Add
Our Price: £970.00 (1,164.00 inc VAT)

Add
EMC Design Techniques for electronic engineers Rigol RSA3000-B40 40MHz Real-Time Analysis Bandwidth Licence Tekbox TBTC1 Open TEM Cell Tekbox TBTC3 Open TEM Cell

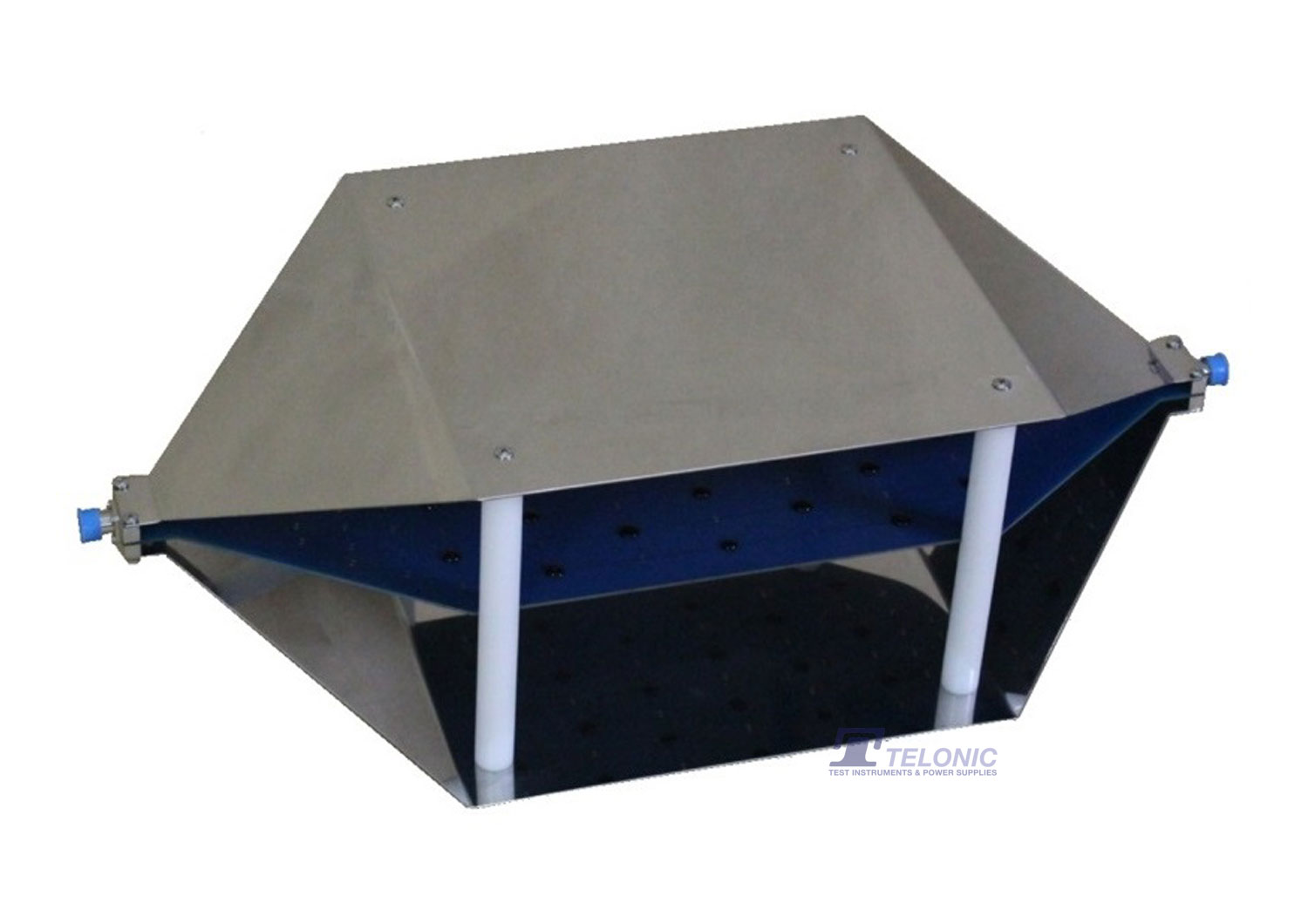

TEKBOX TBMDA2 Modulated Wideband Driver Amplifier TEKBOX NM-BNCM/75/RG58 RF Cable TEKBOX TBTC2 Open TEM Cell TEKBOX TBDA1/14 14dB Wideband Driver Amplifier
