TEKBOX TBPS01 EMC Probe Set

£186.73 (£224.08 inc VAT)

4 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Free Shipping Price Match Guarantee

Description


Tekbox TBPS01 Probes

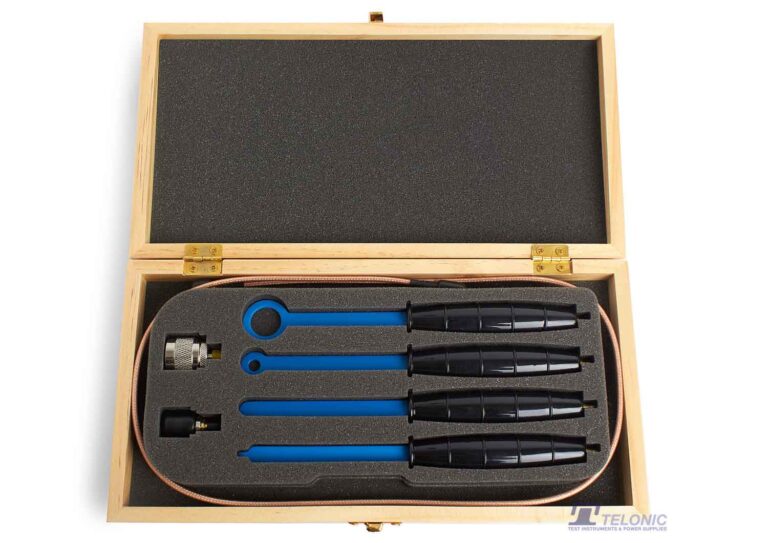

This Near Field Probe Set contains 3-off magnetic (H) field probes, 1-off electric (E) field probe, an adapter and RF cable – Everything you need to ‘get operational’ with a Rigol Spectrum Analyser.

The H20, H10, H5 and E5 are magnetic field (H) and electric field (E) probes for radiated emissions EMC pre-compliance measurements. The probes are used in the near-field of sources of electromagnetic radiation. They serve to locate and identify potential sources of interference within the building blocks of electronic assemblies.

The probes act similar to wideband antennas, picking up radiated emissions from components, PCB tracks, housing openings or gaps and from any other parts that could be emitting RF energy. Scanning a probe over the surface of a PCB assembly or housing quickly identifies locations which emit electromagnetic radiation. By changing to a probe with a smaller size, the source of the emissions can be narrowed down further.

The probes can also be used for for RF immunity tests, by feeding a RF signal into the probe and radiating it into potentially susceptible areas of the circuit. Furthermore, the probes can be used for repair or debugging, to track down issues in RF circuits by non-contact measurement of RF signal levels.

Features:

  • Slim design for good access in between tightly spaced components
  • Shielded loops to avoid picking up common mode noise; insensitive to the human hand
  • Frequency range: 3GHz, though they can be used well beyond
  • SMB connectors to avoid twisting the RF cable when scanning DUTs
  • Insulated with rubber coating

Documentation

Specifications
ProbeLengthLoopTip
H20 H-Field170mm20mmn.a.
H10 H-Field170mm10mmn.a.
H5 H-Field170mm5mmn.a.
E5 E-Field170mmn.a.5mm
TBWA2/20dB
Input50 Ohm, SMA
Output50 Ohm, SMA
Nominal supply Voltage4.5 – 5V, typ. 110mA, Mini-USB-B connector
Maximum supply voltage5.5V
Maximum input power+10dBm
1dB output compression point @ 2GHz+20dBm
3rd order output intercept point @ 2GHzPin = 0dBm/tone, Δf = 10MHz: +35dBm
Reverse isolation S120.1 …6GHz: 23dB
Noise Figure @ 2GHz4.5 … 5 dB
Gain
1MHz10MHz100MHz500MHz1GHz2GHz3GHz4.5GHz6GHz
14.8dB20.2dB20.2dB20dB19.8dB19dB17.6dB17.4dB15.4dB
TBWA2/40dB
Input50 Ohm, SMA
Output50 Ohm, SMA
Nominal supply Voltage4.5 – 5V, typ. 210mA, Mini-USB-B connector
Maximum supply voltage5.5V
Maximum input power-10dBm
1dB output compression point @ 2GHz+20dBm
Reverse isolation S120.1 …6GHz: 40dB
Noise Figure @ 2GHz5 dB
Gain
1MHz10MHz100MHz500MHz1GHz2GHz3GHz4.5GHz6GHz
30dB40.2dB40.2dB40dB39.5dB37.6dB36.4dB34.6dB34.7dB
