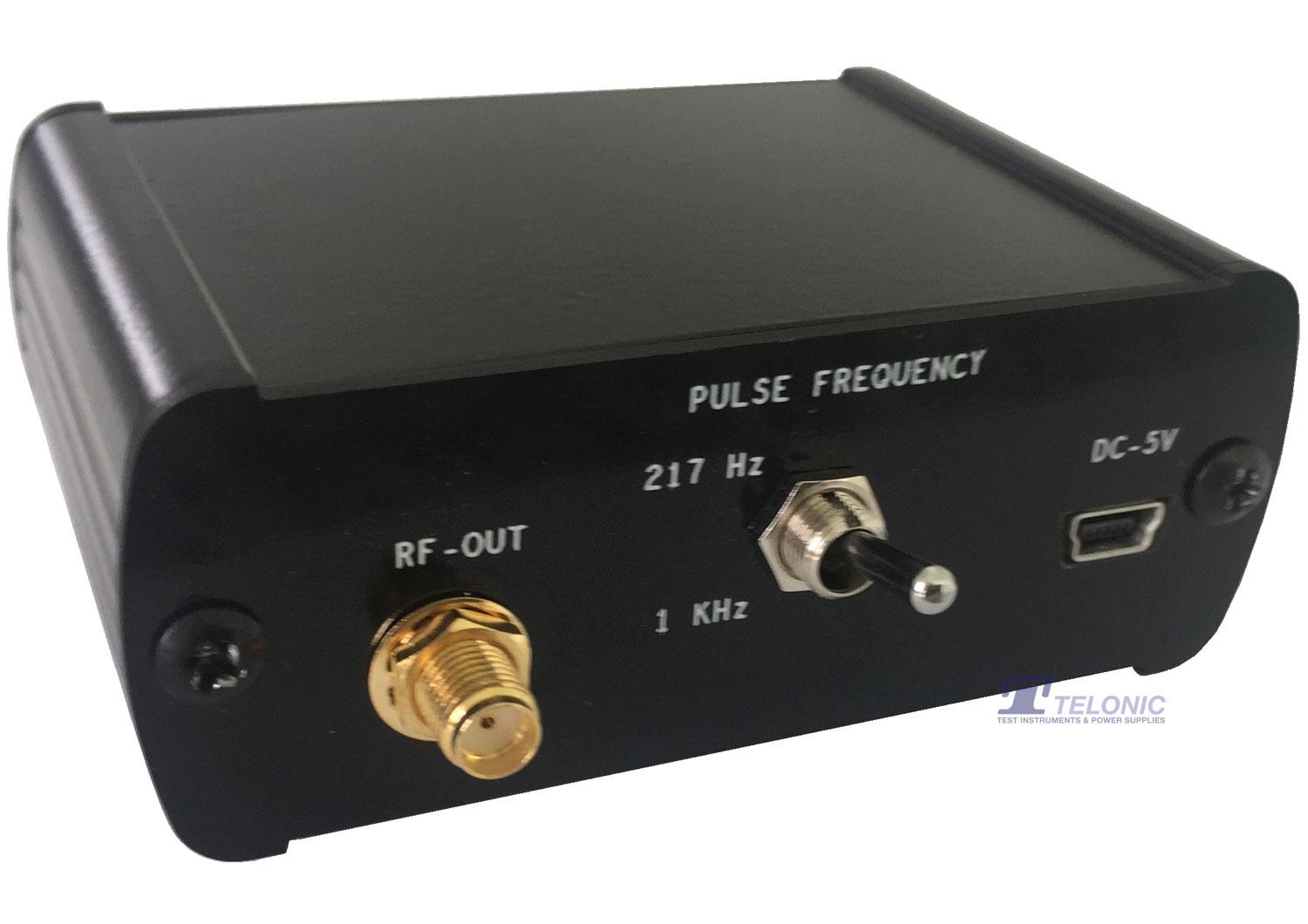

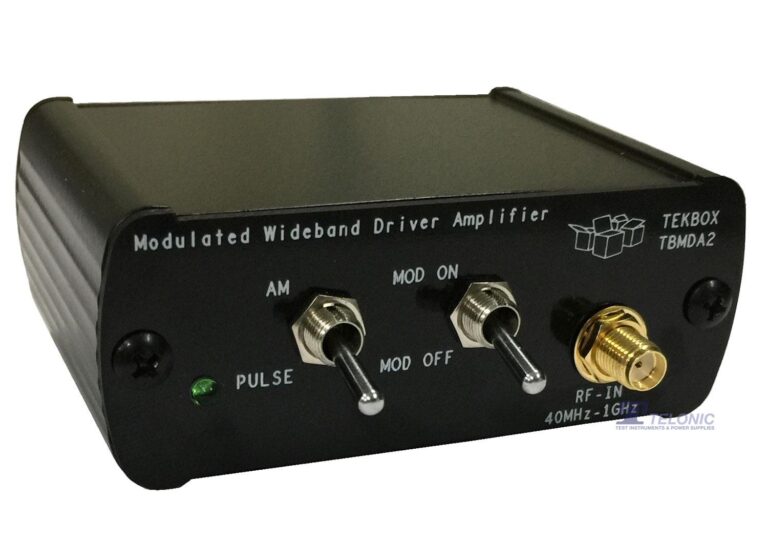

TEKBOX TBMDA2 modulated wideband driver amplifier is designed in order to create an inexpensive signal source for immunity testing of electronic building blocks and products. It is designed to be driven by the tracking generator output of spectrum analysers. With its 1dB compression point of +27dBm, it can boost the output power of a tracking generator up to 500mW. The TBMDA2 is ideal to drive Tekbox near field probes in order to find the sensitive spot of an electronic circuit or to create electric fields up to 170V/m when driving the Tekbox TEM Cell TBTC0, 100V/m when driving the TBTC1, 50V/m when driving the TBTC2 or 30V/m when driving the TBTC3. Test signals for immunity testing can be CW, AM or PM. Consequently, the TBMDA2 provides built in modulation capability to generate 1kHz AM or PM signals. In PM mode, the TBMDA2 can also generate a 217Hz Signal with 12.5% duty cycle in order to simulate mobile phone TDMA noise.
The following items are included:
1-off modulated driver amplifier
2-off RF cables – N(m) to SMA(m), 75cm
1-off RF attenuator – 20dB, 10W, N-type connectors
1-off USB cable
For further information, please refer to the ‘SPECIFICATION’ and ‘DOCUMENTS, SOFTWARE & VIDEOS’ tabs, above.
