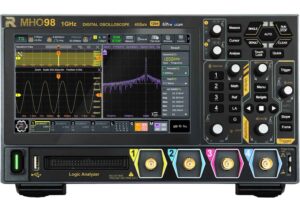

Rigol MHO984 4CH, 12Bit, 800MHz, 4GSa/s Digital Oscilloscope

£864.00 (£1036.80 inc. VAT) (Ā£1,036.80 inc VAT)

5+ In UK Stock

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: MHO984 Category: Brand:

Description


Rigol MHO984 4CH, 12Bit, 800MHz, 4GSa/s Digital Oscilloscope

The MHO900 series is RIGOL’s economical oscilloscope. Compact in size, it features a 1,000,000 wfms/s[1] capture rate, max memory depth of 500 Mpts (option), 12-bit high resolution and low noise.

The product supports 16 digital channels. One instrument can analyse both analogue and digital signals to meet embedded design and test scenarios. With an affordable price equivalent to purchasing an entry-level instrument, you can access the auto serial and parallel bus analysis, Bode plot analysis, and other functions to meet the test demands in the R&D, education, and scientific research fields.

Product Images

Documentation


Technical Specifications

ModelMHO984MHO954MHO934
Max. Analog Bandwidth (50 Ī©, -3 dB)800 MHz (single-channel[1] & half-channel[2])
400 MHz (all-channel[3])		500 MHz (single-channel[1] & half-channel[2])
400 MHz (all-channel[3])		350 MHz (for any number of channels)
Max. Analog Bandwidth (1 MĪ©, -3 dB)500 MHz (single-channel[1] & half-channel[2])
400 MHz (all-channel[3])		500 MHz (single-channel[1] & half-channel[2])
400 MHz (all-channel[3])		350 MHz (for any number of channels)
Calculated Rising Time under 50 Ī© (10%ā€“90%, typical)437 ps700 ps1 ns
No. of Analog Channels4
Function/Arbitrary Waveform Generator (AFG)[4]2-Channel, 100 MHz, 1 GSa/s (Opt.)
2-Channel, 50 MHz, 1 GSa/s (Opt.)
Bode Plot[5]Sweep Range: 10 Hz to 30 MHz
