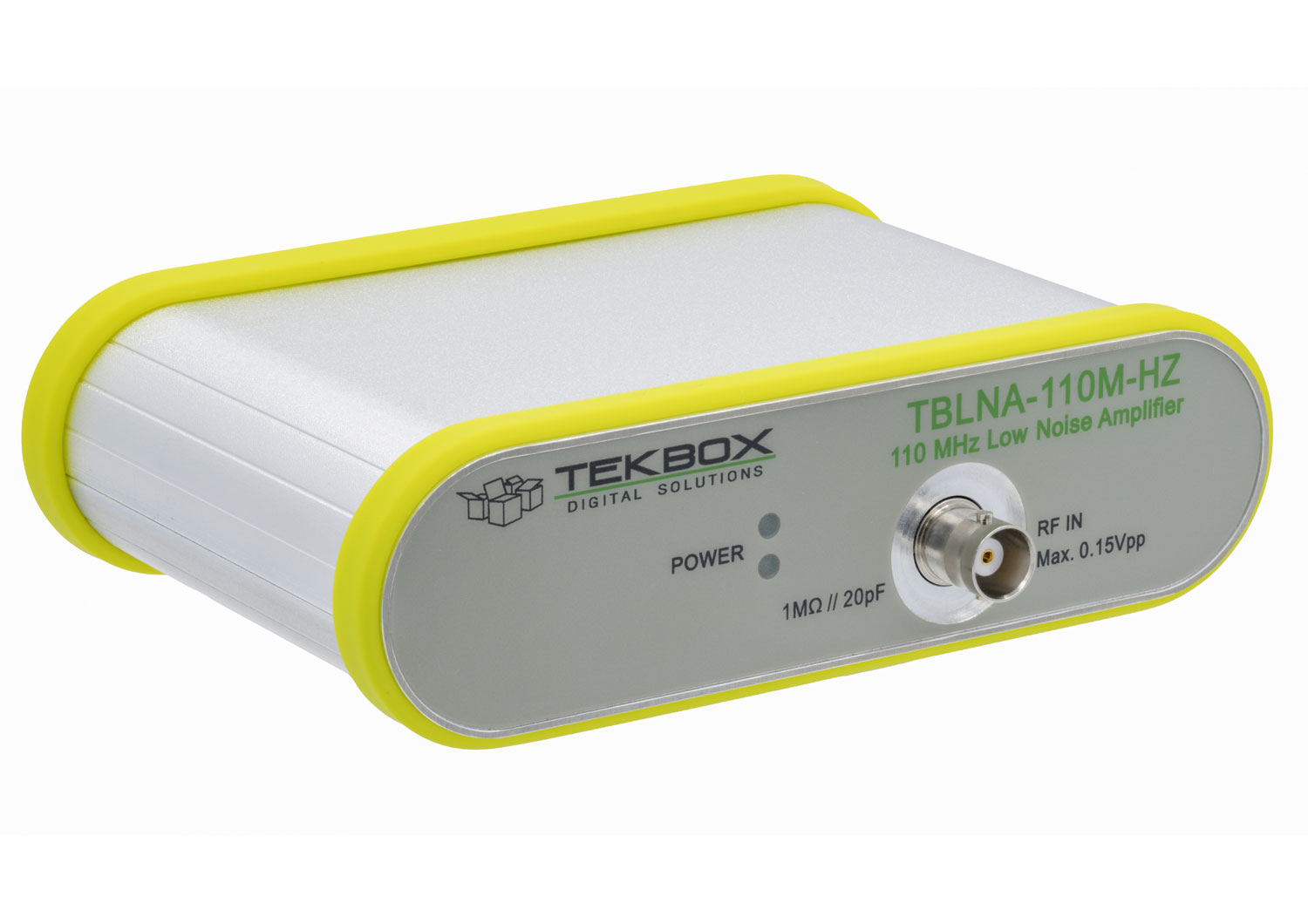

TEKBOX TBLNA-110M-HZ DC-Coupled Impedance Converter

£585.00 (£702.00 inc. VAT)

Out of stock

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBLNA-110M-HZ Category: Tag: Brand:

Documentation

TBLNA-110M-HZ Manual
General specification
Flat frequency rangeDC – 110 MHz, typ.
3 dB frequency rangeDC – 500 MHz, typ.
Usable frequency rangeDC – 1 GHz
Gain0 dB, 20 dB
RF-connectorsBNC-female
Input specification
Input impedance1 MΩ // 20 pF
Input Noise Voltage>2 MHz: typ. <10 nV/√Hz; for details see chapter 3.3
Maximum input level for linear output150 mVpp for output saturation at the 20 dB gain output, 1:1
1.5 Vpp for output saturation at the 20 dB gain output, 1:10
1.5Vpp for output saturation at the 0 dB gain output, 1:1
15Vpp for output saturation at the 0 dB gain output, 1:10
Maximum ratings50Vpp AC
Output specification
Output impedance50 Ω, detailed plots in chapter 3.2
Output return loss> 25 dB, detailed plots in chapter 3.2
P1dBout+8.6 dBm ( 1.7 Vpp ), 20 dB gain output
+8.6 dBm ( ≙ 1.7 Vpp ), 0 dB gain output
IP3out+19 dBm, 20 dB gain output
+19 dBm, 0 dB gain output
DC offset< 10mV output offset
Supply specification
Power-connectorCoaxial power socket; 2 mm / 5.5 mm; positive center conductor
Indicator LEDsPower ON, Power Good
Operating voltage12 V; external power supply 100 V – 240 V, 50/60 Hz
Current consumption275 mA
Operating temperature range-20°C to +50°C
DimensionsW 135 mm x H 40 mm x L 110 mm
Weight350
