Rigol DG972 70MHz Function / Arbitrary Waveform Generator
Rigol DG972 Waveform Generator

Rigol DG972





Alternative Views:


Rigol DG972
70MHz Function / Arbitrary Waveform Generator

Our Price: £508.00 (609.60 inc VAT)
Latest Firmware Fitted read more





Quantity in our UK Stock.:1

Availability: Stock models DELIVERED NEXT WORKING DAY (UK only) for orders placed before 15:00 (Mon. - Fri.).
Product Code: DG972



The following items are included FREE OF CHARGE with this product:

Description Specification Documents, Software & Videos


**RIGOL 20% OFF SUMMER SALE**

All orders received before 30th September 2019 will qualify for this promotion. (Price includes saving).

The Rigol DG900 series offers a user-friendly and high-performance function/arbitrary waveform generator solution at a very attractive price. Each instrument provides many functions including; function generator, arbitrary waveform generator, noise source, pulse generator, harmonics generator, analogue / digital modulator and frequency counter. Any Rigol DG900 series function/arbitrary waveform generator would be a valuable asset in any home, business or education laboratory.

For further information, please refer to the 'SPECIFICATION' and 'DOCUMENTS, SOFTWARE & VIDEOS' tabs, above.

An overview of all Rigol function / arbitrary waveform generators can be found HERE.



Click image to enlarge

Features
  • Unique SiFiII (Signal Fidelity II) technology
  • Two fully functional and independent channels
  • Maximum frequency 70MHz
  • 250MSa/s sample rate
  • 16-bit vertical resolution
  • Basic waveforms: Sine, square, ramp, pulse, noise, DC, dual-tone
  • Advanced waveforms: PRBS, RS232, sequence
  • 160-off built-in arbitrary waveforms
  • 16Mpts arbitrary waveform memory depth per channel
  • Supported modulation: AM, FM, PM, ASK, FSK, PSK & PWM
  • Intuitive arbitrary waveform editing software for PC
  • ±1ppm frequency stability
  • Phase noise <-105dBc/Hz @ 10kHz (f = 10MHz)
  • Built-in 7 digit counter up to 240MHz
  • Built-in 8th order harmonics generator
  • Waveform summing function
  • 4.3" TFT LCD colour touch-screen display (480 x 272), 16M colours
  • Connectivity... USB Host & Device, (USB-LAN optional)
  • Standard accessories... UK & European mains leads, BNC cable, USB cable, quick guide
  • Optional accessories... 40dB attenuator, USB to LAN module
  • Other options include... Standard calibration (traceable to UK national standards), UKAS calibration

OPTIONS & Accessories

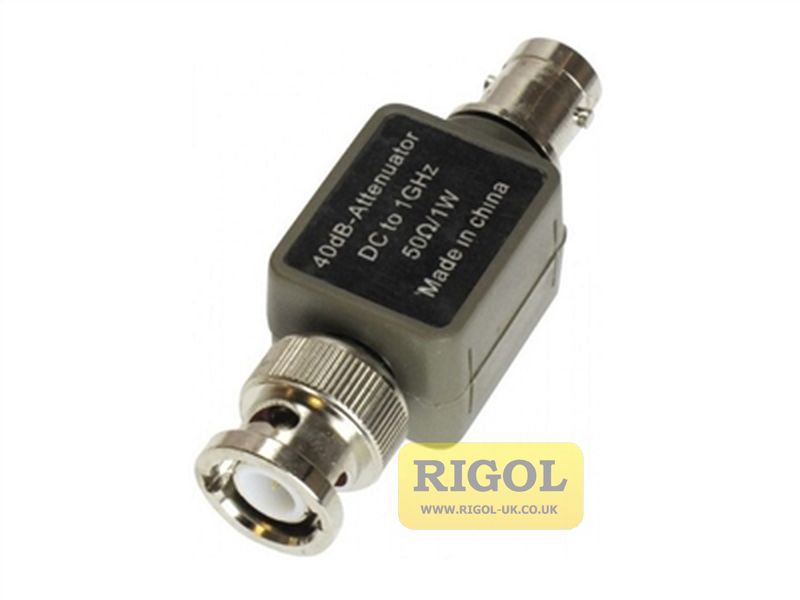

Rigol RA5040K 40dB Attenuator Rigol USB-LAN Interface Converter Module
Our Price: £41.00 (49.20 inc VAT)

Add
Our Price: £35.00 (42.00 inc VAT)

Add
Rigol RA5040K 40dB Attenuator Rigol USB-LAN Interface Converter Module
