TEKBOX NM-SMAM/75/RG58 50Ω RF Cable

TEKBOX NM-SMAM/75/RG58 50Ω RF Cable

£10.00 (£12.00 inc VAT)

4 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: NM-SMAM-75-RG58 Categories: , Brand:

Description

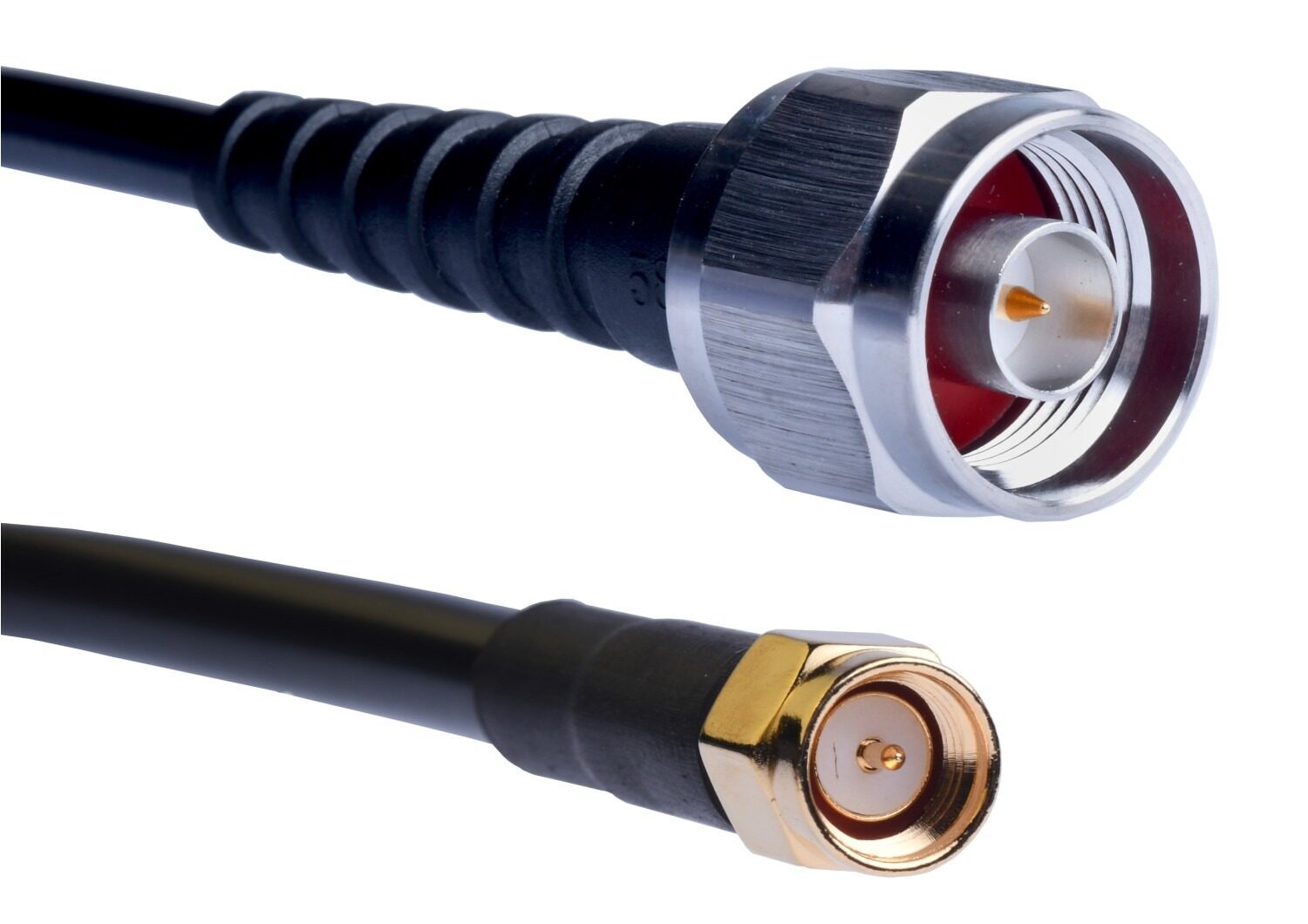

TEKBOX 50Ω RF cable, N-Male to SMA-Male, 75 cm, RG58.

Insertion Loss

Attenuation
10MHz / 0.06dB
100MHz / 0.15dB
500MHz / 0.36dB
1GHz / 0.58dB
2GHz / 0.73dB
3GHz / 1.02dB
6GHz / 1.83dB



ParametersRG 58/URG 142RG 213/URG 223/URG 316/URM 141
centre conductor Ø0.9 mm0.94 ± 0.02 mm2.26 ± 0.09 mm0.9 ± 0.01 mm0.51 ± 0.03 mm0.93 ± 0.02 mm
centre cond. materialtinned coppersilver-plated copperplain coppersilver-plated coppersilver-plated coppersilver-plated copper
dielectric Ø2.95 ± 0.1 mm3 ± 0.05 mm7.25 ± 0.18 mm2.95 ± 0.1 mm1.52 ± 0.05 mm2.95 ± 0.05 mm
dielectric materiallow-density PTFElow-density PTFElow-density PTFElow-density PTFEPTFEPTFE
braid ØØ 3.13×112Ø 4.15 mm, doubleØ 0.18×192Ø 4.2 mm, double1.95 ± 0.08 mm3.68 ± 0.1 mm
braid materialtinned coppersilver-plated copperplain coppertinned coppersilver-plated coppersilver-plated copper
sheath Ø5 ± 0.1 mm4.95 ± 0.15 mm10.3 ± 0.18 mm5.4 ± 0.1 mm2.9 ± 0.1 mm4.1 ± 0.1 mm
sheath materialPVCFEPPVCPVCFEPFEP
min. bending radiussingle: 25 mm
repeated: 50 mm		single: 30 mm
repeated: 50 mm		single: 50 mm
repeated: 100 mm		single: 26 mm
repeated: 53 mm		single: 15 mm
repeated: 30 mm		single: 12.7 mm
repeated: 40 mm
impedance50 ± 2 Ω50 ± 2 Ω50 ± 2 Ω50 ± 2 Ω50 ± 2 Ω50 ± 2 Ω
capacitance100 pF / m96 pF / m100 pF / m100 pF / m96 pF / m95 pF / m
inductance0.2µH / m0.22µH / m0.25µH / m0.2µH / m0.27µH / m0.27µH / m
velocity ratio66 %70 %66 %66 %70 %70 %
insulation resistance5 GΩ km35 GΩ km10 GΩ km5 GΩ km1 GΩ km1 GΩ km
center cond. res.38 Ω / km34 Ω / km6 Ω / km29 Ω / km266 Ω / km266 Ω / km
braid resistance14 Ω / km7.3 Ω / km4.4 Ω / km11 Ω / km18 Ω / km18 Ω / km
dielectric strength4 kV5 kV5.5 kV5 kV1 kV2 kV
shielding effectivenesstyp. -56 dB / mtyp. -80 dB / m< -57 dB / m< -83 dB / m< -52 dB / m< -100 dB / m
frequency rangeDC – 5.8 GHzDC – 6 GHzDC – 3 GHzDC – 6 GHzDC – 6 GHzDC – 18 GHz
temperature range-30°C ~ +70°C-55°C ~ +165°C-40°C ~ +85°C-30°C ~ +80°C-55°C ~ +165°C-55°C ~ +200°C
max. power @100MHz230 W1250 W1316 W280 W395 W–
max. power @400MHz110 W650 W658 W121 W209 W950 W
max. power @ 1 GHz65 W380 W416 W80 W135 W620 W
max. power @ 3 GHz–230 W–46 W78 W360 W
max. power @ 6 GHz–150 W–32 W11 W220 W
max. power @ 12 GHz–––––150 W
max. power @ 18 GHz–––––120 W
attenuation @100MHz0.16 dB/m0.15 dB/m0.06 dB/m0.17 dB/m0.26 dB/m0.11 dB/m
attenuation @400MHz0.32 dB/m0.3 dB/m0.13 dB/m0.33 dB/m0.53 dB/m0.23 dB/m
attenuation @ 1 GHz0.57 dB/m0.49 dB/m0.23 dB/m0.53 dB/m0.89 dB/m0.38 dB/m
attenuation @ 3 GHz1.15 dB/m0.9 dB/m0.49 dB/m0.98 dB/m1.63 dB/m1.08 dB/m
attenuation @ 6 GHz1.69 dB/m1.37 dB/m–1.49 dB/m2.34 dB/m1.08 dB/m
attenuation @ 12 GHz–––––1.66 dB/m
attenuation @ 18 GHz–––––2.16 dB/m
ConnectorsLengthCableConn. materialPart #
N-Male to N-Male30 cmRM141stainless steelNM-NM/30/RM141
N-Male to N-Male35 cmRG 223/Ucopper-tin-zinc plated brassNM-NM/35/RG223
N-Male to N-Male50 cmRM141stainless steelNM-NM/50/RM141
N-Male to N-Male75 cmRG 58/Ucopper-tin-zinc plated brassNM-NM/75/RG58
N-Male to N-Male75 cmRG 223/Ucopper-tin-zinc plated brassNM-NM/75/RG223
N-Male to N-Male75 cmRG 142 armouredstainless steelNM-NM/75/RG142/Test
N-Male to N-Male1 mRM141stainless steelNM-NM/100/RM141
N-Male to N-Male1.25 mRG 223/Ucopper-tin-zinc plated brassNM-NM/125/RG223
N-Male to N-Male3.12 mRG 213/Ucopper-tin-zinc plated brassNM-NM/312/RG213
N-Male to N-Male3 mRG 142copper-tin-zinc plated brassNM-NM/300/RG142
N-Male to N-Male5 mRG 223/Ucopper-tin-zinc plated brassNM-NM/500/RG223
N-Male to N-Male5 mRG 213/Ucopper-tin-zinc plated brassNM-NM/500/RG213
N-Male to N-Male10 mRG 142copper-tin-zinc plated brassNM-NM/1000/RG142
N-Male to SMA-Male30 cmRM141stainless steelNM-SMA/30/RM141
N-Male to SMA-Male35 cmRG 223/UN: copper-tin-zinc plated brass; SMA: gold plated brassNM-SMA/35/RG223
N-Male to SMA-Male50 cmRM141stainless steelNM-SMA/50/RM141
N-Male to SMA-Female50 cmRM141N: stainless steel; SMA: gold-plated brassNM-SMAF/50/RM141
N-Male to SMA-Female75 cmRG 58/UN: copper-tin-zinc plated brass; SMA: gold plated brassNM-SMAF/75/RG58
N-Male to SMA-Male50 cmRG 223/UN: copper-tin-zinc plated brass; SMA: gold plated brassNM-SMA/50/RG223
N-Male to SMA-Male75 cmRG 142 armouredstainless steelNM-SMA/75/RG142/Test
N-Male to SMA-Male1 mRM141stainless steelNM-SMA/100/RM141
N-Male to SMA-Female1 mRM141stainless steelNM-SMAF/100/RM141
N-Male to SMA-Male1.25 mRG 223/Ucopper-tin-zinc plated brassNM-SMA/125/RG223
N-Male to BNC-Male35 cmRG 223/Ucopper-tin-zinc plated brassNM-BNCM/35/RG223
N-Male to BNC-Male75 cmRG 58/Ucopper-tin-zinc plated brassNM-BNCM/75/RG58
N-Male to BNC-Male1.25 mRG 223/Ucopper-tin-zinc plated brassNM-BNCM/125/RG223
BNC-Male to BNC-Male1.25 mRG 223/Ucopper-tin-zinc plated brassBNCM-BNCM/125/RG223
BNC-Male to BNC-Male1.5 mRG 6, 75 Ohmcopper-tin-zinc plated brassBNCM-BNCM/150/RG6/75Ω
BNC-Male to BNC-Male3 mRG 6, 75 Ohmcopper-tin-zinc plated brassBNCM-BNCM/300/RG6/75Ω
BNC-Male to BNC-Male5 mRG 223/Ucopper-tin-zinc plated brassBNCM-BNCM/500/RG223
BNC-Male to SMA-Male25 cmRG 316/UBNC: copper-tin-zinc plated brass; SMA: gold plated brassBNCM-SMA/25/RG316
BNC-Male to SMA-Male35 cmRG 223/Ucopper-tin-zinc plated brassBNCM-SMA/35/RG223
BNC-Male to SMA-Male10 mRG 142copper-tin-zinc plated brassBNCM-SMA/1000/RG142
SMA-Male to SMA-Male30 cmRM141stainless steelSMAM-SMAM/30/RM141
SMA-Male to SMA-Male35 cmRG 223/URM141SMAM-SMAM/35/RG223
SMA-Male to SMA-Male50 cmRM141stainless steelSMAM-SMAM/50/RM141
SMA-Male to SMA-Female50 cmRM141stainless steel; SMA: gold-plated brassSMAM-SMAF/50/RM141
SMA-Male to SMA-Male75 cmRG 223/URM141SMAM-SMAM/75/RG223
SMA-Male to SMA-Female75 cmRG 142 armouredstainless steelSMAM-SMAF/75/RG142/Test
SMA-Male to SMA-Male1 mRM141stainless steelSMAM-SMAM/100/RM141
SMA-Male to SMA-Female1 mRM141stainless steelSMAM-SMAF/100/RM141
SMA-Male to SMA-Male1.25 mRG 223/Ugold-plated brassSMAM-SMAM/125/RG223
SMA-Male to SMB-Female75 cmRG 316/Ugold-plated brassSMAM-SMBF/75/RG316



ConnectorslengthcableVSWR @ 3 GHzins. loss @ 3 GHzins. loss @ 6 GHz
N-Male to N-Male35 cmRG 223/U≤ 1.2≤ 0.7 dB≤ 1.3 dB
N-Male to N-Male75 cmRG 58/U≤ 1.2≤ 1.1 dB≤ 2 dB
N-Male to N-Male75 cmRG 223/U≤ 1.2≤ 1.1 dB≤ 1.5 dB
N-Male to N-Male75 cmRG 142≤ 1.12≤ 0.8 dB≤ 1.2 dB
N-Male to N-Male3 mRG 142≤ 1.2≤ 3.1 dB≤ 4.8 dB
N-Male to N-Male3,12 mRG 213≤ 1.25≤ 2.6 dB≤ 4.5 dB
N-Male to N-Male5 mRG 223/U≤ 1.3≤ 5.3 dB≤ 7.5 dB
N-Male to N-Male5 mRG 213/U≤ 1.25≤ 4.7 dB≤ 6.8 dB
N-Male to N-Male10 mRG 142≤ 1.2≤ 9.4 dB≤ 14.8 dB
N-Male to SMA-Male35 cmRG 223/U≤ 1.2≤ 0.7 dB≤ 1.2 dB
N-Male to SMA-Male75 cmRG 58≤ 1.2≤ 1.3 dB≤ 2 dB
N-Male to SMA-Male75 cmRG 223/U≤ 1.2≤ 1.1 dB≤ 1.5 dB
N-Male to SMA-Male75 cmRG 142≤ 1.12≤ 0.8 dB≤ 1.2 dB
N-Male to BNC-Male35 cmRG 223/U≤ 1.3≤ 0.8 dB
N-Male to BNC-Male75 cmRG 58/U≤ 1.3≤ 1.4 dB
N-Male to BNC-Male75 cmRG 223/U≤ 1.3≤ 1.2 dB
BNC-Male to BNC-Male35 cmRG 223/U≤ 1.3≤ 0.8 dB
BNC-Male to SMA-Male35 cmRG 223/U≤ 1.3≤ 0.8 dB
SMA-Male to SMA-Male25 cmRG 316/U≤ 1.2≤ 0.5 dB≤ 0.9 dB
SMA-Male to SMA-Male75 cmRG 142≤ 1.12≤ 0.8 dB≤ 1.2 dB
SMA-Male to SMB-Female75 cmRG 316/U≤ 1.2≤ 2.7 dB



ConnectorslengthcableVSWR @ 8.5 GHzins. loss @ 6 GHzins. loss @ 8.5 GHz
N-Male to N-Male30 cmRM141≤ 1.2≤ 0.8 dB≤ 0.9 dB
N-Male to N-Male50 cmRM141≤ 1.2≤ 0.9 dB≤ 1.3 dB
N-Male to N-Male100 cmRM141≤ 1.2≤ 1.4 dB≤ 1.6 dB
N-Male to SMA-Male30 cmRM141≤ 1.18≤ 0.5 dB≤ 0.6 dB
N-Male to SMA-Male50 cmRM141≤ 1.18≤ 0.7 dB≤ 0.8 dB
N-Male to SMA-Male100 cmRM141≤ 1.18≤ 1.3 dB≤ 1.5 dB
SMA-Male to SMA-Male30 cmRM141≤ 1.15≤ 0.4 dB≤ 0.5 dB
SMA-Male to SMA-Male50 cmRM141≤ 1.15≤ 0.6 dB≤ 0.8 dB
SMA-Male to SMA-Male100 cmRM141≤ 1.15≤ 1.2 dB≤ 1.2 dB
