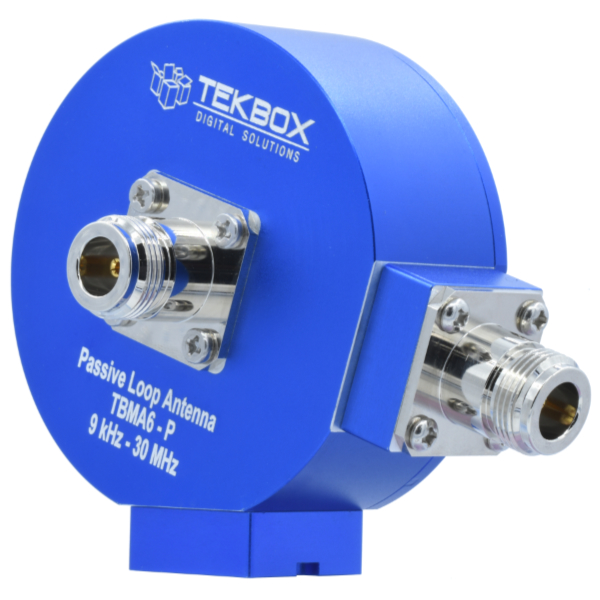

Tekbox TBMA6-P Passive Loop Antenna

The TBMA6-P is a passive Loop Antenna, expanding the Tekbox product range of affordable EMC pre-compliance test equipment.

The loop antenna is designed for radiated emission measurements in the frequency range of 9 kHz – 30 MHz, according to CISPR 16. The loop antenna has a diameter of 60 cm and provides sufficient sensitivity to carry out all relevant measurements specified in the corresponding CISPR standards for the frequency range of 9 kHz – 30 MHz.

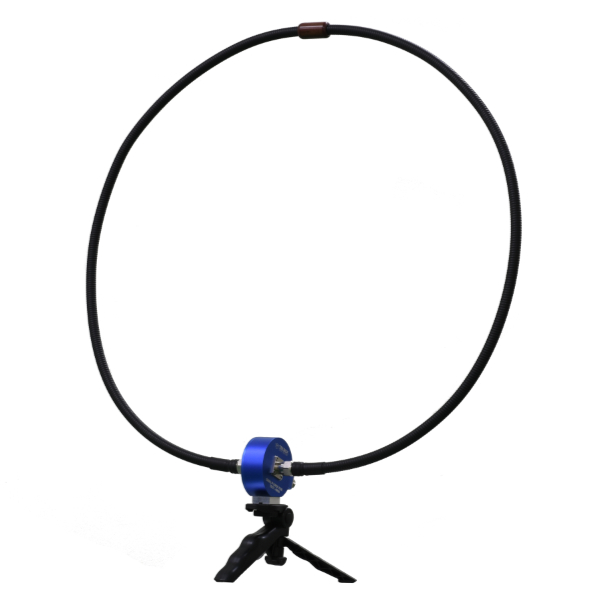

The loop is built from a corrugated coaxial cable and attached to the transducer with N-connectors. This construction provides flexibility to use it with various loop diameters. An attachment with a ¼” thread permits connectivity to standard tripods.

Features:

  • Characterized frequency range: 9 kHz to 30 MHz

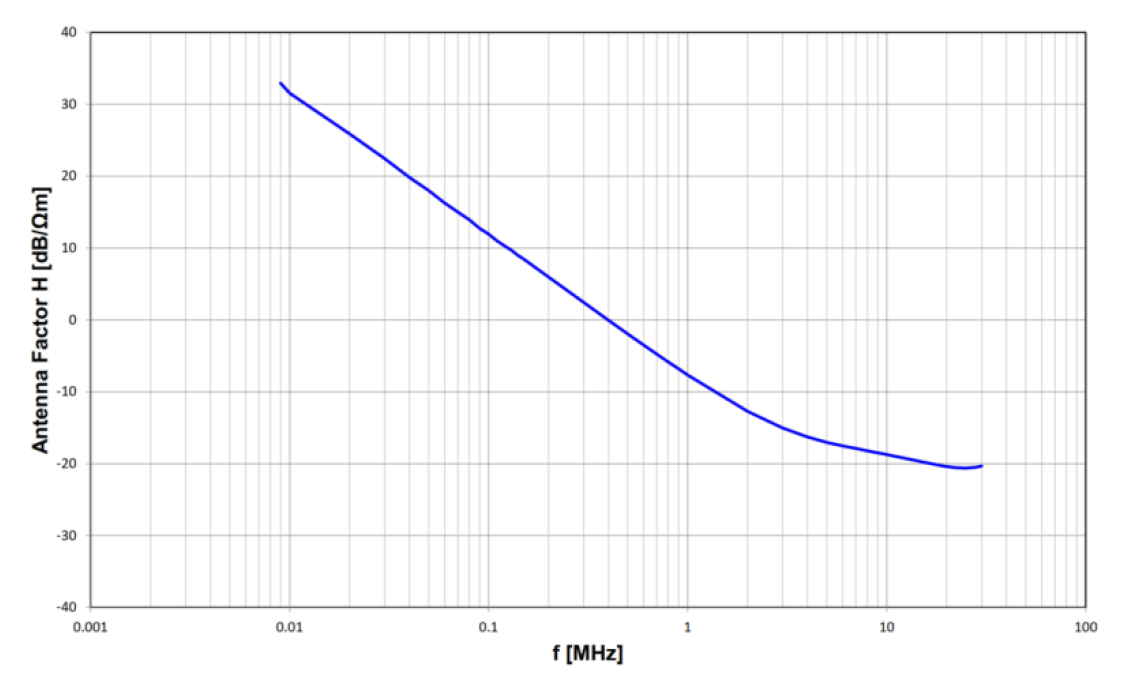

  • Magnetic field antenna factor: -20 dB/Ωm @ 30 MHz, typ.

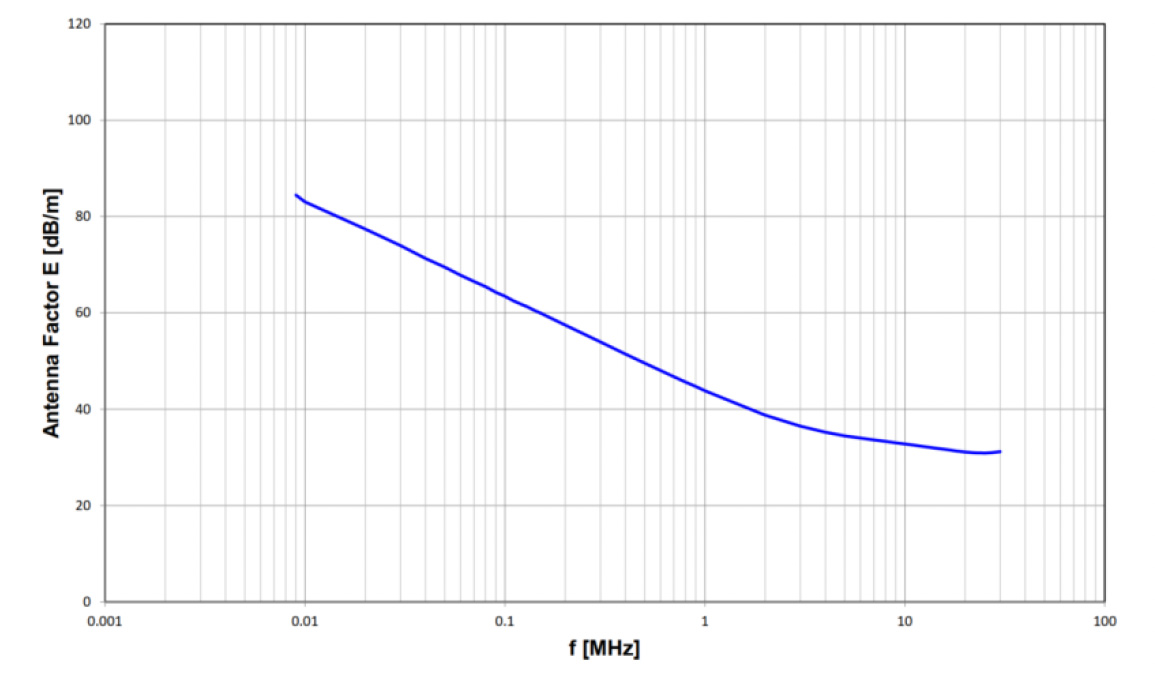

  • Electric field antenna factor: 31,5 dB/m @ 30 MHz, typ.

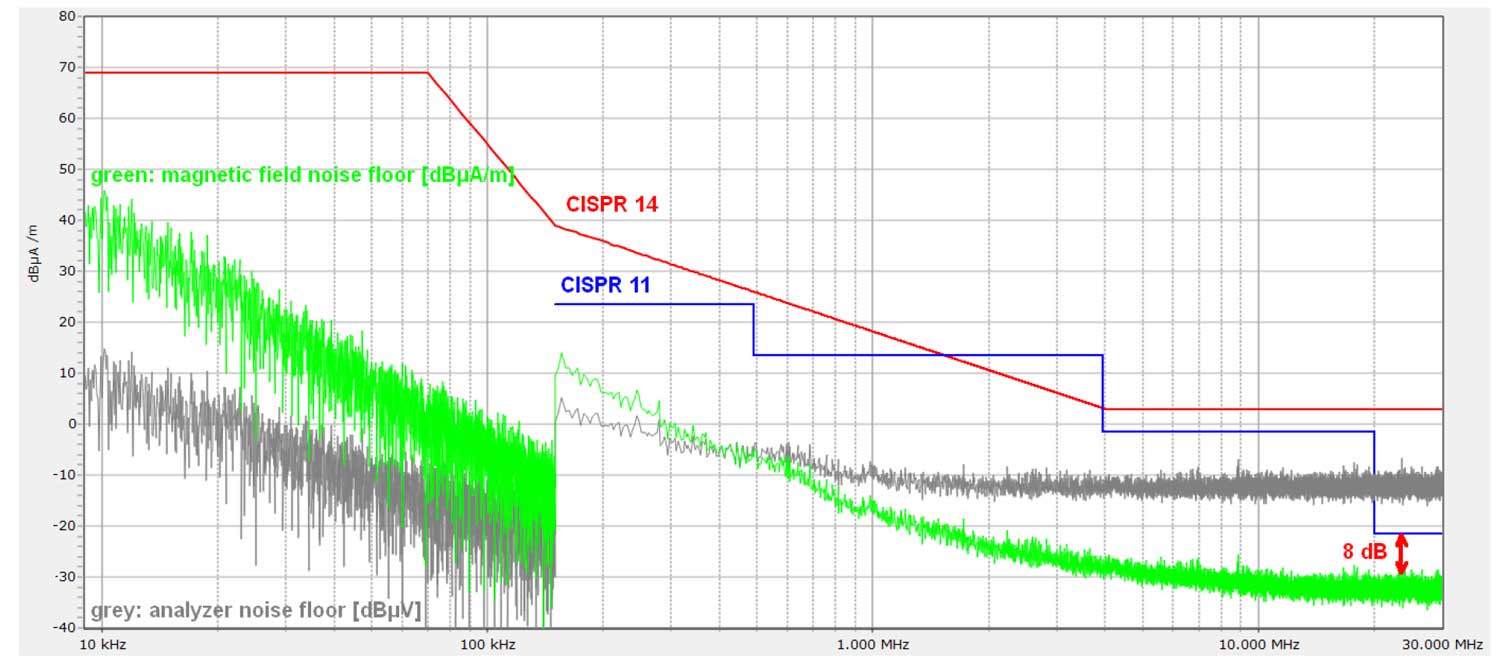

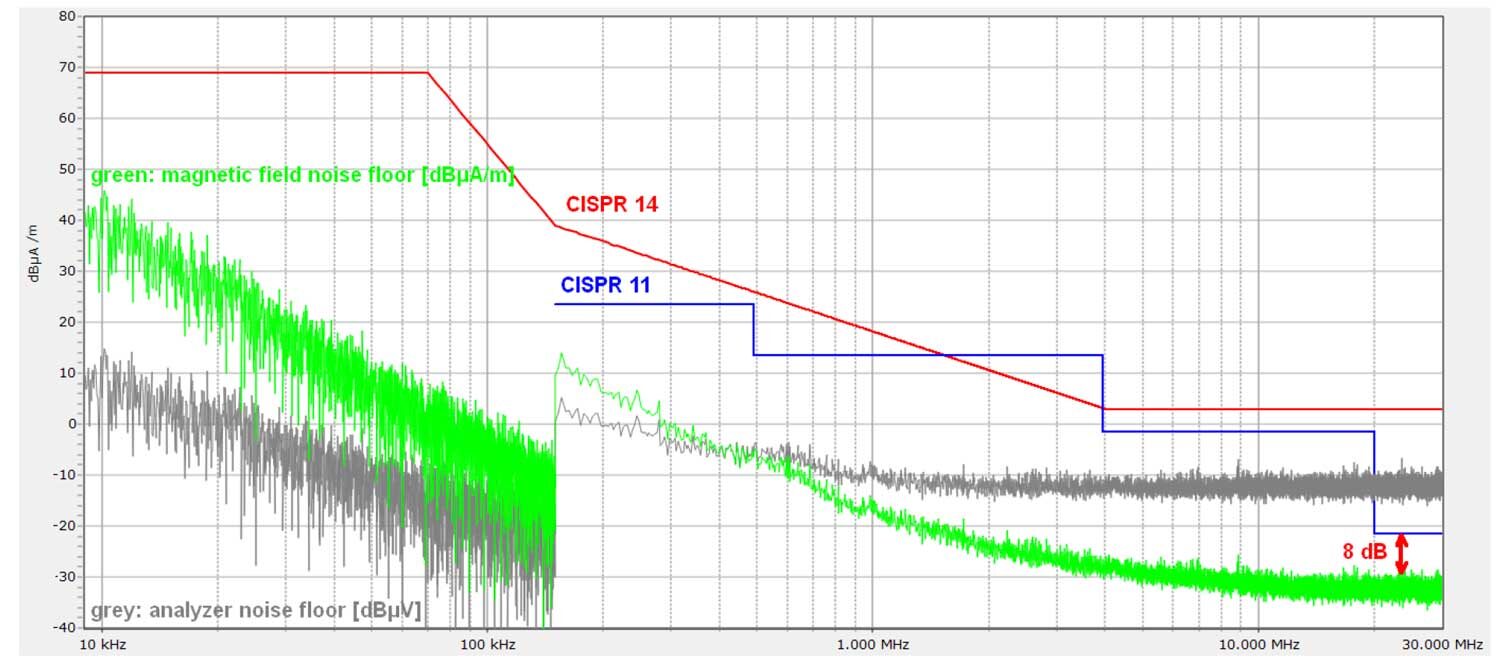

  • Sensitivity: -24 dBµA/m @ 30 MHz
  • Dimensions: Ф 60 cm
  • Weight: 800 g
  • Connector type: N female
  • Mount: ¼” thread
Specifications
Characterized frequency range9 kHz to 30 MHz
Magnetic field antenna factor-20 dB/Ωm @ 30 MHz, typ.
Electric field antenna factor31,5 dB/m @ 30 MHz, typ.
Sensitivity-24 dBμA/m @ 30 MHz
DimensionsФ 60 cm
Weight800 g
Connector TypeN female
Mount¼” thread
