Rigol DG2072 70MHz Function / Arbitrary Waveform Generator

£468.00 (£561.60 inc VAT)

Available on back-order, delivery normally 1 week

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Rigol Availability

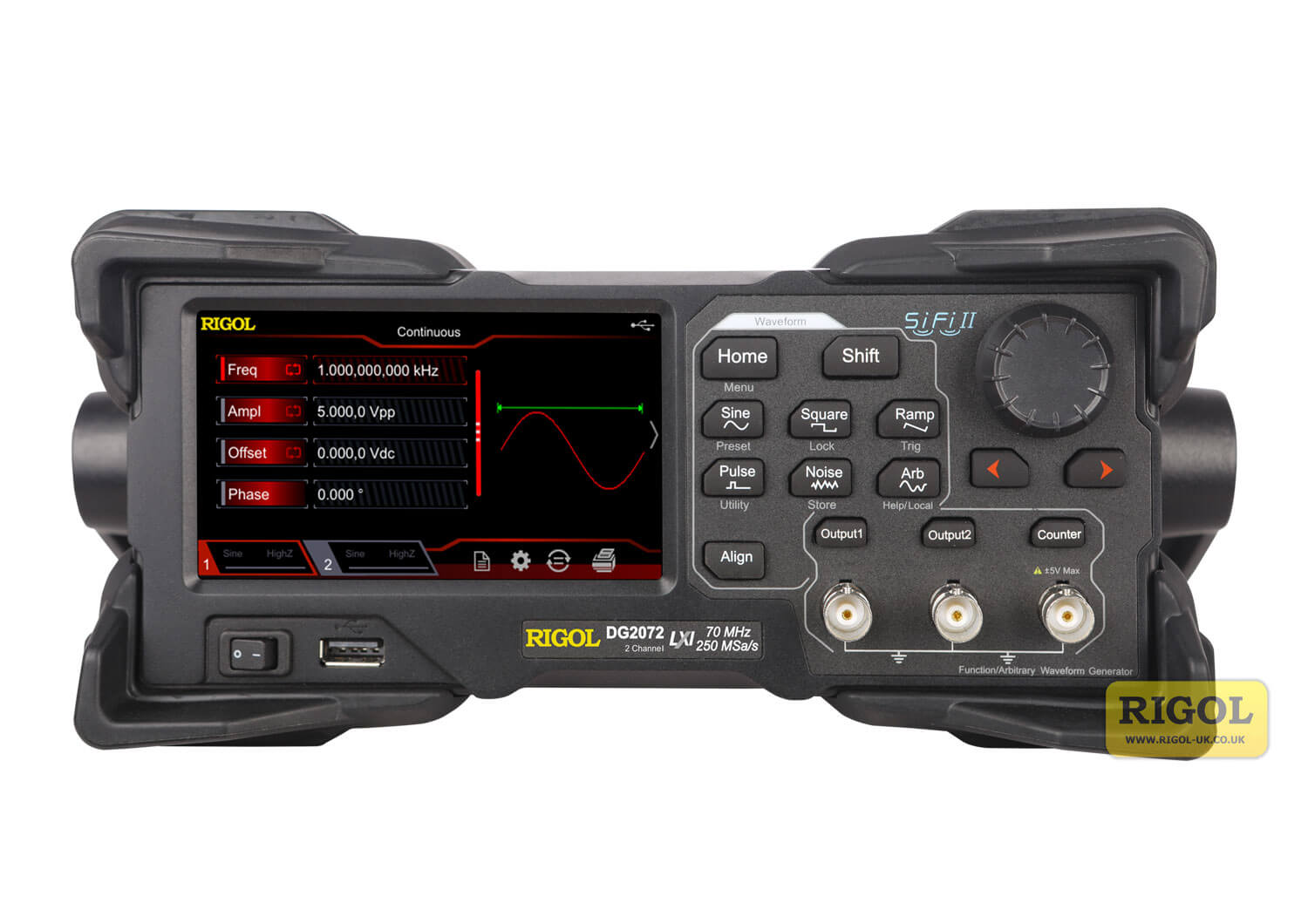

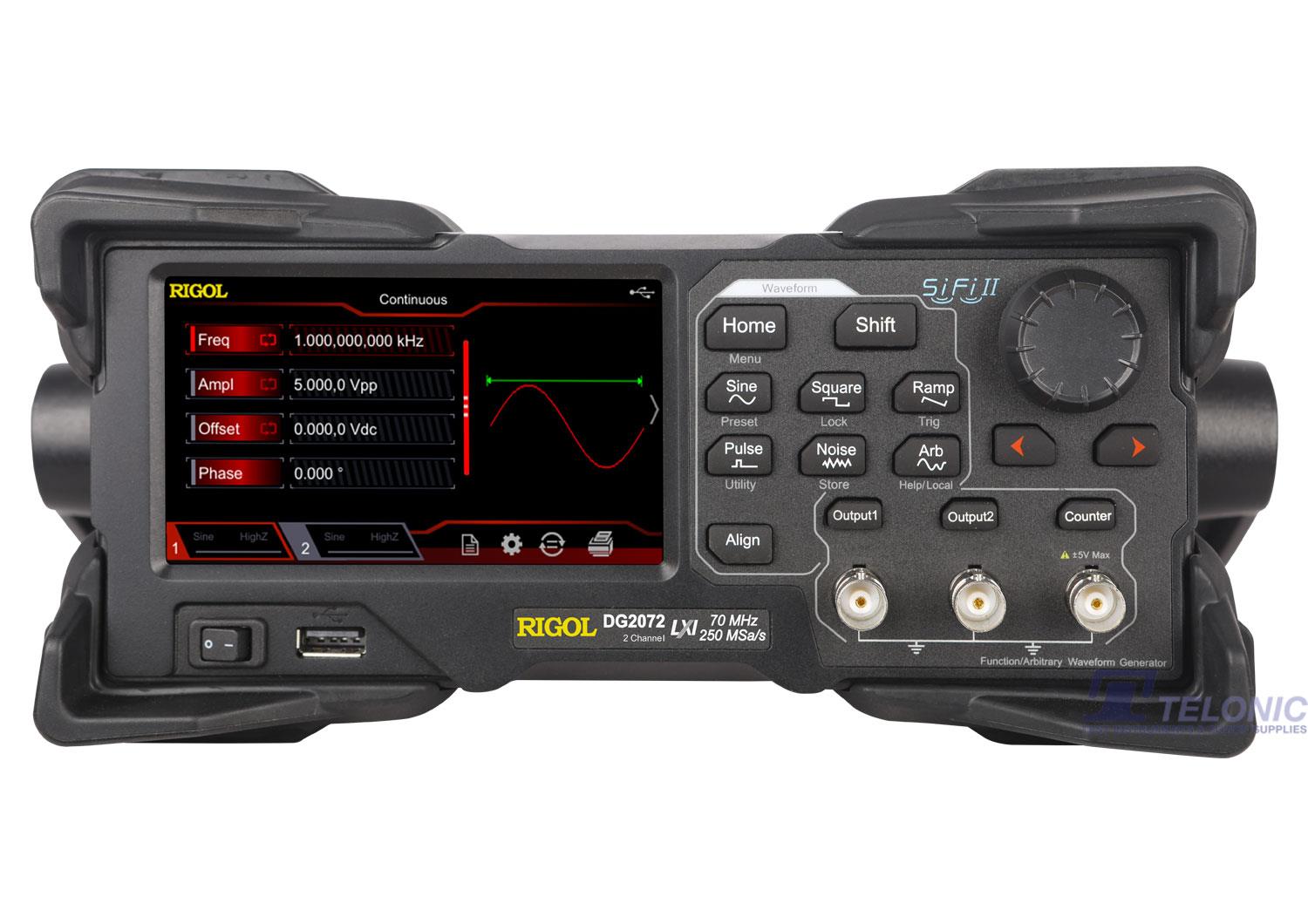

Rigol DG2072 Function Generator

The DG2072 is a 70MHz, 2CH Function Generator with a maximum sampling rate of 250MSa/s. As a multi-functional signal generator, DG2000 series function / arbitrary waveform generator integrates many instruments into 1, such as function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, analogue / digital modulator, and frequency counter. As a multi-functional and portable instrument, it offers you a new choice in education, R&D, production, measurement, and other industries with its user-friendly touch screen and high performance at an unprecedented price point.


  • Unique SiFi II (Signal Fidelity II) technology: generate the arbitrary waveforms point by point; recover the signal without distortion; sample rate accurate and adjustable; jitter of all the output waveforms (including Sine, Pulse, etc) as low as 200ps
  • 16 Mpts memory depth per channel for arbitrary waveforms
  • Standard dual-channel with the same performance, equivalent to two independent signal sources
  • High frequency stability: ±1 ppm; low phase noise: -105 dBc/Hz
  • Built-in high-order harmonic generator (at most 8-order harmonics)
  • Built-in 7 digit/s, 240MHz bandwidth full featured frequency counter
  • Up to 160 built-in arbitrary waveforms, covering the common signals in engineering application, medical electronics, auto electronics, math processing and other various fields
  • Sample rate up to 250MSa/s, vertical resolution 16 bits
  • Arbitrary waveform sequence editing function available, arbitrary waveforms also can be generated through the
  • PC software
  • Various analogue and digital modulation functions: AM, FM, PM, ASK, FSK, PSK and PWM
  • Standard waveform combine function, capable of outputting specified waveforms combined with the basic waveforms
  • Standard channel tracking function, when enabled, all the parameters of both channels are updated based on the users’ configurations
  • Standard interface: USB Host&Device and LAN (LXI Core 2011 Device); USB-GPIB function supported
  • 4.3″ TFT colour touch screen
  • RS232, PRBS, and dual-tone outputs supported



Waveform Generator DG2000 Series


Waveform Generator DG2000 Series datasheets



Rigol DG2000 Datasheet


User Guide

Rigol DG2000 User Guide


Application Notes

SiFi 2 Technology and 16 Bit Resolution App Note
