Rigol DG952 50MHz Function / Arbitrary Waveform Generator

£530.00 (£636.00 inc VAT)

Only 2 left in stock!

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Rigol Availability

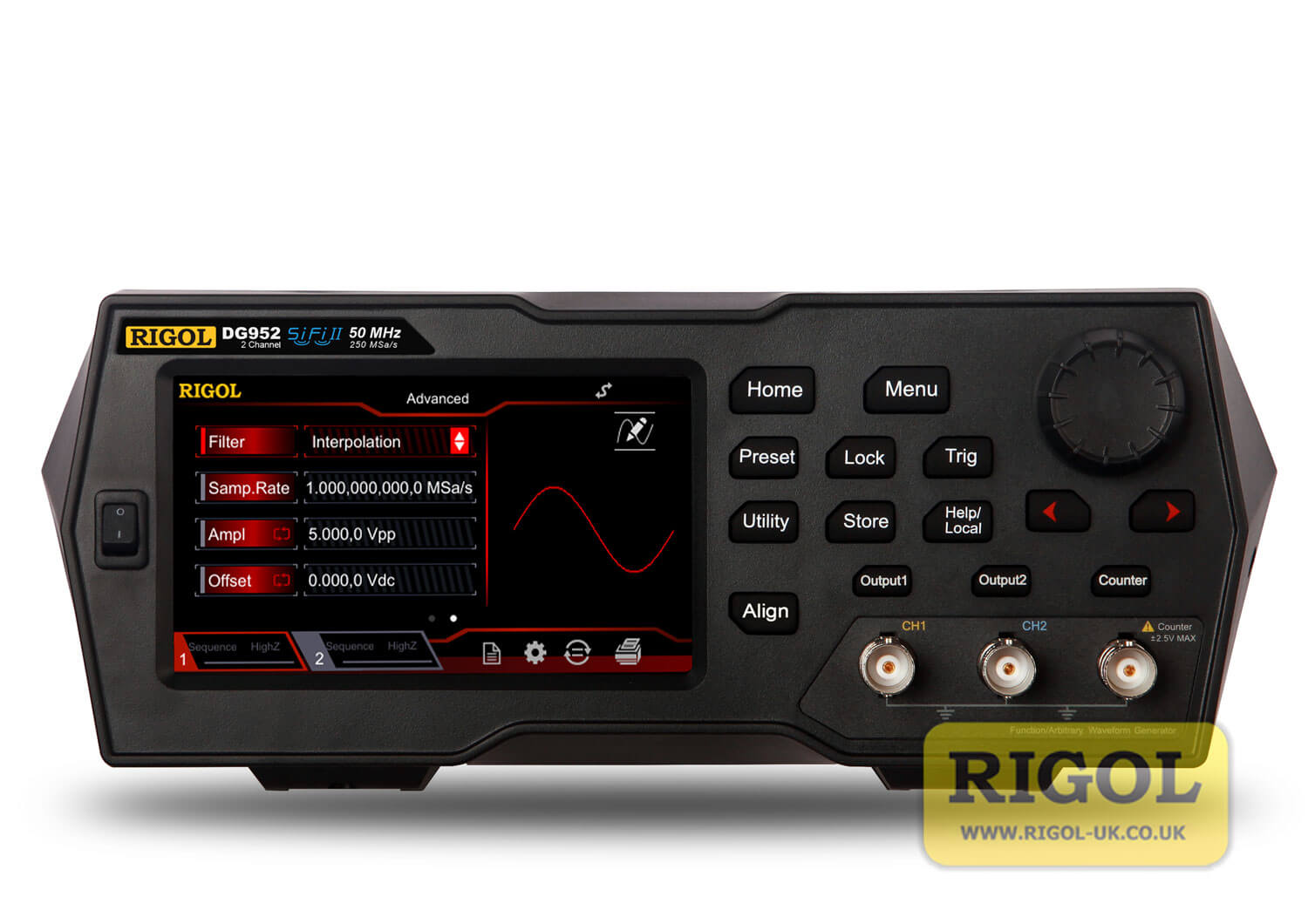

Rigol DG952 Function Generator

The DG952 is a 50MHz, 2CH Function Generator with a maximum sampling rate of 250MSa/s. The Rigol DG900 series offers a user-friendly and high-performance function/arbitrary waveform generator solution at a very attractive price. Each instrument provides many functions including; function generator, arbitrary waveform generator, noise source, pulse generator, harmonics generator, analogue / digital modulator and frequency counter. Any Rigol DG900 series function/arbitrary waveform generator would be a valuable asset in any home, business or education laboratory.

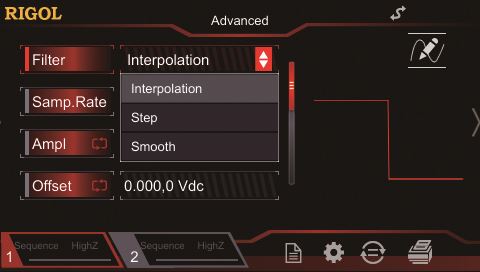

  • Unique SiFiII (Signal Fidelity II) technology
  • Two fully functional and independent channels
  • Maximum frequency 50MHz
  • 250MSa/s sample rate
  • 16-bit vertical resolution
  • Basic waveforms: Sine, square, ramp, pulse, noise, DC, dual-tone

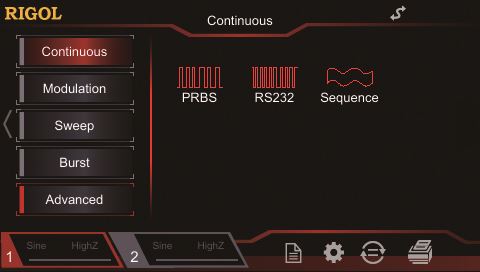

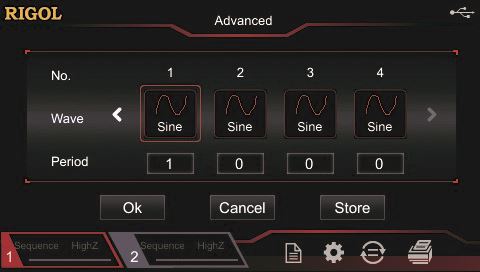

  • Advanced waveforms: PRBS, RS232, sequence
  • 160-off built-in arbitrary waveforms
  • 16Mpts arbitrary waveform memory depth per channel
  • Supported modulation: AM, FM, PM, ASK, FSK, PSK & PWM
  • Intuitive arbitrary waveform editing software for PC
  • ±1ppm frequency stability
  • Phase noise <-105dBc/Hz @ 10kHz (f = 10MHz)
  • Built-in 7 digit counter up to 240MHz

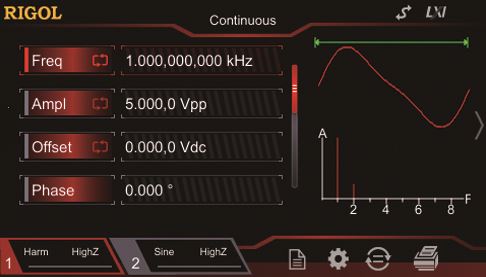

  • Built-in 8th order harmonics generator
  • Waveform summing function

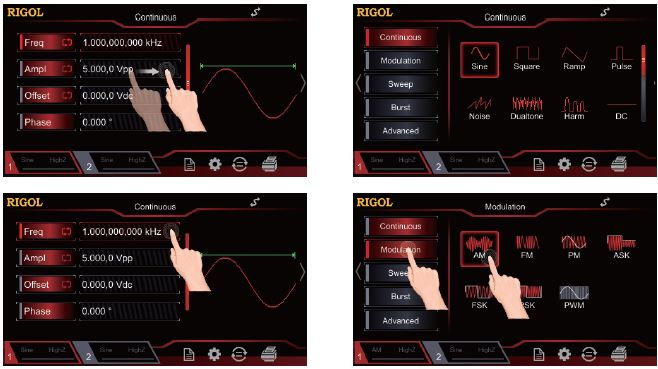

  • 4.3″ TFT LCD colour touch-screen display (480 x 272), 16M colours
  • Connectivity… USB Host & Device, (USB-LAN optional)
  • Standard accessories… UK & European mains leads, BNC cable, USB cable, quick guide
  • Optional accessories… 40dB attenuator, USB to LAN module
  • Other options include… Telonic Standard Calibration (traceable to UK national standards), RCL 17025 Calibration

Product Videos

DG800 and DG900 Arbitrary Function Generators
DG800 and DG900 Series User Interface
Benefits of 16 Bit Resolution



Waveform Generator DG900 Series


Waveform Generator DG900 Series datasheets



Rigol DG900 Datasheet


User Guide

Rigol DG900 User Guide


Application Notes

SiFi 2 Technology and 16 Bit Resolution App Note
