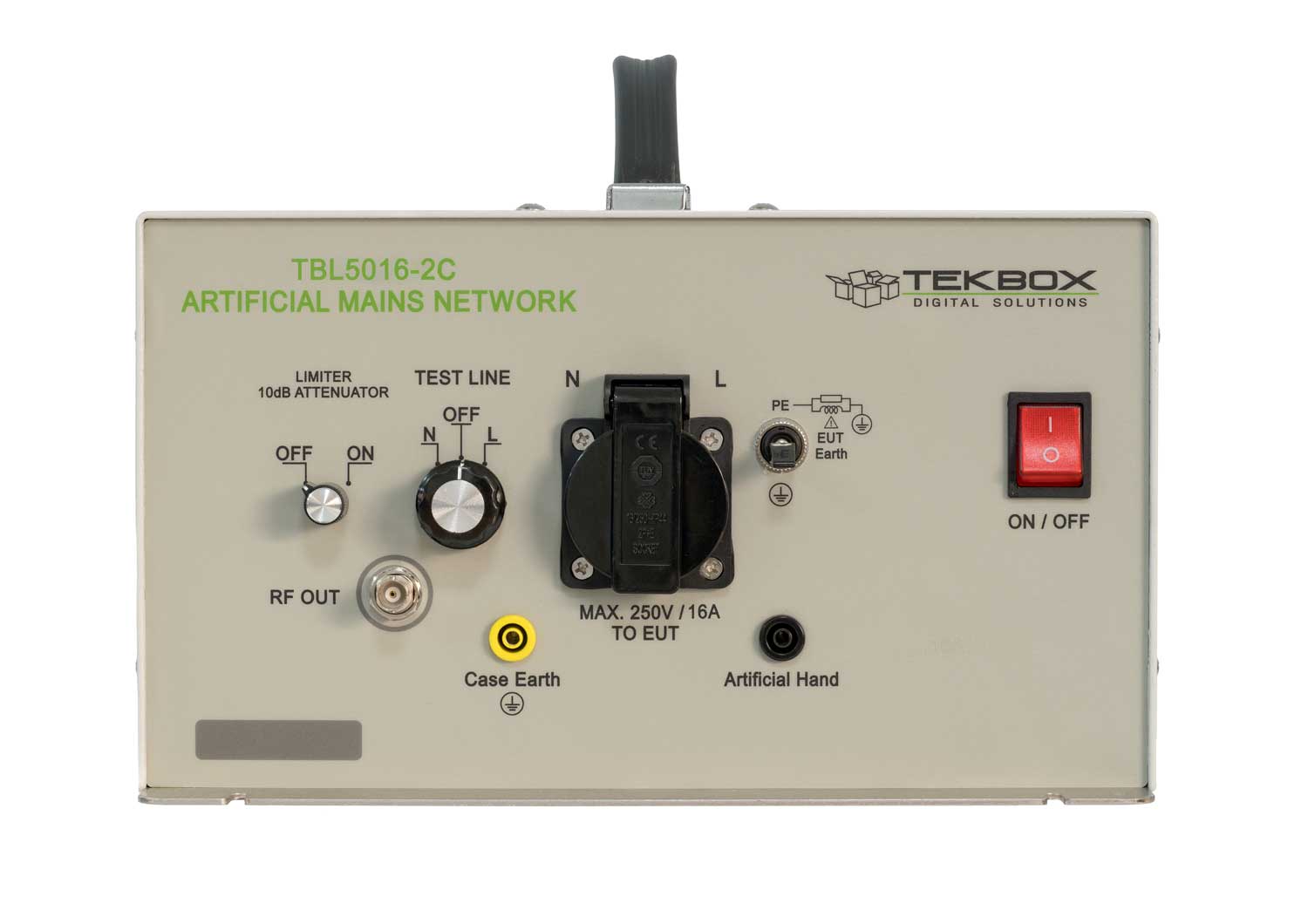

TEKBOX TBL5016 2C front Telonic UK

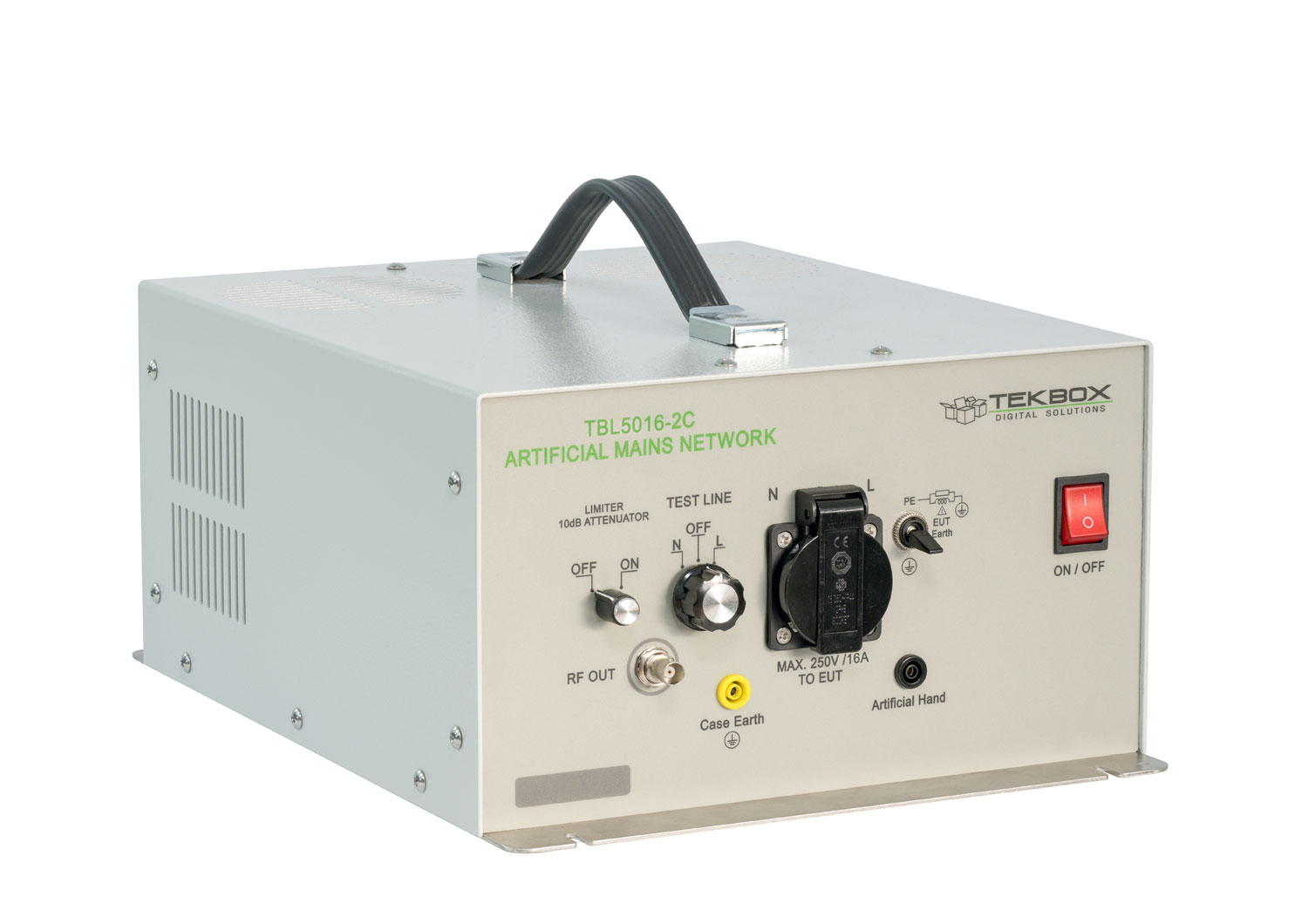

TEKBOX TBL5016 2C side Telonic UK

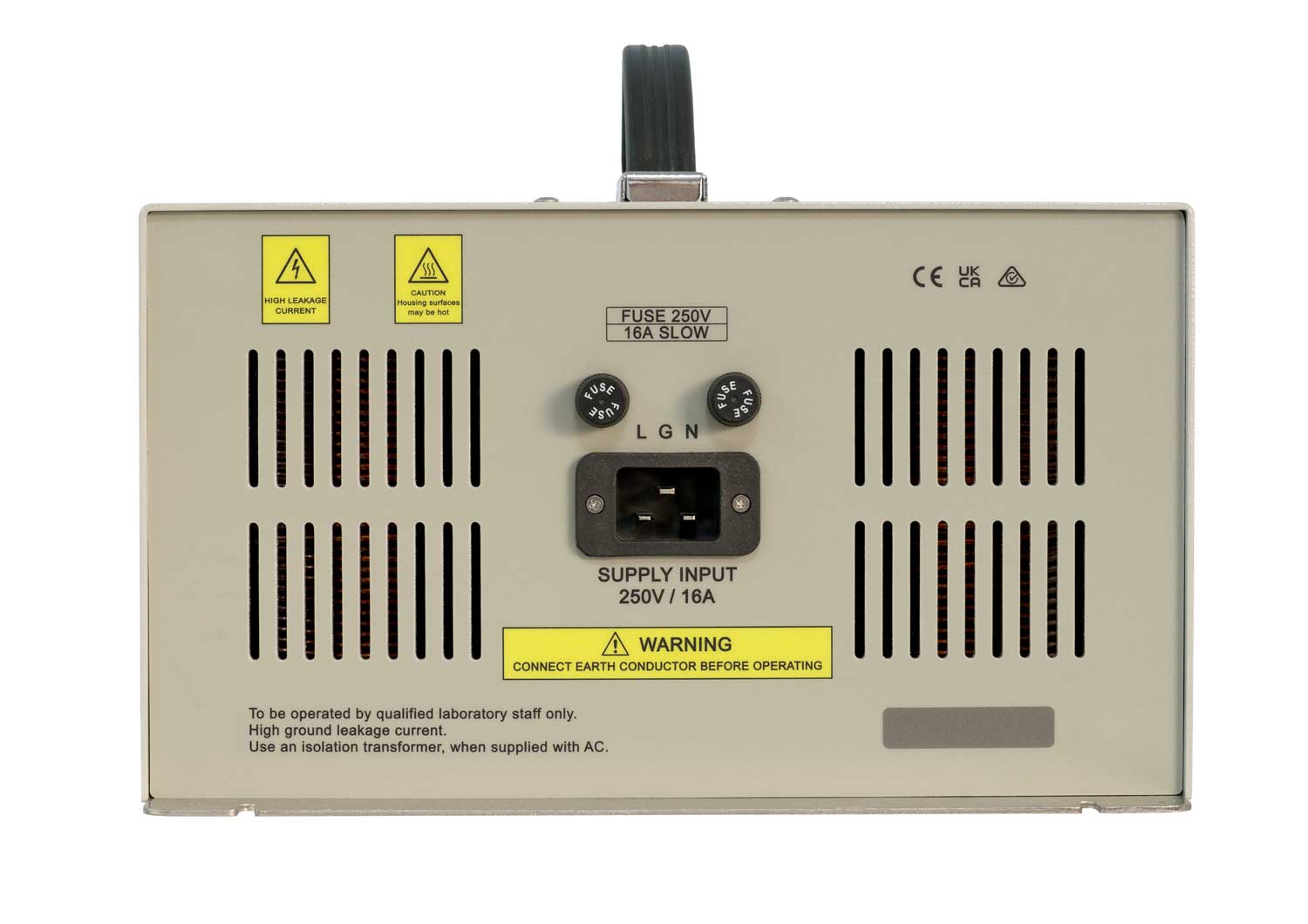

TEKBOX TBL5016 2C back Telonic UK

TEKBOX TBL5016-2C 50µH Single Phase AC Line Impedance Stabilisation Network LISN

£884.00 (£1060.80 inc. VAT)

1 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBL5016-2C Categories: , , , Tag: Brand:

Documentation

User Manual TEKBOX TBL5016-2C User Manual Useful Documents (Click to View) LISN Basics and Overview EMC Pre-Compliance Testing Pre-Compliance Conducted Emission Measurements Which Standard Has to be Applied for My Product? Application Note: Spectrum Analysers for EMC Testing EMCview PC Software for EMC Pre-Compliance Testing

Features:

  • Frequency range: 9 kHz to 30 MHz
  • Impedance: 50 Ω ║ (50 µH + 5 Ω)
  • Artificial hand: 220 pF + 511 Ω
  • Switchable PE: 50 Ω ║ 50 µH
  • Limiter / attenuator / highpass filter: +6dBm / 10 dB /150 kHz to 30 MHz
  • Air core inductors
  • Line voltage: max. 250V / 50/ 60 Hz or DC
  • Max. current: 16 A @ 23°C
  • EUT socket: country specific
  • Measurement connector: 50 Ω BNC
  • Power connector: IEC 60320 C19
  • Operating Temperature Range: +5°C … + 40°C; 5% to 80% RH
