Description

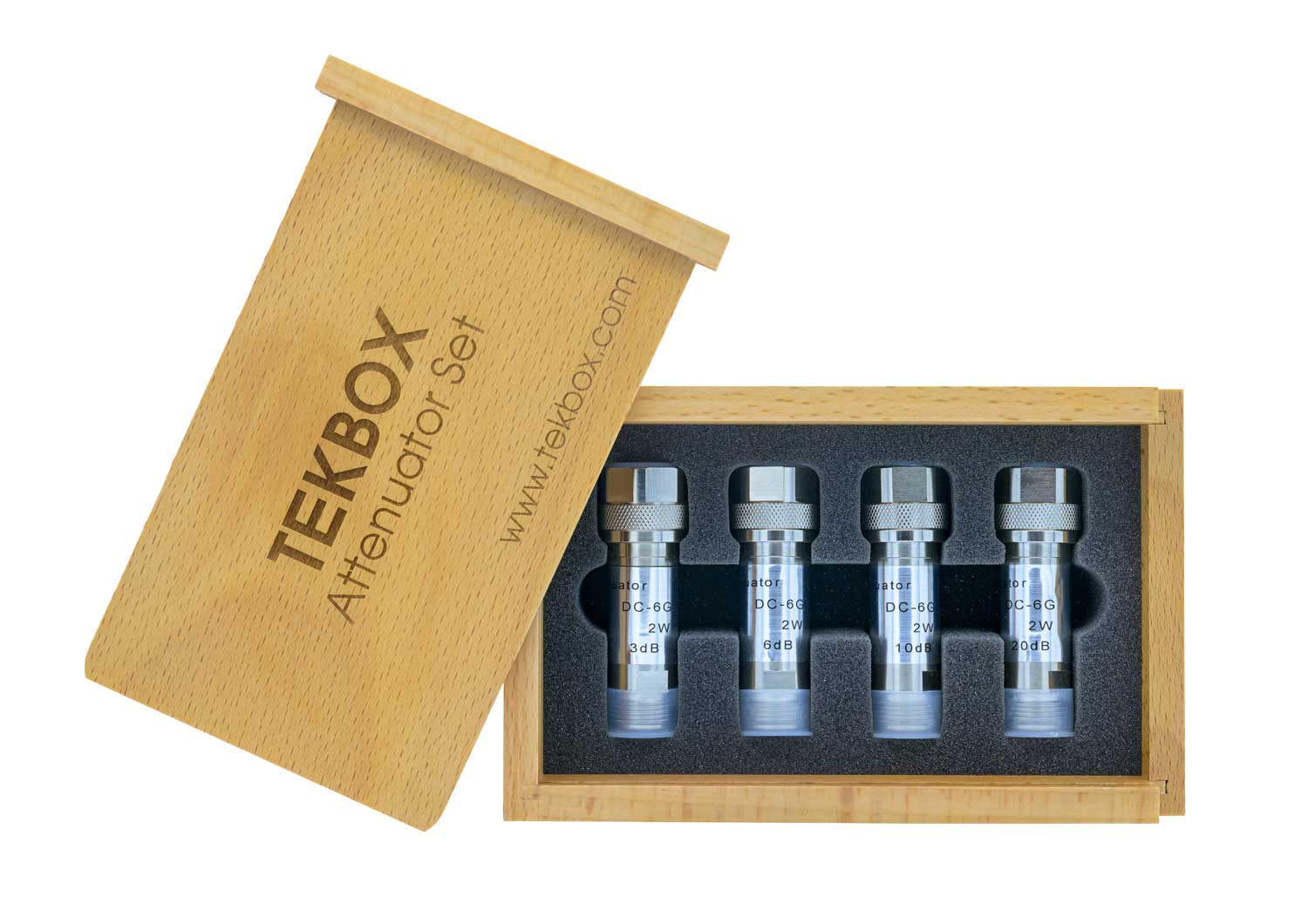

The TBAS4 RF attenuator set consists of 3dB, 6dB, 10dB and 20dB, 6 GHz/2W N-attenuators in a beech wood box.
Specifications
| Parameter | Value |
|---|---|
| Frequency range | DC – 6GHz |
| VSWR; 3, 6, 10, 20 dB | < 1.2 |
| Tolerance; 3, 6, 10, 20 dB | <+/- 0.3 dB |
| Power rating | 2W @ -55 to 40°C; up to 70°C with 50% power de-rating |
| Connectors | N-male / N-female; bidirectional |
| Dimensions | 150mm x 95mm x 45mm |
| Weight | 490g |
Documentation
Documents: Attenuator Sets TBAS1 Manual TBAS2 Manual TBAS3 Manual TBAS4 Manual Documents: High-Pass filters TBFL1 Manual TBHPF1-150kHz B Manual TBHPF1-9kHz B Manual TBHPF1 500kHz Manual TBHPF2-150kHz Manual TBHPF3-150kHz Manual
| Specifications | |
|---|---|
| Tolerance | 3, 6, 10 dB +/- 0.5 dB 20 dB +/- 0.8 dB |
| Frequency range | DC-3GHz, VSWR < 1.3 |
| Power rating | 10W @ -55 to 40°C; up to 70°C with 50% power de-rating |
| Connectors | N-male / N-female; bidirectional |
| Dimensions | 150mm x 95mm x 45mm |
| Weight | 505g |
