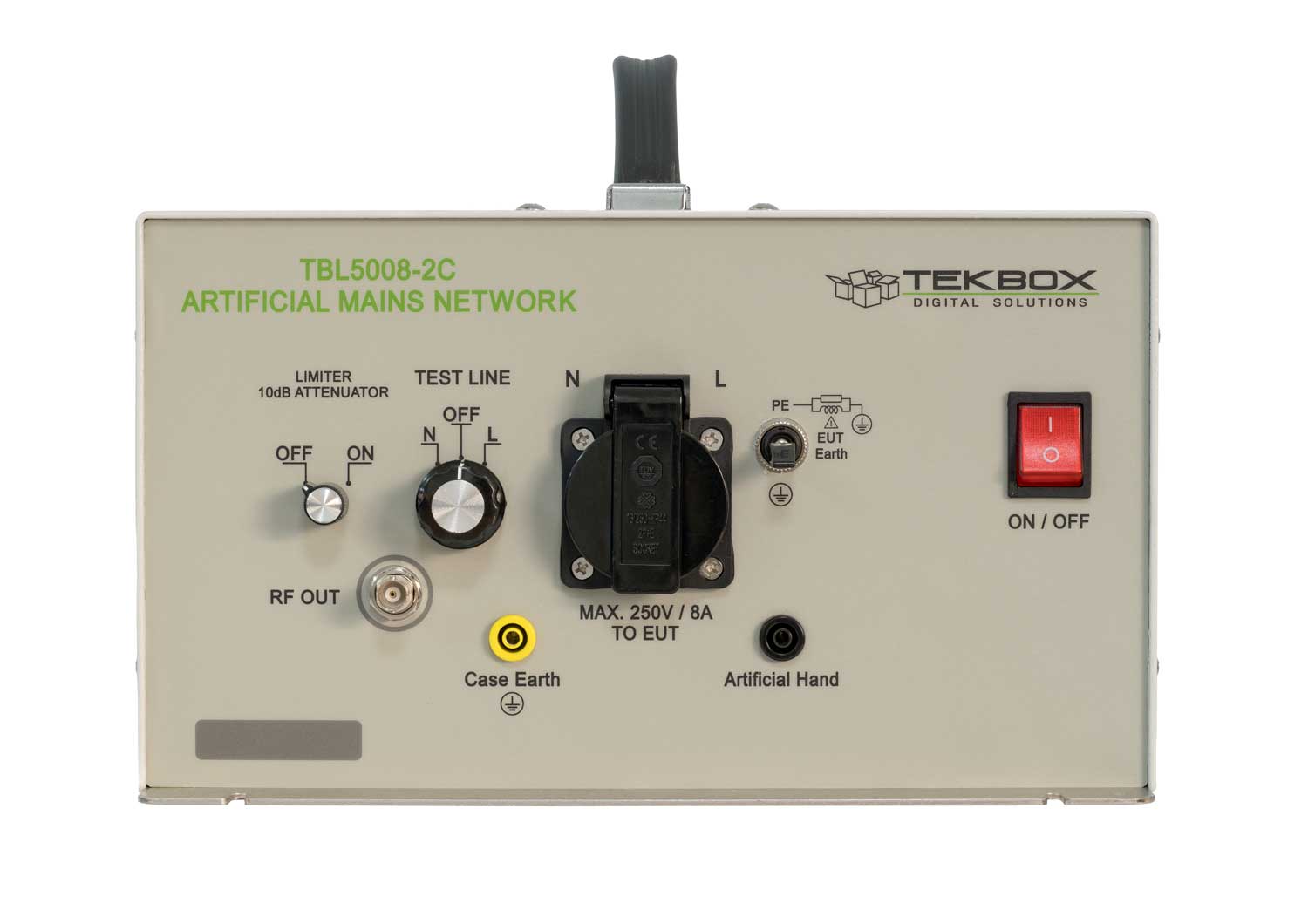

TEKBOX TBL5008 2C front Telonic UK

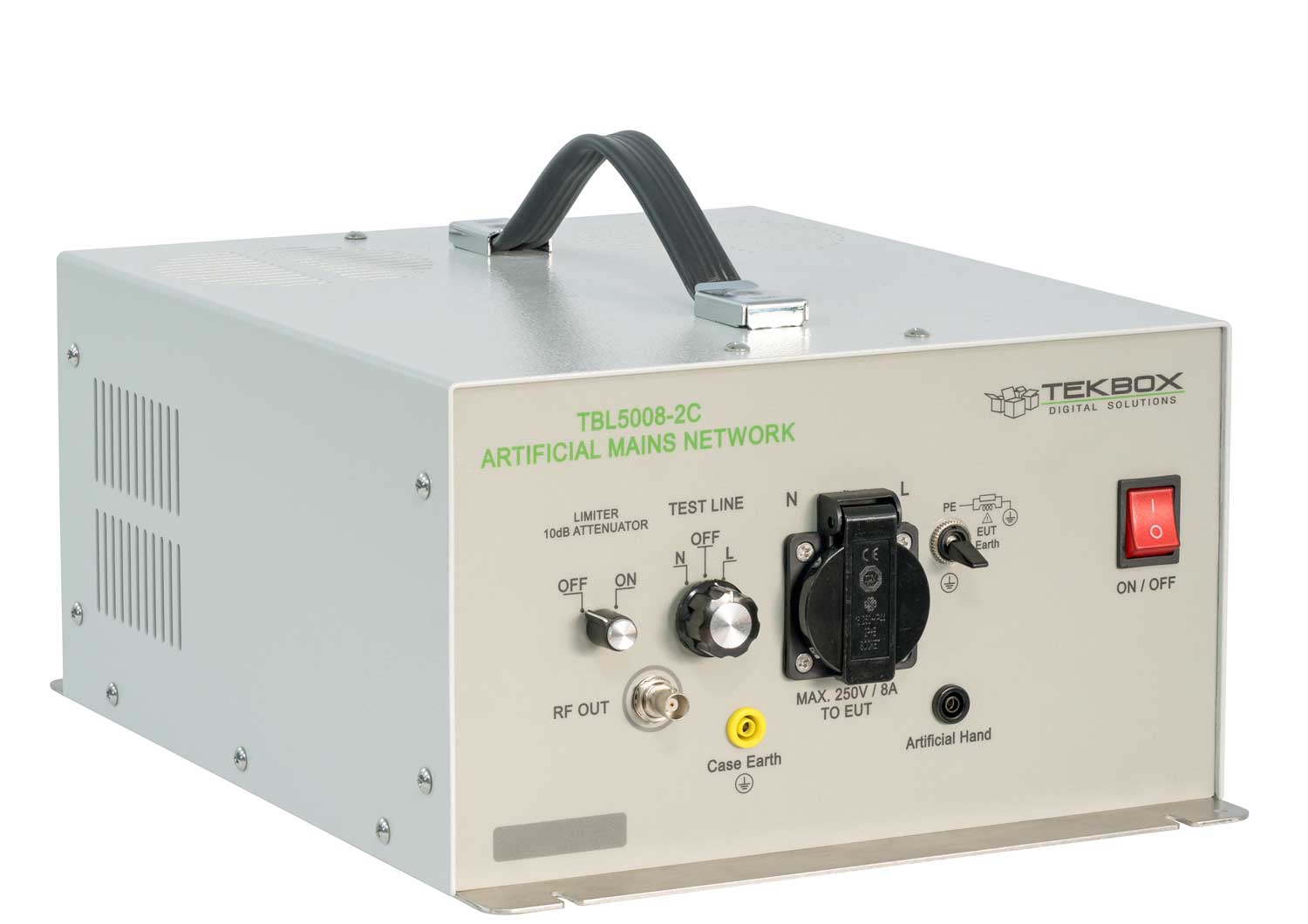

TEKBOX TBL5008 2C side Telonic UK

TEKBOX TBL5008 2C back Telonic UK

TEKBOX TBL5008-2C 50µH Single Phase AC Line Impedance Stabilisation Network LISN CISPR 16-1-2

£686.00 (£823.20 inc. VAT)

Out of stock

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBL5008-2C Category: Uncategorized Tags: Automotive Serial Protocols, Safety & Compliance Brand: TEKBOX

Documentation

User Manual TEKBOX TBL5008-2C User Manual Useful Documents (Click to View) LISN Basics and Overview EMC Pre-Compliance Testing Pre-Compliance Conducted Emission Measurements Which Standard Has to be Applied for My Product? Application Note: Spectrum Analysers for EMC Testing EMCview PC Software for EMC Pre-Compliance Testing

Features:

Frequency range: 9 kHz to 30 MHz
Impedance: 50 Ω ║ (50 µH + 5 Ω)
Artificial hand: 220 pF + 511 Ω
Switchable PE: 50 Ω ║ 50 µH
Limiter / attenuator / highpass filter: +6dBm / 10 dB /150 kHz to 30 MHz
Air core inductors
Line voltage: max. 250V / 50/ 60 Hz or DC
Max. current: 8 A @ 23°C
EUT socket: country specific
Measurement connector: 50 Ω BNC
Power connector: IEC 60320 C13
Operating Temperature Range: +5°C … + 40°C; 5% to 80% RH
