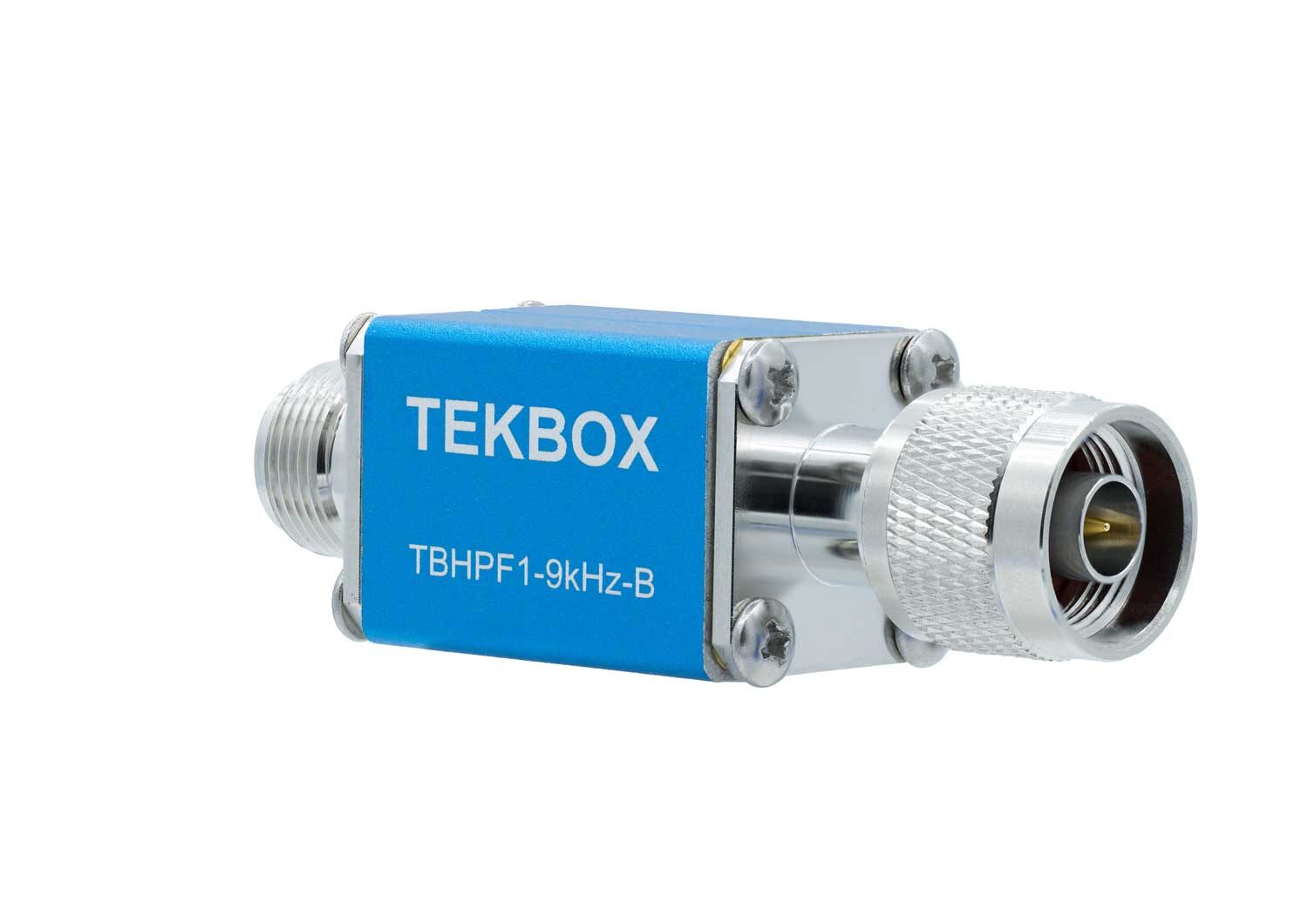

Tekbox TBHPF1-9kHz B High Pass Filter

£85.00 (£102.00 inc. VAT)

2 in stock

Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBHPF1-9kHz-B Categories: , , , Brand:

Description


Tekbox TBHPF1-9kHz B High Pass Filter

9 kHz Highpass Filter for protection of spectrum analyzer or EMI-receiver RF inputs against high amplitude subharmonics and residual 50 Hz voltage in conducted emission measurement set ups

Specifications

ParameterValue
DetailsHigh Pass Filter, symmetric, reflective, 50 Ohm
3dB bandwidth9 kHz – 1 GHz
S11, 9 kHz – 110 MHz< -12 dB
Topology5th order Chebyshev
Filter capacitor voltage rating100V
Filter inductor saturation current0.7 A
Maximum input power at frequencies 9 kHz – 1 GHz10W
ConnectorsN-Male / N-Female
Dimensions26 x 26 x 82 mm
Weightca. 100g
