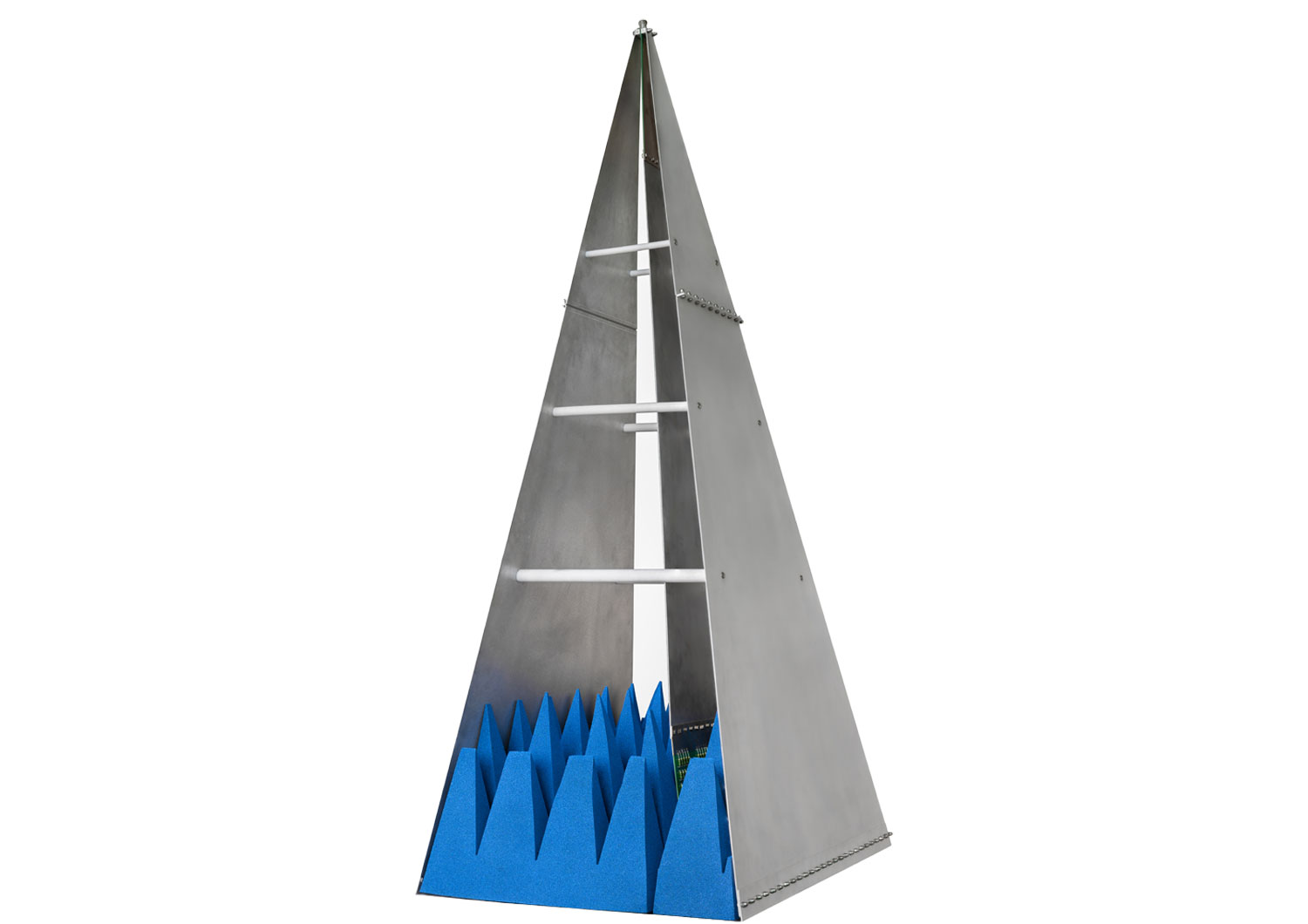

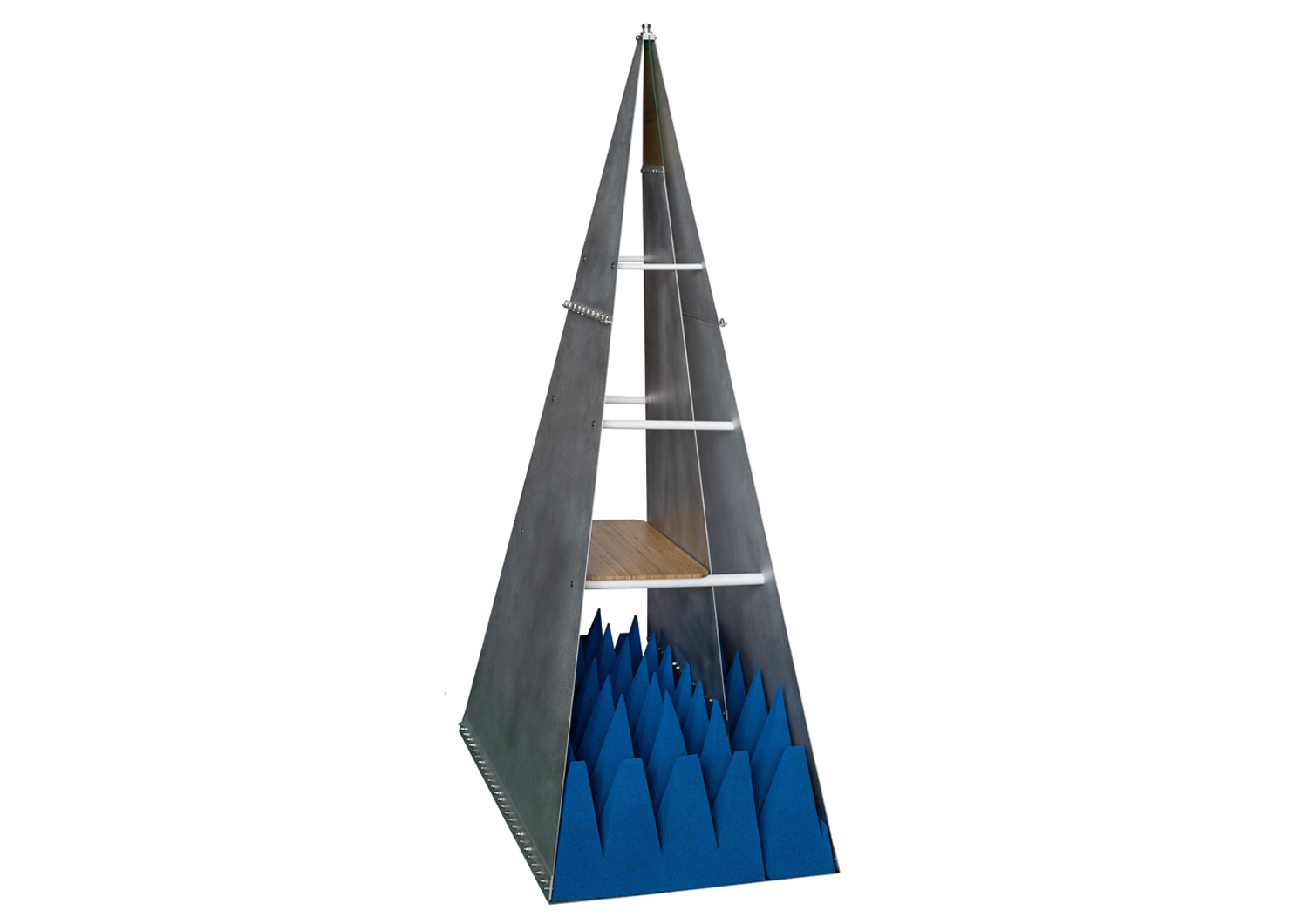

TEKBOX TBGTC1 GTEM Cell

• Septum Height: 250 mm at the location of the EUT-board
• Outer dimensions (LxWxH): 1452x780x520 mm
• Approx Cell Weight: 13 kg.
• Maximum EUT size (LxWxH): 200x200x150 mm
• Defined test volume (±3 dB < 3000 MHz, LxWxH): 100x100x100 mm
• GTEM cell connectors: N-female
• Nominal cell impedance: 50 Ohm
• Frequency range: 0.009 MHz – 6 GHz
• Wave impedance: 377 Ohm
• Maximum continuous RF input power: 600W
• VSWR: 1:1.3 typical, 1:1.9 max.
• Field uniformity on maximum test volume: up to 3 GHz < ± 6 dB

Note* Specifications are liable to change. For the full list of Specifications, please see the product’s documents located under the ‘Documentation’ tab.
