The RIGOL DNA6000-R Series is a high-performance bench-top Vector Network Analyser designed for demanding RF and microwave measurements. Available in both 2-port and 4-port configurations, the series covers frequencies from 5 kHz to 8.5 GHz, delivering exceptional dynamic range, low trace noise and comprehensive S-parameter analysis.
Supporting advanced calibration methods, Time Domain Analysis (TDA), fixture embedding/de-embedding and antenna testing, the DNA6000-R Series provides the accuracy and flexibility required for research laboratories, product development and automated production environments. With SCPI compatibility, Web Control and a wide range of connectivity options, it integrates seamlessly into modern test systems.
Features
Frequency coverage from 5 kHz to 8.5 GHz
Available in 2-port and 4-port configurations
Up to 127 dB typical dynamic range
Ultra-low 0.003 dB trace noise
Comprehensive S-parameter, VSWR, impedance and Smith Chart measurements
Time Domain Analysis (TDA) and fixture embedding/de-embedding
Mechanical and electronic calibration support
LAN, USB, HDMI, GPIB, SCPI and Web Control connectivity
Applications
RF and microwave component characterisation
Antenna and cable testing
Filter and amplifier development
Production and manufacturing test
Research laboratories and universities
Wireless communication design
Aerospace and defence RF systems
Automated test environments (ATE)

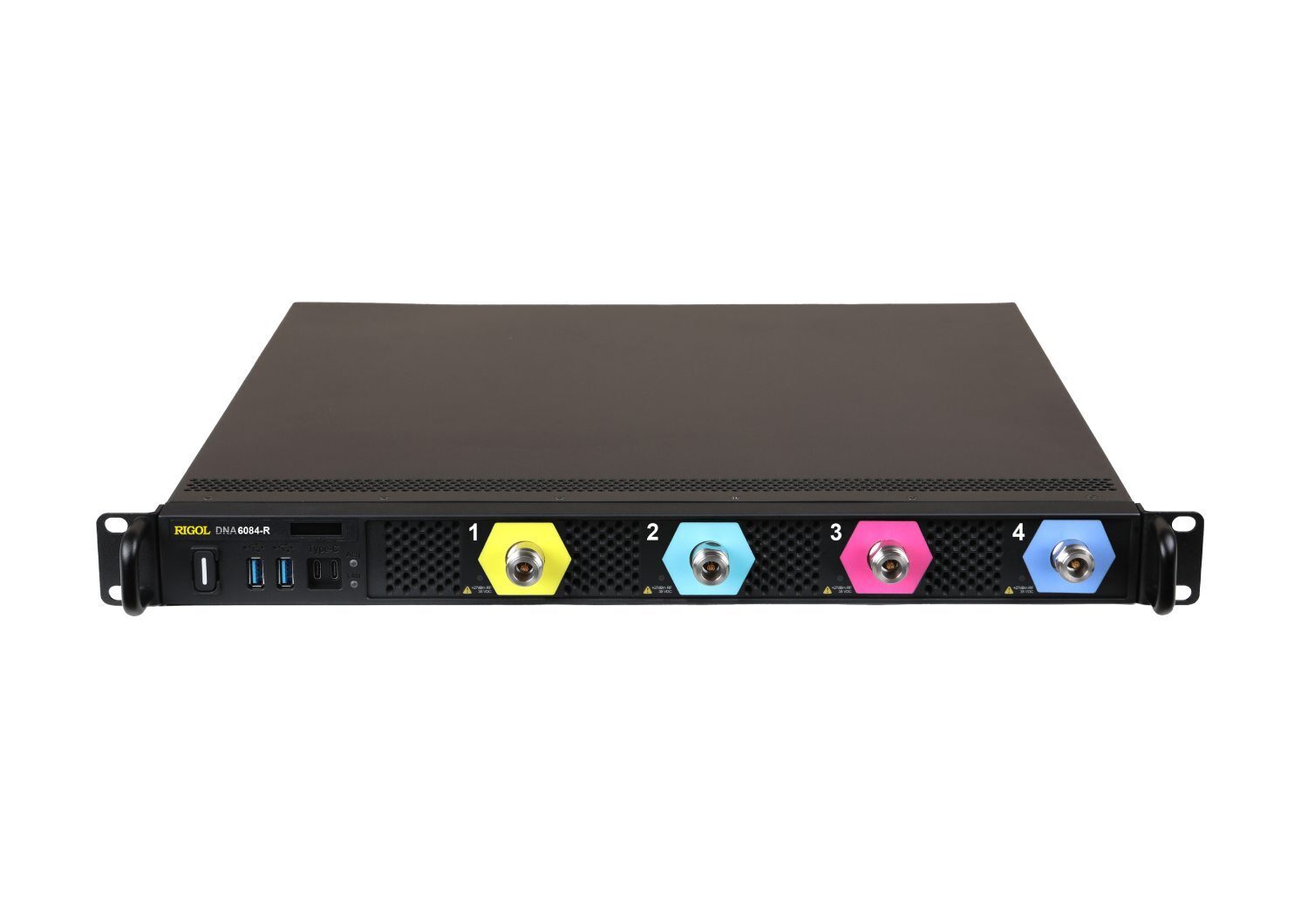

Product Images
Compact Form Factor for Standard Industrial Racks
Drop-In Compatibility
Broad Frequency Range for Diverse Applications
Superior Performance & Stability
Advanced Analysis Tools Built-In
True Device Performance via De-embedding
Intuitive Calibration
×
The DNA6000-R features a dedicated screenless design, eliminating unnecessary display components for a highly compact footprint. Measuring only 432 mm × 43.9 mm × 440 mm, it complies with the standard 1U rack-mount specification and can be directly installed in industrial standard racks, supporting high-density multi-instrument deployment.
Equipped with comprehensive communication interfaces including LAN, GPIB, and Application I/O, the DNA6000-R integrates seamlessly with industrial automated test platforms and control systems. It supports standard SCPI command programming and provides instruction-set compatibility, enabling smooth integration into or replacement within existing test systems without rewriting automation scripts while preserving familiar workflows.
Delivering a frequency range from 5 kHz to 26.5 GHz with 4 or 2 test ports, this analyser precisely covers testing requirements ranging from basic passive components to material dielectric constant analysis and high-speed interconnects.
Achieve precise characterization with a wide dynamic range >120 dB and low trace noise, ensuring stability even when testing high-suppression devices.
Accelerate your workflow with essential integrated tools including Pass/Fail limits, SWR, Smith Charts, and TDR—perfect for both the lab and the production floor.
See the real performance of your DUT. Our Fixture Removal and De-embedding features strip away errors caused by cables and adapters, delivering the true S-parameters you need.
No more guesswork. Our step-by-step Calibration Wizard guides users of all skill levels to achieve accurate, calibrated setups in seconds.
