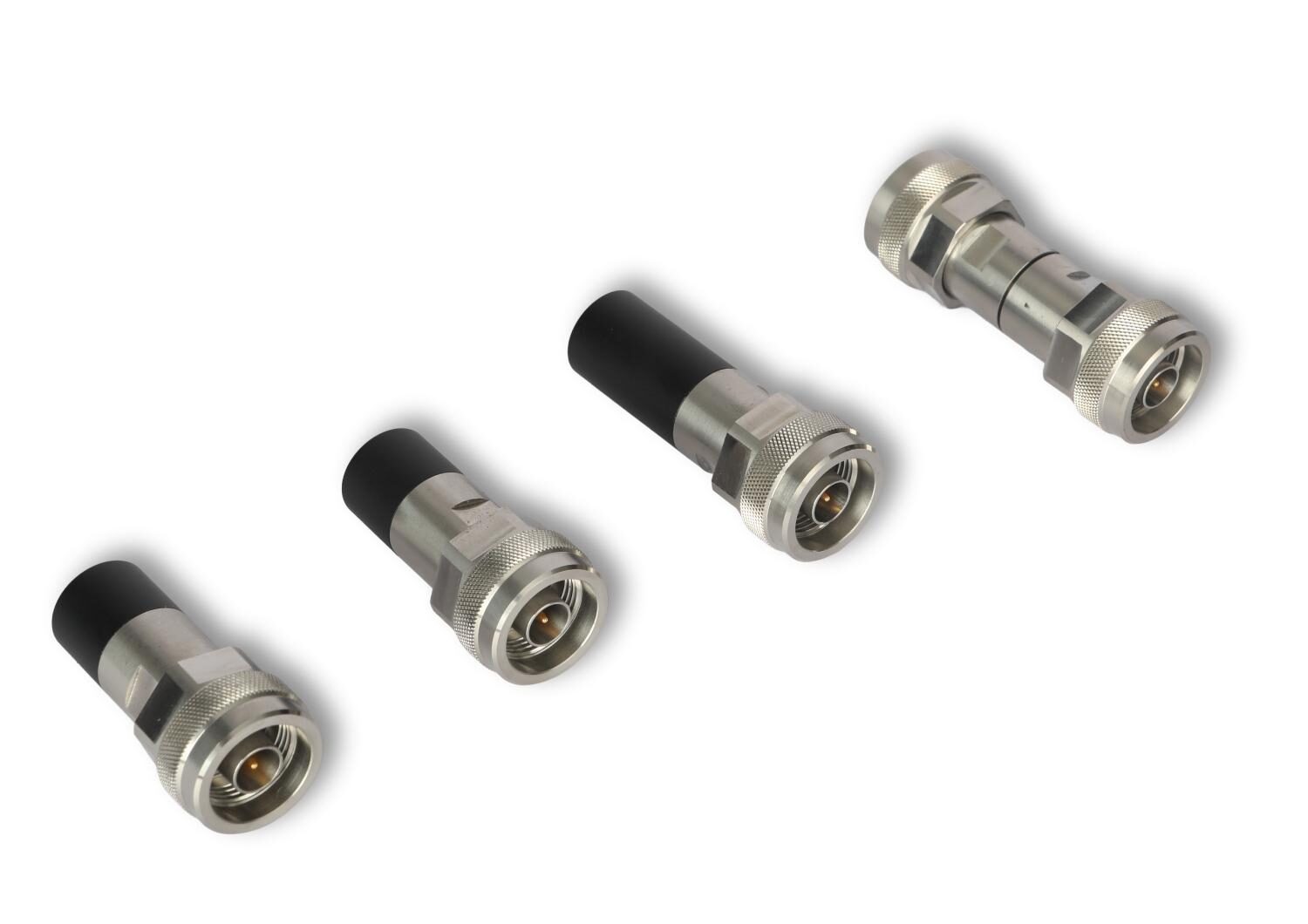

Image of Mcal104 nm1 telonicuk

Rigol MCAL104-NM1 Mechanical Calibration Kit, Type-N Male, DC to 4.5 GHz

£347.00 (£416.40 inc. VAT)

Available on back-order

SKU: MCAL104-NM1 Categories: , , Brand:

Description


Rigol MCAL104-NM1 Mechanical Calibration Kit, Type-N Male, DC to 4.5 GHz

The MCAL104-NM1 is a precision coaxial mechanical calibration kit for characterising systematic errors and improving network-analyser measurement accuracy. It covers DC to 4.5 GHz and provides Type-N Male calibration standards.

Key Features
  • DC to 4.5 GHz frequency range
  • Type-N Male standards
  • Open, short and fixed-load calibration standards
  • Open, short, load and Type-N Male-to-Male adapter
  • Load VSWR: ≤ 1.035
  • Adapter VSWR: ≤ 1.05
Applications
  • Calibration of vector network analysers
  • Calibration of scalar network analysers
  • RF and microwave measurement-system error correction

Documentation

Rigol Ecalmodule Datasheet EN Rigol Mechanicalcalibrationkits EN
BrandRIGOL
ModelMCAL104-NM1
Product typeMechanical calibration kit
Calibration methodOpen / Short / Load / adapter
Frequency rangeDC to 4.5 GHz
ConnectorType-N Male
Impedance50 Ω
Kit contentsOpen, short, load and Type-N Male-to-Male adapter
Load VSWR≤ 1.035
Adapter VSWR≤ 1.05
