TekBox TBST86/49/45/1-B (Without Mains Filter) Small EMI Shield Tent

£877.00 (£1,052.40 inc. VAT)

Available on back-order

SKU: TBST86-49-45-1 Categories: , , Brand:

Description

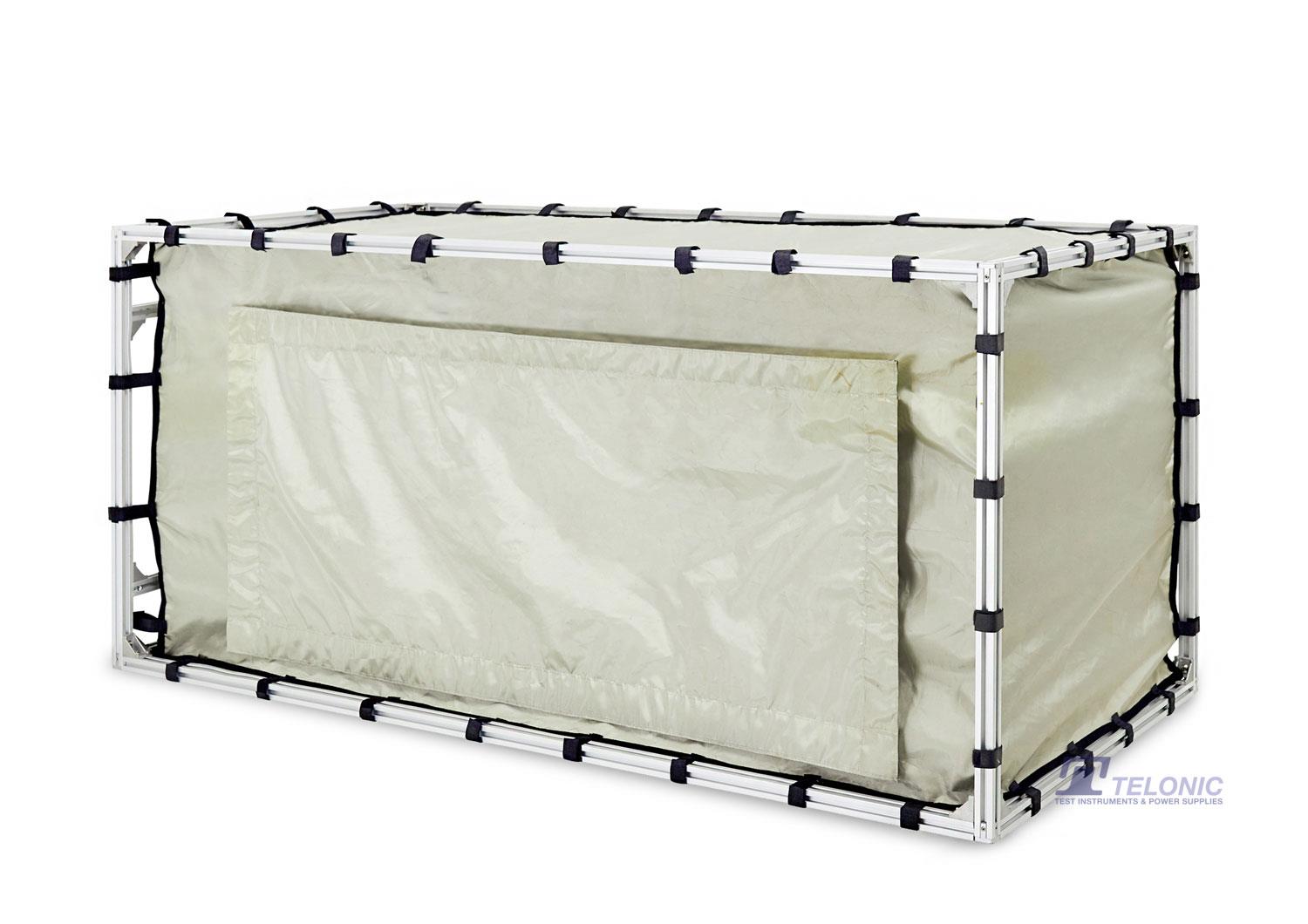

Tekbox TBST86/49/45/1-B Shielded Tent

The Tekbox TBST range of shielded tents is designed to suppress interference from ambient noise when carrying out EMC pre-compliance measurements. With the size of 86cm x 49cm x 45cm, it can accommodate any Tekbox pre-compliance test equipment such as LISN’s or TEM-Cells.
The shielded tent is composed of two layers of conductive fabrics. It is supported by rigid aluminium profiles.

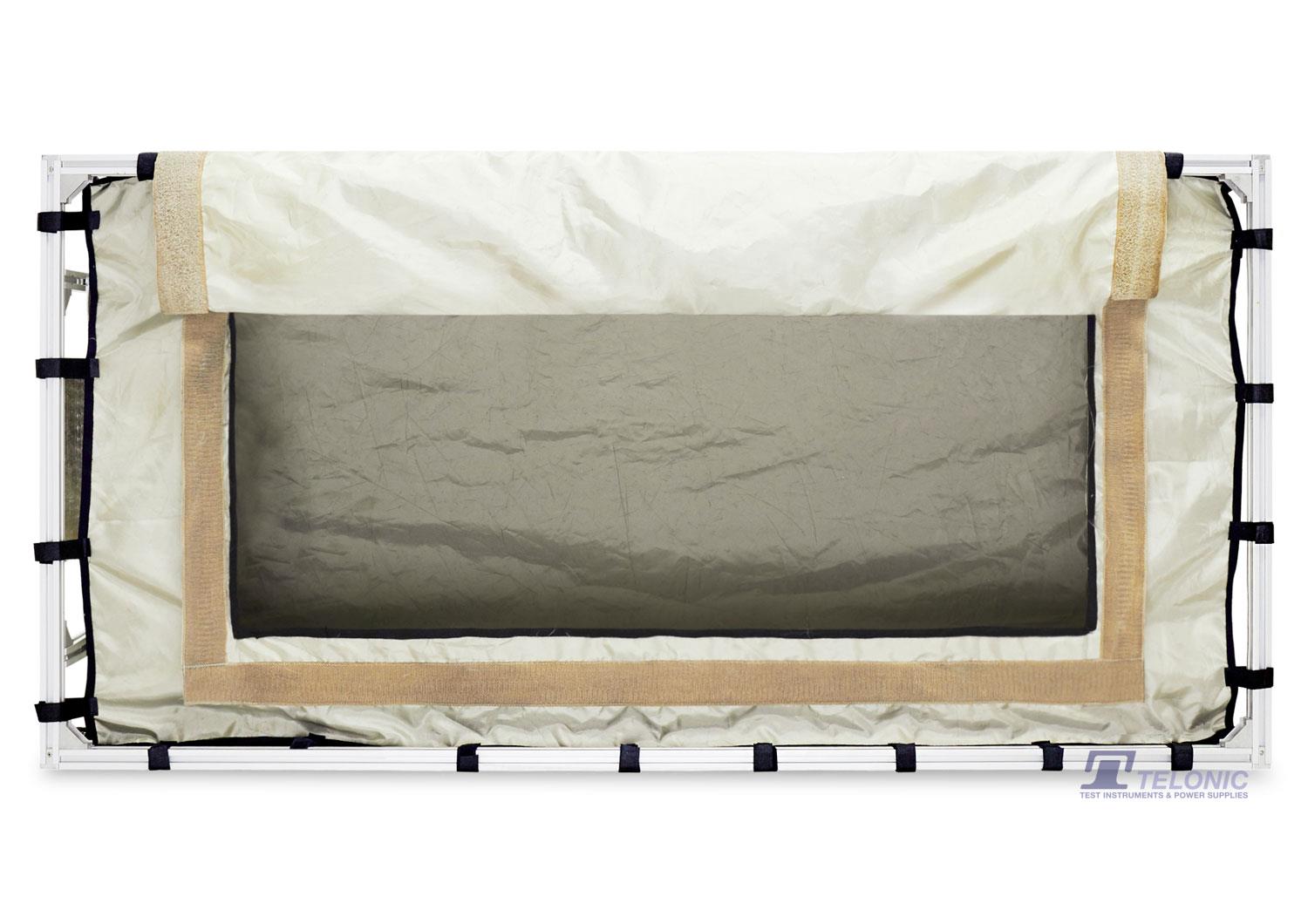

The access opening is sealed with conductive Velcro tape.

NOTE: The TBST86/49/45/1 does NOT come with an AC Filter or IEC Socket.
If you require the tent to have these features please see the TBST86/49/45/2.

Specifications

ParameterValue
Outer Dimensions86cm x 48cm x 48cm
Opening Dimensions40cm x 22cm
Frame20mm x 20mm Extruded aluminium profiles
Shielding2 Layers of conductive fabrics
SealConductive Velcro tape
SuspensionVelcro Stripes
Weight10.8kg

Documentation

TBGP Roll Up Groundplane Manual TBSB Shielded Bags Manual TBST Tents Manual
Specifications
Outer dimensions86 cm x 48 cm x 48 cm
Opening dimensions85 cm x 35 cm (40 cm x 22 cm)
Frame20 mm x 20mm extruded aluminium profiles
Shielding2 layers of conductive fabrics
Sealconductive Velcro tape
SuspensionVelcro stripes

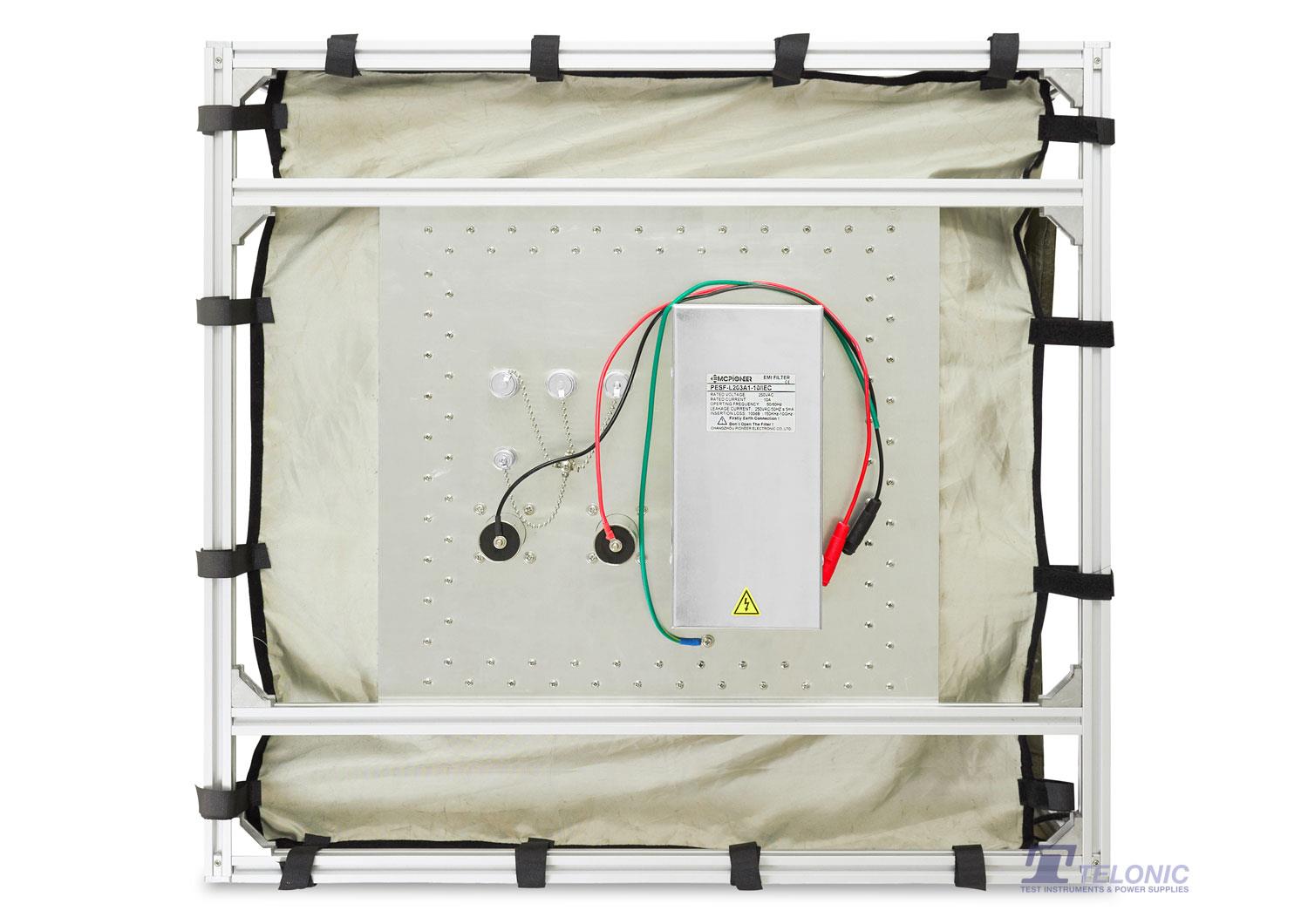

Filter panel1 x 240V/10A AC filter; IEC socket (optional for the smaller
tent)
2 x 240V/10A AC/DC filter; cables with female Banana
couplers
3 x N- female feed through connector with screw caps
1 x BNC-female feed through connector with screw caps
Internal AC socketpigtail cable with detachable female Schuko
Attenuation50 …70 dB in the range DC to 6 GHz, see chapter 3
Weight10.8 kg (6.7 kg / 8.7 kg)
