TEKBOX TBDA1/14 14dB Wideband Driver Amplifier

£158.58 (£190.30 inc VAT)

4 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Description

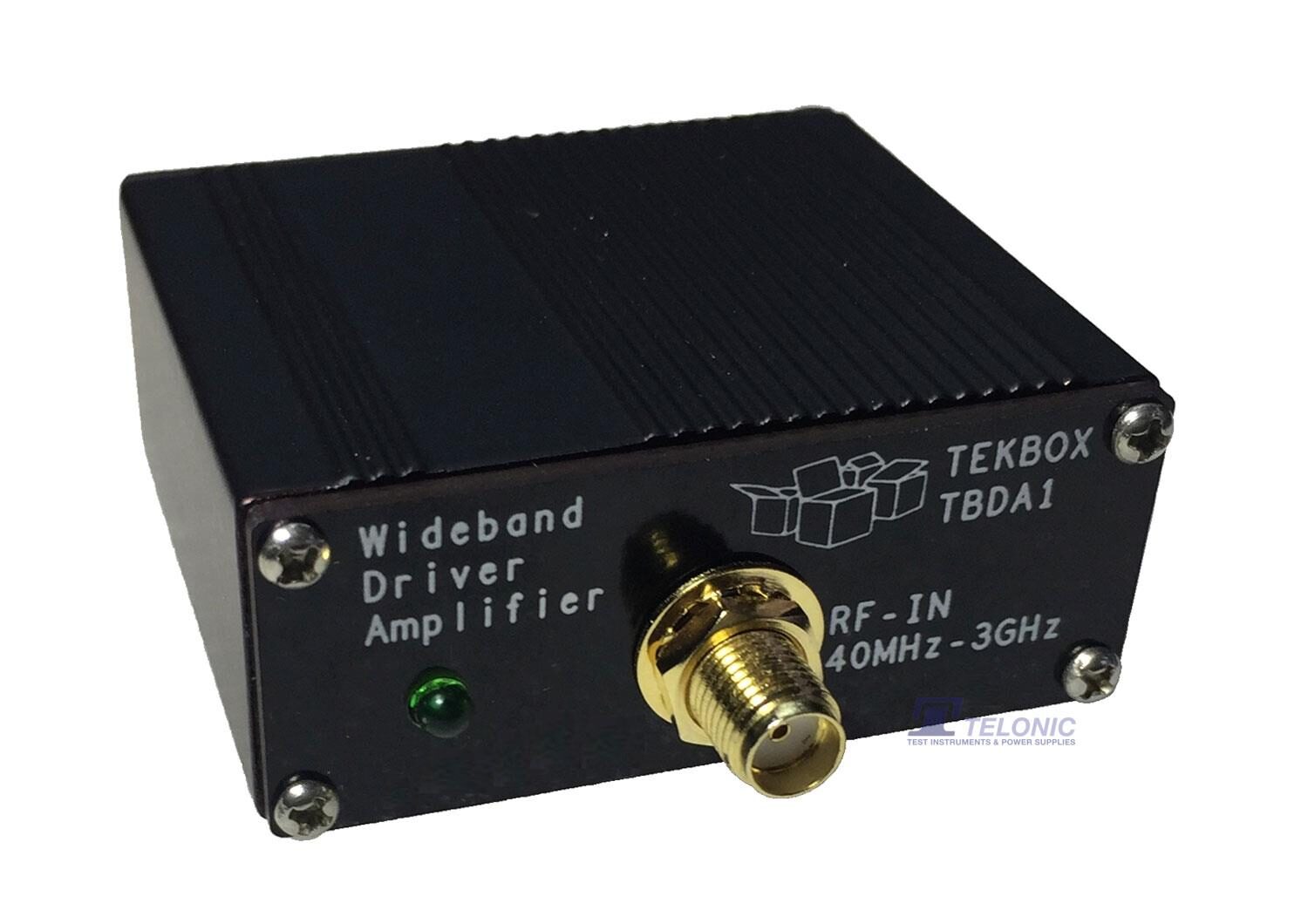

TEKBOX TBDA1 wideband driver amplifiers are versatile building blocks that can easily be integrated into laboratory setups. With a frequency range of 40MHz to 3GHz and an output power of +22dBm at 1dB compression, they are ideal to boost the amplitude of low power RF sources or to drive power amplifier stages. The TBDA1 wideband amplifiers are available with 14dB or 28dB gain.

The Following Items Are Included:

  • 1-off RF amplifier module
  • 1-off RF cable – N(m) to SMA(m)
  • 1-off RF cable – SMA(m) to SMA(m)
  • 1-off RF adapter – N(m) to SMA(f)
  • 1-off USB lead – type-A to mini-B
  • 1-off measurement plot

Specification:

  • Input: 50Ω, SMA female
  • Output: 50Ω, SMA female
  • Nominal Supply Voltage: 5V (@ 115mA typ., mini-USB-B connector)
  • Maximum Supply Voltage: 5.5V
  • Maximum Input Power: +20dBm
  • 1dB Output Compression Point @ 40MHz: +21.5dBm
  • 1dB Output Compression Point @ 2GHz: +22.5dBm
  • Third-Order Output Intercept Point @ 40MHz: +40dBm
  • Third-Order Output Intercept Point @ 2GHz: +43dBm
  • Reverse Isolation, S12: 20dB
  • Noise Figure: 3 – 4dB
  • Gain: 12dB @ 25MHz, 13.8dB @ 50MHz, 14.2dB @ 100MHz, 14.2dB @ 500MHz, 14.1dB @ 1GHz, 14.2dB @ 1.5GHz, 13.6dB @ 2GHz, 13.8dB @ 2.5GHz, 14.0dB @ 3GHz
Specifications
Input 50 Ohm, SMA female
Output 50 Ohm, SMA female
Nominal supply Voltage 5V, typ. 115mA, Mini-USB-B connector
Maximum supply voltage 5.5V
Maximum input power +20dBm
1dB output compression point @ 40MHz +21.5dBm
1dB output compression point @ 2 GHz +22.5dBm
3rd order output intercept point @ 40 MHz +40dBm
3rd order output intercept point @ 2 GHz +43dBm
Reverse isolation S12 -20dB
Noise Figure 3 … 4 dB
Gain
25MHz 50MHz 100MHz 500MHz 1GHz 1.5GHz 2GHz 2.5GHz 3GHz
12 dB 13.8 dB 14.2 dB 14.2 dB 14.3 dB 14.3 dB 13.7 dB 14.8 dB 14.6 dB
