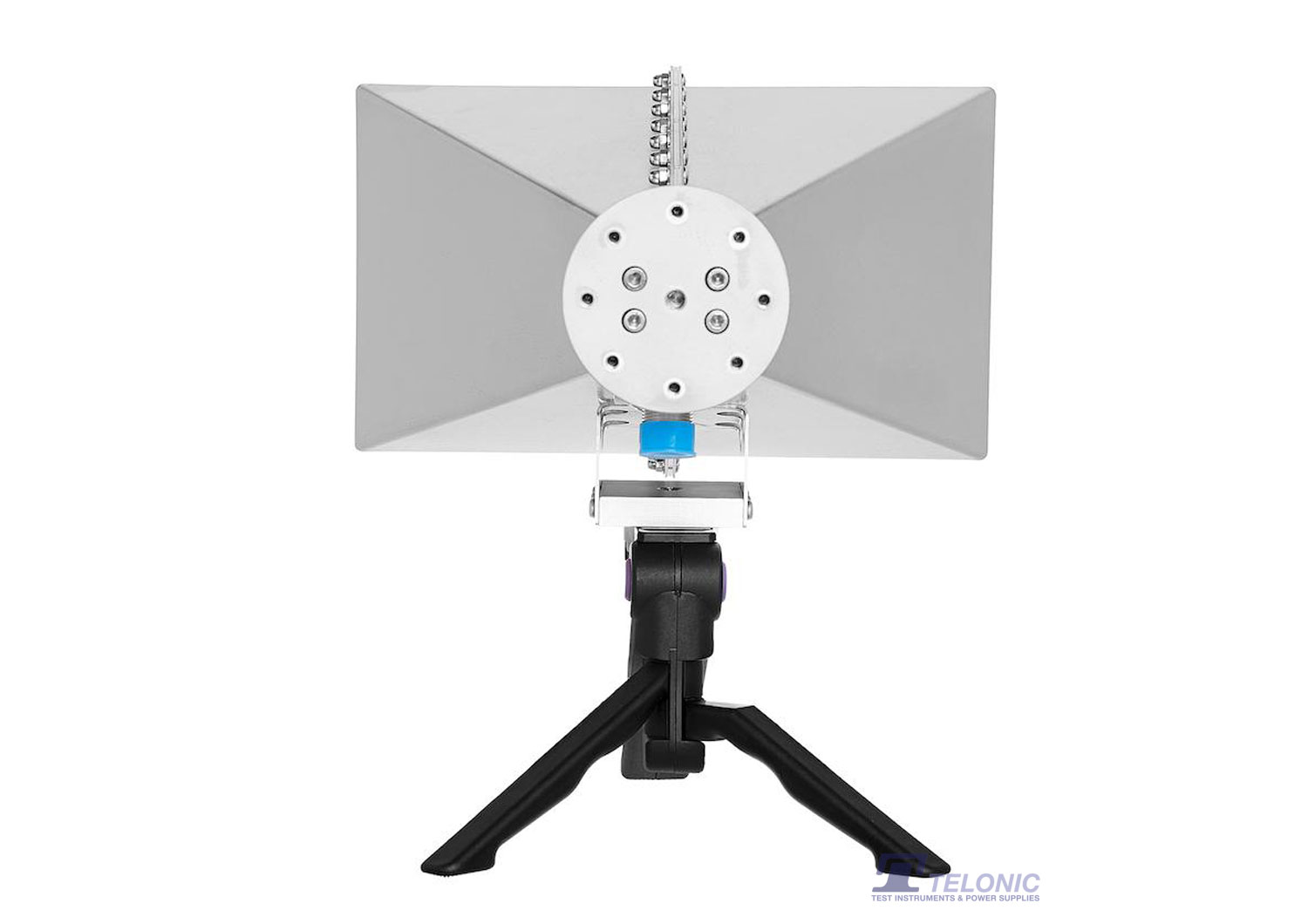

Tekbox TBMA4 CISPR16 1GHz to 8GHz Double Ridged Horn Antenna

Name: Tekbox TBMA4 CISPR16 1GHz to 8GHz Double Ridged Horn Antenna
Brand: TEKBOX
SKU: TBMA4
Availability: InStock

£643.00 (£771.60 inc. VAT)

3 in stock

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Documentation

Specifications

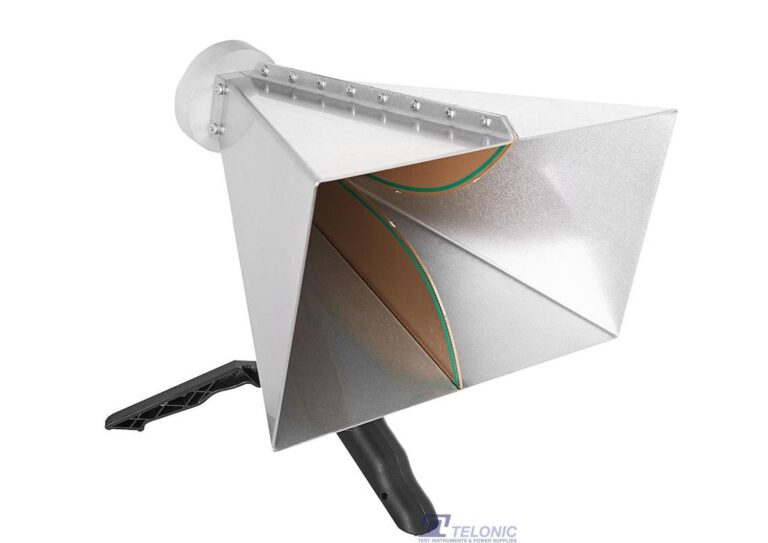

Type	double ridged horn
Frequency range	1 GHz – 8 GHz
Nominal impedance	50 Ω
Connector	N type female
Maximum continuous input RF power	100 W

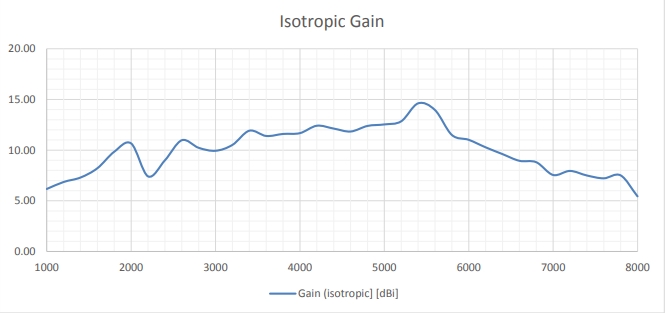

Isotropic gain	6 … 14 dBi

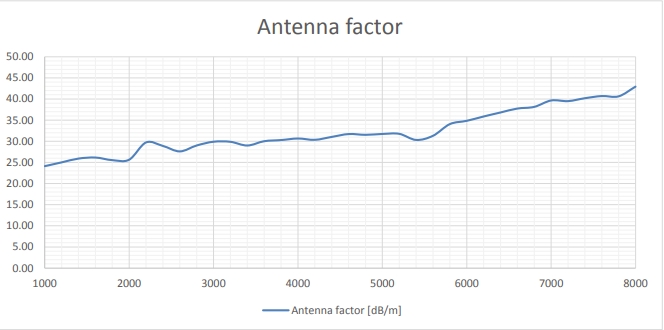

Antenna factor	24 … 43 dB/m
Front to back ratio	avg. 20 dB

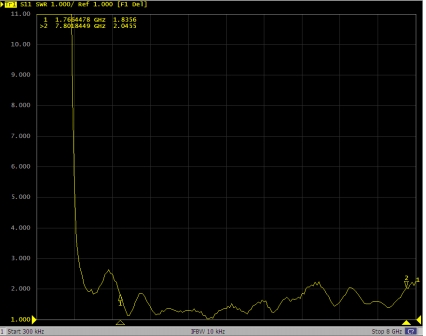

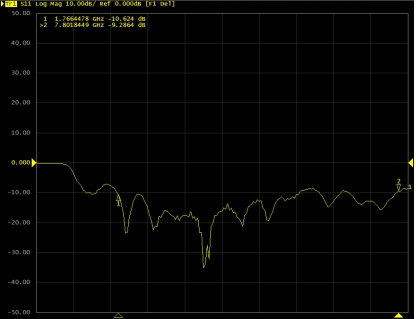

Voltage Standing Wave Ratio (VSWR)	< 3:1 over the entire frequency range; < 2:1 average
Width	241 mm (9.49 “)
Height	153 mm (6.03 “)
Depth	214 mm (8.44 “)
Weight	1.4 kg (3.08 lbs)

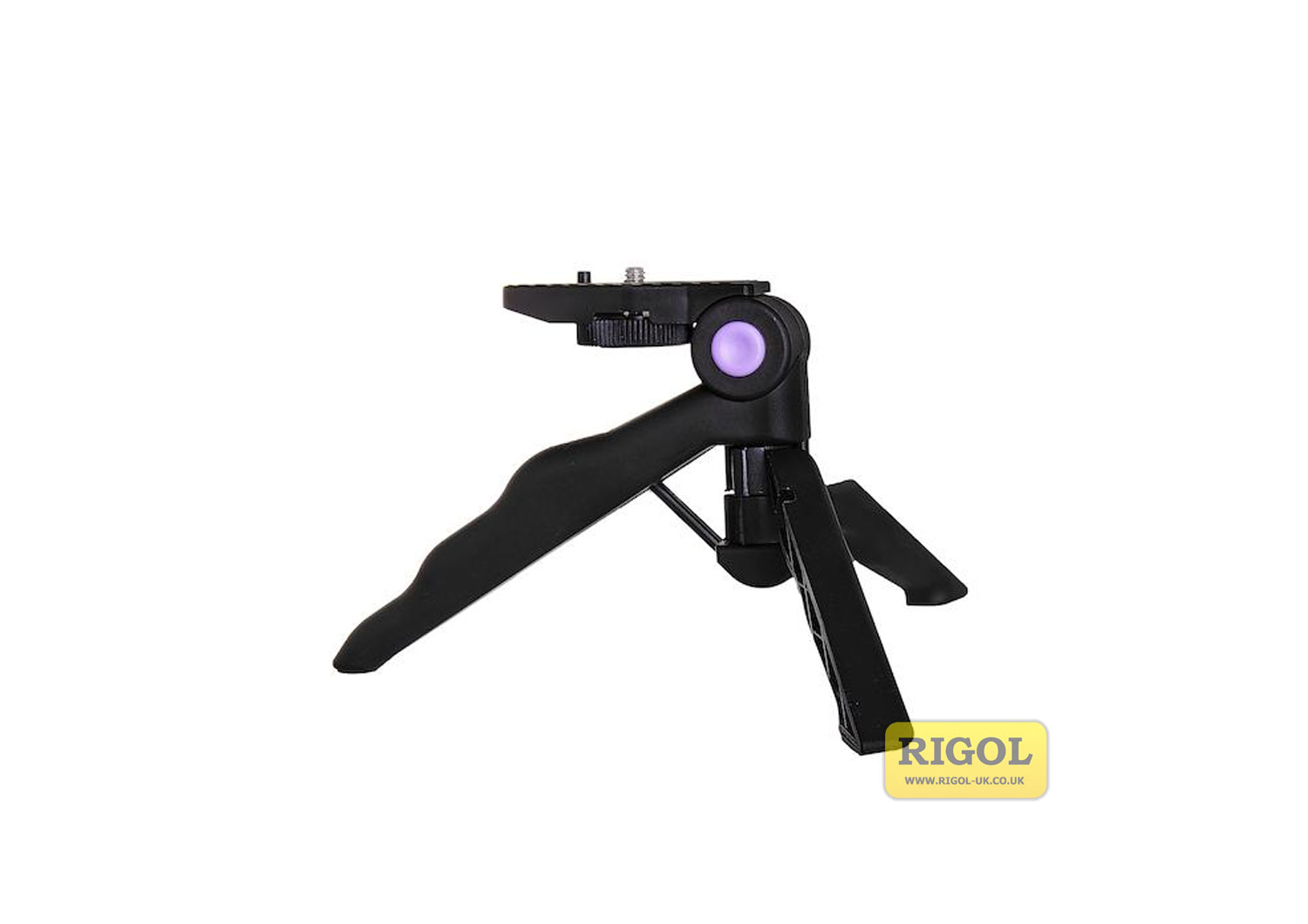

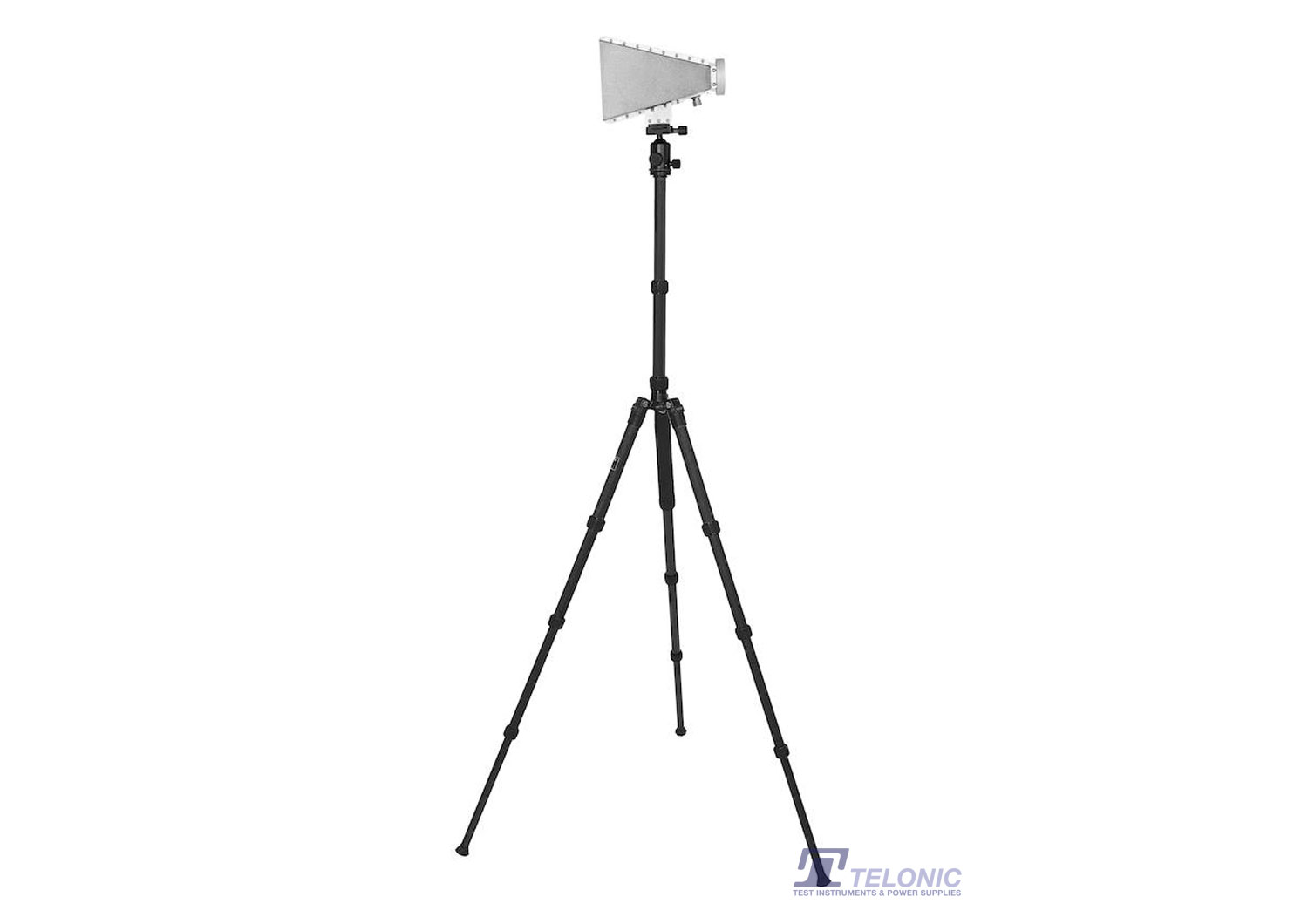

Tripod Adapter Thread Size	¼”

Frequency (MHz)	Wavelength (M)	Gain (Isotropic) (dBi)	Gain (Dipole) (dBd)	Antenna Factor (dB/m)
1000	0.300	6.17	4.02	24.13
1200	0.250	6.86	4.71	25.02
1400	0.214	7.30	5.15	25.92
1600	0.188	8.22	6.07	26.16
1800	0.167	9.85	7.70	25.56
2000	0.150	10.66	8.51	25.66
2200	0.136	7.41	5.26	29.74
2400	0.125	9.00	6.85	28.90
2600	0.115	10.95	8.83	27.62
2800	0.107	10.23	8.08	29.01
3000	0.100	9.94	7.79	29.90
3200	0.094	10.52	8.37	29.88
3400	0.088	11.92	9.77	29.01
3600	0.083	11.40	9.25	30.03
3800	0.079	11.60	9.45	30.30
4000	0.075	11.68	9.53	30.66
4200	0.071	12.41	10.26	30.35
4400	0.068	12.13	9.98	31.04
4600	0.065	11.84	9.69	31.72
4800	0.063	12.39	10.24	31.53
5000	0.060	12.54	10.39	31.74
5200	0.058	12.85	10.70	31.77
5400	0.056	14.62	12.47	30.33
5600	0.054	13.96	11.81	31.30
5800	0.052	11.50	9.35	34.07
6000	0.050	11.02	8.87	34.84
6200	0.048	10.28	8.13	35.87
6400	0.047	9.61	7.46	36.81
6600	0.045	8.95	6.80	37.74
6800	0.044	8.81	6.66	38.14
7000	0.043	7.55	5.40	39.65
7200	0.042	7.95	5.80	39.50
7400	0.041	7.50	5.35	40.18
7600	0.039	7.22	5.07	40.70
7800	0.038	7.51	5.36	40.63
8000	0.038	5.44	3.29	42.92
