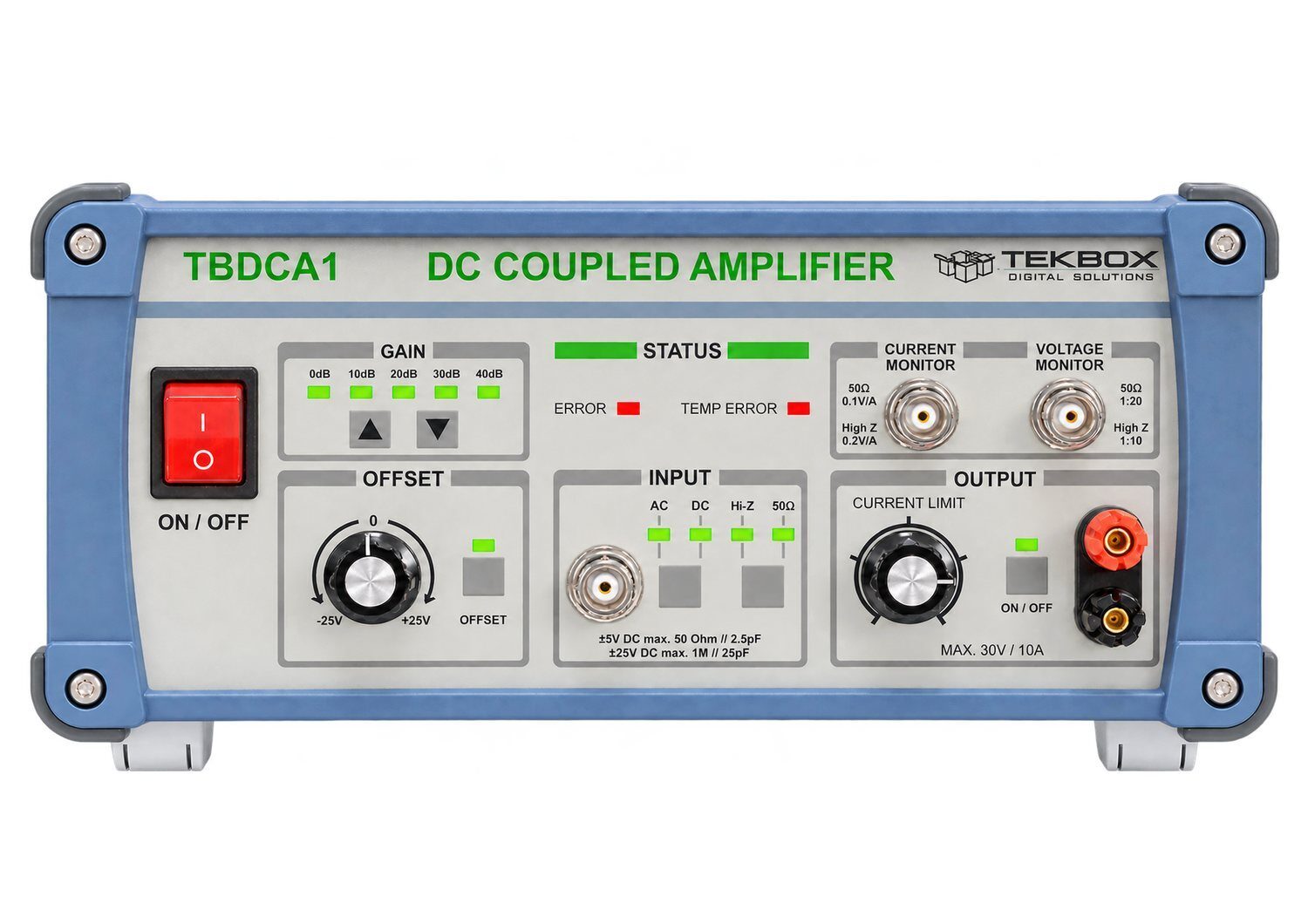

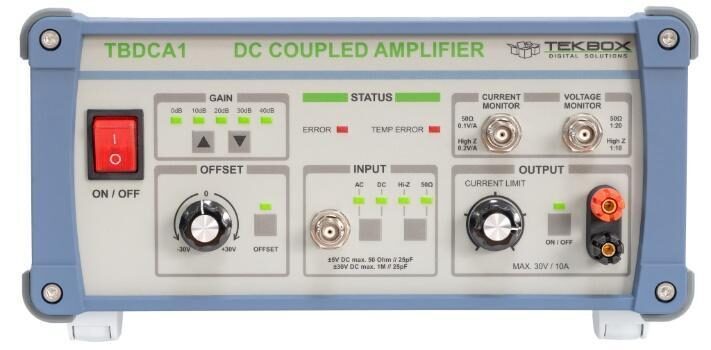

Image of Tekbox tbdca1 front telonicuk

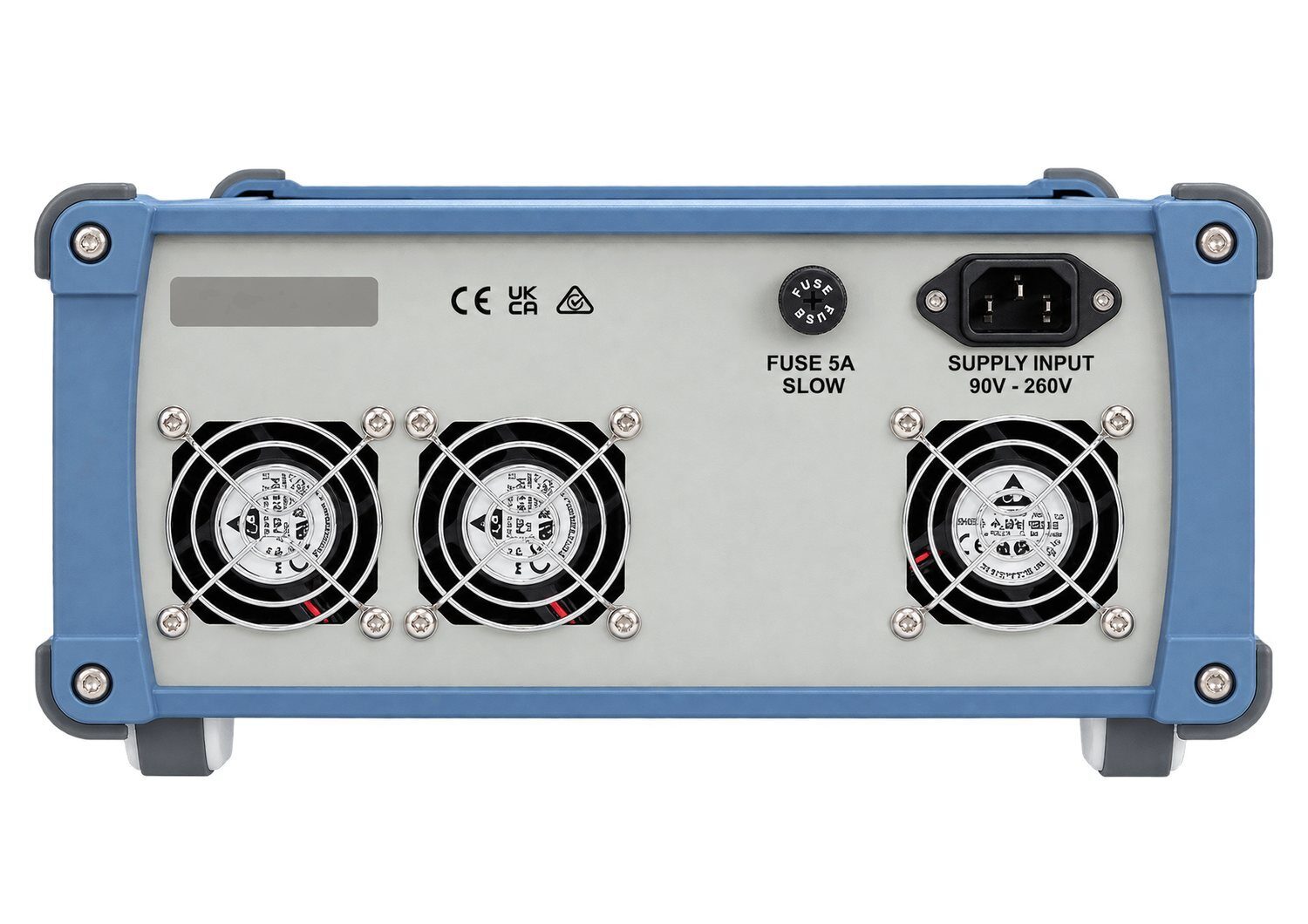

Image of Tekbox tbdca1 back telonicuk

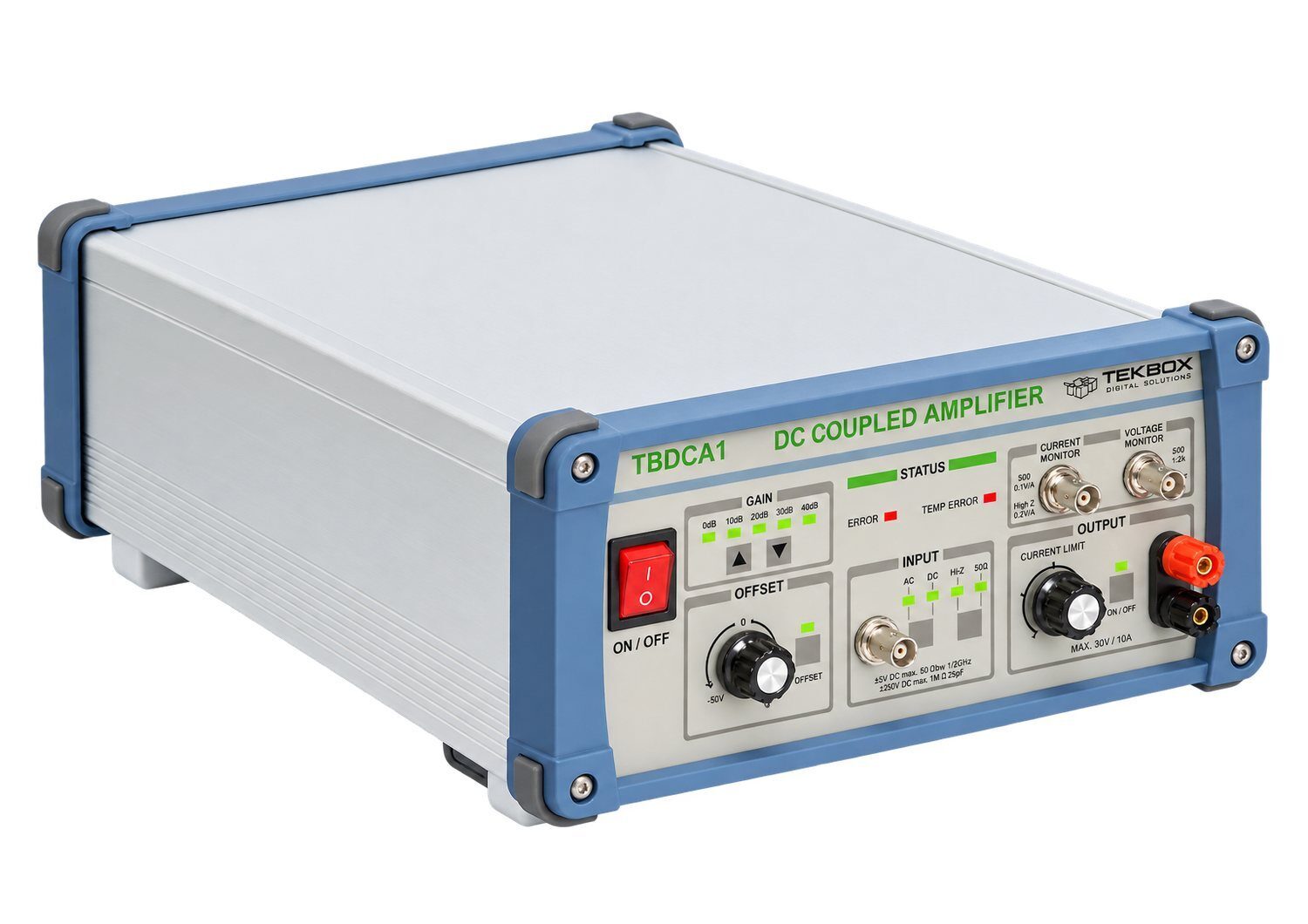

Image of Tekbox tbdca1 side telonicuk

Tekbox TBDCA1 – DC to 10 MHz, 150 W DC-Coupled Power Amplifier

£4050.00 (£4860.00 inc. VAT) (£4,860.00 inc VAT)

Out of stock

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBDCA1 Categories: , , , , Brand:

Description


Tekbox TBDCA1 – DC to 10 MHz, 150 W DC-Coupled Power Amplifier

The Tekbox TBDCA1 is a low-output-impedance, DC-coupled power amplifier designed to extend the voltage, current and power capability of an arbitrary waveform generator. It delivers up to 150 W continuous output power, with a 3 dB bandwidth from DC to 3 MHz and usable operation up to 10 MHz. A maximum 56 Vpp output, 10 A RMS continuous current capability and switchable gain from 0 dB to 40 dB make it suitable for driving demanding low-impedance loads and reproducing fast automotive and EMC test waveforms.

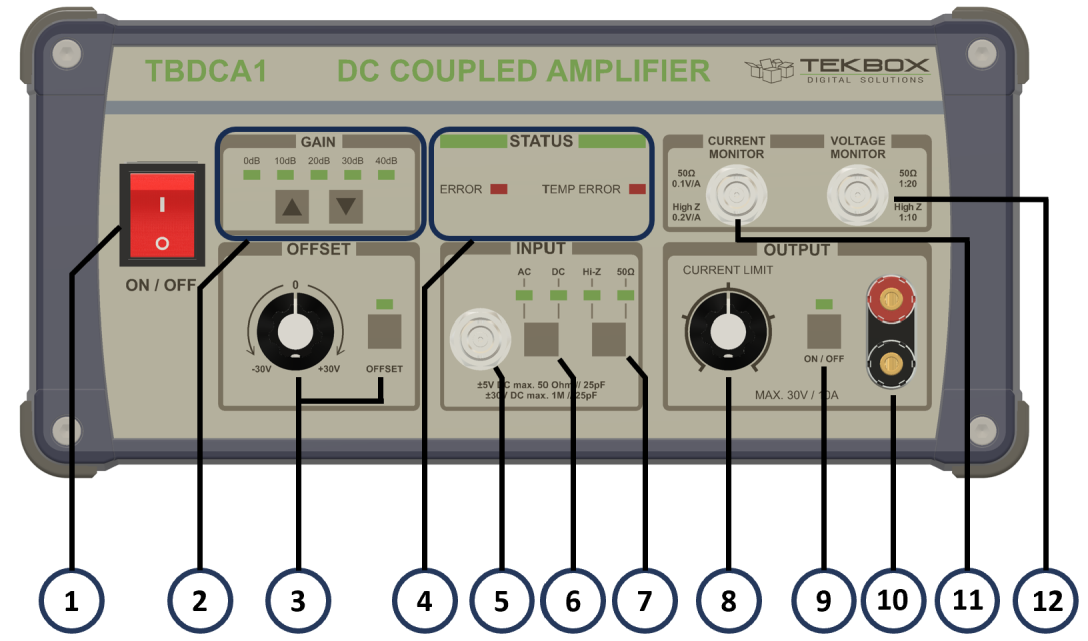

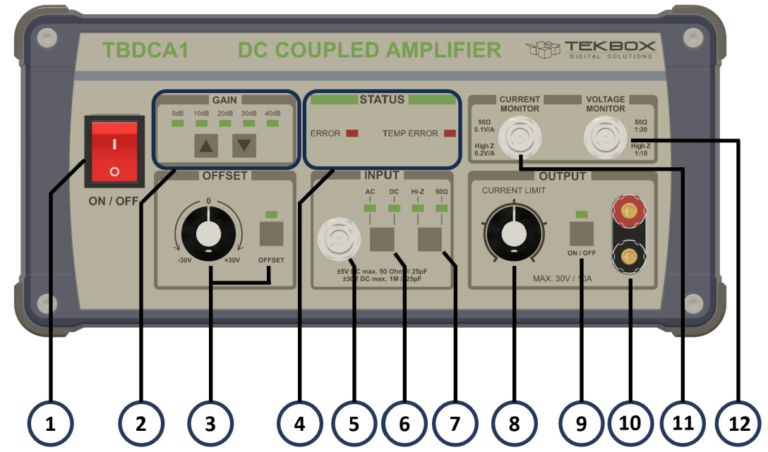

The TBDCA1 supports AC- or DC-coupled operation and selectable 50 ohm or high-impedance input termination. Its adjustable +/-25 V DC offset allows it to act as a voltage-controlled power source in suitable low-voltage applications, while dedicated voltage and current monitor outputs simplify measurement at the load. Adjustable current limiting and front-panel status indication help protect both the amplifier and the connected test setup.

Product Images

Documentation

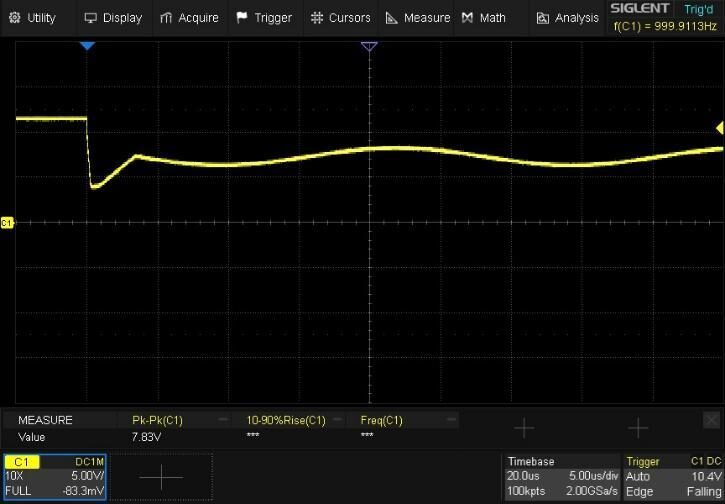

ISO16750 Python Script TBDCA1 Manual Application Notes Application Note: Creating ISO 16750-2 Cranking Waveforms with a Siglent AWG and Tekbox TBDCA1
General
3 dB bandwidthDC to 3 MHz; usable up to 10 MHz
Output powerUp to 150 W, depending on load impedance
Voltage gainSwitchable: 0 dB, 10 dB, 20 dB, 30 dB, 40 dB
Operating temperature-20°C to +40°C
Dimensions300 mm W x 150 mm H x 420 mm L
Weight10 kg
Output

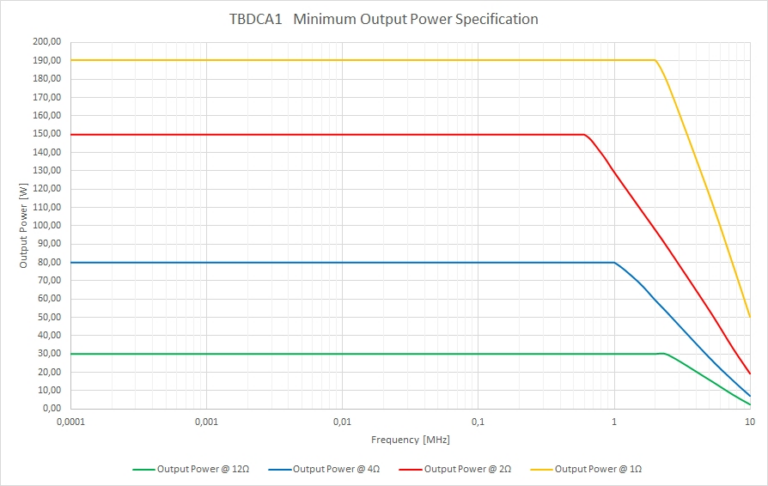

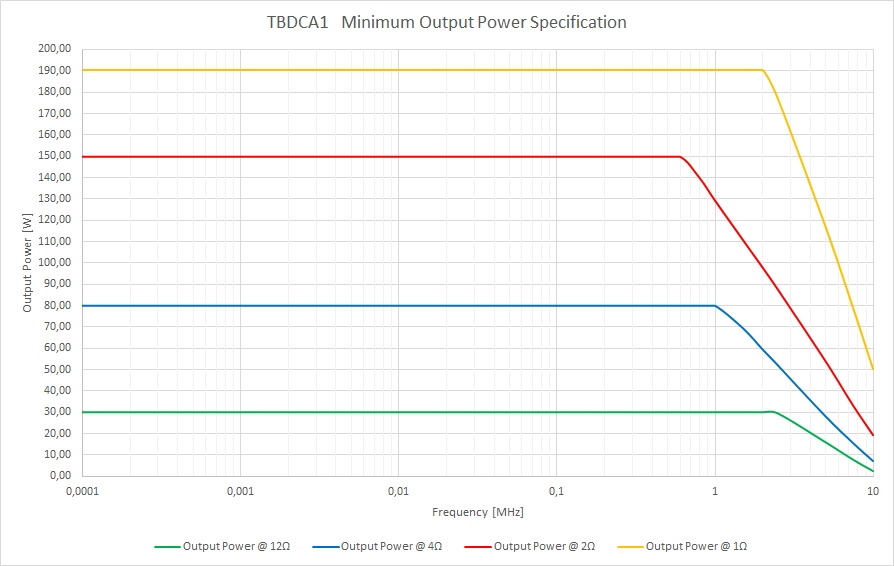

Nominal output power150 W at Rload ≤ 2 ohms; 80 W at 4 ohms; 30 W at 12 ohms
Maximum output voltage56 Vpp
Maximum continuous output current10 A RMS
Maximum short-duration output current20 A RMS for 30 seconds
Minimum output impedance0.5 ohm
Output offset voltageAdjustable, +/-25 V
Output connector4 mm posts
Voltage monitor output1:20 into 50 ohms; 1:10 into High Z; BNC female
Current monitor outputInverted; 0.1 V/A into 50 ohms; 0.2 V/A into High Z; BNC female
Current limitAdjustable, 0 to +/-12 A
Rise timeTypically at least 20 ns; ringing depends on load inductance and cable length
Input
Input couplingAC or DC, switchable
Input impedance50 ohms or High Z, switchable
Input voltage range+/-3 V (6 Vpp) for maximum output power at 0 dB gain
Maximum input voltage+/-5 V with 50 ohm input; +/-30 V with High Z input
Input connectorBNC female
Power supply
Operating voltage90 V to 260 V AC, 50/60 Hz
Maximum current consumption9 A at 115 V AC; 4.5 A at 230 V AC
Mains connectorIEC/EN 60320 C14
