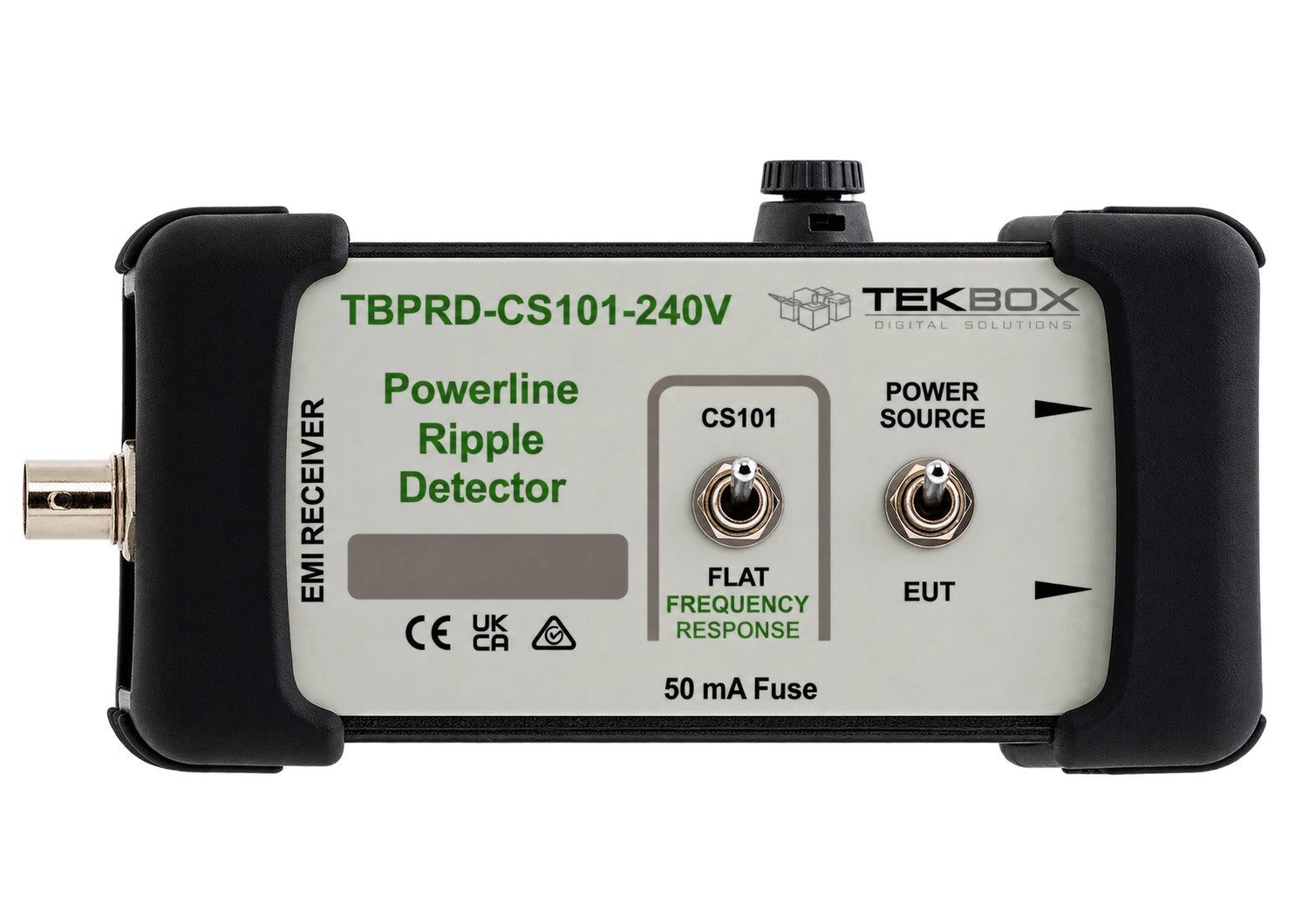

Image of Tekbox tbprd cs101 240v top telonicuk

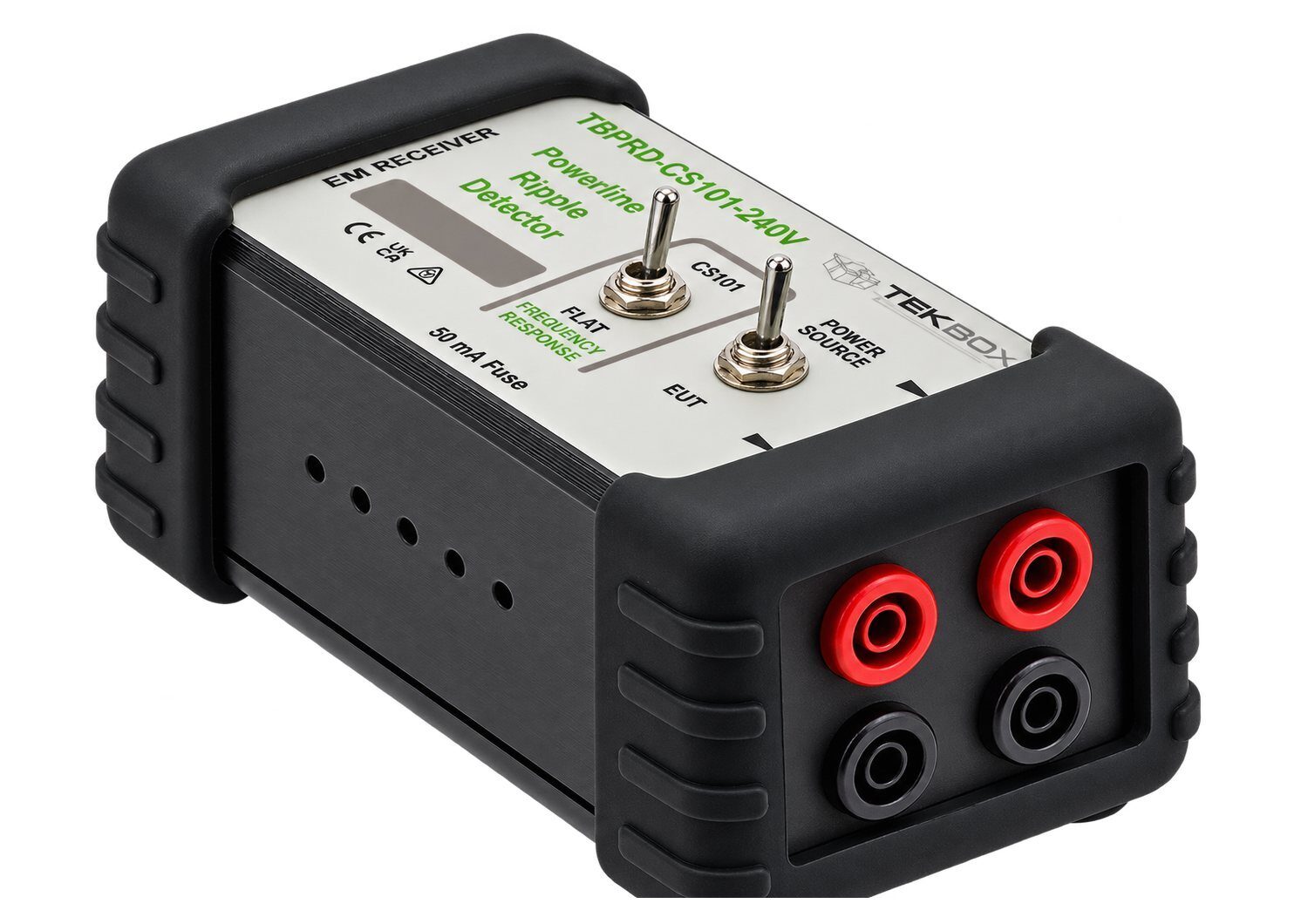

Image of Tekbox tbprd cs101 240v terminal telonicuk

Tekbox TBPRD-CS101-240V Powerline Ripple Detector

(£ inc VAT)

Available on back-order, delivery normally 1 - 2 weeks

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBPRD-CS101-240V Categories: , , , , Brand:

Description


Tekbox TBPRD-CS101-240V Powerline Ripple Detector

MIL-STD-461 CS101 and RTCA/DO-160 section 18, conducted susceptibility, power leads, suggest using a powerline ripple detector to measure the amplitude of the disturbance signal injected on AC or DC power buses.

The powerline ripple detector separates injected ripple from the power waveform and provides galvanic isolation to measure the ripple amplitude with a spectrum analyser or measurement receiver.

The TBPRD-CS101-240V powerline ripple detector is suitable for supply voltages of up to 240V AC and 270V DC. It can be connected simultaneously to both sides of the coupling transformer. Measurement on the EUT side or on the power source side can be selected with a toggle switch. Another toggle switch can pick a flat frequency response or a frequency response that compensates for the CS101’s power vs. frequency profile.

The powerline ripple detector has a nominal coupling loss of 80 dB, translating to 56 dBµV at the measurement receiver, when injecting 80 W into the setup.

Documentation

TBPRD-CS101-240V Manual
SKUTBPRD-CS101-240V
TypePowerline ripple detector
Characterized frequency range10 Hz to 300 kHz
Insertion loss above 50 Hz80 dB +/-1 dB in Flat response mode
Input voltage range100 V to 240 V AC; 100 V to 270 V DC
Maximum input voltage240 V AC; 270 V DC
Input connectors4 mm safety sockets
Output connectorBNC female
Dimensions75 mm W x 70 mm H x 160 mm L
Weight300 g
