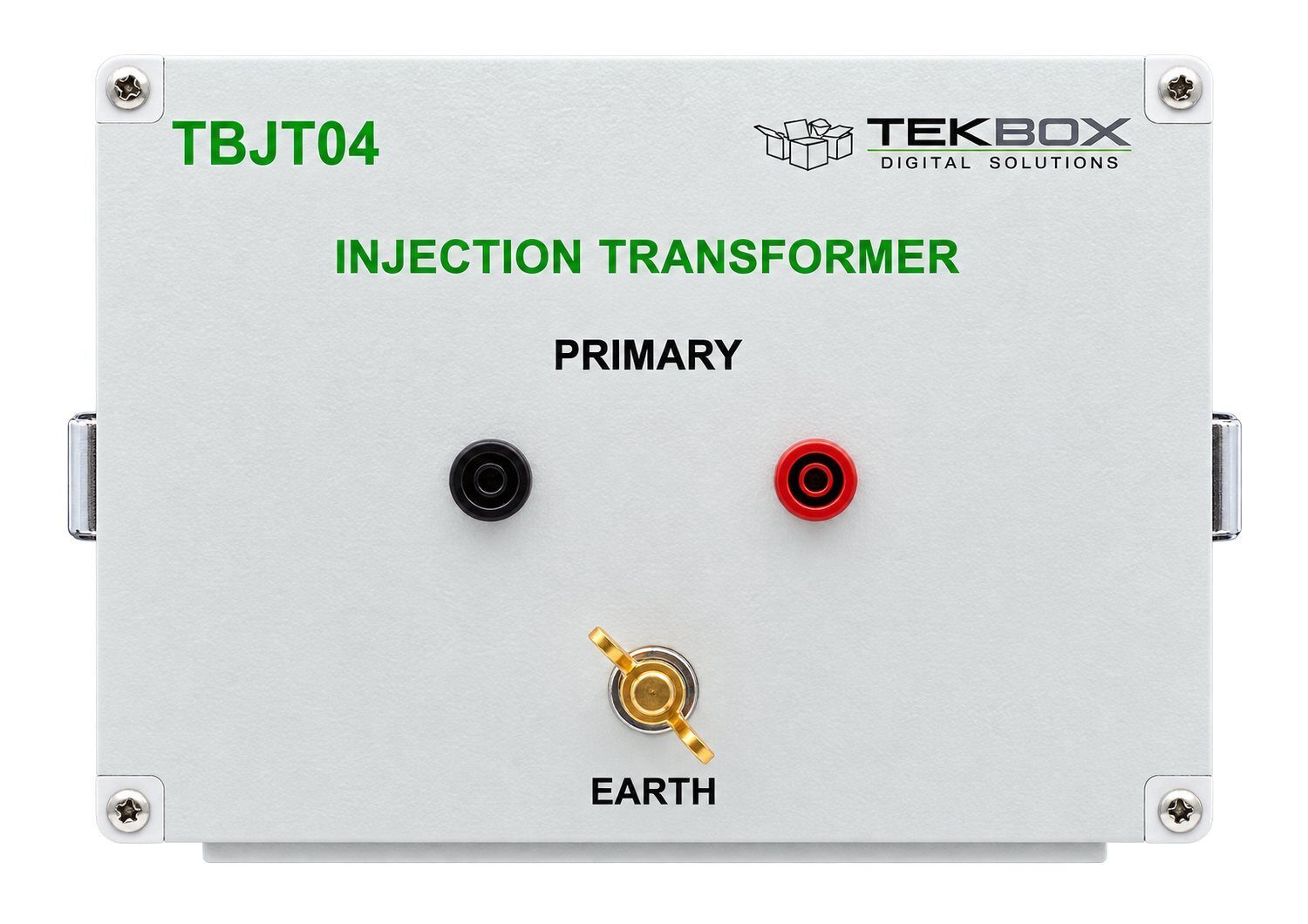

Image of Tekbox tbjt04 front telonicuk

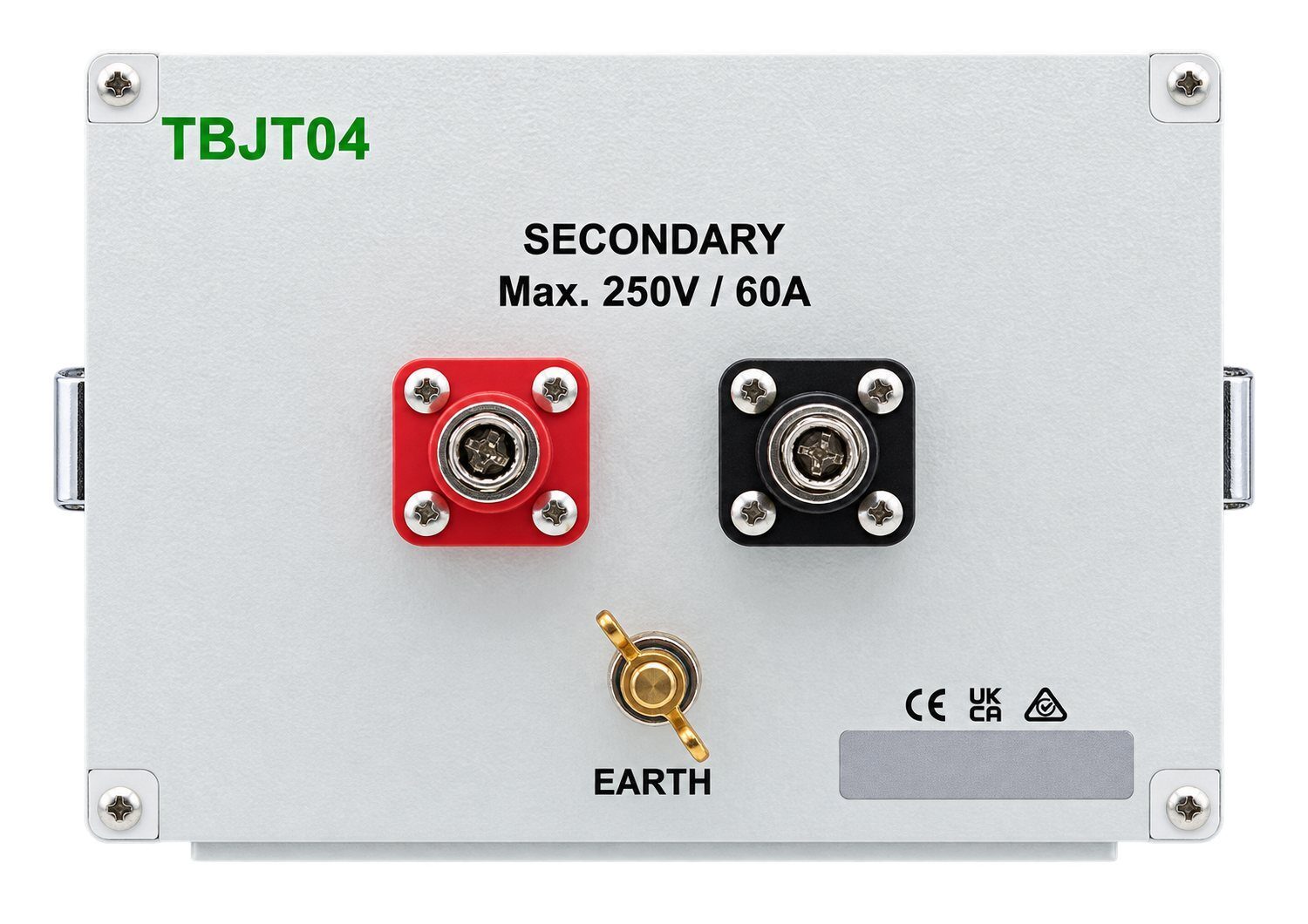

Image of Tekbox tbjt04 back telonicuk

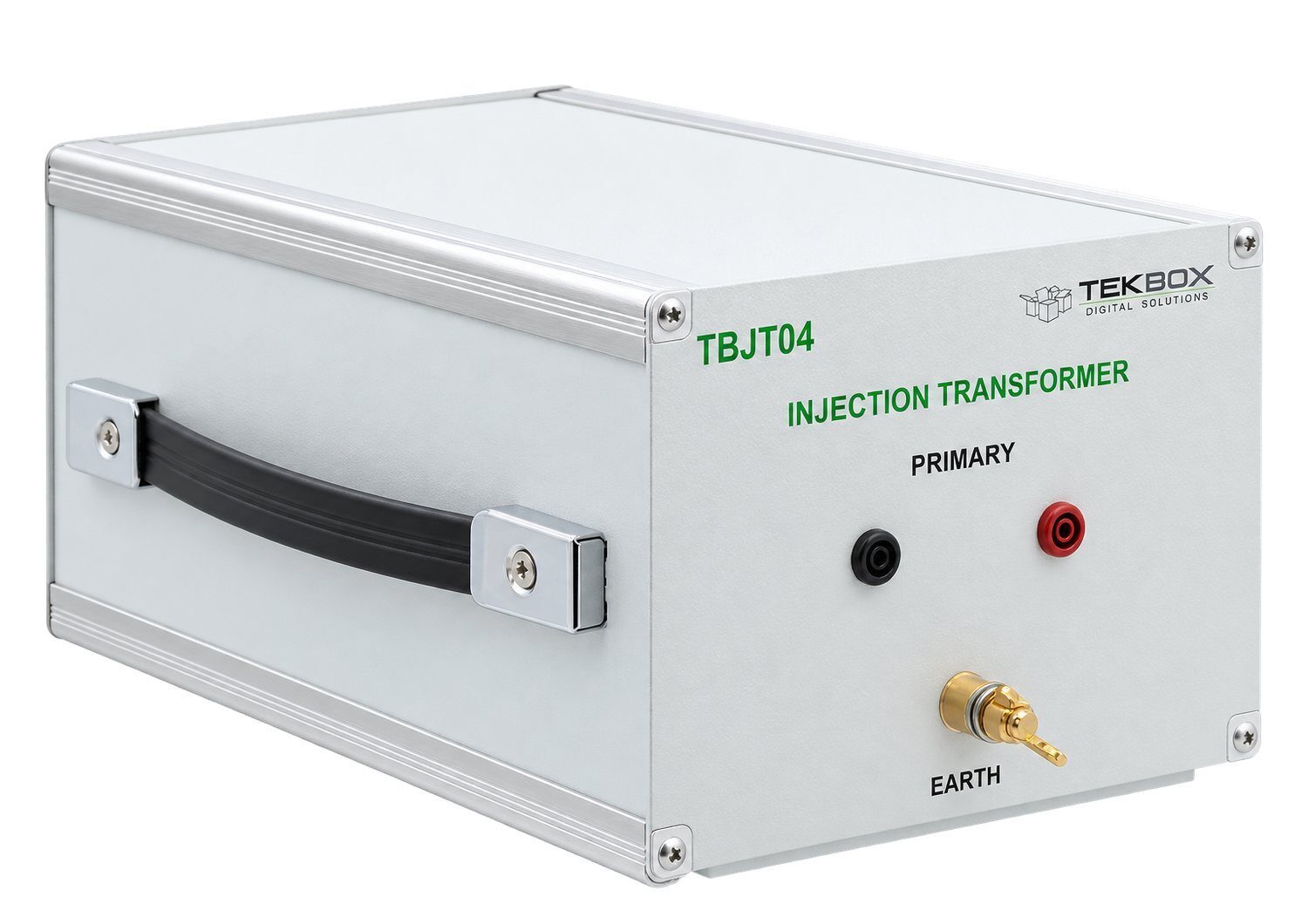

Image of Tekbox tbjt04 side telonicuk

Tekbox TBJT04 injection transformer

(£ inc VAT)

Available on back-order, delivery normally 1 - 2 weeks

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBJT04 Categories: , , , , , Brand:

Description


Tekbox TBJT04 injection transformer

The TBJT04 injection transformer may be used for applications such as MIL-STD-461 (CS101, CS106, CS109), DO 160 (section 16, section 18), ISO 11452 -10, SAE J1113-2 and various automotive manufacturer-specific standards. Furthermore, it may be used to measure the input impedance of AC – and DC – power supplies using the Voltage / Current method.

It provides galvanic isolation between the swept signal source on the primary side and the secondary side, which is in series with the EUT supply line.

Documentation

TBJT04 Manual
SKUTBJT04
TypeInjection transformer
Turns ratio2:1, primary to secondary
Impedance ratio4:1, primary to secondary
Typical secondary load impedanceAt least 0.5 ohm
Characterized frequency range10 Hz to 250 kHz
Typical 3 dB frequency range10 Hz to 60 kHz
Maximum nominal primary input power250 W
Maximum secondary current50 A AC/DC nominal; greater than 60 A saturation current
Maximum voltage250 V AC/DC
Dimensions215 mm W x 160 mm H x 350 mm L
Weight16 kg
