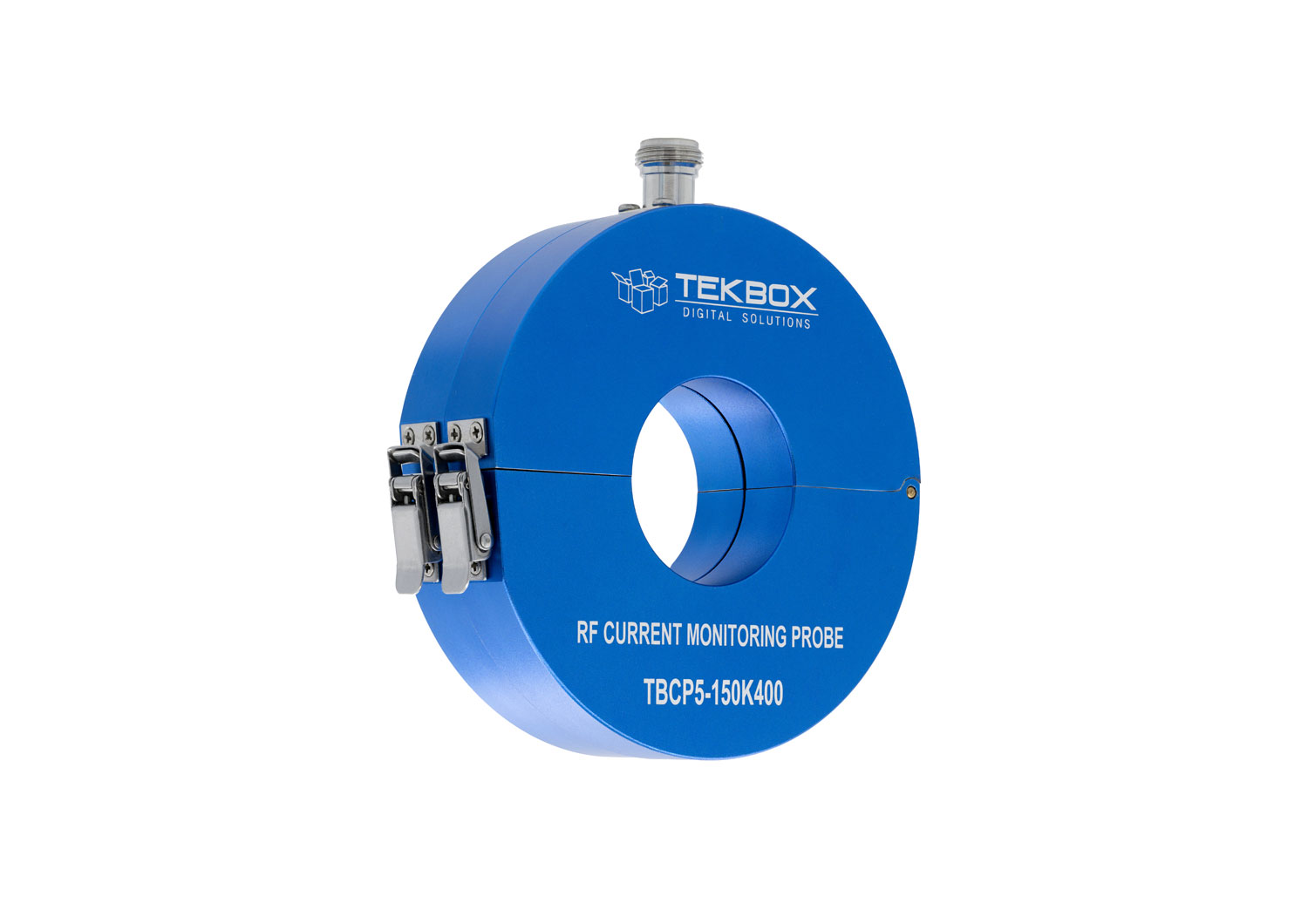

TEKBOX TBCP5 150K400 side Telonic UK

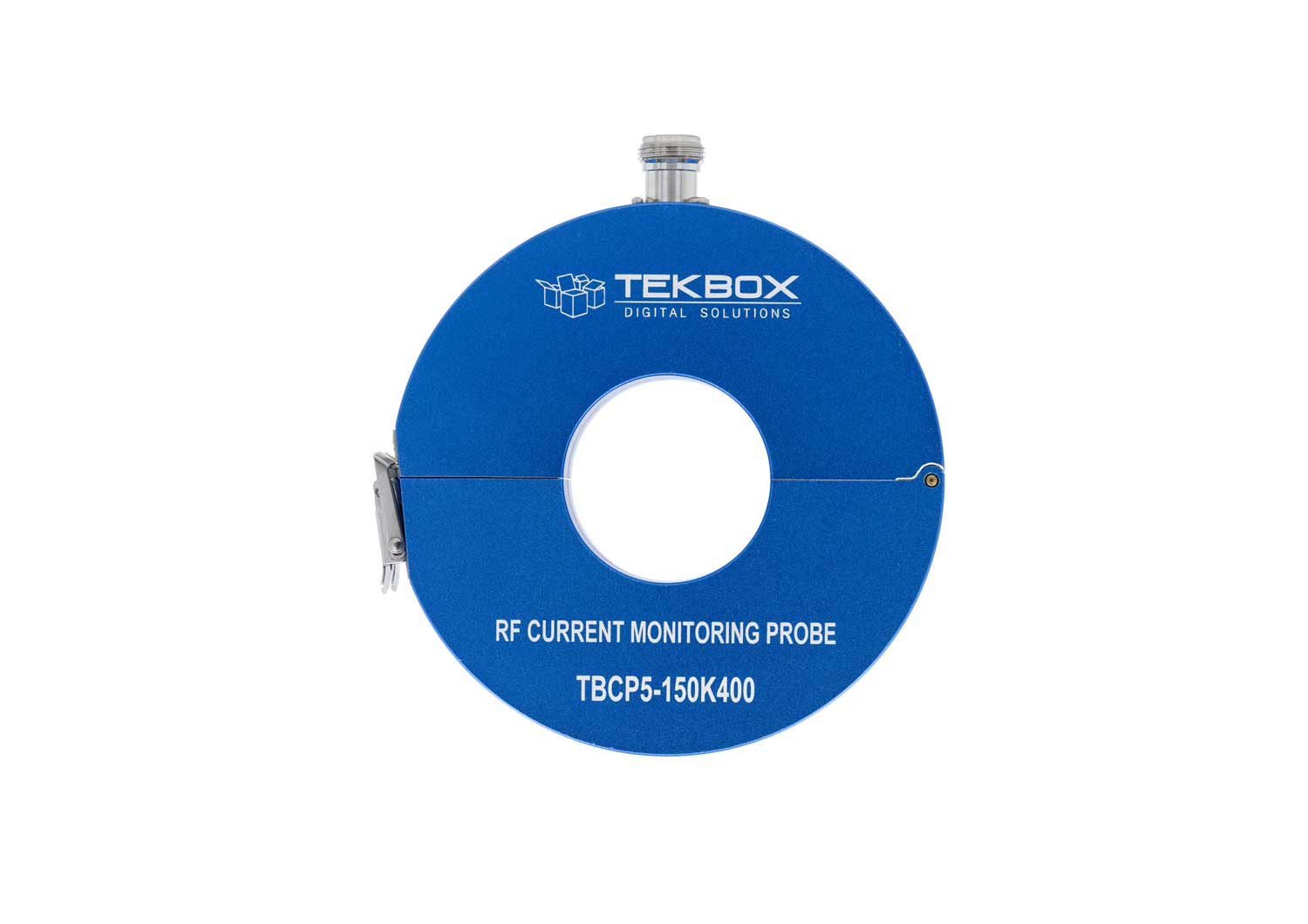

TEKBOX TBCP5 150K400 front Telonic UK

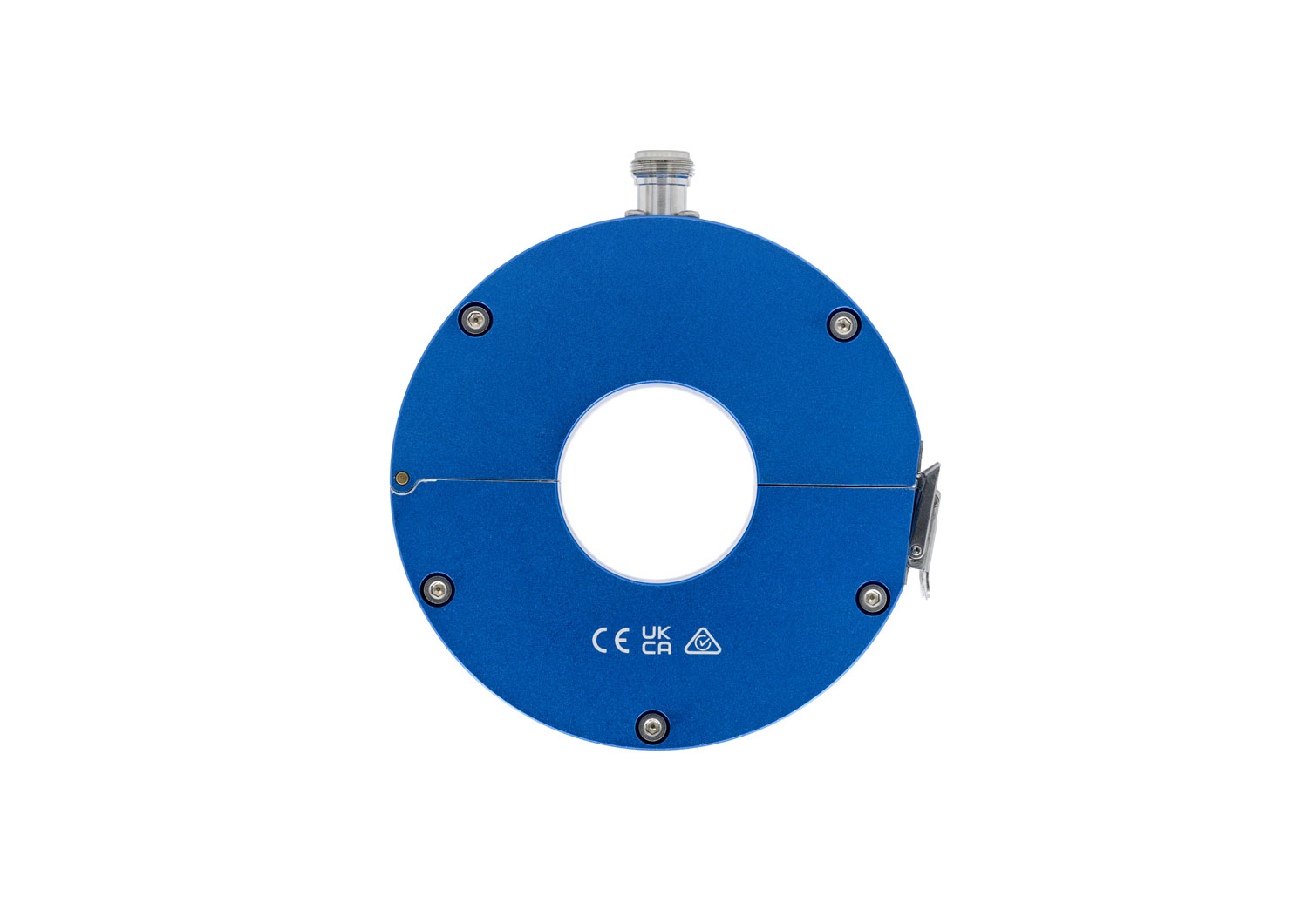

TEKBOX TBCP5 150K400 back Telonic UK

TEKBOX TBCP5-150K400 RF Current Monitoring Probe

£791.00 (£949.20 inc. VAT)

Out of stock

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBCP5-150K400 Category: Tag: Brand:

Documentation

User Manual TBCP5-150K400 User Manual
  • Characterized frequency range: 10 Hz to 500 MHz3 dB bandwidth: 150 kHz to 400 MHz, typ.
  • Transfer impedance: 11 dBΩ (3.5 Ω) in the flat region, typ. (50 Ω load impedance)
  • Insertion impedance: <400mΩ up to 400 MHz (series measurement method)
  • Shunt capacitance: <1 pF (concentric cable with ⌀ 10 mm)
  • Output impedance: 50 Ω (resistive matching)
  • Max. bias current (DC – 400 Hz): 200 A (no influence on transimpedance)
  • Max. primary current (RF): 2 A
  • Max. core temperature: 125 °C
  • Connector type: N female
  • Aperture diameter: 46 mm
  • Outside diameter: 124 mm
  • Height: 36 mm
  • Weight: 320 g
