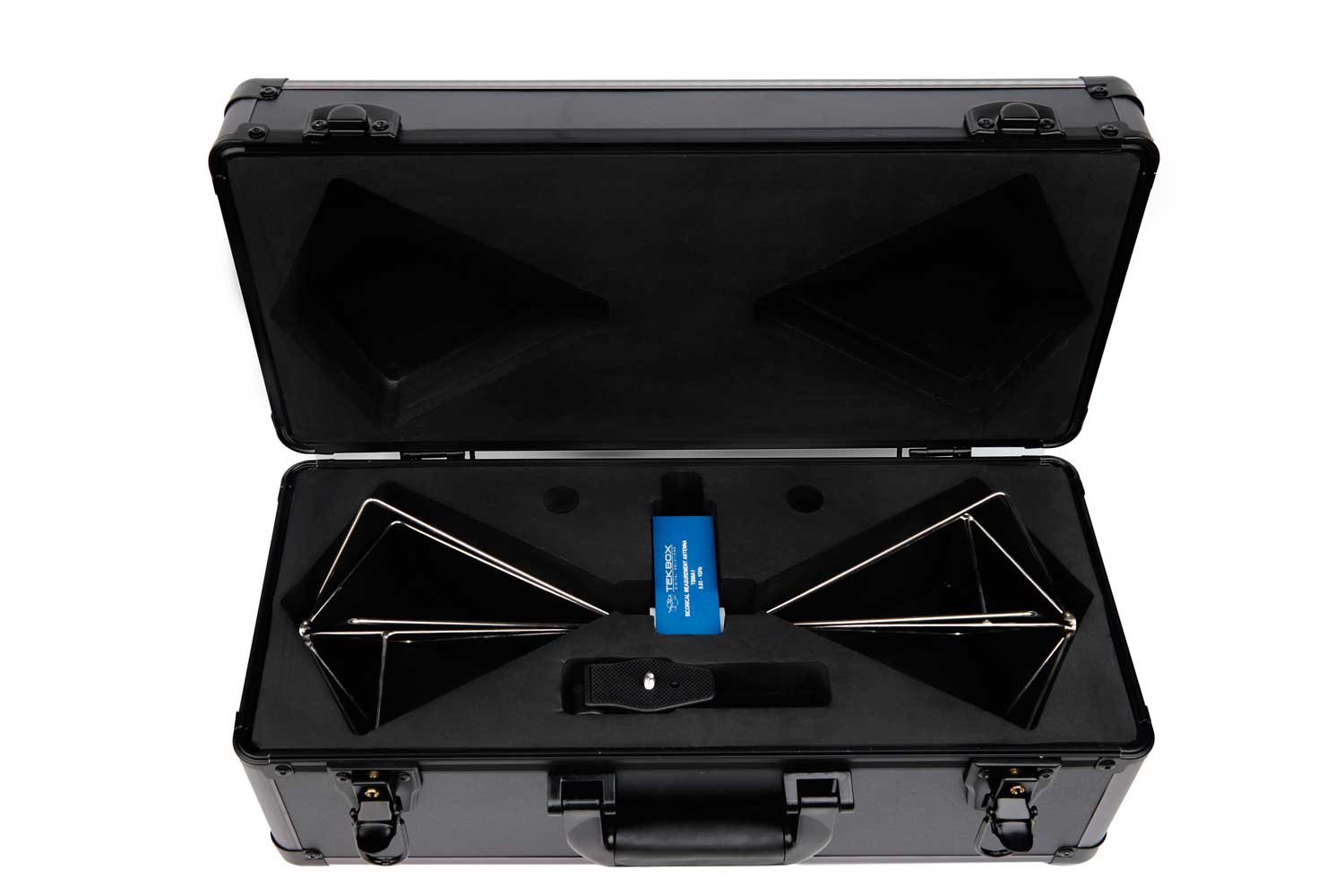

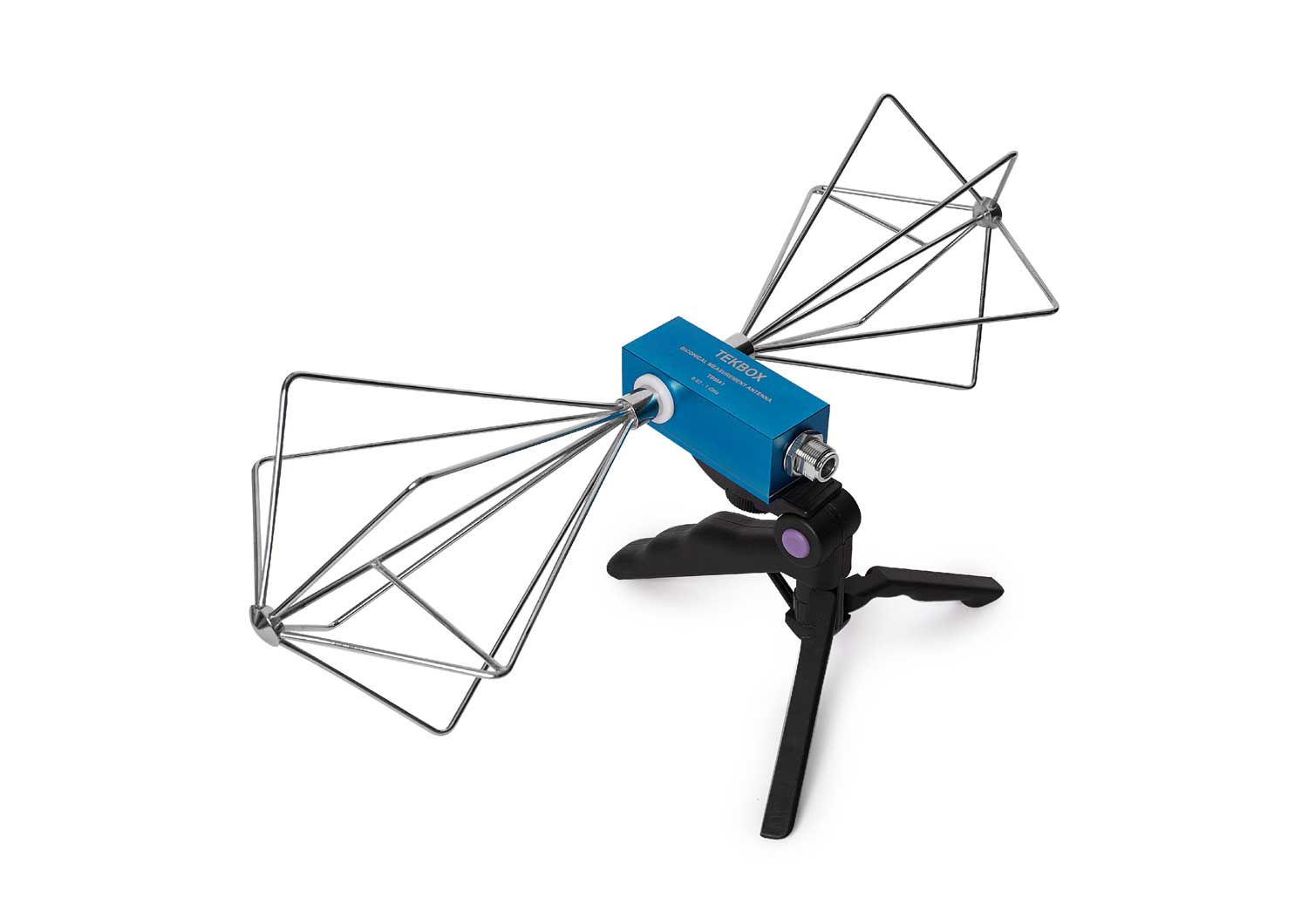

Tekbox TBMA1B Biconical Antenna 30MHz – 3GHz
£572.00 (£686.40 inc. VAT)
Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

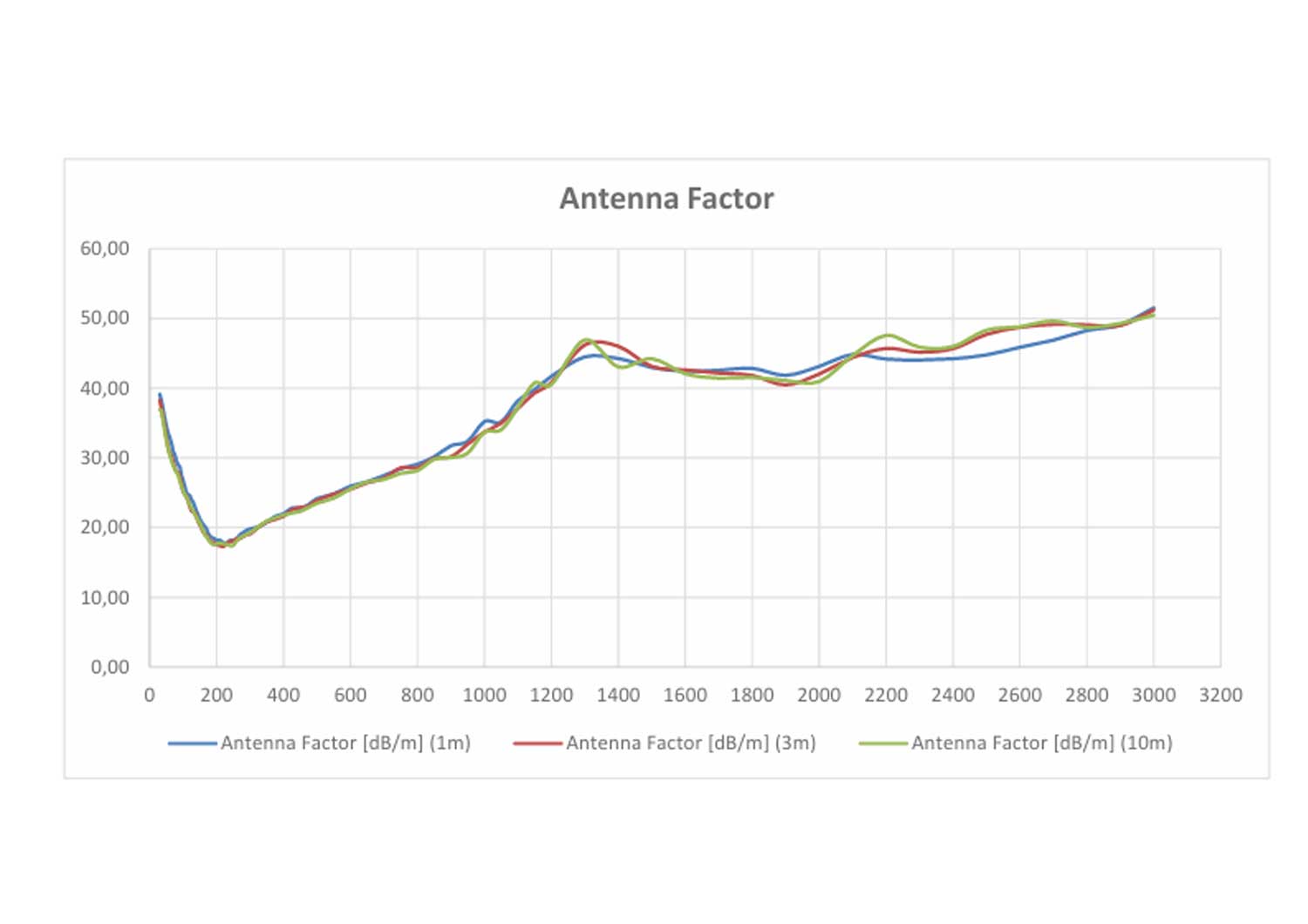

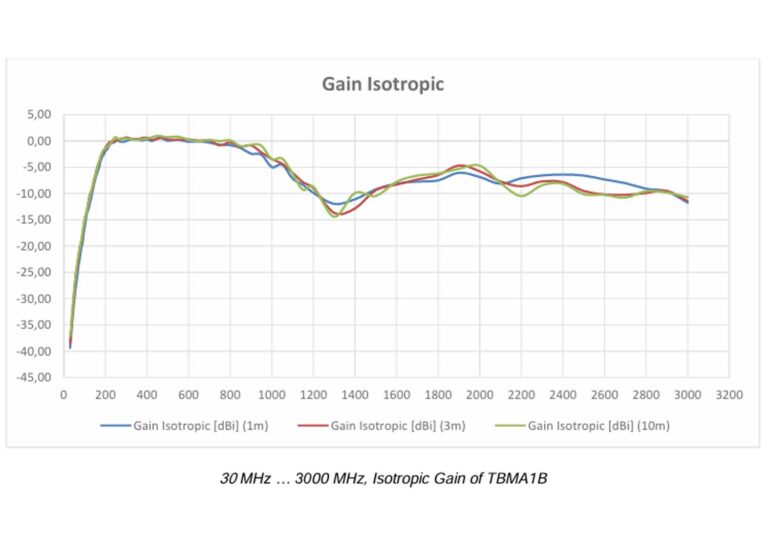

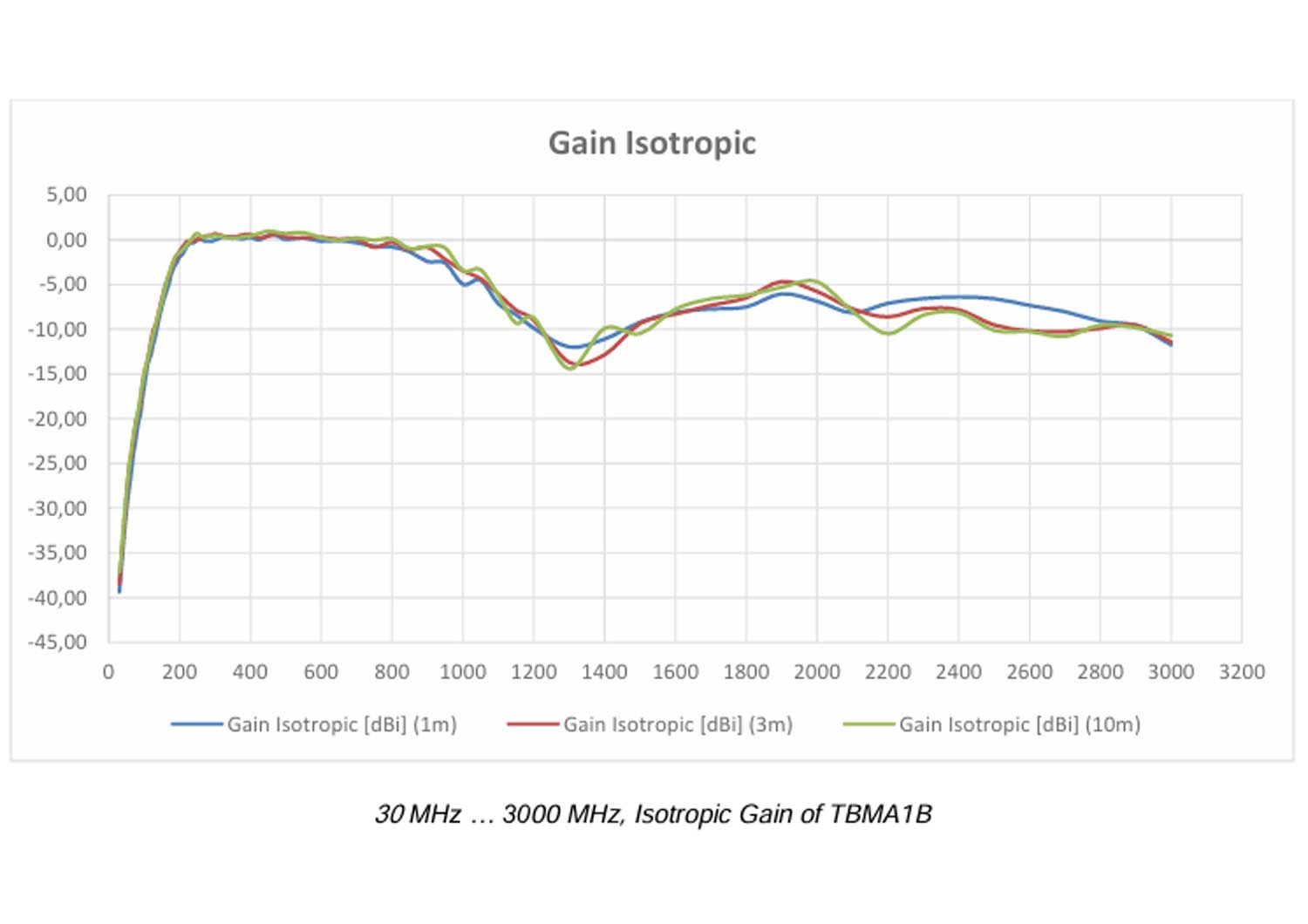

| Frequency (MHz) | Gain Isotropic (10m) (dBi) | Antenna Factor (10m) (dB/m) | Gain Isotropic (3m) (dBi) | Antenna Factor (3m) (dB/m) | Gain Isotropic (1m) (dBi) | Antenna Factor (1m) (dB/m) |
|---|---|---|---|---|---|---|
| 425 | 0.71 | 22.07 | 0.23 | 22.56 | -0.01 | 22.80 |
| 450 | 0.98 | 22.31 | 0.39 | 22.89 | 0.53 | 22.75 |
| 475 | 0.85 | 22.91 | 0.67 | 23.08 | 0.46 | 23.29 |
| 500 | 0.71 | 23.49 | 0.30 | 23.89 | 0.04 | 24.16 |
| 550 | 0.81 | 24.21 | 0.23 | 24.80 | 0.22 | 24.81 |
| 600 | 0.23 | 25.55 | 0.29 | 25.50 | -0.16 | 25.95 |
| 650 | -0.08 | 26.56 | 0.04 | 26.44 | -0.07 | 26.55 |
| 700 | 0.22 | 26.90 | 0.09 | 27.03 | -0.33 | 27.45 |
| 750 | -0.06 | 27.78 | -0.85 | 28.57 | -0.73 | 28.45 |
| 800 | 0.12 | 28.17 | -0.28 | 28.56 | -0.80 | 29.08 |
| 850 | -0.98 | 29.79 | -1.09 | 29.90 | -1.33 | 30.14 |
| 900 | -0.71 | 30.02 | -0.83 | 30.13 | -2.43 | 31.74 |
| 950 | -0.90 | 30.67 | -2.19 | 31.96 | -2.59 | 32.36 |
| 1000 | -3.45 | 33.67 | -3.47 | 33.69 | -4.98 | 35.20 |
| 1050 | -3.35 | 34.00 | -4.32 | 34.96 | -4.50 | 35.14 |
| 1100 | -6.18 | 37.23 | -6.04 | 37.09 | -7.14 | 38.19 |
| 1150 | -9.32 | 40.76 | -7.87 | 39.31 | -8.35 | 39.78 |
| 1200 | -8.70 | 40.50 | -8.96 | 40.76 | -9.87 | 41.67 |
| 1300 | -14.42 | 46.92 | -13.69 | 46.18 | -11.98 | 44.48 |
| 1400 | -9.89 | 43.03 | -12.86 | 46.00 | -11.10 | 44.24 |
| 1500 | -10.48 | 44.22 | -9.36 | 43.10 | -9.21 | 42.95 |
| 1600 | -7.76 | 42.06 | -8.31 | 42.61 | -8.12 | 42.42 |
| 1700 | -6.60 | 41.42 | -7.32 | 42.15 | -7.73 | 42.56 |
| 1800 | -6.21 | 41.53 | -6.49 | 41.81 | -7.51 | 42.83 |
| 1900 | -5.30 | 41.10 | -4.66 | 40.45 | -6.04 | 41.83 |
| 2000 | -4.68 | 40.92 | -5.77 | 42.01 | -6.86 | 43.10 |
| 2100 | -7.98 | 44.65 | -7.72 | 44.38 | -8.16 | 44.82 |
| 2200 | -10.49 | 47.56 | -8.61 | 45.68 | -7.10 | 44.16 |
| 2300 | -8.41 | 45.87 | -7.69 | 45.15 | -6.57 | 44.02 |
| 2400 | -8.13 | 45.95 | -7.82 | 45.65 | -6.38 | 44.21 |
| 2500 | -10.13 | 48.31 | -9.52 | 47.70 | -6.58 | 44.76 |
| 2600 | -10.26 | 48.78 | -10.19 | 48.71 | -7.33 | 45.85 |
| 2700 | -10.79 | 49.64 | -10.28 | 49.13 | -8.03 | 46.87 |
| 2800 | -9.54 | 48.70 | -9.90 | 49.06 | -9.09 | 48.26 |
| 2900 | -9.81 | 49.28 | -9.51 | 48.98 | -9.59 | 49.06 |
| 3000 | -10.70 | 50.46 | -11.44 | 51.20 | -11.74 | 51.50 |
