Rigol DG4102 100MHz Function / Arbitrary Waveform Generator

(2 customer reviews)

£760.00 (£912.00 inc. VAT)

2 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: DG4102 Category: Brand:

Description


Rigol DG4102 Function Generator

The DG4102 is a 2CH, 100MHz Function Generator with a maximum sampling rate of 500MSa/s. Rigol’s award winning waveform generator, the DG4000 series is part of a new family of fast, easy-to-use, ultra-modern test instruments. The DG4000 is a multifunctional generator that helps accomplish a range of testing by combining many functions into one instrument. Functions include Function Generation, Arbitrary Waveform Generation, Pulse Generation, Harmonic Generation, and Analogue / Digital Modulation and Counting. The DG4000 utilises Direct Digital Synthesiser (DDS) technology, which delivers stable, precise, low distortion signals. The sleek new design features a high resolution display screen, while user-friendly interface design and panel layout improves efficiency.

Product Images

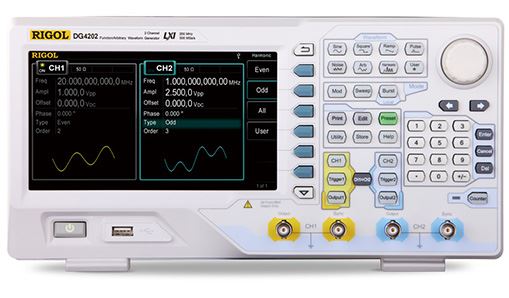

Wide Screen, Novel Appearance

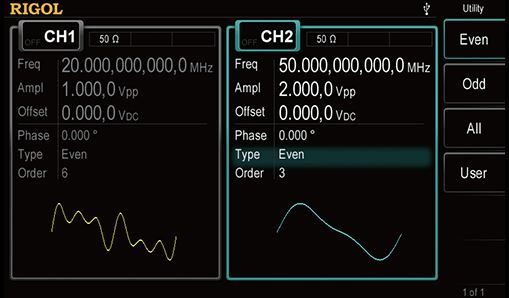

Up To 16th Harmonic Output Function

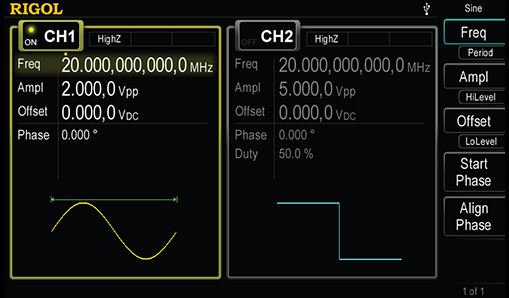

Dual Channels With Equal Performance And Precise Phase Adjustment Between Channels

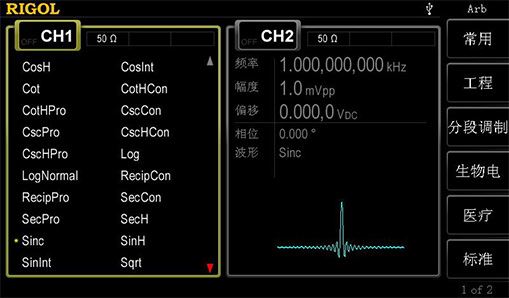

Built In 150 Arbitrary Waveforms

×

Product Videos

YouTube Video
Rigol DG4000 Review
YouTube Video
Creating a Basic Waveform
YouTube Video
DG4000 Harmonic Function

Documentation

Rigol DG4000 Datasheet Rigol DG4000 User Manual Rigol DG4000 User Guide
SpecificationDG4202DG4162DG4102DG4062
Channels2222
Max. Frequency200MHz160MHz100MHz60MHz
Sample Rate500MSa/s500MSa/s500MSa/s500MSa/s
WaveformDG4202DG4162DG4102DG4062
Standard WaveformsSine, Square, Ramp, Pulse, Noise, HarmonicsSine, Square, Ramp, Pulse, Noise, HarmonicsSine, Square, Ramp, Pulse, Noise, HarmonicsSine, Square, Ramp, Pulse, Noise, Harmonics
Arbitrary Waveforms150 kinds, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, Dual-Tone, DC, etc.150 kinds, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, Dual-Tone, DC, etc.150 kinds, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, Dual-Tone, DC, etc.150 kinds, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, Dual-Tone, DC, etc.
Frequency CharacteristicsDG4202DG4162DG4102DG4062
Sine1μHz to 200MHz1μHz to 160MHz1μHz to 100MHz1μHz to 60MHz
Square1μHz to 60MHz1μHz to 50MHz1μHz to 40MHz1μHz to 25MHz
Ramp1μHz to 5MHz1μHz to 4MHz1μHz to 3MHz1μHz to 1MHz
Pulse1μHz to 50MHz1μHz to 40MHz1μHz to 25MHz1μHz to 15MHz
Harmonic1μHz to 100MHz1μHz to 80MHz1μHz to 50MHz1μHz to 30MHz
Noise (-3dB)120MHz bandwidth120MHz bandwidth80MHz bandwidth60MHz bandwidth
Arbitrary Waveform1μHz to 50MHz1μHz to 40MHz1μHz to 25MHz1μHz to 15MHz
Resolution1μHz1μHz1μHz1μHz
Accuracy±2ppm, 18℃ to 28℃±2ppm, 18℃ to 28℃±2ppm, 18℃ to 28℃±2ppm, 18℃ to 28℃
General SpecificationsDG4202DG4162DG4102DG4062
Power Voltage100V to 240V, 45Hz to 440Hz100V to 240V, 45Hz to 440Hz100V to 240V, 45Hz to 440Hz100V to 240V, 45Hz to 440Hz
Power ConsumptionLess than 50WLess than 50WLess than 50WLess than 50W
Fuse250V, T2A250V, T2A250V, T2A250V, T2A
Display
Type7-inch TFT LCD7-inch TFT LCD7-inch TFT LCD7-inch TFT LCD
Resolution800 Horizontal × RGB × 480 Vertical Resolution800 Horizontal × RGB × 480 Vertical Resolution800 Horizontal × RGB × 480 Vertical Resolution800 Horizontal × RGB × 480 Vertical Resolution
Colour16M colour16M colour16M colour16M colour
Environment
Temperature RangeOperating: 10℃ to 40℃ Non-Operating: -20℃ to 60℃Operating: 10℃ to 40℃ Non-Operating: -20℃ to 60℃Operating: 10℃ to 40℃ Non-Operating: -20℃ to 60℃Operating: 10℃ to 40℃ Non-Operating: -20℃ to 60℃
Cooling MethodCooling by fans compulsivelyCooling by fans compulsivelyCooling by fans compulsivelyCooling by fans compulsively
Humidity RangeLess than 35℃ : ≤90% Relative Humidity 35℃ to 40℃ : ≤60% Relative HumidityLess than 35℃ : ≤90% Relative Humidity 35℃ to 40℃ : ≤60% Relative HumidityLess than 35℃ : ≤90% Relative Humidity 35℃ to 40℃ : ≤60% Relative HumidityLess than 35℃ : ≤90% Relative Humidity 35℃ to 40℃ : ≤60% Relative Humidity
AltitudeOperating: Less than 3000 meters Non-Operating: Less than 15000 metersOperating: Less than 3000 meters Non-Operating: Less than 15000 metersOperating: Less than 3000 meters Non-Operating: Less than 15000 metersOperating: Less than 3000 meters Non-Operating: Less than 15000 meters
Dimensions (W×H×D)313mm × 160.7mm × 116.7mm313mm × 160.7mm × 116.7mm313mm × 160.7mm × 116.7mm313mm × 160.7mm × 116.7mm

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
