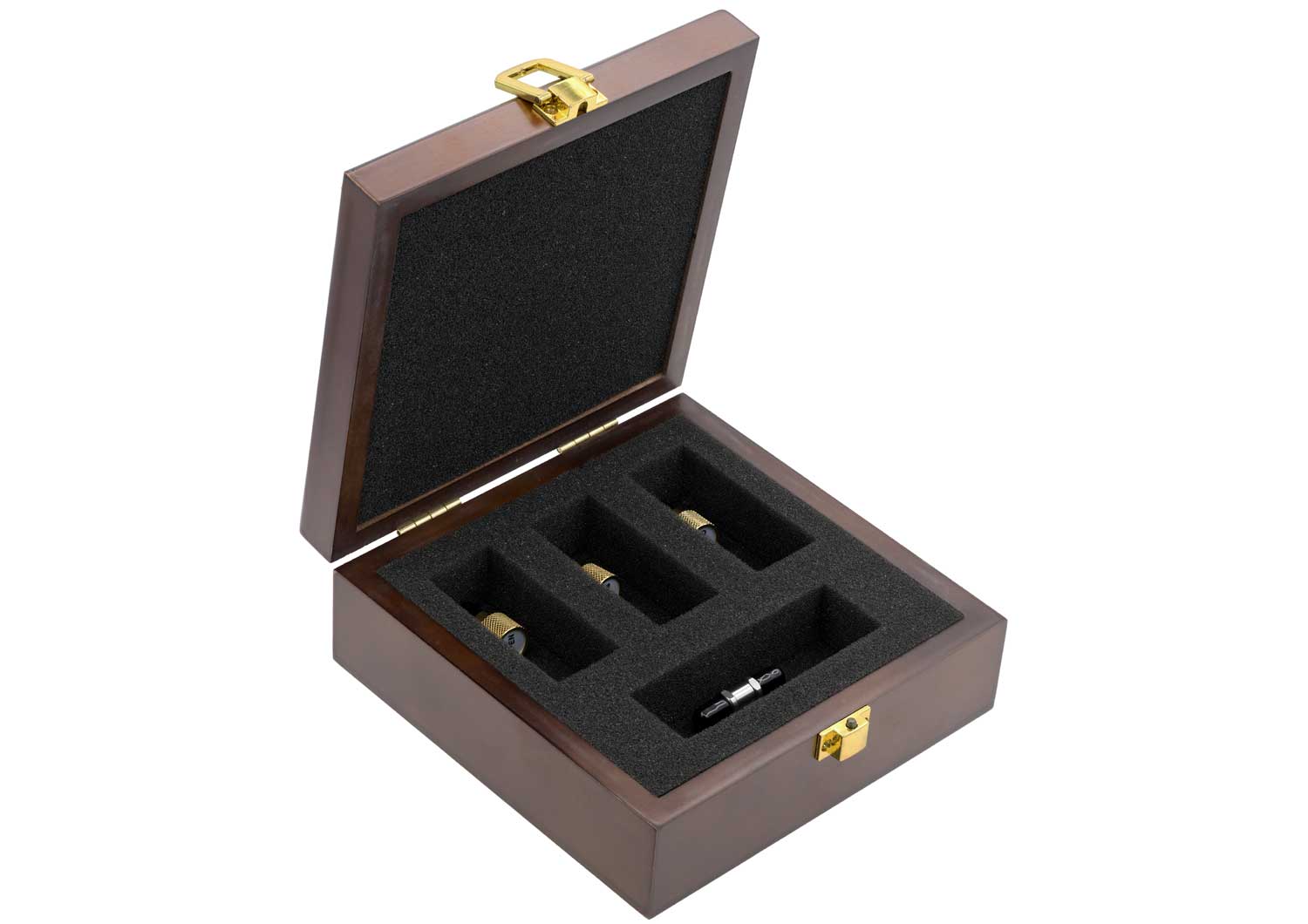

TekBox TBVC-SF6 3.5mm / SMA – Female VNA calibration kit, 6 GHz
£396.00 (£475.20 inc. VAT)
Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
| Load: | Through: |
| 3.5mm-Female | 3.5mm-Female |
| Z = 50 Ω | Z = 50 Ω |
| Return loss > 30 dB | Loss = 6.24 GΩ/s |
| Delay = 75.17 ps | |
| Short: | Open: |
| 3.5mm-Female | 3.5mm-Female |
| Z = 50 Ω | Z = 50 Ω |
| Delay = 48.586 ps | Delay = 46.378 ps |
| Loss = 7.08 GΩ/s | Loss = 6.14 GΩ/s |
| L0 = 5.59 pH | C0 = 4.1 fF |
| L1 = -8.5598e-21 H/Hz | C1 = 6.4125e-24 F/Hz |
| L2 = -3.092e-31 H/Hz² | C2 = -2.78e-35 F/Hz² |
| L3 = -1.77e-42 H/Hz³ | C3 = -2.593e-44 F/Hz³ |
Frequency range: DC – 6 GHz
Box dimensions: 145 mm x 145 mm x 55 mm
Weight: 340 g
