TEKBOX TBST120/60/60/2 Shielded Tent

£2138.00 (£2565.60 inc VAT)

SKU: TBST120-60-60-2 Categories: , ,

Description

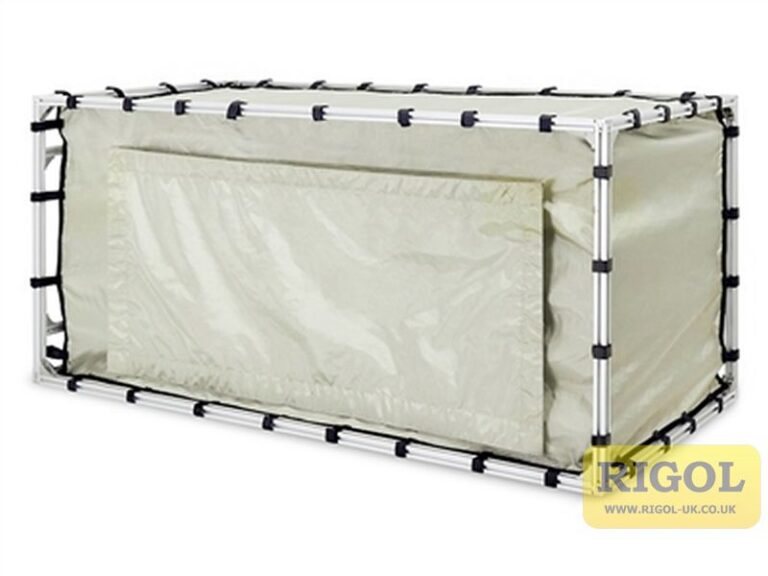

The TBST120/60/60/2 is a shielded tent, designed to suppress interference from ambient noise during EMC pre-compliance measurements. With a size of 120 cm x 60 cm x 60 cm, it can accommodate any Tekbox pre-compliance test equipment such as LISNs or TEM-cells.

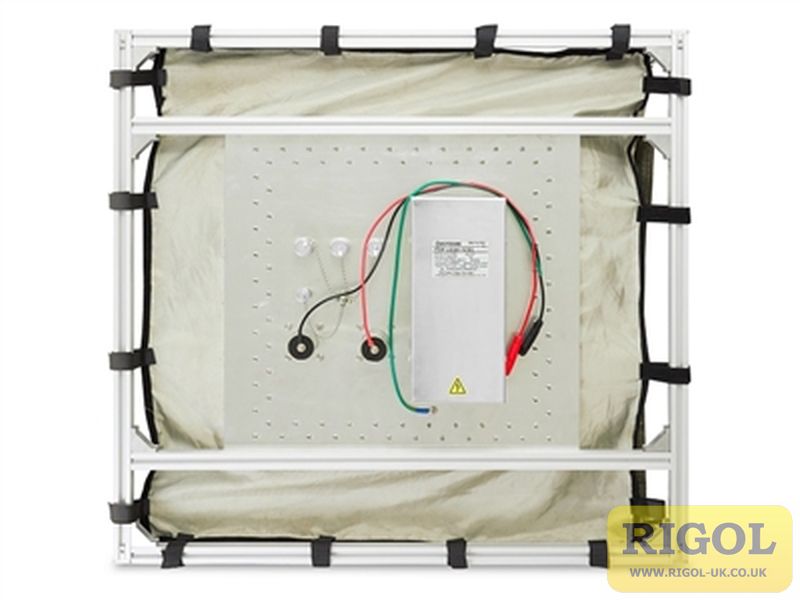

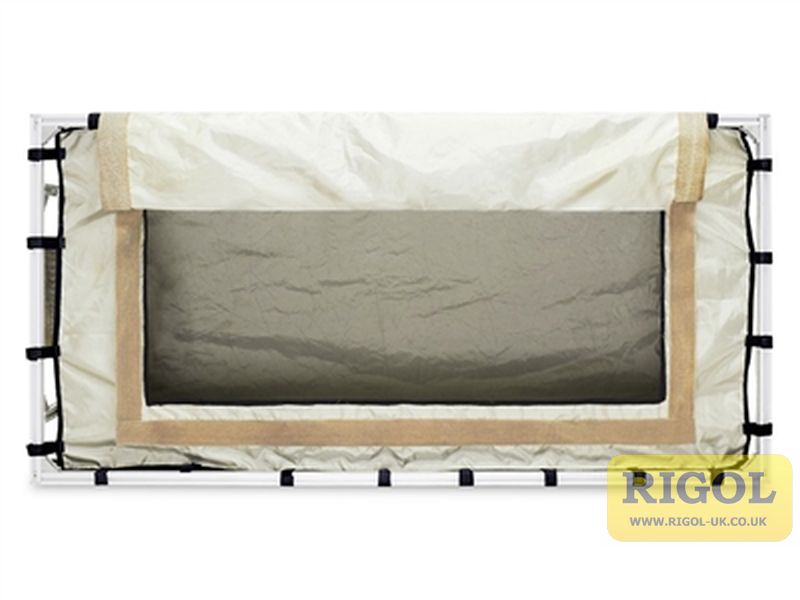

The shielded tent is composed of two layers of conductive fabrics. It is supported by rigid aluminium profiles. The filter panel at the side provides a 240V/10A AC filter, two 240V/10A DC filters and four coaxial feed through adapters with screw caps. The access opening is sealed with conductive Velcro tape.

Please note…

The TEKBOX TBST120/60/60/2 shielded tent is delivered as a kit that has to be self-assembled.

Features:

  • Outer Dimensions: 120 x 60 x 60cm
  • Opening Dimensions: 85 x 35cm
  • Frame: 20 x 20mm extruded aluminium profiles
  • Shielding: 2 layers of conductive fabric
  • Seal: Velcro stripes
  • Filter panel: 1 x 240V/10A AC filter; IEC socket
    2 x 240V/10A DC filter; cables with female banana couplers
    3 x N- female feed through connector with screw caps
    1 x BNC-female feed through connector
  • Attenuation: >58dB (DC to 1.5GHz)
  • Weight: 10.8kg

Documentation

Specifications
Outer dimensions120 cm x 60 cm x 60 cm
Opening dimensions85 cm x 35 cm (40 cm x 22 cm)
Frame20 mm x 20mm extruded aluminium profiles
Shielding2 layers of conductive fabrics
Sealconductive Velcro tape
SuspensionVelcro stripes
Filter panel1 x 240V/10A AC filter; IEC socket (optional for the smaller
tent)
2 x 240V/10A AC/DC filter; cables with female Banana
couplers
3 x N- female feed through connector with screw caps
1 x BNC-female feed through connector with screw caps
Internal AC socketpigtail cable with detachable female Schuko
Attenuation50 …70 dB in the range DC to 6 GHz, see chapter 3
Weight10.8 kg (6.7 kg / 8.7 kg)
