TekBox TBST-200/100/100 EMI Shield Tent

£4500.00 (£5400.00 inc VAT)

Available on back-order, delivery normally 1 week

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Rigol Availability
SKU: TBST-200-100-100 Categories: , ,

Description

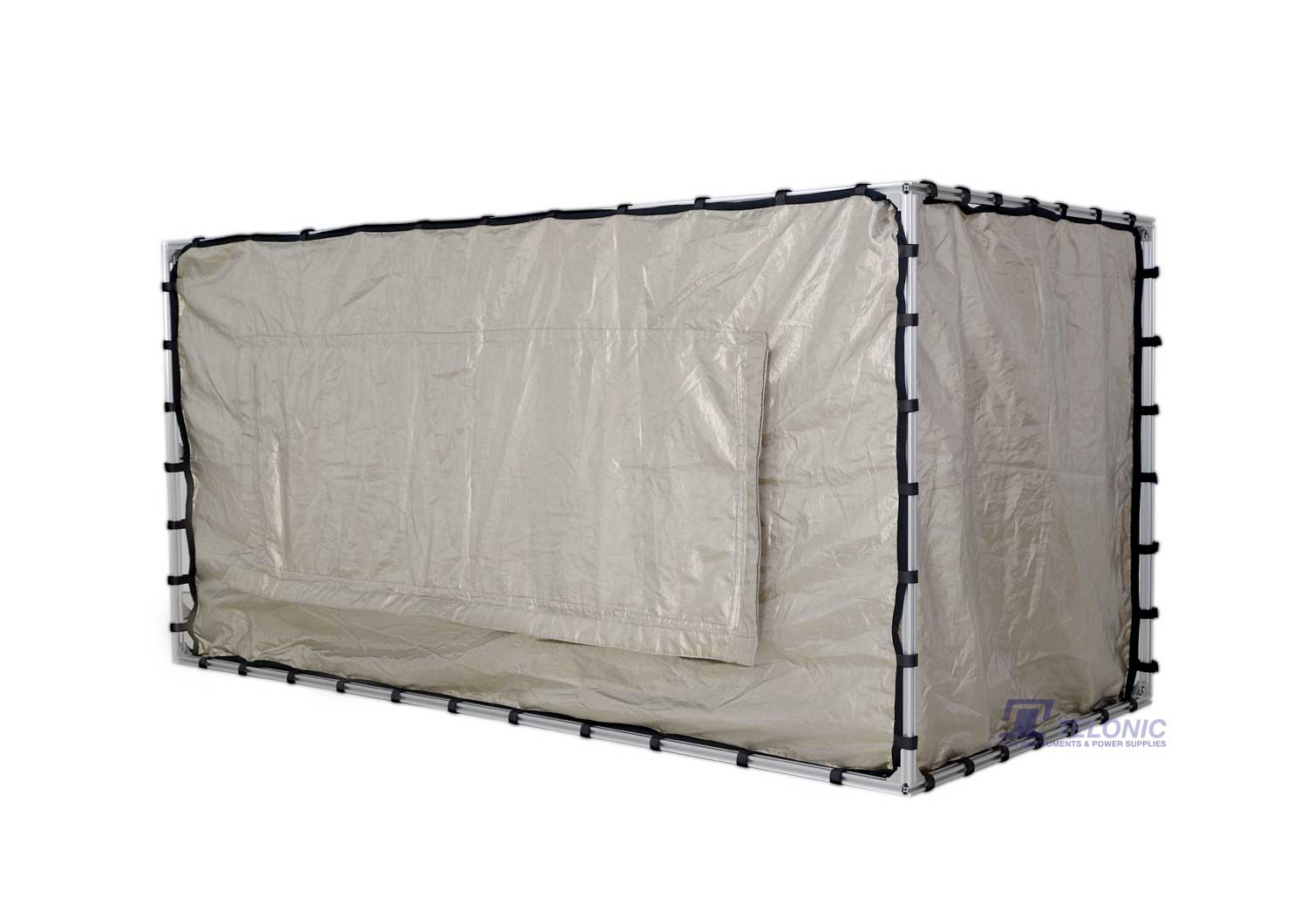

TekBox TBST-200/100/100 EMI Shield Tent
The TBST line of shielded tents is designed to suppress interference from ambient noise when carrying out EMC pre-compliance measurements with sizes of 200 cm x 100 cm x 100 cm, 124 cm x 64 cm x 60 cm or 86 cm x 48 cm x 48 cm. The 200 cm and 124 cm tent can accommodate any Tekbox pre-compliance test equipment such as LISNs or TEM-cells. The 86 cm tent will fit the TBTC0/1/2 and all our LISN.

The shielded tents are composed of two layers of conductive fabrics. It is supported by rigid aluminium profiles. The filter panel at the side provides a 240V/10A mains AC filter (optional for the smaller tent), two general purpose 240V/10A AC/DC filters and four coaxial feed through adapters with screw caps. The access opening is sealed with conductive Velcro tape.

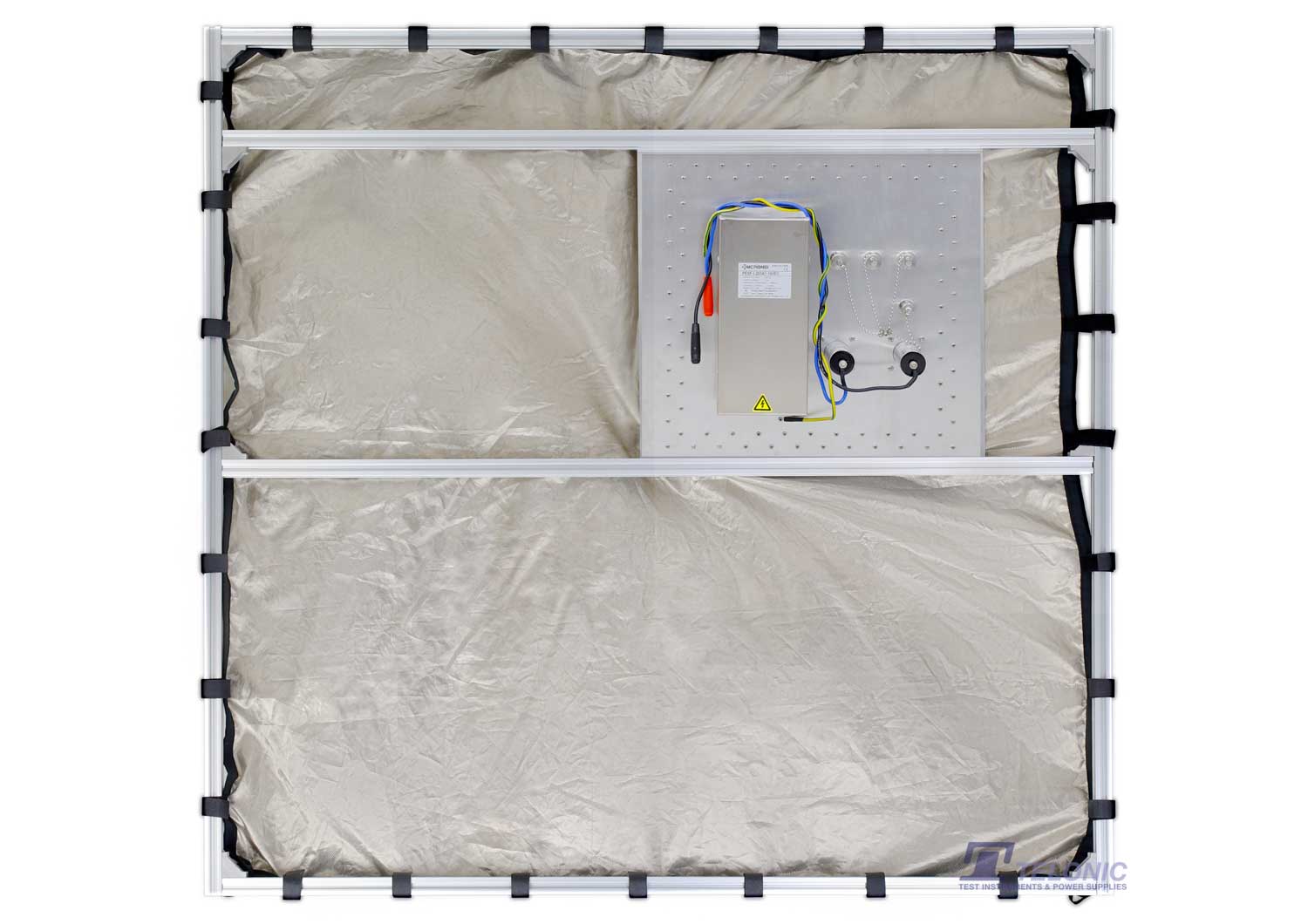

The filter panel at the side provides:

  • 1 x 240V/10A AC filter; C19 socket
  • 2 x 240V / 10 A AC/DC filters, attached cables with Banana couplers
  • 3 x N-Female coaxial feed-through connectors with screw caps
  • 1 x BNC-Female coaxial feed-through connector with screw caps

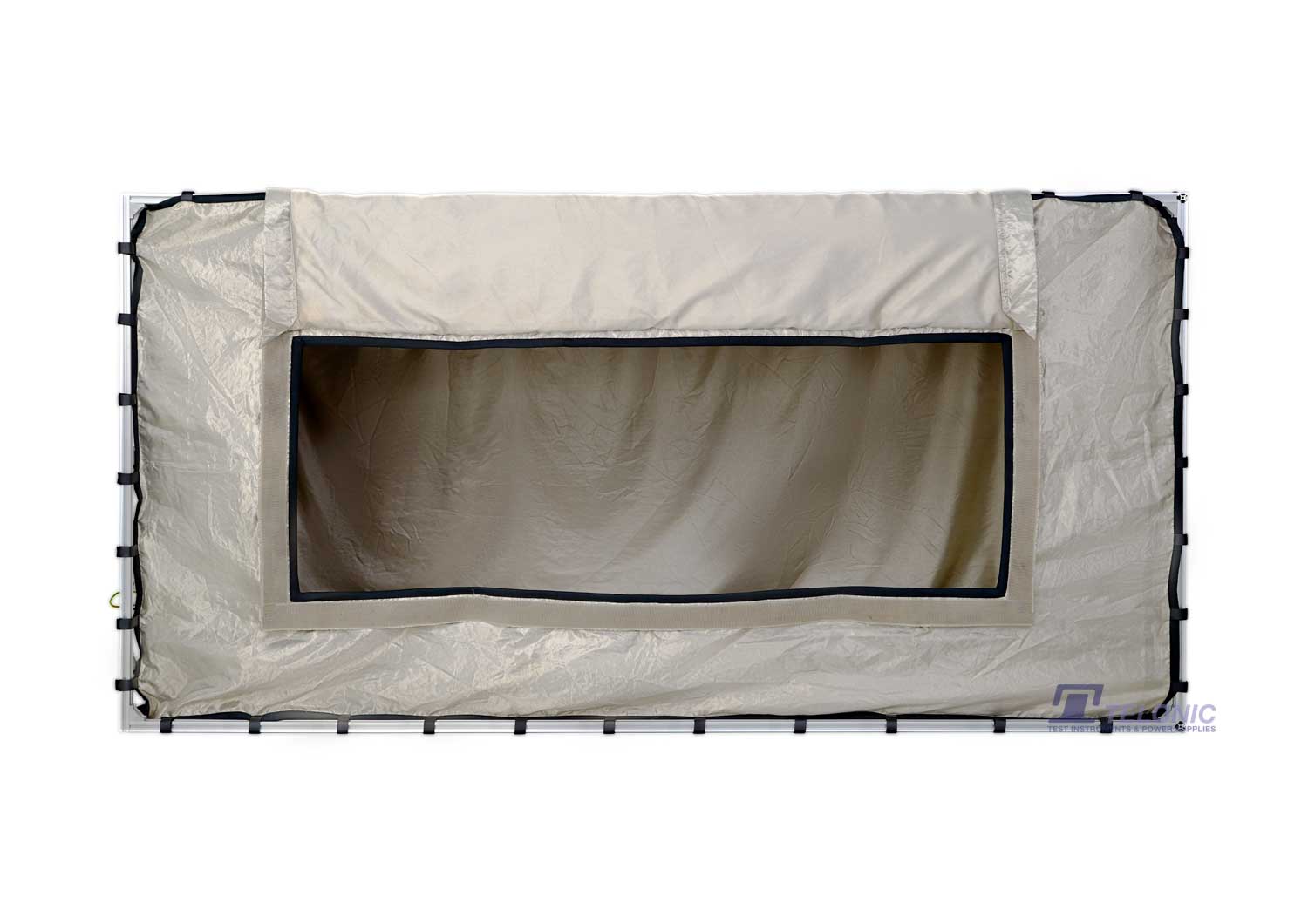

The access opening is sealed with conductive Velcro tape.

Specifications:

  • Outer dimensions: 204 cm x 104 cm x 100 cm
  • Opening dimensions: 130 cm x 46 cm
  • Frame: 20 mm x 20mm extruded aluminium profiles
  • Shielding: 2 layers of conductive fabrics
  • Suspension: Velcro stripes
  • Internal AC Socket: pigtail cable with detachable female Schuko + country specific AC cables with C13 connector
  • Attenuation: ~50 dB in the range 10 MHz to 6 GHz, see chapter 3
  • Weight: 17kg + 3kg (packaging)
