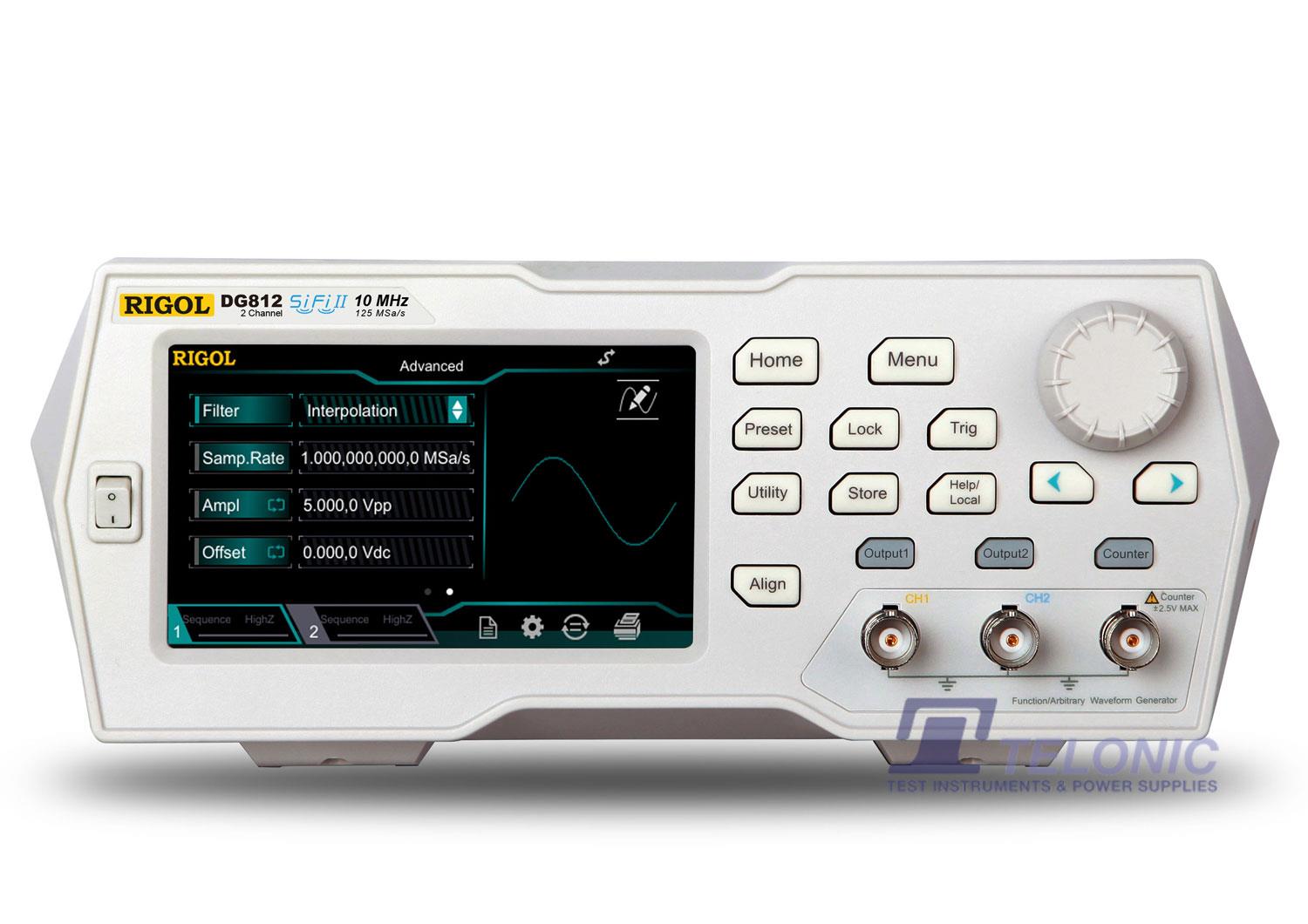

Rigol DG812 10MHz Dual-Channel Function / Arbitrary Waveform Generator

£198.00 (£237.60 inc VAT)

Available on back-order, delivery normally 1 week

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Rigol Availability
SKU: DG812 Category:

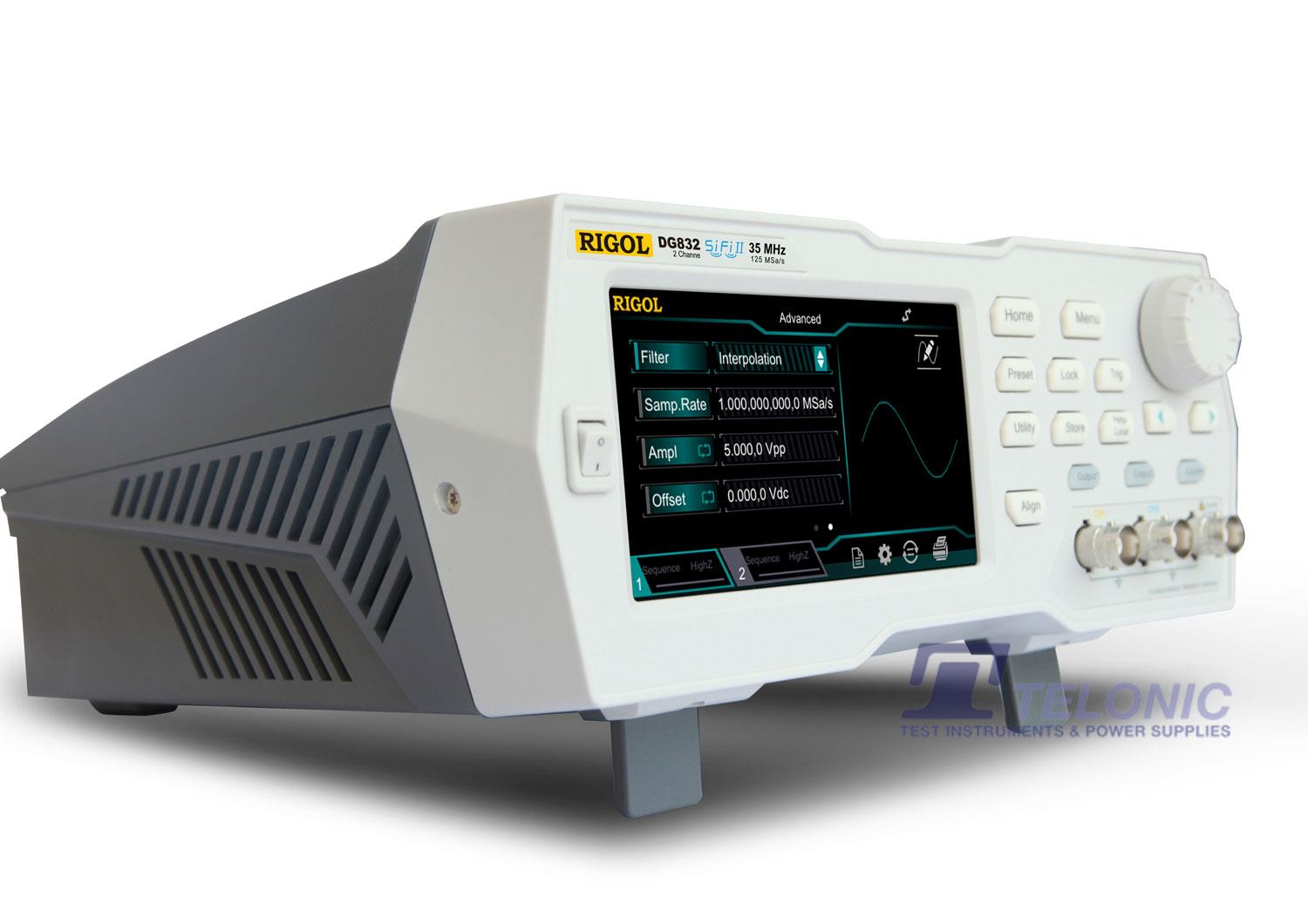

The Rigol DG800 series offers a user-friendly and high-performance function/arbitrary waveform generator solution at a very attractive price. Each instrument provides many functions including; function generator, arbitrary waveform generator, noise source, pulse generator, harmonics generator, analogue / digital modulator and frequency counter. Any Rigol DG800 series function/arbitrary waveform generator would be a valuable asset in any home, business or education laboratory.


  • Unique SiFiII (Signal Fidelity II) technology
  • Two fully functional and independent channels (optional upgrade on single-channel models)
  • Maximum frequency 10MHz
  • 125MSa/s sample rate
  • 16-bit vertical resolution
  • Basic waveforms: Sine, square, ramp, pulse, noise, DC, dual-tone
  • Advanced waveforms: PRBS, RS232, sequence
  • 160 built-in arbitrary waveforms
  • Up to 8Mpts (optional) arbitrary waveform memory, 2Mpts standard
  • Supported modulation: AM, FM, PM, ASK, FSK, PSK & PWM
  • Intuitive arbitrary waveform editing software for PC
  • ±1ppm frequency stability
  • Phase noise <-105dBc/Hz @ 10kHz (f = 10MHz)
  • Built-in 7 digit counter up to 240MHz
  • Built-in 8th order harmonics generator
  • Waveform summing function
  • 4.3″ TFT LCD colour touch-screen display (480 x 272), 16M colours

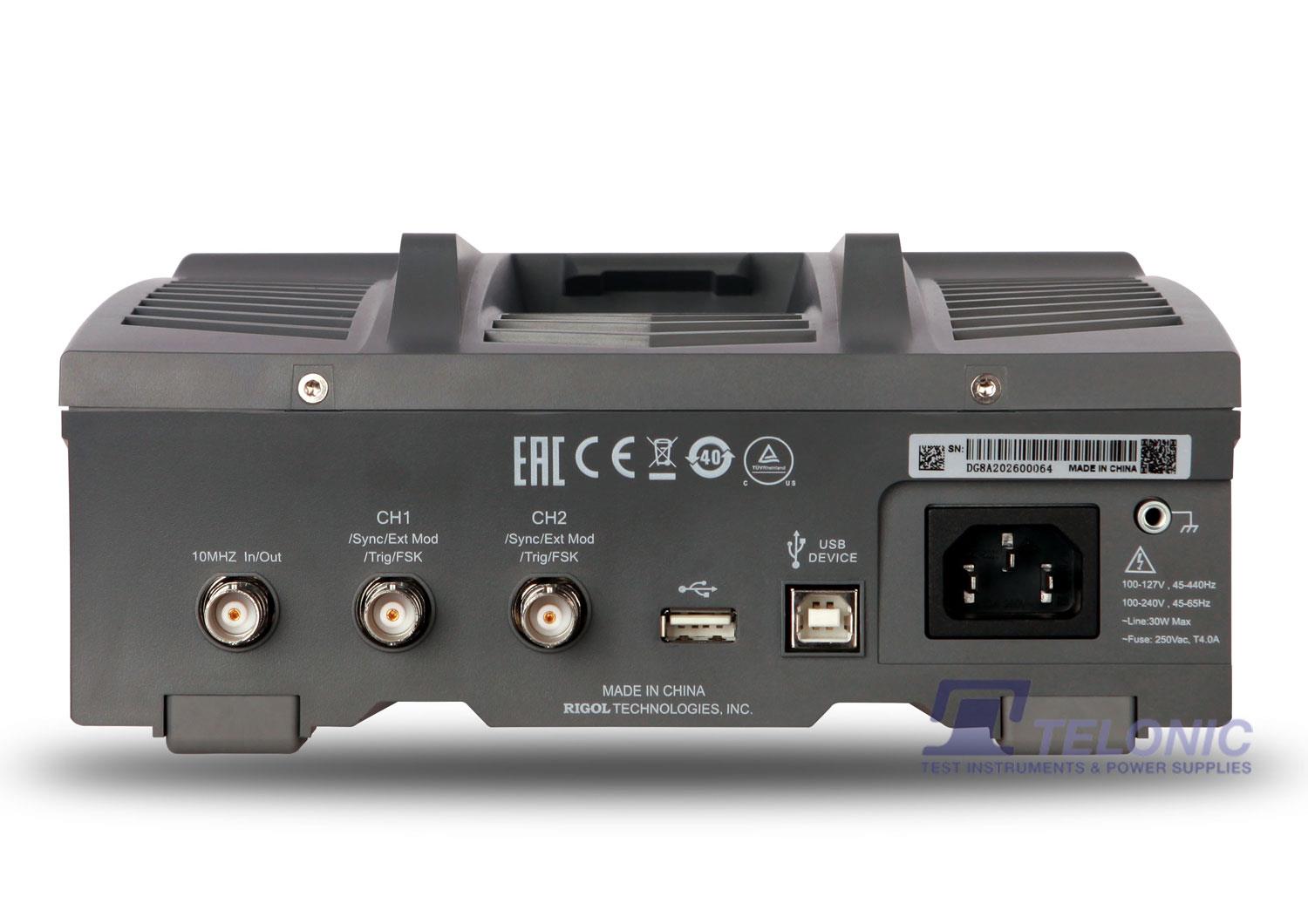

  • Connectivity… USB Host & Device, (USB-LAN optional)
  • Standard accessories… UK & European mains leads, BNC cable (25MHz & 35MHz models only), quick guide
  • Optional accessories… 40dB attenuator, USB to LAN module
  • Other options include… Single-to-dual channel upgrade licence, memory depth upgrade (to 8Mpts) licence, standard calibration (traceable to UK national standards), UKAS calibration



Waveform Generator DG800 Series


Waveform Generator DG800 Series datasheets
