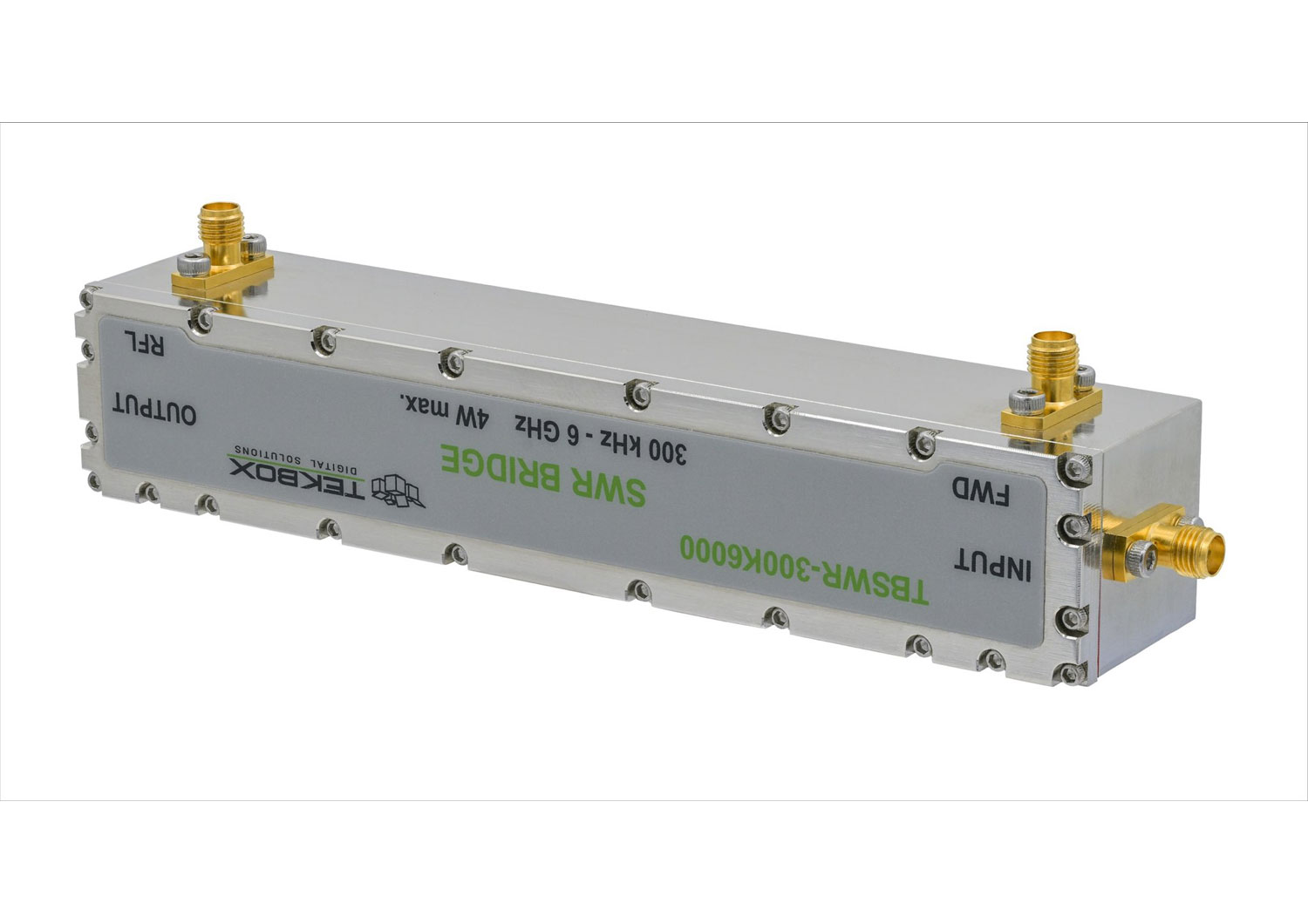

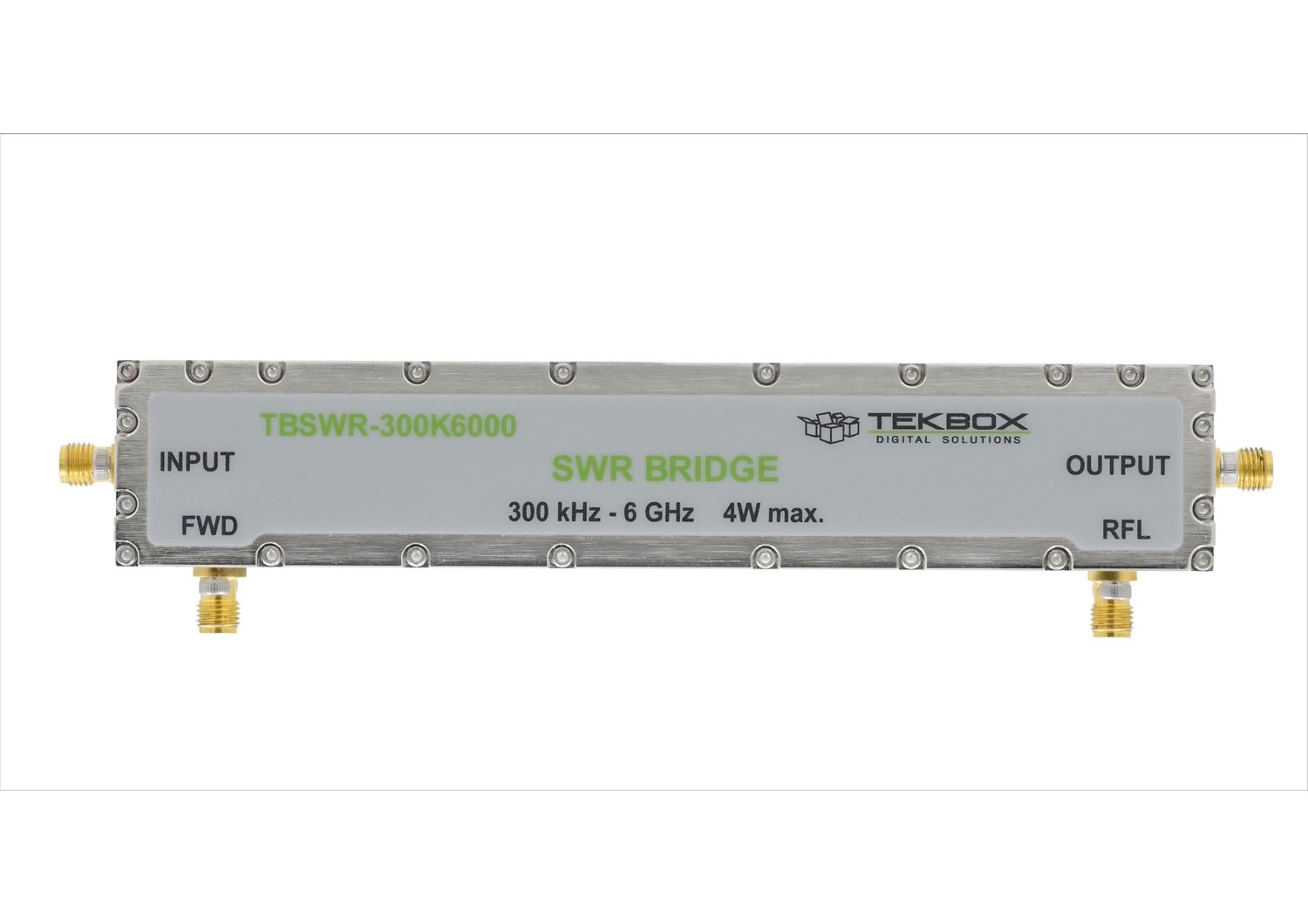

TBSWR-300K6000 VSWR Bridge – High-Performance RF Power Measurement
The TBSWR-300K6000 is a versatile VSWR bridge designed for accurate forward and reverse power measurements across a wide range of frequencies. Combining the directivity of a directional bridge with the low insertion loss of a directional coupler, this bridge ensures reliable results for a variety of RF measurement applications.
Ideal for RF and EMC Testing Applications
The TBSWR-300K6000 VSWR Bridge is engineered for precision in RF power measurements, offering superior directivity and low insertion loss across a broad frequency range. Its compact design and high performance make it an essential tool for general-purpose RF testing and EMC applications.
Specifications
| Parameter | Value |
|---|---|
| Frequency Range | 300 kHz – 6 GHz |
| Coupling | — 300 kHz to 3 GHz: -20 dB ± 1 dB — 3 GHz to 6 GHz: -19 dB to -16 dB |
| Operating Temperature Range | -20°C to +40°C |
| Impedance | 50 Ω |
| Port Matching | > 20 dB for optimal performance |
| RF Connectors | SMA-female |
| Dimensions | 170 mm x 40 mm x 32 mm |
| Weight | 280 g |
Key Features
- Wide Frequency Range: Characterized from 300 kHz to 6 GHz, providing flexibility for numerous RF power measurement applications.
- Low Insertion Loss:
- 300 kHz to 1 GHz: < 1.8 dB
- 1 GHz to 6 GHz: < 2.6 dB, significantly lower than the industry-standard 7 dB.
- Exceptional Directivity:
- 300 kHz to 700 kHz: > 25 dB
- 700 kHz to 4 GHz: > 30 dB
- 4 GHz to 6 GHz: > 20 dB
- Max Power Handling:
- 300 kHz to 6 GHz: 4 W CW, with a short-time max power of 1 W for output shorted or open conditions.
