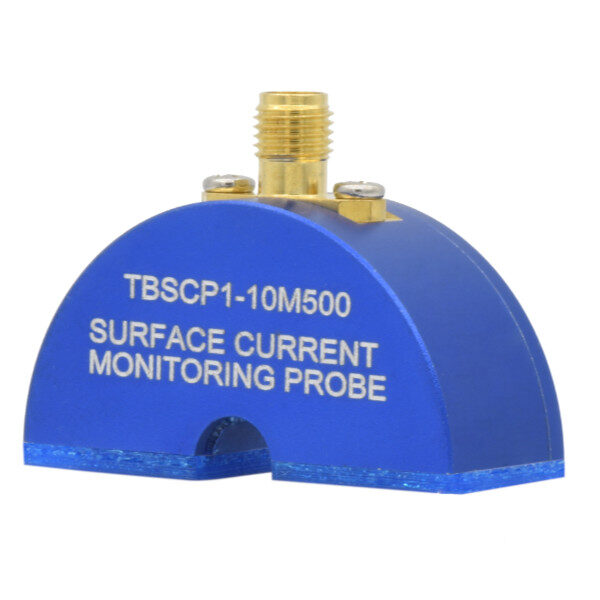

TEKBOX TBSCP1-10M500 9 kHz to 600 MHz RF Current Monitoring Probe
£480.00 (£576.00 inc. VAT)
Out of stock
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
| Specifications | |
|---|---|
| Characterised frequency range | 30 kHz to 600 MHz |
| Suppression of orthogonal field | typ. > 15 dB avg. up to 100 MHz |
| Footprint | 40 mm x 15 mm |
| Height | 30 mm |
| Weight | 25 g |
| Connector type | SMA female |
| Transfer impedance | -5 dB Ohm with a 3 dB bandwidth from 10 MHz to 500 MHz |
| Max. primary current (DC – 400 Hz) | 150 A |
| Max. primary current (RF) | 12 A |
| Max. core temperature | 125 °C |

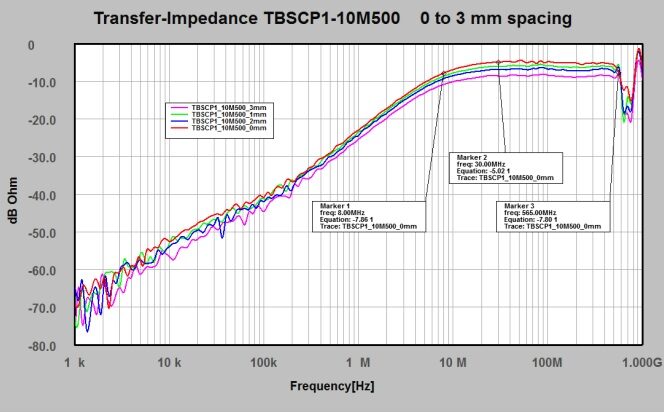

| Frequency (MHz) | Transfer Impedance (dBΩ) | Frequency (MHz) | Transfer Impedance (dBΩ) |
|---|---|---|---|
| 0.03 | -46.38 | 125 | -5.11 |
| 0.05 | -42.82 | 150 | -5.16 |
| 0.075 | -42.17 | 175 | -5.19 |
| 0.1 | -40.91 | 200 | -5.22 |
| 0.25 | -34.63 | 225 | -5.63 |
| 0. 5 | -29.20 | 250 | -5.33 |
| 0.75 | -25.56 | 275 | -5.31 |
| 1 | -23.09 | 300 | -5.17 |
| 2 | -17.30 | 325 | -5.38 |
| 3 | -14.07 | 350 | -5.30 |
| 4 | -11.93 | 375 | -5.15 |
| 5 | -10.39 | 400 | -5.24 |
| 6 | -9.33 | 425 | -5.34 |
| 7 | -8.53 | 450 | -5.40 |
| 8 | -7.86 | 475 | -5.50 |
| 9 | -7.37 | 500 | -5.77 |
| 10 | -6.99 | 525 | -6.25 |
| 25 | -5.12 | 550 | -7.05 |
| 50 | -4.56 | 575 | -8.46 |
| 75 | 5.34 | 600 | -10.56 |
| 100 | -4.89 |
