TEKBOX TBLM01 LISN-MATE

£249.00 (£298.80 inc VAT)

Only 1 left in stock!

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Rigol Availability
SKU: TBLM01 Category:

Description

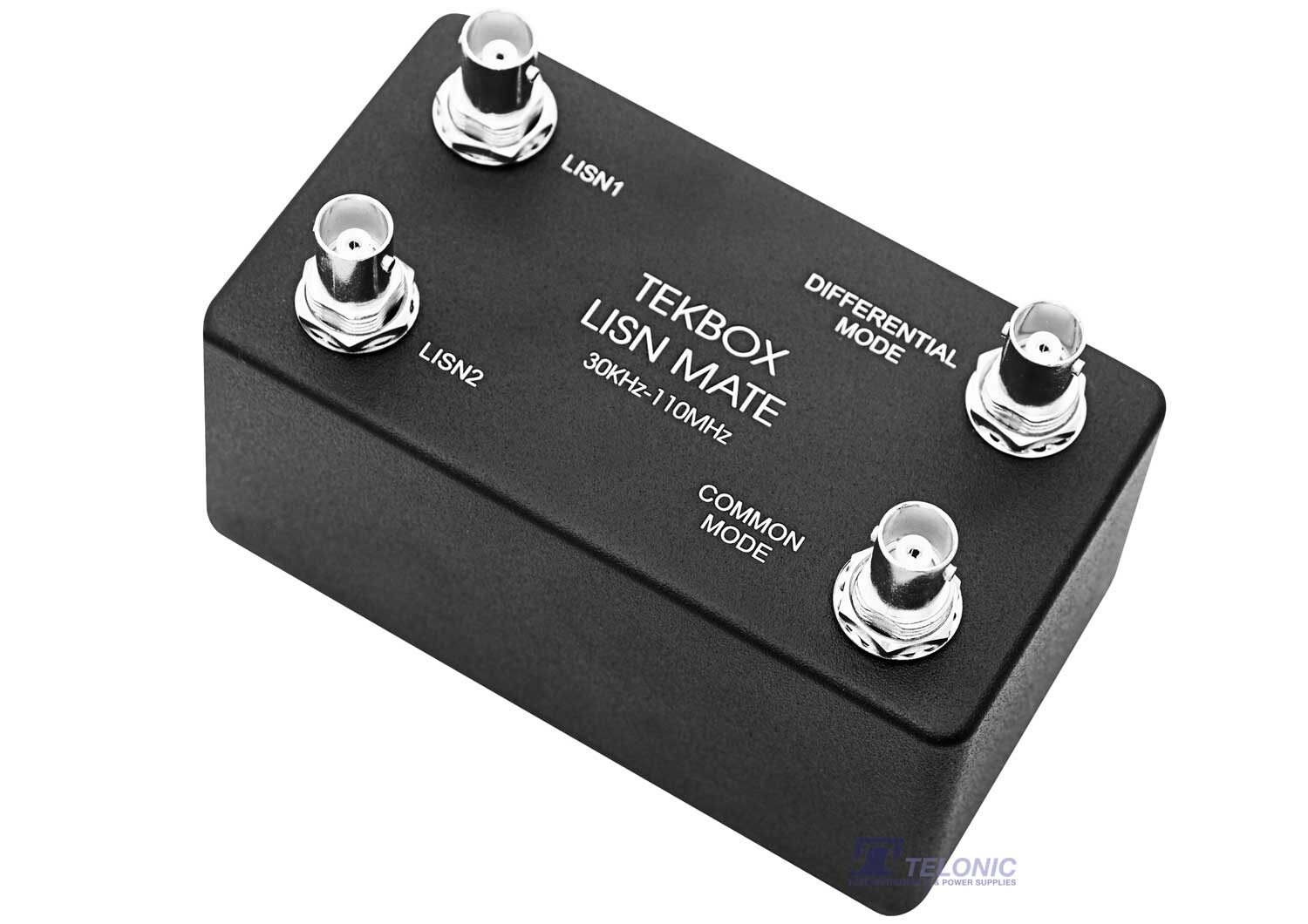

The TEKBOX TBLM01 is a companion device for LISNs, with a Frequency Range of 30kHz to 110MHz, which splits the conducted noise signal into its common mode and differential mode components. The LISN Mate is connected to the output of a LISN inserted into the positive supply line and to a second LISN inserted into the negative supply line. The conducted noise signal at the output of a LISN is the sum of common mode and differential mode noise. The LISN mate splits it into the common mode and differential mode components, with each signal component available at a separate BNC port.

The TEKBOX TBLM1 is supplied with 2-off BNC-male to BNC-male RG223 cables, 35cm long.

Features:

  • Frequency Range: 30kHz to 110MHz
  • Maximum RF Level at any BNC Port: 27dBm
  • Maximum DC Current at any BNC Port: 30mA
