TEKBOX TBL5016-3 50uH 16A 3-phase and single-phase Line Impedance Stabilisation Network LISN, CISPR 16-1-2

£1848.00 (£2217.60 inc. VAT) (£2,217.60 inc VAT)

Only 1 left in stock!

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBL5016-3 Categories: , , Brand:

Description

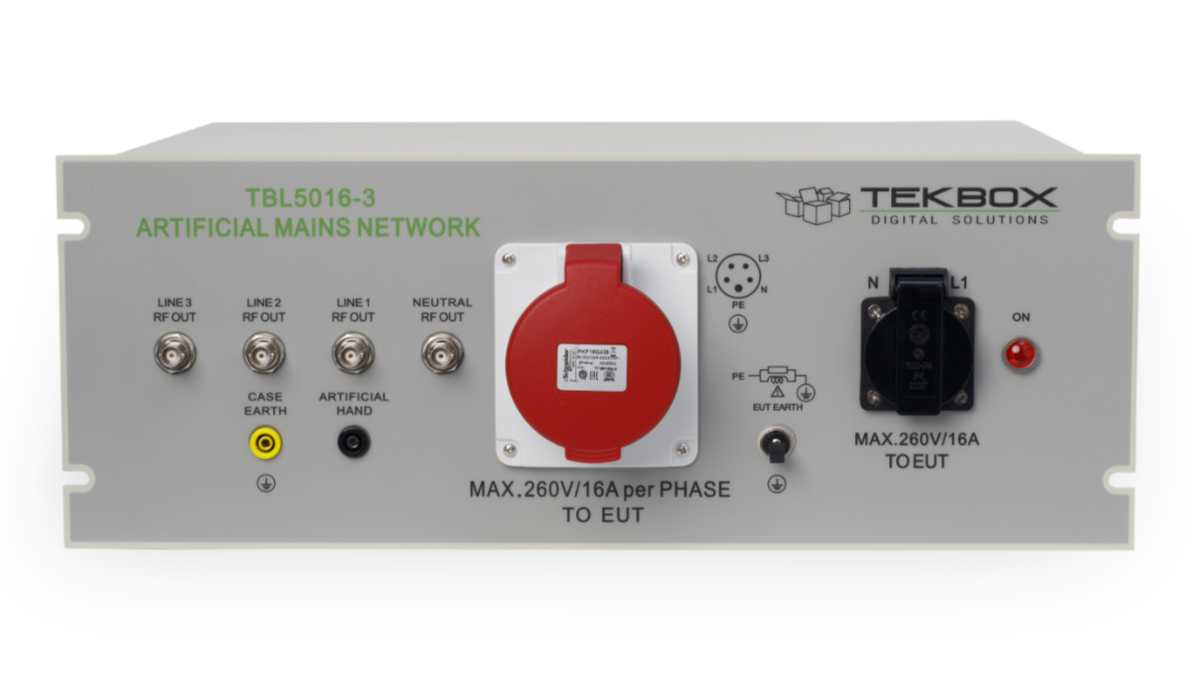

Tekbox TBL5016-3 LISN

The TBL5016-3 is a Line Impedance Stabilization Network for the measurement of line-conducted interference within the range of 9 kHz to 30MHz, according to the CISPR 16-1-2 standard. The device is designed for testing three-phase and single-phase, AC-powered equipment with supply voltages up to a a maximum of 540V/260V and 16A. Conducted noise can be measured on each phase and on the neutral conductor. The TBL5016-3 has separate RF outputs for each phase and neutral and consequently can be coupled with the TBLM1 to split the emissions in its common mode and differential mode components.

Product Videos

YouTube Video
EMC Conducted Emissions: Accurate Lab-Quality Testing You Can Do In-House
YouTube Video
Telonic Instruments - Your Guide to our Tekbox LISNs by Dr Min Zhang

Documentation

LISN Basics And Overview TBISN-T4 Manual TBL0110 2 LISN Manual TBL0225 2 LISN Manual TBL0510-1, 5ΜH LISN, Conducted Emissions, EMC TBL05100-1C 5uH LISN TBL0550-1B 5ΜH LISN TBL5008 2B LISN Manual TBL5008 2C LISN Manual TBL50100-1B 50ΜH LISN TBL501000-1 50ΜH LISN TBL5016-2C Manual TBL5016-3 50ΜH LISN TBL5016 2B LISN Manual TBL5032-1 50ΜH LISN TBL5032-3 50ΜH LISN TBL5063-3 50ΜH LISN TBLDC32-2 150 Ohm DC LISN TBLM2 LISN MATE TBVHF B Balanced VHF LISN
Specifications
Frequency range9 kHz to 30 MHz
Impedance50 Ω ║ (50 µH + 5 Ω)
Artificial hand220 pF + 511 Ω
Switchable PE50 Ω ║ 50 µH
Limiter / attenuator150 kHz to 30 MHz; 10 dB
Line voltageLine voltage: max. 540V/260V / 50 – 60 Hz, CAT ‖
Max. current per line and neutral16A @ 23°C
DUT socket3-phase DUT socket: CEE/IEC60309, 3L+N+PE, 16A, female

Single-phase DUT socket: country specific

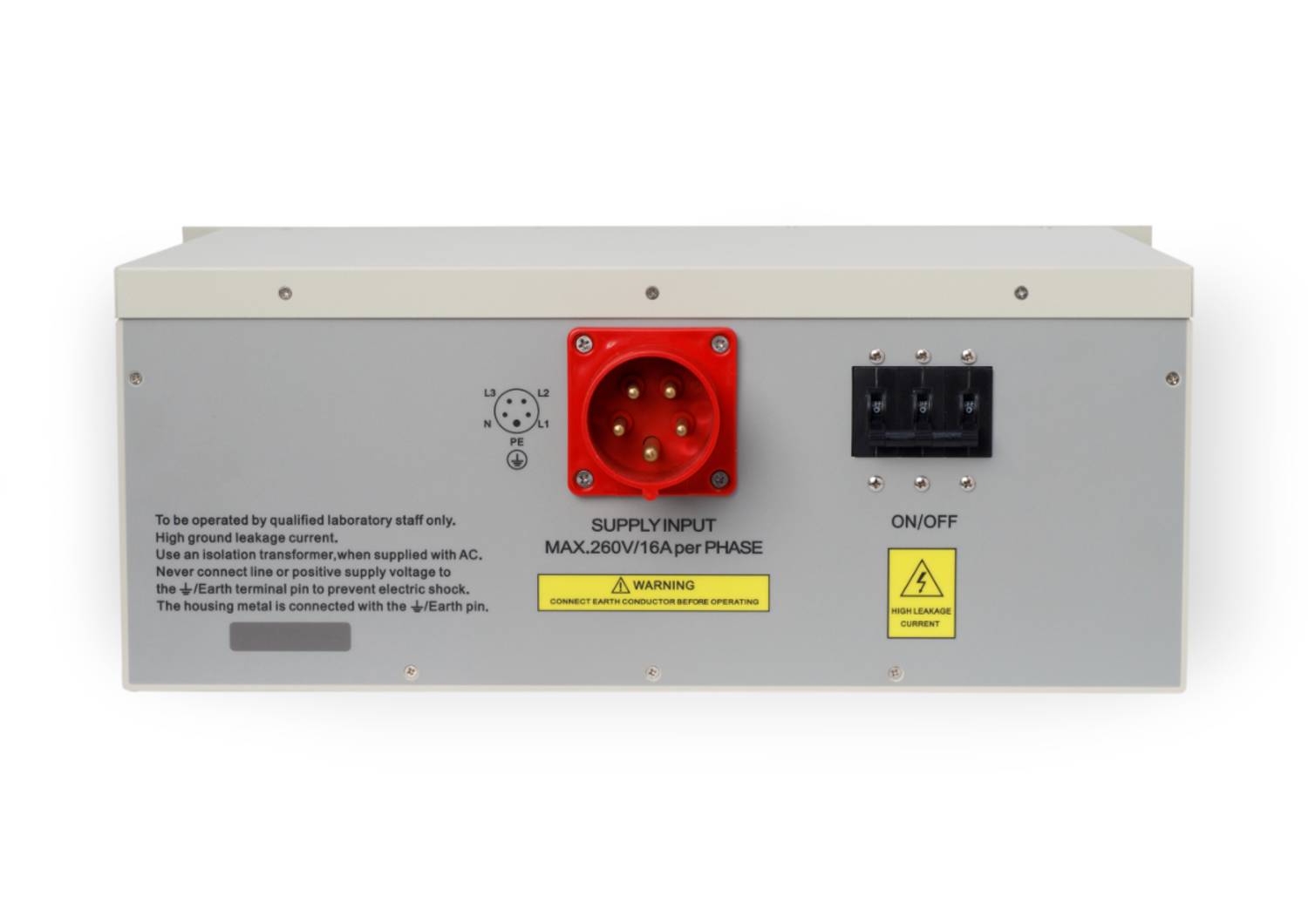

Power connector: CEE/IEC60309, 3L+N+PE, 16A, male

Measurement connector50 Ω BNC
Power connectorIEC 60320 C19
Operating Temperature Range+5°C … + 40°C; 5% to 80% RH
SafetySafety Class I, IEC 1010-01
