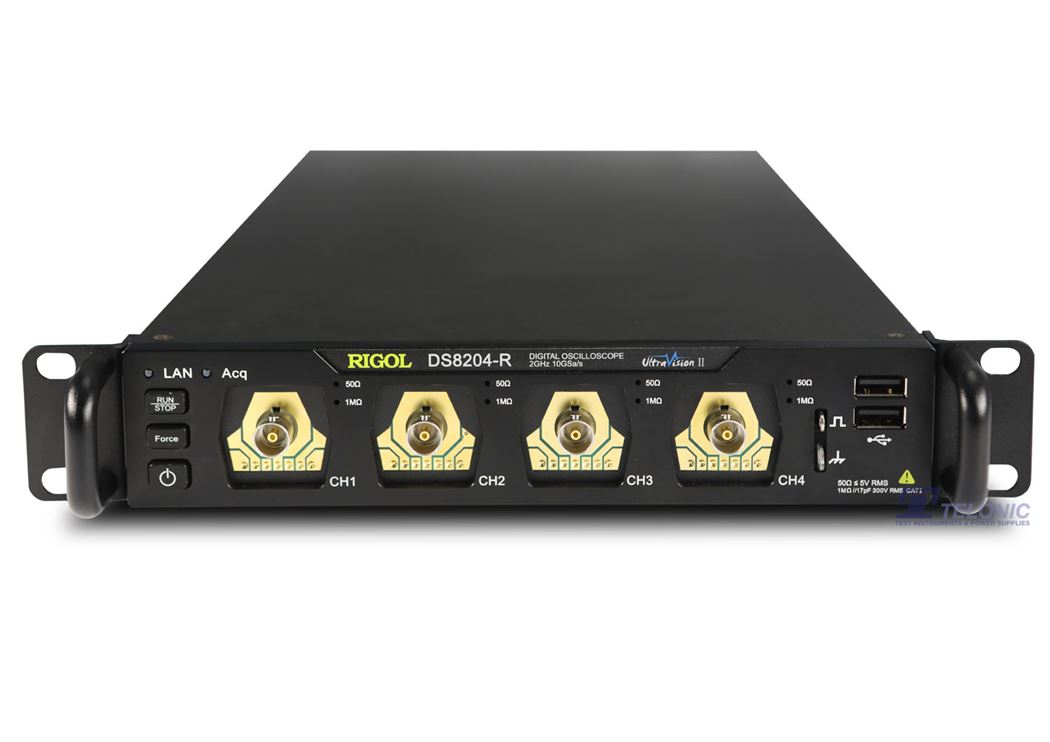

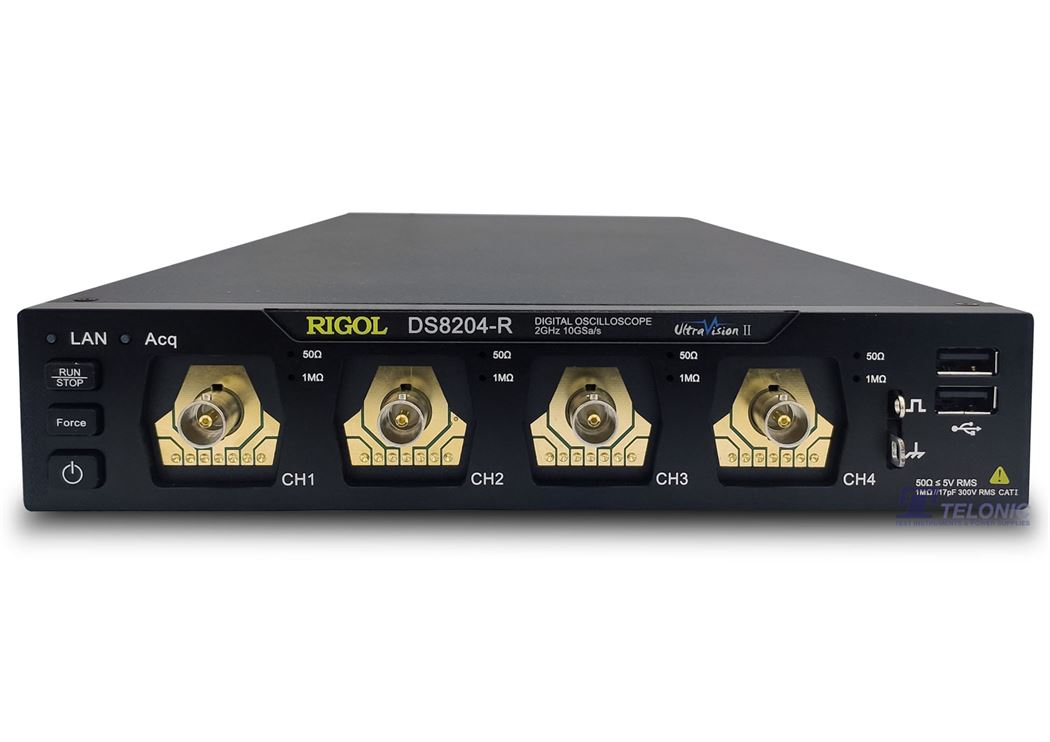

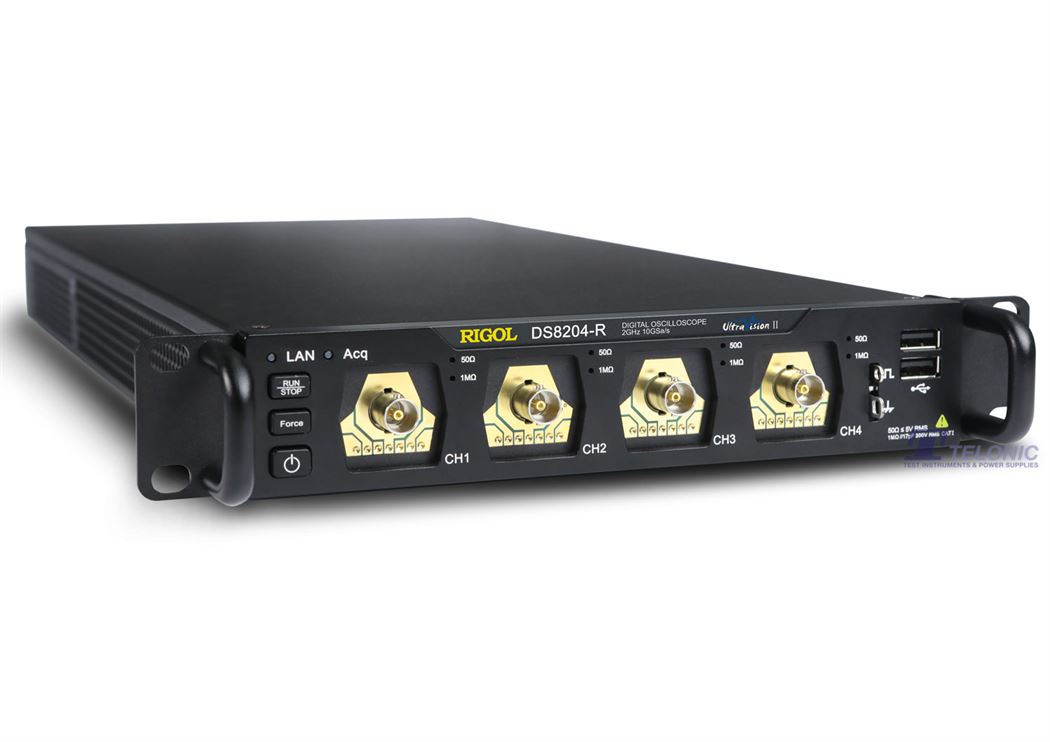

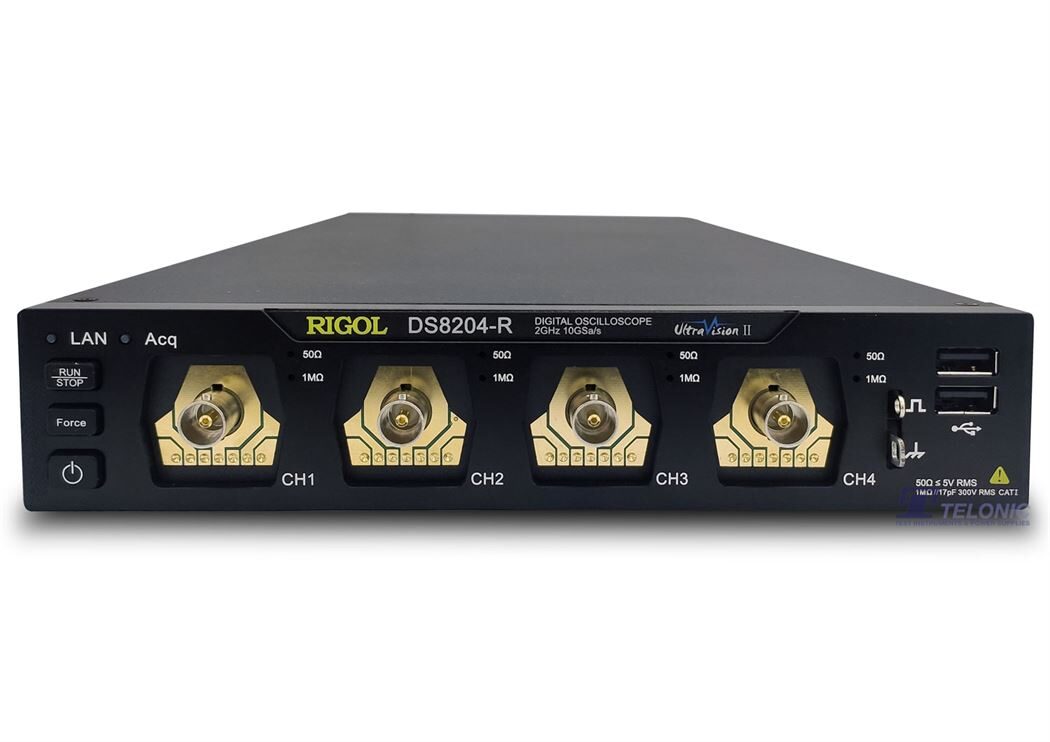

Rigol DS8204-R 2GHz, 10GSa/s Compact Oscilloscope

£11545.00 (£13854.00 inc VAT)

Available on back-order, delivery normally 1 week

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Rigol Availability

Description

The DS8000-R series is a medium and high-end digital oscilloscope with a compact size designed on the basis of the ASIC chip (RIGOL self-owns its intellectual property right) and UltraVision II technical platform developed by RIGOL. It is compact and thin in design. It supports system integration of multiple devices, rack mount installation, and remote system operation to meet the system requirements for industrial automation test system. DS8000-R series oscilloscope has an analogue bandwidth of up to 2 GHz, supporting multi-device synchronous triggering, available to be extended to 512 channels. It provides an excellent solution for users to meet their middle and high-speed requirement for the system integration test and synchronization requirement for multi-channel data acquisition.

Features:

  • Analogue channel bandwidth: 2GHz
  • Up to 10GSa/s, 4 analogue channels, 1 EXT input channel

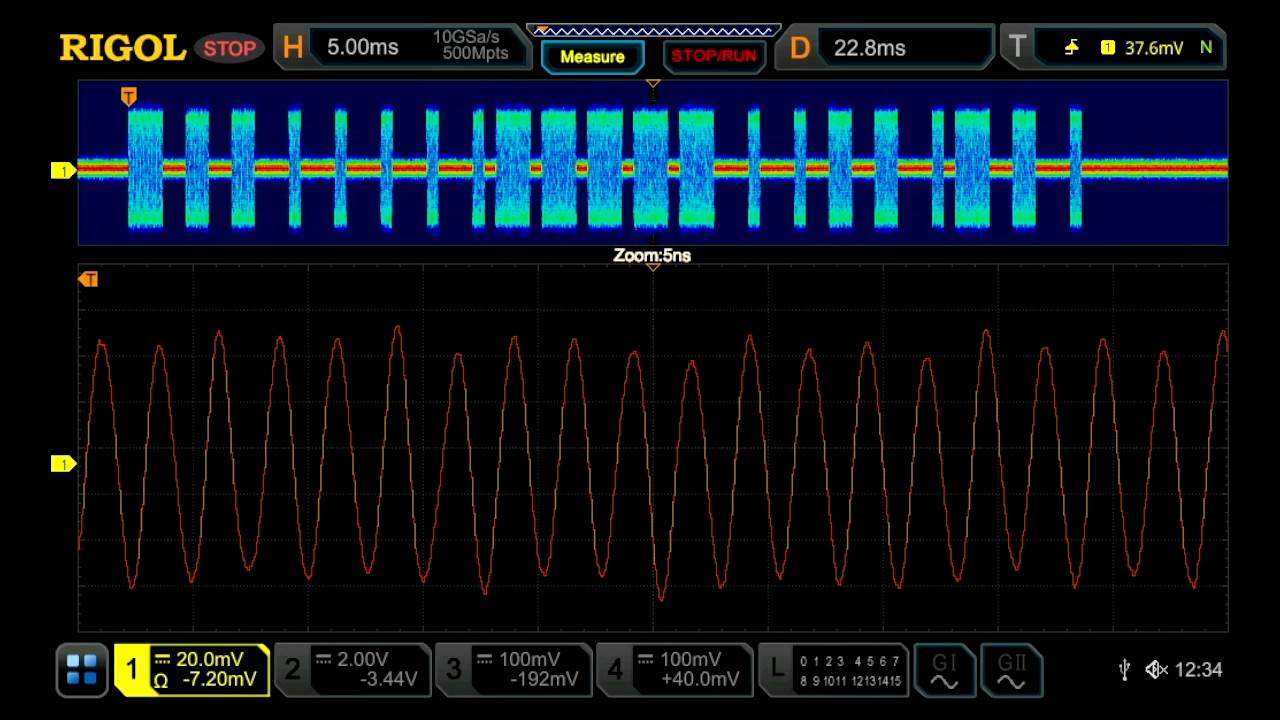

  • Standard memory depth up to 500Mpts
  • High waveform capture rate (over 600,000wfm/s)
  • Low jitter, multiple-device synchronization (<200psRMS, typical)
  • High-speed data communication interface (10 GE SFP+), ensuring the reliable transmission of massive data

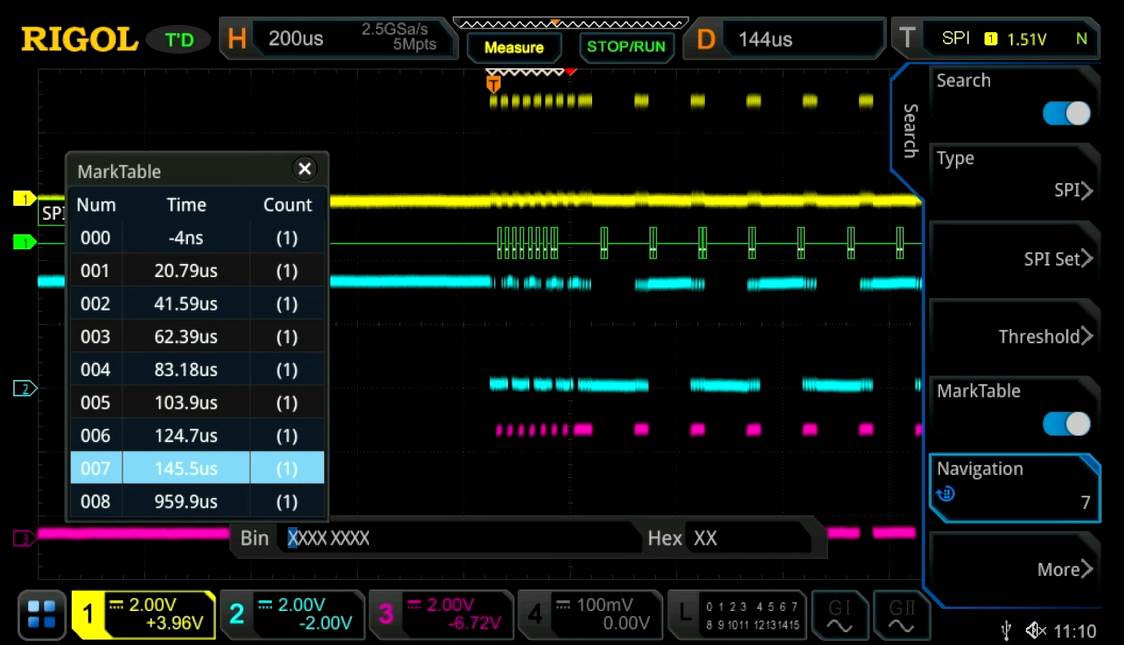

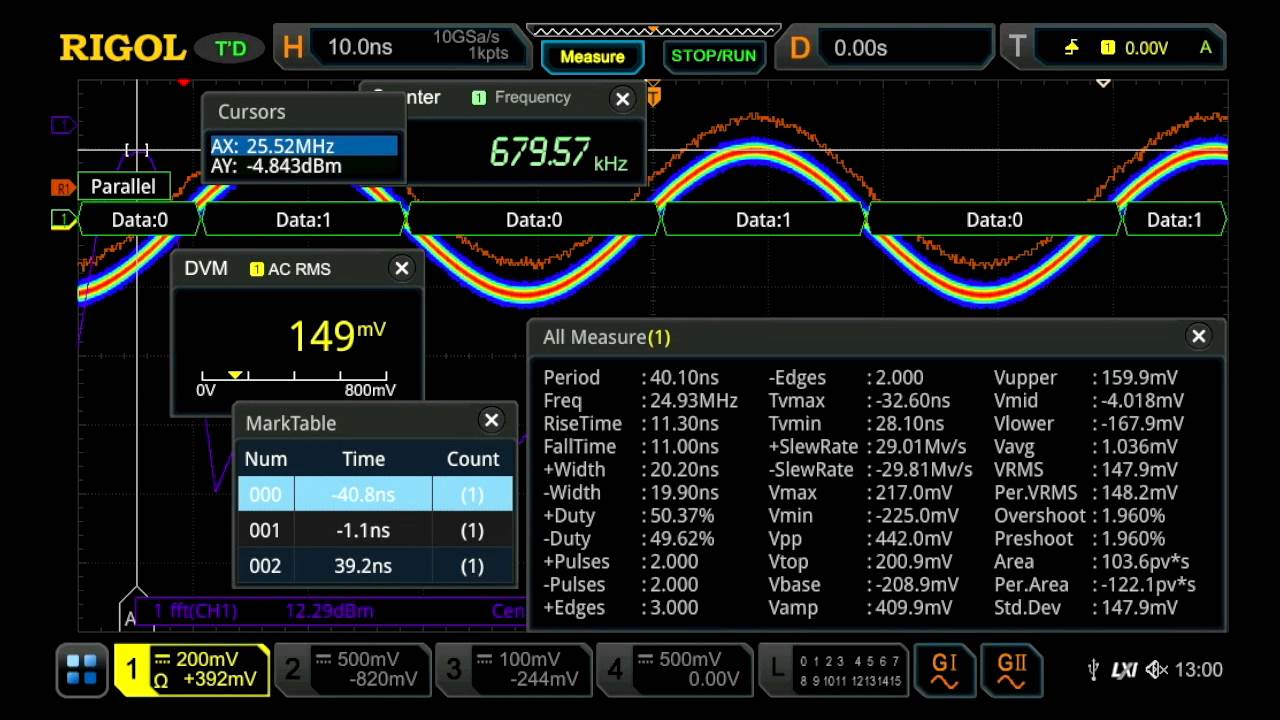

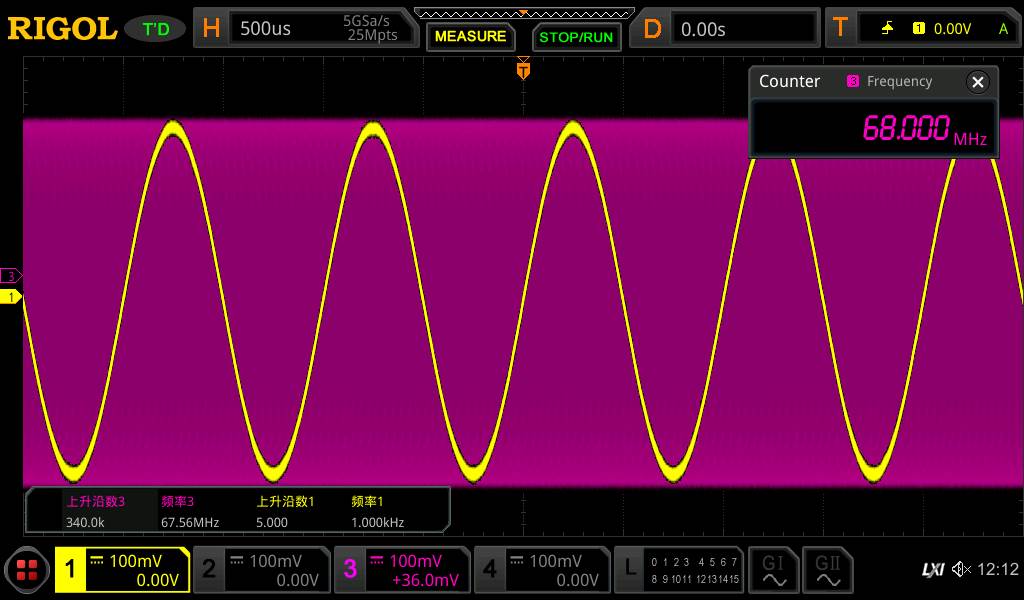

  • Integrates 6 independent instruments into 1, including digital oscilloscope, spectrum analyser, AWG (option), digital voltmeter, 6-digit counter and totalizer, and protocol analyser (option)

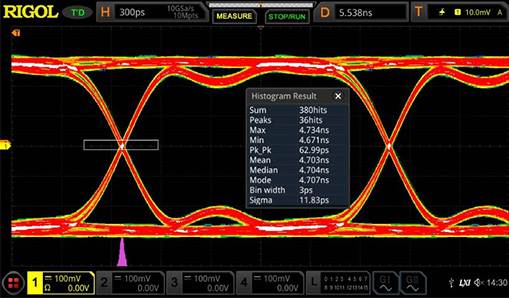

  • Available to be extended to 512 channels, supporting synchronous acquisition (with the multi-channel synchronization module) Real-time eye diagram and jitter analysis software (option for DS8104-R/DS8204-R, but unavailable for DS8034-R)
  • Built-in advanced power analysis software (option)

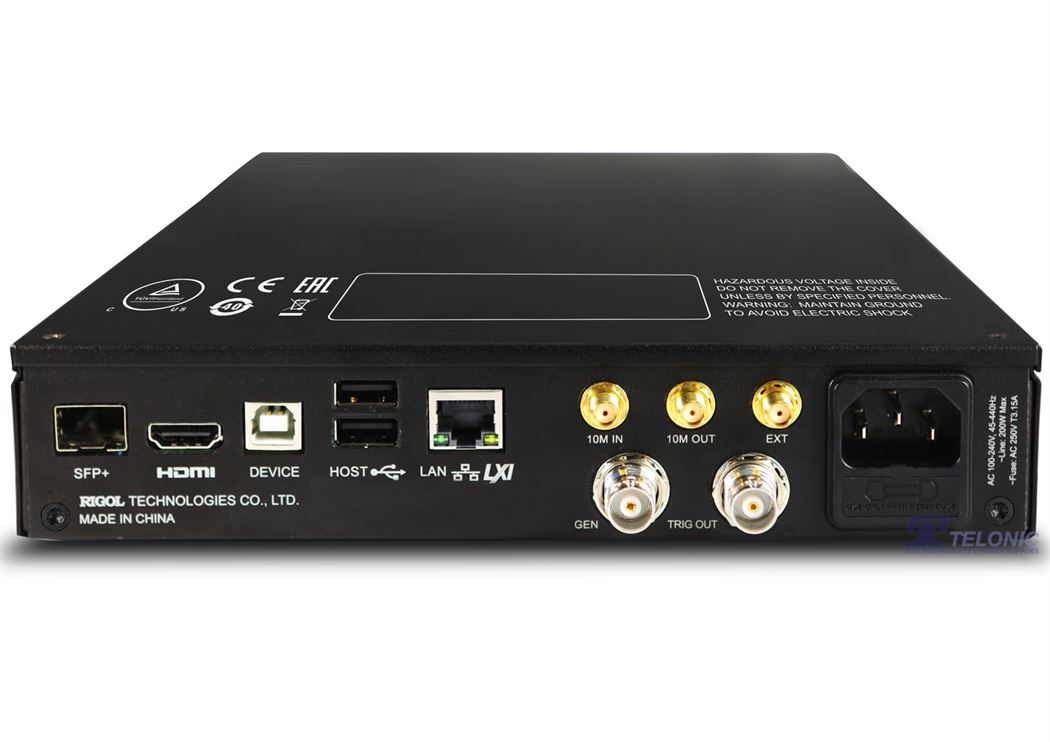

  • Operating temperature low below -40℃, available to be used for signal monitoring in some special conditions Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), 10 GE SFP+, HDMI, TRIG OUT, 10 MHz In, and 10 MHz Out
  • Web Control remote command
  • Compact and thin design, save rack space, 1U rack mount kit (standard)
  • Software development kit available for users to meet their customised development according to their specific scenarios
  • Easy-to-use on-site multi-channel synchronisation calibration kit, enabling you to view multiple channels synchronously
