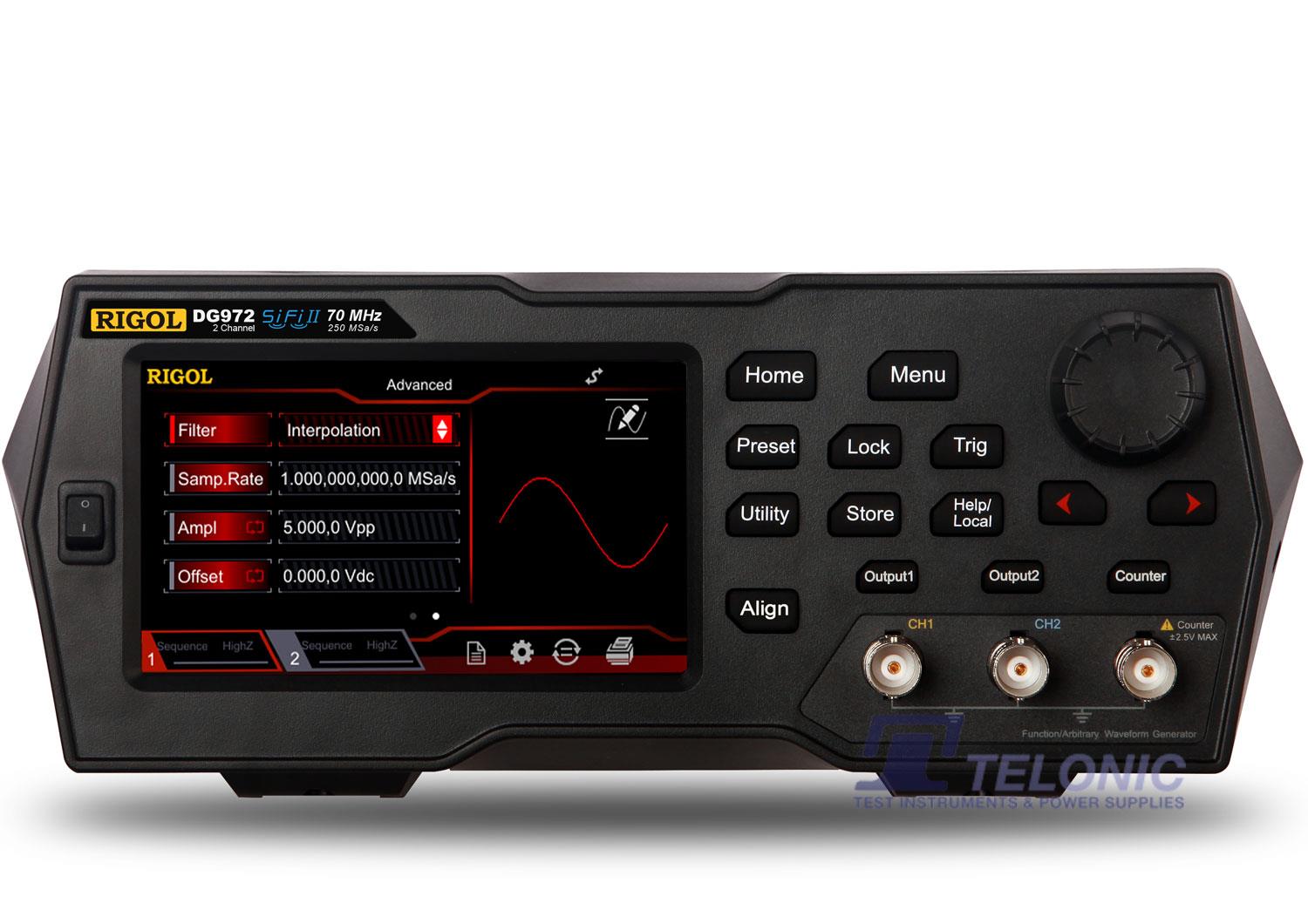

Image of Dg972 telonic
Image of Dg900 side telonic
Image of Dg900 back tel

Discontinued: Rigol DG972 70MHz Function / Arbitrary Waveform Generator

£725.00 (£870.00 inc. VAT)

Out of stock

SKU: DG972 Category: Brand:

Description


This Series has been Discontinued. Please See the New Series Here.

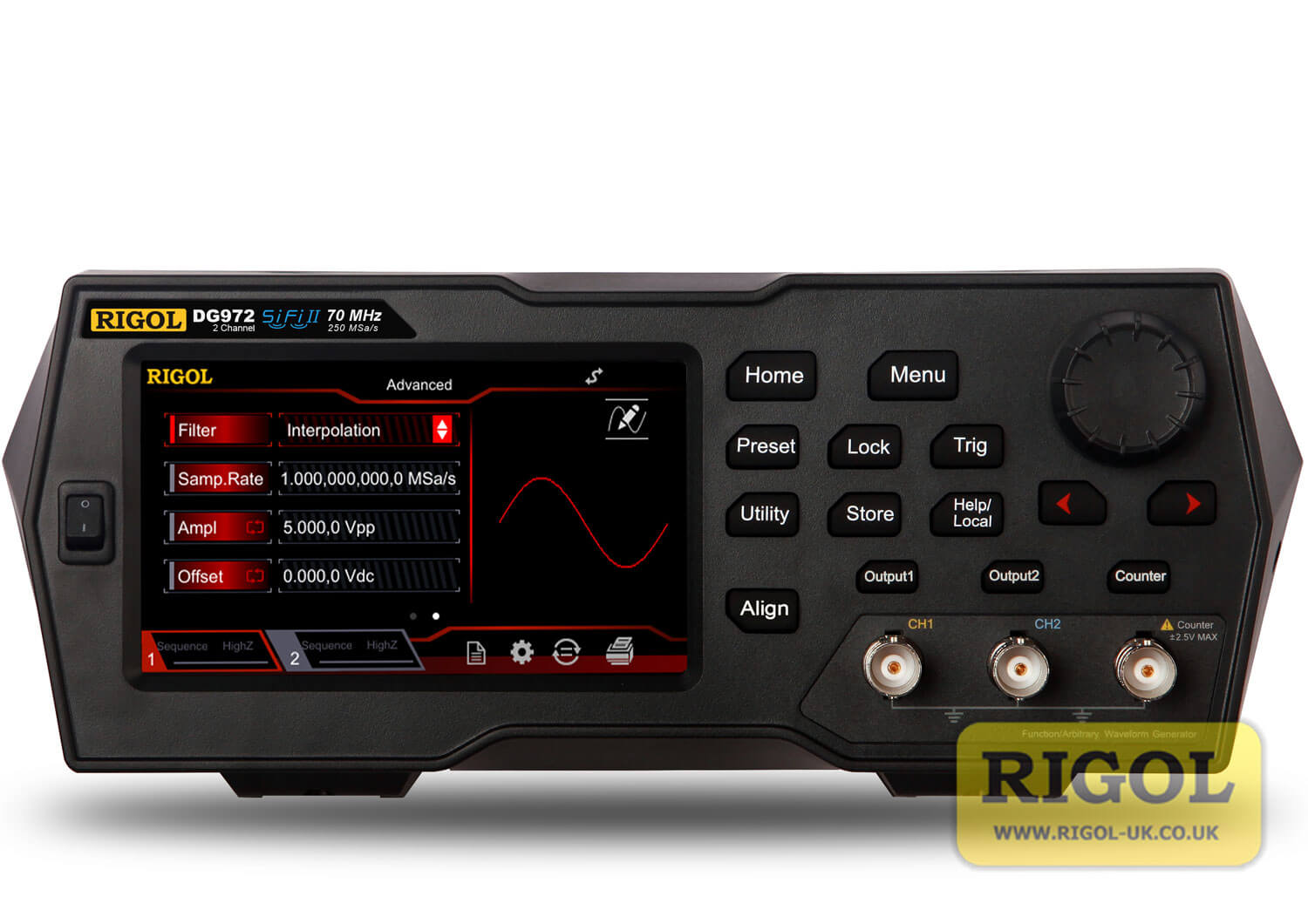

Rigol DG972 Function Generator

The DG972 is a 2CH, 70MHz Function Generator with a maximum sampling rate of 250MSa/s. The Rigol DG900 series offers a user-friendly and high-performance function/arbitrary waveform generator solution at a very attractive price. Each instrument provides many functions including; function generator, arbitrary waveform generator, noise source, pulse generator, harmonics generator, analogue / digital modulator and frequency counter. Any Rigol DG900 series function/arbitrary waveform generator would be a valuable asset in any home, business or education laboratory.

Features:

  • Unique SiFiII (Signal Fidelity II) technology
  • Two fully functional and independent channels
  • Maximum frequency 70MHz
  • 250MSa/s sample rate
  • 16-bit vertical resolution
  • Basic waveforms: Sine, square, ramp, pulse, noise, DC, dual-tone
  • Advanced waveforms: PRBS, RS232, sequence
  • 160-off built-in arbitrary waveforms
  • 16Mpts arbitrary waveform memory depth per channel
  • Supported modulation: AM, FM, PM, ASK, FSK, PSK & PWM
  • Intuitive arbitrary waveform editing software for PC
  • ±1ppm frequency stability
  • Phase noise <-105dBc/Hz @ 10kHz (f = 10MHz)
  • Built-in 7 digit counter up to 240MHz
  • Built-in 8th order harmonics generator
  • Waveform summing function
  • 4.3″ TFT LCD colour touch-screen display (480 x 272), 16M colours
  • Connectivity… USB Host & Device, (USB-LAN optional)
  • Standard accessories… UK & European mains leads, BNC cable, USB cable, quick guide
  • Optional accessories… 40dB attenuator, USB to LAN module
  • Other options include… Telonic Standard Calibration (traceable to UK national standards), RCL 17025 Calibration

Rigol DG900 Function Generator Comparison Table

MODEL Channels Maximum Frequency Sample Rate Accuracy Built-In Waveforms Modulation Connections
DG952 2 50MHz 250MSa/s ±1ppm 7-off Basic,
3-off Advanced,
160-off Arbitrary		 AM, FM, PM, ASK, FSK, PSK and PWM USB Host&Device (std.)
USB-LAN (opt.)
DG972 2 70MHz 250MSa/s ±1ppm 7-off Basic,
3-off Advanced,
160-off Arbitrary		 AM, FM, PM, ASK, FSK, PSK and PWM USB Host&Device (std.)
USB-LAN (opt.)
DG992 2 100MHz 250MSa/s ±1ppm 7-off Basic,
3-off Advanced,
160-off Arbitrary		 AM, FM, PM, ASK, FSK, PSK and PWM USB Host&Device (std.)
USB-LAN (opt.)

Product Images

4.3 Inch Touch Screen

Support Multiple Signal Outputs

Signal Jitter As Low As 200ps

SiFi II Technology

Harmonic Generator

Fanless Silent Operation

Arb Sequencing

16bit Vertical Resolution

×

Product Videos

YouTube Video
RIGOL's DG800 and DG900 series Arbitrary Function Generators
YouTube Video
DG800 and DG900 Series User Interface
YouTube Video
Benefits of 16 Bit Resolution
YouTube Video
Harmonic Generation
YouTube Video
Sequence Mode
YouTube Video
SiFi II Technology
YouTube Video
Dual Tone Outputs

Documentation

Rigol DG900 Datasheet Rigol DG900 User Guide SiFi 2 Technology and 16 Bit Resolution App Note
Specification DG952 DG972 DG992
Channels 2 2 2
Max. Frequency 50MHz 70MHz 100MHz
Sample Rate 250MSa/s 250MSa/s 250MSa/s
Waveform DG952 DG972 DG992
Basic Waveforms Sine, Square, Ramp, Pulse, Noise, DC, Dual-tone Sine, Square, Ramp, Pulse, Noise, DC, Dual-tone Sine, Square, Ramp, Pulse, Noise, DC, Dual-tone
Advanced Waveforms PRBS, RS232, Sequence PRBS, RS232, Sequence PRBS, RS232, Sequence
Built-in Arbitrary Waveforms 160 types of waveforms, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, etc. 160 types of waveforms, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, etc. 160 types of waveforms, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, etc.
Frequency Characteristics DG952 DG972 DG992
Sine 1 μHz to 50MHz 1 μHz to 70MHz 1 μHz to 100MHz
Square 1 μHz to 15 MHz 1 μHz to 20 MHz 1 μHz to 25 MHz
Ramp 1 μHz to 1.5 MHz 1 μHz to 1.5 MHz 1 μHz to 2 MHz
Pulse 1 μHz to 15 MHz 1 μHz to 20 MHz 1 μHz to 25 MHz
Harmonic 1 μHz to 20 MHz 1 μHz to 20 MHz 1 μHz to 25 MHz
PRBS 2 kbps to 40 Mbps 2 kbps to 50 Mbps 2 kbps to 60 Mbps
Dual-tone 1 μHz to 20 MHz 1 μHz to 20 MHz 1 μHz to 20 MHz
RS232 baud rate range: 9600, 14400, 19200, 38400, 57600, 115200, 128000, 230400 baud rate range: 9600, 14400, 19200, 38400, 57600, 115200, 128000, 230400 baud rate range: 9600, 14400, 19200, 38400, 57600, 115200, 128000, 230400
Sequence 2 k to 60 MSa/s 2 k to 60 MSa/s 2 k to 60 MSa/s
Noise (-3dB) 100 MHz bandwidth 100 MHz bandwidth 100 MHz bandwidth
Arbitrary Waveform 1 μHz to 15 MHz 1 μHz to 20 MHz 1 μHz to 20 MHz
Resolution 1 μHz 1 μHz 1 μHz
Accuracy ±(1 ppm of the setting value + 10 pHz), 18℃ to 28℃ ±(1 ppm of the setting value + 10 pHz), 18℃ to 28℃ ±(1 ppm of the setting value + 10 pHz), 18℃ to 28℃
General Specifications DG952 DG972 DG992
Power Voltage 100 V to 127 V (45 Hz to 440 Hz) 100 V to 240 V (45 Hz to 65 Hz) 100 V to 127 V (45 Hz to 440 Hz) 100 V to 240 V (45 Hz to 65 Hz) 100 V to 127 V (45 Hz to 440 Hz) 100 V to 240 V (45 Hz to 65 Hz)
Power Consumption Lower than 30 W Lower than 30 W Lower than 30 W
Display
Type 4.3-inch TFT LCD touch screen 4.3-inch TFT LCD touch screen 4.3-inch TFT LCD touch screen
Resolution 480 horizontal × RGB × 272 vertical resolution 480 horizontal × RGB × 272 vertical resolution 480 horizontal × RGB × 272 vertical resolution
Colour 16 M 16 M 16 M
Environment
Temperature Range Operating: 0℃ to 45℃ Non-operating: -40℃ to 60℃ Operating: 0℃ to 45℃ Non-operating: -40℃ to 60℃ Operating: 0℃ to 45℃ Non-operating: -40℃ to 60℃
Cooling Method Natural air cooling Natural air cooling Natural air cooling
Humidity Range Below 30℃: ≤95%RH 30℃ to 40℃: ≤75%RH 40℃ to 50℃: ≤45%RH Below 30℃: ≤95%RH 30℃ to 40℃: ≤75%RH 40℃ to 50℃: ≤45%RH Below 30℃: ≤95%RH 30℃ to 40℃: ≤75%RH 40℃ to 50℃: ≤45%RH
Altitude Operating: below 3,000 meters Non-operating: below 15,000 meters Operating: below 3,000 meters Non-operating: below 15,000 meters Operating: below 3,000 meters Non-operating: below 15,000 meters
Dimensions (W×H×D) 237.4 mm × 97 mm × 268 mm 237.4 mm × 97 mm × 268 mm 237.4 mm × 97 mm × 268 mm

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
