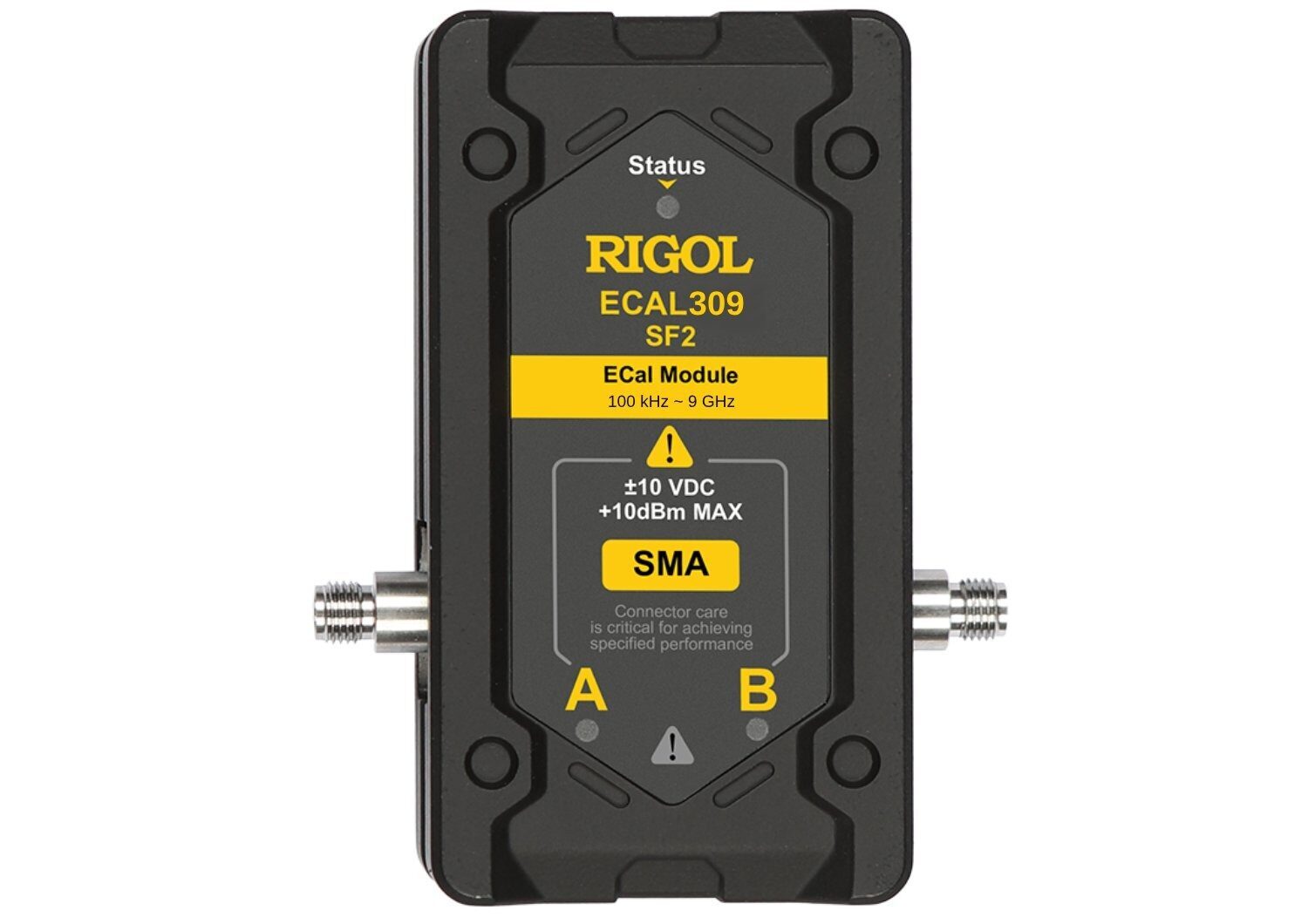

Rigol ECAL309-SF2 Economy Electronic Calibration Module, 100 kHz ~ 9 GHz, SMA (f), 2 ports

£1333.00 (£1599.60 inc. VAT) (£1,599.60 inc VAT)

Available on back-order, delivery normally 1 - 2 weeks

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: ECAL309-SF2 Categories: , Brand:

Description


Rigol ECAL309-SF2 Economy Electronic Calibration Module, 100 kHz ~ 9 GHz, SMA (f), 2 ports

The electronic calibration module is a device that automates the calibration of vector network analysers (VNAs). It simplifies the process, reduces setup time, and minimises the human factor.

The module includes: a short-circuit measure (Short), an open-circuit measure (Open), a matched-load measure (Load), and a transition (Thru).

The module enables dual-port SOLT calibration with a single connection, making it significantly more efficient than traditional mechanical methods. The ECAL304-SF2 connects to the VNA via a USB interface, and subsequent calibration is controlled by software.

The module memory stores individually measured S-parameters of each calibration element, which ensures high accuracy and repeatability of results.

SpecificationFrequency rangeECAL304-SF2ECAL309-SF2ECAL314-SF2ECAL304-NF2ECAL309-NF2ECAL314-NF2
Operating range100 kHz – 4.5 GHz100 kHz – 9 GHz100 kHz – 14 GHz100 kHz – 4.5 GHz100 kHz – 9 GHz100 kHz – 14 GHz
Number of ports222222
Impedance50 Ohm50 Ohm50 Ohm50 Ohm50 Ohm50 Ohm
Connector typeSMA socketSMA socketSMA socketN socketN socketN socket
Maximum input power calibration-5 dBm-5 dBm-5 dBm-5 dBm-5 dBm-5 dBm
Maximum port power+10 dBm+10 dBm+10 dBm+10 dBm+10 dBm+10 dBm
Control port typeUSBUSBUSBUSBUSBUSB
DC power supply+5 V, 500 mA+5 V, 500 mA+5 V, 500 mA+5 V, 500 mA+5 V, 500 mA+5 V, 500 mA
Direction100 kHz – 10 MHz40 dB40 dB40 dB40 dB40 dB40 dB
10 MHz – 4.5 GHz38 dB38 dB38 dB38 dB38 dB38 dB
4.5 GHz – 9 GHz—36 dB36 dB—36 dB36 dB
9 GHz – 14 GHz——36 dB——36 dB
Source approval100 kHz – 10 MHz30 dB30 dB30 dB30 dB30 dB30 dB
10 MHz – 4.5 GHz30 dB30 dB30 dB30 dB30 dB30 dB
4.5 GHz – 9 GHz—28 dB28 dB—28 dB28 dB
9 GHz – 14 GHz——28 dB——28 dB
Load matching100 kHz – 10 MHz35 dB35 dB35 dB35 dB35 dB35 dB
10 MHz – 4.5 GHz32 dB32 dB32 dB32 dB32 dB32 dB
4.5 GHz – 9 GHz—30 dB30 dB—30 dB30 dB
9 GHz – 14 GHz——28 dB——28 dB
Unevenness of the reflection coefficient100 kHz – 10 MHz±0.13 dB±0.13 dB±0.13 dB±0.13 dB±0.13 dB±0.13 dB
10 MHz – 4.5 GHz±0.18 dB±0.18 dB±0.18 dB±0.18 dB±0.18 dB±0.18 dB
4.5 GHz – 9 GHz—±0.25 dB±0.25 dB—±0.25 dB±0.25 dB
9 GHz – 14 GHz——±0.25 dB——±0.25 dB
Unevenness of the transmission coefficient100 kHz – 10 MHz±0.15 dB±0.15 dB±0.15 dB±0.15 dB±0.15 dB±0.15 dB
10 MHz – 4.5 GHz±0.20 dB±0.20 dB±0.20 dB±0.20 dB±0.20 dB±0.20 dB
4.5 GHz – 9 GHz—±0.22 dB±0.22 dB—±0.22 dB±0.22 dB
9 GHz – 14 GHz——±0.30 dB——±0.30 dB
Operating temperature range+15°C – +35°C+15°C – +35°C+15°C – +35°C+15°C – +35°C+15°C – +35°C+15°C – +35°C
Geometric dimensions86 mm × 84 mm × 28.42 mm86 mm × 84 mm × 28.42 mm86 mm × 84 mm × 28.42 mm86 mm × 84 mm × 28.42 mm86 mm × 84 mm × 28.42 mm86 mm × 84 mm × 28.42 mm
Weight180 g180 g180 g180 g180 g180 g
