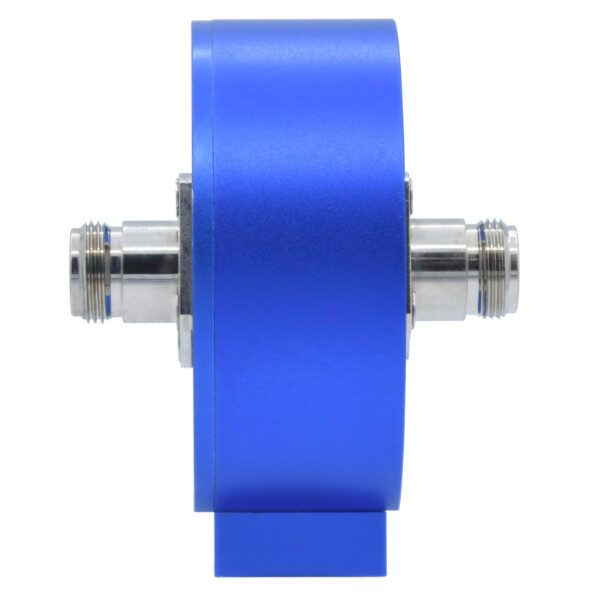

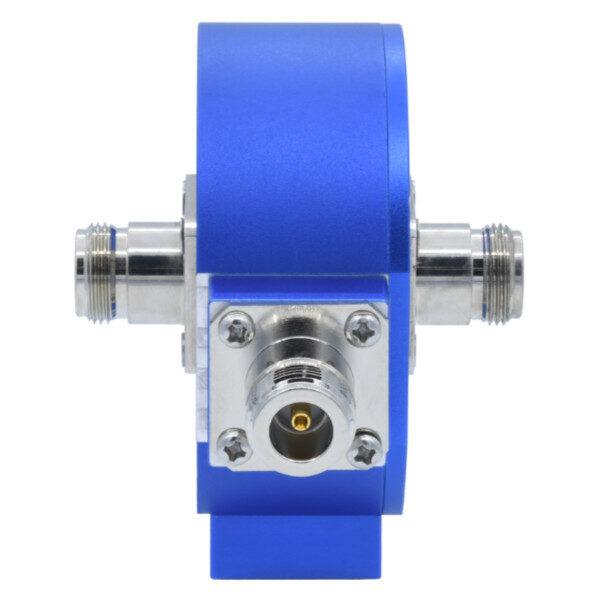

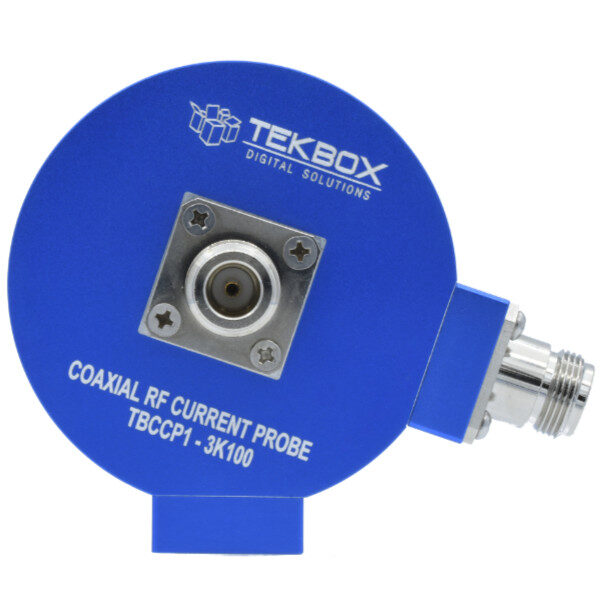

TEKBOX TBCCP1-3K100 3 kHz to 100 MHz Coaxial RF Current Monitoring Probe

Name: TEKBOX TBCCP1-3K100 3 kHz to 100 MHz Coaxial RF Current Monitoring Probe
Brand: TEKBOX
SKU: TBCCP1-3K100
Availability: InStock

£829.00 (£994.80 inc. VAT)

1 in stock

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBCCP1-3K100 Category: Uncategorized Tag: Safety & Compliance Brand: TEKBOX

Documentation

User Manual Tekbox TBCCP1-3K100 User Manual

Specifications
Characterised frequency range	10 Hz to 100 MHz
3 dB bandwidth:	3 kHz to 100 MHz, typ.
Footprint	76 mm x 102 x 69 mm
Weight	400 g
Connector type	N female
Transfer impedance	5 dB Ohm
Max. primary current (RF)	12 A
Max. core temperature	125 °C

Frequency (MHz)	Transfer Impedance (dBΩ)	Frequency (MHz)	Transfer Impedance (dBΩ)
0.00001	-40.60	0.25	5.16
0.000025	-34.42	0.5	5.15
0.00005	-28.46	0.75	5.15
0.000075	-24.97	1	5.15
0.0001	-22.47	2.5	5.15
0.00025	-14.57	5	5.14
0.0005	-8.70	7.5	5.14
0.00075	-5.38	10	5.12
0.001	-3.17	20	5.03
0.00125	-1.58	30	4.84
0.0015	-0.39	40	4.54
0.00175	0.53	50	4.21
0.002	1.25	55	3.99
0.00225	1.83	60	3.76
0.0025	2.29	65	3.54
0.005	4.25	70	3.32
0.0075	4.73	75	3.08
0.01	4.91	80	2.87
0.025	5.12	85	2.69
0.05	5.15	90	2.52
0.075	5.16	95	2.36
0.1	5.16	100	2.26
